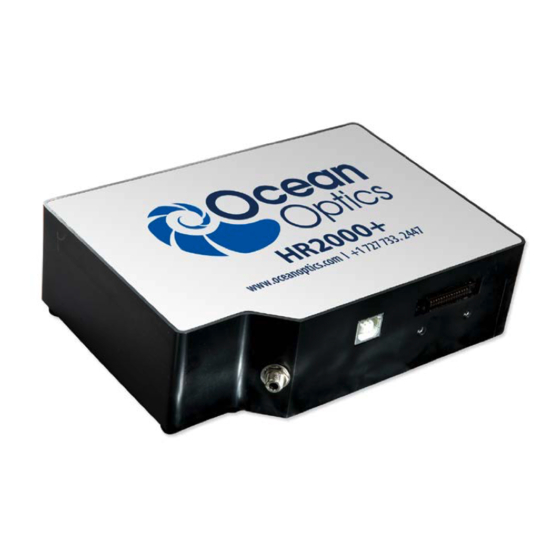

Ocean Optics HR2000+ Installation And Operation Manual

High-speed fiber optic spectrometer
Hide thumbs Also See for HR2000+:
Table of Contents

Advertisement

Quick Links

HR2000+ High-speed Fiber Optic Spectrometer
Installation and Operation Manual
Document Number 294-00000-000-02-201012
Offices:
E-mail:
000-00000-000-02-A
Ocean Optics, Inc. World Headquarters
830 Douglas Ave., Dunedin, FL, USA 34698
Phone
727.733.2447
Fax
727.733.3962
8 a.m.– 8 p.m. (Mon-Thu), 8 a.m.– 6 p.m. (Fri) EST
Info@OceanOptics.com
Orders@OceanOptics.com
TechSupport@OceanOptics.com (Technical support)
(General sales inquiries)
(Questions about orders)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR2000+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ocean Optics HR2000+

Summary of Contents for Ocean Optics HR2000+

  • Page 1 HR2000+ High-speed Fiber Optic Spectrometer Installation and Operation Manual Document Number 294-00000-000-02-201012 Offices: Ocean Optics, Inc. World Headquarters 830 Douglas Ave., Dunedin, FL, USA 34698 Phone 727.733.2447 727.733.3962 8 a.m.– 8 p.m. (Mon-Thu), 8 a.m.– 6 p.m. (Fri) EST E-mail: Info@OceanOptics.com...
  • Page 2 Every effort has been made to make this manual as complete and as accurate as possible, but no warranty or fitness is implied. The information provided is on an “as is” basis. Ocean Optics, Inc. shall have neither liability nor responsibility to any person or entity with respect to any loss or damages arising from...

  • Page 3: Table Of Contents

    Table of Contents About This Manual......................iii Document Purpose and Intended Audience................iii What’s New in this Document ....................iii Document Summary........................iii Product-Related Documentation..................iii Upgrades........................iv Chapter 1: Introduction ..............1 Product Overview ......................1 System Requirements ....................2 EEPROM Utilization ........................
  • Page 4 Table of Contents Chapter 3: Troubleshooting ..............9 Overview ........................9 HR2000+ Connected to PC Prior to Software Installation ..........9 Windows Operating Systems ....................9 Remove the Unknown Device from Windows Device Manager ........... 10 Remove Improperly Installed Files..................10 Mac Operating Systems ......................

  • Page 5: About This Manual

    HR2000+ Spectrometers. Product-Related Documentation You can access documentation for Ocean Optics products by visiting our website at http://www.oceanoptics.com. Select Technical → Operating Instructions, then choose the appropriate document from the available drop-down lists. Or, use the Search by Model Number field at the bottom of the web page.

  • Page 6: Upgrades

    Resources CD that ships with the product. Upgrades Occasionally, you may find that you need Ocean Optics to make a change or an upgrade to your system. To facilitate these changes, you must first contact Customer Support and obtain a Return Merchandise Authorization (RMA) number.

  • Page 7: Chapter 1: Introduction

    With its capability of transferring 1ms spectra continuously, the HR2000+ is the fastest spectrometer available from Ocean Optics. The HR2000+ is perfect for applications where fast reactions need to be monitored and high resolution is necessary, such as chemistry and biochemistry applications.

  • Page 8: System Requirements

    PC. About SpectraSuite SpectraSuite is the latest generation of operating software for all Ocean Optics spectrometers. It is a completely modular, Java-based spectroscopy software platform that operates on Windows, Macintosh and Linux operating systems. The software can control any Ocean Optics USB spectrometer and device, as well as any other manufacturer’s USB instrumentation using the appropriate drivers.

  • Page 9: Modular Sampling Accessories

    Modular Sampling Accessories Ocean Optics offers a complete line of spectroscopic accessories for use with the HR2000+. Most of our spectroscopic accessories have SMA connectors for application flexibility. Accordingly, changing the sampling system components is as easy as unscrewing a connector and replacing an accessory.

  • Page 10: Shipment Components

    Ocean Optics software, spectrometers, and spectroscopic accessories. You must have Adobe Acrobat Reader version 6.0 or higher to view these files. Ocean Optics includes the Adobe Acrobat Reader on the Software and Technical Resources CD.

  • Page 11: Chapter 2: Installing The Hr2000

    Chapter 2 Installing the HR2000+ Overview You must install the software application prior to connecting the HR2000+ Spectrometer to the PC. The software installation installs the drivers required for HR2000+ installation. If you do not install the software first, the system will not properly recognize the HR2000+. If you have already connected the HR2000+ to the PC prior to installing the software, consult Chapter 3: Troubleshooting for information on correcting a corrupt HR2000+ installation.

  • Page 12: Configuring The Hr2000+ With Ooibase32

    2: Installing the HR2000+ Once you install the SpectraSuite software and the hardware, and establish your sampling system, you are ready to take measurements. Configuring the HR2000+ with OOIBase32 Once you install the HR2000+ with OOIBase32 software, you must configure OOIBase32’s Configure Spectrometer options so that OOIBase32 recognizes the HR2000+ Spectrometer.

  • Page 13: Spectrometer Configuration Screen

    2: Installing the HR2000+ Procedure ► To configure hardware in USB Mode: 1. Specify S2000 in the Spectrometer Type drop-down menu. 2. Specify HR2000+ in the A/D Converter Type drop-down menu. 3. Specify the serial number of the HR2000+ under the USB Serial Number drop-down menu. Note The system pre-fills this drop-down menu with the serial numbers of all discovered HR2000+ Spectrometers.

  • Page 14: Connect Spectroscopic Accessories

    OOIBase32 stores this information for future use once you close the program. Connect Spectroscopic Accessories To find operating instructions for HR2000+-compatible products (such as light sources, sampling chambers, and probes), consult the Software and Technical Resources CD or the Ocean Optics website at http://www.oceanoptics.com/technical/operatinginstructions.asp External Triggering Options You can trigger the HR2000+ using a variety of External Triggering options through the 30-pin Accessory Connector on the spectrometer.

  • Page 15: Chapter 3: Troubleshooting

    Installation Windows Operating Systems If you connected your Ocean Optics USB device to the computer prior to installing your Ocean Optics software application, you may encounter installation issues that you must correct before your Ocean Optics device will operate properly.

  • Page 16: Remove The Unknown Device From Windows Device Manager

    2000 or XP operating system, you must also delete the OOI_USB.PNF file in the INF directory. 4. Navigate to the Windows | System32 | Drivers directory. 5. Delete the EZUSB.SYS file. 6. Reinstall your Ocean Optics application and reboot the system when prompted. 294-00000-000-02-201012...

  • Page 17: Mac Operating Systems

    If the PC to be used to interface to your HR2000+ already has an older version of OOIBase32 software installed, you must install the latest version of OOIBase32. You can download the latest version of OOIBase32 from the Ocean Optics website at http://www.oceanoptics.com/technical/softwaredownloads.asp.
  • Page 18 3: Troubleshooting 294-00000-000-02-201012...

  • Page 19: Appendix A: Calibrating The Wavelength Of The Hr2000

    This appendix describes how to calibrate the wavelength of your spectrometer. Though each spectrometer is calibrated before it leaves Ocean Optics, the wavelength for all spectrometers will drift slightly as a function of time and environmental conditions. Ocean Optics recommends periodically recalibrating the HR2000+.

  • Page 20: Calibrating The Spectrometer

    A light source capable of producing spectral lines Note Ocean Optics’ HG-1 Mercury-Argon lamp is ideal for recalibration. If you do not have an HG-1, you need a light source that produces several (at least 4-6) spectral lines in the wavelength region of your spectrometer.
  • Page 21 A: Calibrating the Wavelength of the HR2000+ Independent Values Computed Dependent from the Regression Variable Variables Output Predicted True Wavelength (nm) Pixel # Pixel # Pixel # Difference Wavelength 253.65 30625 5359375 253.56 0.09 87616 25934336 296.72 0.01 296.73 302.15 97344 30371328 302.40...

  • Page 22: Saving The New Calibration Coefficients: Usb Mode

    Saving the New Calibration Coefficients: USB Mode Ocean Optics programs wavelength calibration coefficients unique to each HR2000+ onto an EEPROM memory chip in the HR2000+. You can overwrite old calibration coefficients on the EEPROM if you are using the HR2000+ via the USB port.

  • Page 23: Saving The New Calibration Coefficients: Serial Mode

    A: Calibrating the Wavelength of the HR2000+ Saving the New Calibration Coefficients: Serial Mode If you are connecting the HR2000+ Spectrometer to the serial port of the PC, you need to save the new wavelength calibration coefficients to the .SPEC file that OOIBase32 accesses when opened. Note You cannot save the calibration coefficients to the EEPROM memory chip on the HR2000+ when using the serial mode.
  • Page 24 A: Calibrating the Wavelength of the HR2000+ 294-00000-000-02-201012...

  • Page 25: Appendix B: Specifications

    Appendix B Specifications Overview This appendix contains information on spectrometer operation, specifications, and system compatibility. It also includes accessory connector pinout diagrams and pin-specific information. How the HR2000+ Works Below is a diagram of how light moves through the optical bench of an HR2000+ Spectrometer. The optical bench has no moving parts that can wear or break;...

  • Page 26: Hr2000+ Components Table

    B: HR2000+ Specifications HR2000+ Components Table Ocean Optics permanently secures all components in the HR2000+ at the time of manufacture. Only Ocean Optics technicians can replace interchangeable components, where noted. Item Name Description Secures the input fiber to the spectrometer. Light from the input fiber enters the Connector optical bench through this connector.

  • Page 27: Hr2000+ Specifications

    B: HR2000+ Specifications HR2000+ Specifications The following sections provide specification information for the CCD detector in the HR2000+, as well as the HR2000+ Spectrometer itself. HR2000+CG-UV-NIR specifications are listed in Appendix C: Error! Reference source not found.. CCD Detector Specifications...

  • Page 28: System Compatibility

    B: HR2000+ Specifications Specification Value Entrance aperture 5, 10, 25, 50, 100 or 200 µm wide slits Order-sorting filters Installed longpass and bandpass filters Focal length f/4, 101 mm Optical resolution Depends on grating and size of entrance aperture Stray light <0.05% at 600 nm;...

  • Page 29: 30-Pin Accessory Connector Pinout

    B: HR2000+ Specifications 30-Pin Accessory Connector Pinout The HR2000+ features a 30-pin Accessory Connector, located on the side of the unit as shown: Location of HR2000+ 30-Pin Accessory Connector 30-Pin Accessory Connector Pinout Diagram When facing the 30-pin Accessory Connector on the front of the vertical wall of the HR2000+, pin numbering is as follows: Port 30-Pin Accessory Connector Pinout Diagram...
  • Page 30 B: HR2000+ Specifications Function Input/Output Description Ground Input/Output Ground C SCL Input/Output C clock signal for communication to other I C peripherals General purpose software-programmable, digital input/output GPIO (0) Input/Output (channel number) Reserved C SDA Input/Output C data signal for communication to other I C peripherals General purpose software-programmable, digital input/output GPIO (1)

  • Page 31: 30-Pin J2 Accessory Connector - Part Numbers

    B: HR2000+ Specifications Function Input/Output Description General purpose software-programmable, digital input/output GPIO (6) Input/Output (channel number) Reserved Analog In Input 13-bit analog-to-digital input with a 0-5V range. For future use. (0-5V) Analog Out Output 9-bit programmable output voltage with a 0-5V range (0-5V) Lamp TTL signal driven Active HIGH when the Lamp Enable command...

  • Page 32: Hr2000+ 15-Pin Accessory Cable Pinout

    B: HR2000+ Specifications HR2000+ 15-Pin Accessory Cable Pinout Pin # Description Pin # Description Single_strobe GPIO-9 ContStrobe GND_SIGNAL V5_SW ExtTrigIn ExtTrigIn LampEnable GPIO-8 A_IN A_OUT GPIO-7 ExtTrigIn 294-00000-000-02-201012...

  • Page 33: Index
