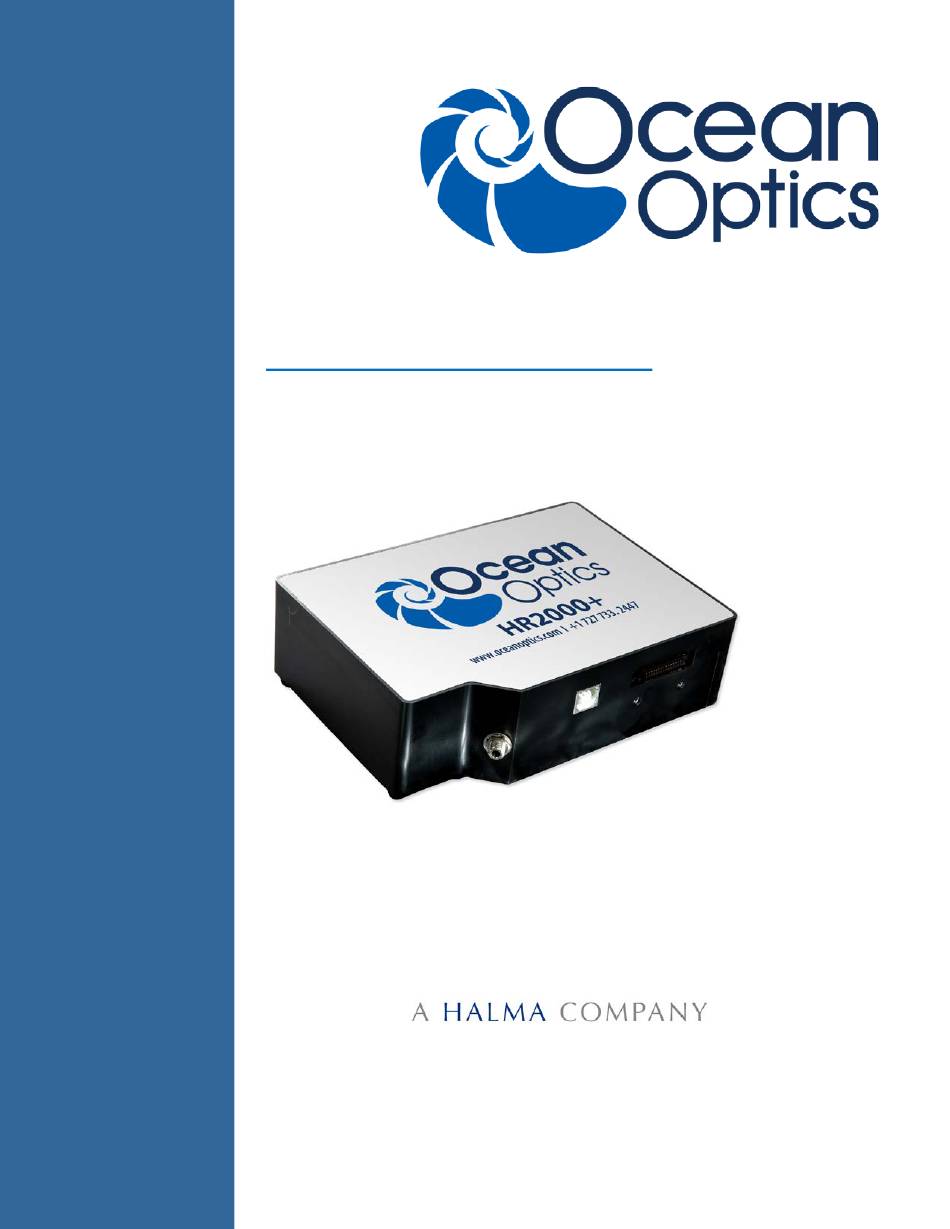

- Page 1 HR2000+ Spectrometer Installation and Operation Manual For Products: HR2000+, HR2000+CG, HR2000+ES Document: 294-00000-000-02-201502 000-00000-000-02-A...
- Page 2 Every effort has been made to make this manual as complete and as accurate as possible, but no warranty or fitness is implied. The information provided is on an “as is” basis. Ocean Optics, Inc. shall have neither liability nor responsibility to any person or entity with respect to any loss or damages arising from...
-
Page 3: Table Of Contents
Table of Contents About This Manual ......................iii Document Purpose and Intended Audience ................iii What’s New in this Document ....................iii Document Summary ........................iii Product-Related Documentation ..................iii Upgrades ........................iv Warranty ........................iv Chapter 1: Introduction ..............1 Product Overview ...................... - Page 4 Table of Contents Appendix A: Calibrating the Wavelength of the HR2000+ ....11 Overview ........................11 About Wavelength Calibration ..................11 Calibrating the Spectrometer ..................12 Preparing for Calibration ......................12 Calibrating the Wavelength of the Spectrometer ..............12 Saving the New Calibration Coefficients: USB Mode ............. 14 Appendix B: Specifications ...............
-
Page 5: About This Manual
Contains technical specifications and connector pinouts for the Appendix B: HR2000+ Spectrometers. Product-Related Documentation You can access documentation for Ocean Optics products by visiting our website at http://www.oceanoptics.com. Select Technical Operating Instructions, then choose the appropriate document from the available drop-down lists. Document for…... -
Page 6: Upgrades
Upgrades Occasionally, you may find that you need Ocean Optics to make a change or an upgrade to your system. To facilitate these changes, you must first contact Customer Support and obtain a Return Merchandise Authorization (RMA) number. Please contact Ocean Optics for specific instructions when returning a product. - Page 7 About This Manual WARNING This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. FCC COMPLIANCE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
- Page 8 About This Manual 294-00000-000-02-201502...
-
Page 9: Chapter 1: Introduction
With its capability of transferring 1ms spectra continuously, the HR2000+ is the fastest spectrometer available from Ocean Optics. The HR2000+ is perfect for applications where fast reactions need to be monitored and high resolution is necessary, such as chemistry and biochemistry applications. -
Page 10: System Requirements
PC. About OceanView Software OceanView is the latest generation of operating software for all Ocean Optics spectrometers. It is a completely modular, Java-based spectroscopy software platform that operates on Windows, Macintosh and Linux operating systems. The software can control any Ocean Optics USB spectrometer and device. -
Page 11: Modular Sampling Accessories
Modular Sampling Accessories Ocean Optics offers a complete line of spectroscopic accessories for use with the HR2000+. Most of our spectroscopic accessories have SMA connectors for application flexibility. Accordingly, changing the sampling system components is as easy as unscrewing a connector and replacing an accessory. - Page 12 1: Introduction Note Please save the Wavelength Calibration Data Sheet for future reference. Other Accessories Available Visit us at www.OceanOptics.com for a complete list of products available for all of your spectroscopy needs. Fibers Light Sources Integrated Sampling Systems ...
-
Page 13: Chapter 2: Installing The Hr2000
Chapter 2 Installing the HR2000+ Overview You must install the operating software application prior to connecting the HR2000+ Spectrometer to the PC. The software installation installs the drivers required for HR2000+ installation. If you do not install the software first, the system will not properly recognize the HR2000+. If you have already connected the HR2000+ to the PC prior to installing the software, consult Chapter 3: Troubleshooting for information on correcting a corrupt HR2000+ installation. - Page 14 4. Plug the 5 VDC external power supply into an outlet and connect it to the HR2000+. Connect Spectroscopic Accessories To find operating instructions for HR2000+-compatible products (such as light sources, sampling chambers, and probes), consult the Ocean Optics website at http://oceanoptics.com/support/technical- documents/.
-
Page 15: Chapter 3: Troubleshooting
Installation Windows Operating Systems If you connected your Ocean Optics USB device to the computer prior to installing your Ocean Optics software application, you may encounter installation issues that you must correct before your Ocean Optics device will operate properly. -
Page 16: Remove Improperly Installed Files
4. Navigate to the Windows | System32 | Drivers directory. 5. Delete the EZUSB.SYS file. 6. Reinstall your Ocean Optics application and reboot the system when prompted. 7. Plug in the USB device. The system is now able to locate and install the correct drivers for the USB device. -
Page 17: Linux Operating Systems
3: Troubleshooting Linux Operating Systems For Linux operating systems, all you need to do is install the spectrometer operating software, then unplug and replug in the spectrometer. Technically, the driver files for Linux simply give nonprivileged users permission to use newly connected hardware. There isn’t any long-term harm to plugging in the device before installing the software. - Page 18 3: Troubleshooting 294-00000-000-02-201502...
-
Page 19: Appendix A: Calibrating The Wavelength Of The Hr2000
This appendix describes how to calibrate the wavelength of your spectrometer. Though each spectrometer is calibrated before it leaves Ocean Optics, the wavelength for all spectrometers will drift slightly as a function of time and environmental conditions. Ocean Optics recommends periodically recalibrating the HR2000+. -
Page 20: Calibrating The Spectrometer
A light source capable of producing spectral lines Note Ocean Optics’ HG-1 Mercury-Argon lamp is ideal for recalibration. If you do not have an HG-1, you need a light source that produces several (at least 4-6) spectral lines in the wavelength region of your spectrometer. - Page 21 A: Calibrating the Wavelength of the HR2000+ Independent Values Computed Dependent from the Regression Variable Variables Output Predicted True Wavelength (nm) Pixel # Pixel # Pixel # Difference Wavelength 5359375 253.56 0.09 253.65 30625 87616 25934336 296.72 0.01 296.73 97344 30371328 302.40 -0.25...
-
Page 22: Saving The New Calibration Coefficients: Usb Mode
Saving the New Calibration Coefficients: USB Mode Ocean Optics programs wavelength calibration coefficients unique to each HR2000+ onto an EEPROM memory chip in the HR2000+. You can overwrite old calibration coefficients on the EEPROM if you are using the HR2000+ via the USB port. -
Page 23: Appendix B: Specifications
Appendix B Specifications Overview This appendix contains information on spectrometer operation, specifications, and system compatibility. It also includes accessory connector pinout diagrams and pin-specific information. How the HR2000+ Works Below is a diagram of how light moves through the optical bench of an HR2000+ Spectrometer. The optical bench has no moving parts that can wear or break;... -
Page 24: Hr2000+ Components Table
B: HR2000+ Specifications HR2000+ Components Table Ocean Optics permanently secures all components in the HR2000+ at the time of manufacture. Only Ocean Optics technicians can replace interchangeable components, where noted. Item Name Description Secures the input fiber to the spectrometer. Light from the input fiber enters the Connector optical bench through this connector. -
Page 25: Hr2000+ Specifications
B: HR2000+ Specifications HR2000+ Specifications The following sections provide specification information for the CCD detector in the HR2000+, as well as the HR2000+ Spectrometer itself. CCD Detector Specifications Specification Value Detector Sony ILX-511B linear silicon CCD array No. of elements 2048 pixels 75 photons per count at 400 nm Sensitivity... -
Page 26: System Compatibility
B: HR2000+ Specifications Specification Value Order-sorting filters Installed longpass and bandpass filters Focal length f/4, 101 mm Optical resolution Depends on grating and size of entrance aperture Stray light <0.05% at 600 nm; <0.10% at 435 nm Dynamic range 2 x 10 (system);... -
Page 27: 30-Pin Accessory Connector Pinout
B: HR2000+ Specifications 30-Pin Accessory Connector Pinout The HR2000+ features a 30-pin Accessory Connector, located on the side of the unit as shown: Location of HR2000+ 30-Pin Accessory Connector 30-Pin Accessory Connector Pinout Diagram When facing the 30-pin Accessory Connector on the front of the vertical wall of the HR2000+, pin numbering is as follows: Port 30-Pin Accessory Connector Pinout Diagram... - Page 28 B: HR2000+ Specifications Function Input/Output Description Ground Input/Output Ground C SCL Input/Output C clock signal for communication to other I C peripherals General purpose software-programmable, digital input/output GPIO (0) Input/Output (channel number) Reserved C SDA Input/Output C data signal for communication to other I C peripherals General purpose software-programmable, digital input/output GPIO (1)
-
Page 29: 30-Pin J2 Accessory Connector - Part Numbers
B: HR2000+ Specifications Function Input/Output Description General purpose software-programmable, digital input/output GPIO (6) Input/Output (channel number) Reserved Analog In Input 13-bit analog-to-digital input with a 0-5V range. For future use. (0-5V) Analog Out Output 9-bit programmable output voltage with a 0-5V range (0-5V) Lamp TTL signal driven Active HIGH when the Lamp Enable command... -
Page 30: Hr2000+ 15-Pin Accessory Cable Pinout
B: HR2000+ Specifications HR2000+ 15-Pin Accessory Cable Pinout Pin # Description Pin # Description Single_strobe GPIO-9 ContStrobe GND_SIGNAL V5_SW ExtTrigIn ExtTrigIn LampEnable GPIO-8 A_IN A_OUT GPIO-7 ExtTrigIn 294-00000-000-02-201502... -
