SpectroClip Probe
SpectroClip-R/SpectroClip-TR/Jaz-SpectroClip-TR
Installation and Operation Manual
Document Number 000-specc-110-02-201203
Offices:
E-mail:
000-00000-000-02-A
Ocean Optics, Inc. World Headquarters
830 Douglas Ave., Dunedin, FL, USA 34698
Phone 727.733.2447
Fax
727.733.3962
8 a.m.– 8 p.m. (Mon-Thu), 8 a.m.– 6 p.m. (Fri) EST
Info@OceanOptics.com
Orders@OceanOptics.com
TechSupport@OceanOptics.com (Technical support)
Protective Eye Wear Must Be Worn When
Using This Instrument -
Intense Ultraviolet Radiation Present
WARNING
See Important Safety Notices inside.
(General sales inquiries)
(Questions about orders)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ocean Optics SpectroClip-R
Summary of Contents for Ocean Optics SpectroClip-R
- Page 1 SpectroClip Probe SpectroClip-R/SpectroClip-TR/Jaz-SpectroClip-TR Installation and Operation Manual Document Number 000-specc-110-02-201203 Offices: Ocean Optics, Inc. World Headquarters 830 Douglas Ave., Dunedin, FL, USA 34698 Phone 727.733.2447 727.733.3962 8 a.m.– 8 p.m. (Mon-Thu), 8 a.m.– 6 p.m. (Fri) EST E-mail: Info@OceanOptics.com (General sales inquiries) Orders@OceanOptics.com...
- Page 2 Every effort has been made to make this manual as complete and as accurate as possible, but no warranty or fitness is implied. The information provided is on an “as is” basis. Ocean Optics, Inc. shall have neither liability nor responsibility to any person or entity with respect to any loss or damages arising from the...
- Page 3 Important Safety Notices 1. Read this manual before you attempt to use this instrument. 2. Do not remove or modify any installed safety device on this equipment. Doing so will void your warranty and create an unsafe operating environment. 3. Only allow qualified personnel to service this unit. 4.
- Page 4 Important Safety Notices 000-specc-110-02-201203...
-
Page 5: Table Of Contents
Unpacking SpectroClip ....................2 Package Contents ........................3 SpectroClip Parts........................3 Using SpectroClip......................4 Using SpectroClip-R ........................4 Using SpectroClip-TR........................ 4 Transmission Measurement Loss of Intensity ................5 Adjustment of the 8° Coupling Port ................. 5 Chapter 2: SpectroClip Specifications..........7 Index.....................9... - Page 6 Table of Contents 000-specc-110-02-201203...
-
Page 7: About This Manual
Engineering-level documentation is located on our website at Technical → Engineering Docs. Upgrades Occasionally, you may find that you need Ocean Optics to make a change or an upgrade to your system. To facilitate these changes, you must first contact Customer Support and obtain a Return Merchandise Authorization (RMA) number. - Page 8 About This Manual 000-specc-110-02-201203...
-
Page 9: Chapter 1: Setup And Operation
5 mm. SpectroClip features specially designed integrating spheres that function as collection probes and can be connected to any Ocean Optics spectrometer to acquire data. The top integrating sphere also includes an input port for a fiber-coupled light source to illuminate your sample. SpectroClip's integrating spheres capture diffuse reflected or transmitted light more efficiently than lens-based collection optics. -
Page 10: Spectroclip Models

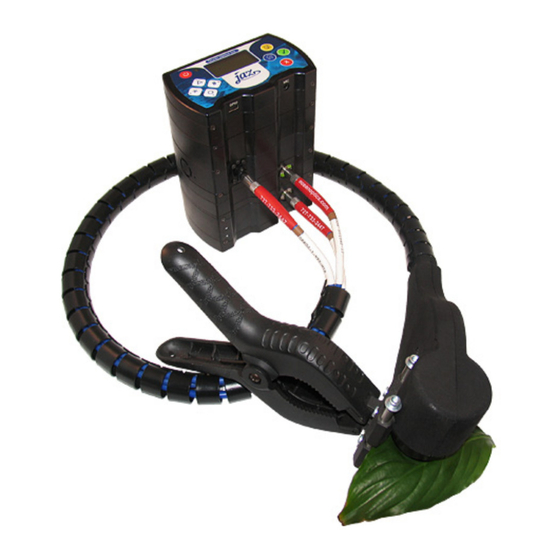

1: Setup and Operation SpectroClip Models SpectroClip includes the following models: Model Purpose Included Equipment Other Recommended Equipment* SpectroClip-R Collects reflected light from One integrating sphere Spectrometer, one light the sample source, two fibers SpectroClip-TR Collects both transmitted Two integrating spheres... -
Page 11: Package Contents
1: Setup and Operation Package Contents Your SpectroClip package should contain the following: SpectroClip device (plus Jaz spectrometer for Jaz-SpectroClip-TR) Black and white reference device Spiral coiled tube 1.5 meters long (for fiber protection) Hexagonal socket screw keys SW 2.5 mm and SW 1.3 mm ... -
Page 12: Using Spectroclip
1: Setup and Operation Using SpectroClip The procedure for using your SpectroClip differs, depending on which model you have. Using SpectroClip-R ► Procedure 1. Unscrew one part of the fiber cover. 2. Slip the spiral coiled tubes over the fibers. -
Page 13: Transmission Measurement Loss Of Intensity
1: Setup and Operation 4. Assemble the fiber cover and tighten the three screws. The spiral coiled tube should begin inside the fiber cover. 5. To record a dark spectrum, use the black/ white reference with the black side turned to the reflectance sphere. - Page 14 1: Setup and Operation 000-specc-110-02-201203...
-
Page 15: Chapter 2: Spectroclip Specifications
Chapter 2 SpectroClip Specifications Specification Value Size (without fibers)(LxHxW) 22 cm x 12 cm x 17 cm Weight (without fibers) 500 g Wavelength Range (Spectrometer) Spectralon® 000-specc-110-02-201203... - Page 16 2: SpectroClip Specifications 000-specc-110-02-201203...
-
Page 17: Index
5 package contents, 3 parts, 3 product-related documentation, iii coupling port adjustment, 5 safety notices, A setup, 1 specifications, 7 document SpectroClip-R, 2 audience, iii using, 4 purpose, iii SpectroClip-TR summary, iii using, 4 Spectro-Clip-TR, 2 Jaz-SpectroClip-TR, 2 Transmission... - Page 18 Index 000-specc-110-02-201203...
