Direct-attach Light Source

Installation and Operation Instructions

Description

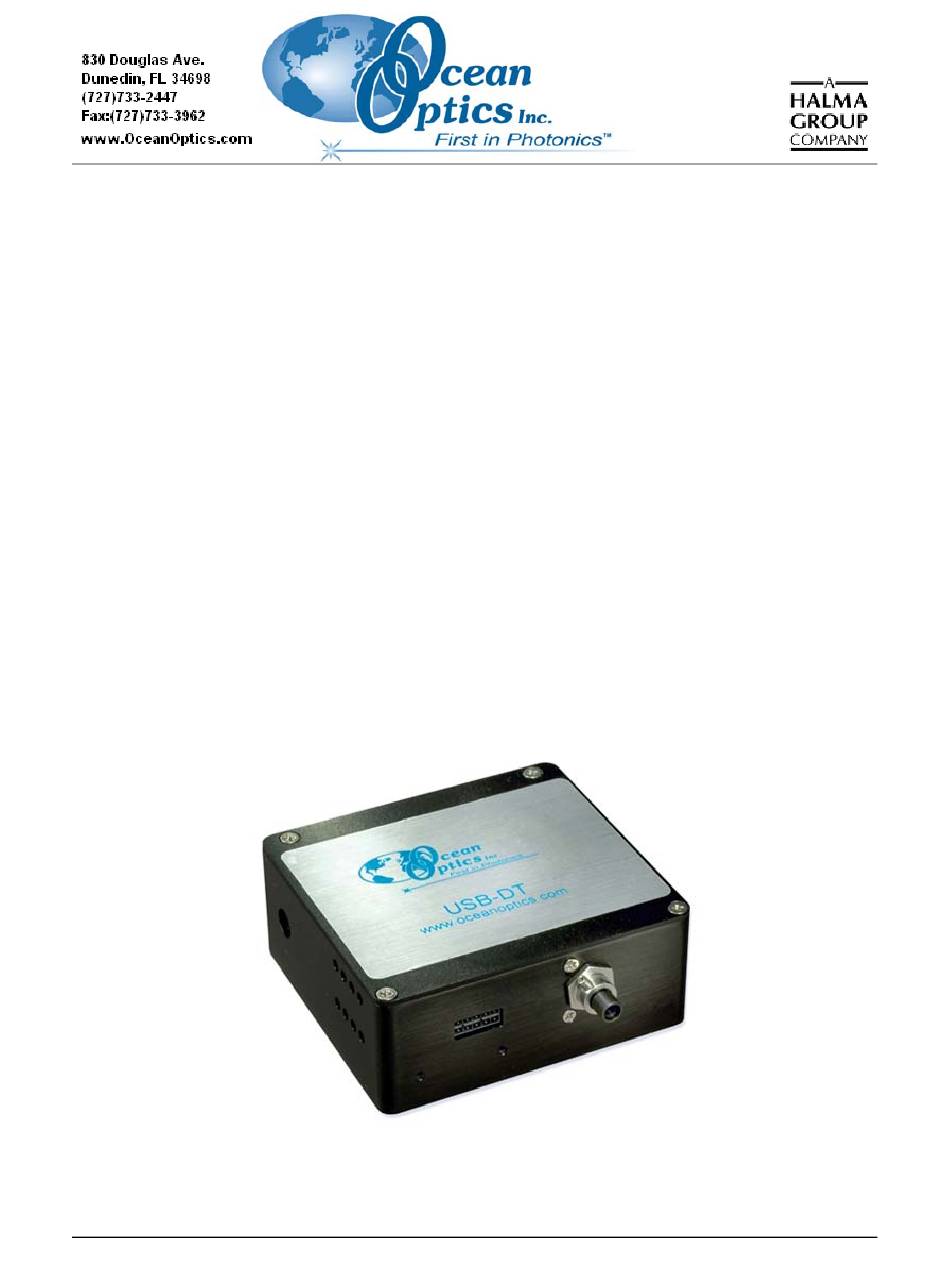

The USB-DT is a direct-attach UV light source (in the 200–1100 nm range) for Ocean Optics'

USB2000 or HR4000 Spectrometer. The USB-DT connects to an Ocean Optics spectrometer in the

following ways:

•

Stacked underneath the USB2000 Spectrometer and connected with the DB15 accessory cable

(HR4-CBL-DB15) or the USB2000/DT Adapter (USB-ADP-DT2)

•

Connected to a HR4000 or HR2000+ Spectrometer with the DB15 accessory cable (HR4-

CBL-DB15) or the Breakout Box (HR4-BREAKOUT)

191-10000-000-01-0805

USB-DT

Table of Contents

Do you have a question about the USB-DT and is the answer not in the manual?

Page 1 Direct-attach Light Source Installation and Operation Instructions Description The USB-DT is a direct-attach UV light source (in the 200–1100 nm range) for Ocean Optics’ USB2000 or HR4000 Spectrometer. The USB-DT connects to an Ocean Optics spectrometer in the following ways: •...
Page 2 Using the USB-DT The following sections provide instructions on setting up and using the USB-DT. Connecting the USB-DT The set-up procedure differs, depending on whether you are connecting the USB-DT to a USB2000 or an HR4000 Spectrometer. Connecting to a USB2000 Spectrometer ►...
Page 3 2. Connect the spectrometer’s 30-pin accessory connector to the Breakout Box using the Breakout Box Accessory cable. 3. Connect the spectrometer to the DB15 cable assembly and the other end to the USB-DT’s 15-pin connector. You have now connected the USB-DT for operation with the HR4000 or HR2000+ Spectrometer.
Page 4 Ground External Trigger In Single Strobe C SCL C SDA The following section contains information on the DB15 output connector on the USB-DT. Pinout Diagram of the DB15 Output Connector on the USB-DT Pinouts Pin Function Single Strobe Continuous Strobe...
