- Page 1 HR4000 and HR4000CG-UV-NIR Series Spectrometers Installation and Operation Manual Amy to r For Products: HR4000/HR4000CG-UV-NIR Document: 210-00000-000-02-201604 000-00000-000-02-A...
- Page 2 Every effort has been made to make this manual as complete and as accurate as possible, but no warranty or fitness is implied. The information provided is on an “as is” basis. Ocean Optics, Inc. shall have neither liability nor responsibility to any person or entity with respect to any loss or...
-
Page 3: Table Of Contents
Table of Contents About This Manual ......................iii Document Purpose and Intended Audience ................iii What’s New in this Document ....................iii Document Summary ........................iii Product-Related Documentation ....................iii Upgrades ........................iv Warranty ........................iv Chapter 1: Introduction ..............1 Product Overview ...................... - Page 4 30-Pin Accessory Connector – Pin Definitions and Descriptions ..........19 30-Pin J2 Accessory Connector - Part Numbers............... 21 HR4000 15-Pin Accessory Cable Pinout ............... 22 Appendix C: HR4000CG-UV-NIR Spectrometer ....... 24 HR4000CG-UV-NIR Features..................24 New HC-1 Landis Composite Grating ..................24 Variable Order-Sorting Filter......................
-
Page 5: About This Manual
About This Manual Document Purpose and Intended Audience This document provides the user of HR4000 Series Spectrometers (both HR4000 and HR4000CG-UV-NIR) with instructions for setting up, calibrating and performing experiments with their spectrometer. What’s New in this Document This version of the HR4000 and HR4000CG-UV-NIR Series High-Resolution Fiber Optic Spectrometers HR4000 / HR4000CG-UV-NIR Installation and Operation Manual updates the specifications. -
Page 6: Upgrades
Upgrades Occasionally, you may find that you need Ocean Optics to make a change or an upgrade to your system. To facilitate these changes, you must first contact Customer Support and obtain a Return Merchandise Authorization (RMA) number. Please contact Ocean Optics for specific instructions when returning a product. - Page 7 About This Manual ISO Certification Ocean Optics, the industry leader in miniature photonics, has been certified for ISO 9001:2008 certification applicable to the design and manufacture of electro-optical equipment since 2009. WARNING This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
- Page 8 About This Manual 210-00000-000-02-201604...
-
Page 9: Chapter 1: Introduction
The HR4000, like all our USB devices, can be controlled by our OceanView software, a Java-based spectroscopy software platform that operates on Windows, Macintosh and Linux operating systems. Ocean Optics HR4000 High-Resolution Fiber Optic Spectrometer 210-00000-000-02-201604... -
Page 10: System Requirements
PC. About OceanView Software OceanView is the latest generation of operating software for all Ocean Optics spectrometers. It is a completely modular, Java-based spectroscopy software platform that operates on Windows, Macintosh and Linux operating systems. The software can control any Ocean Optics USB spectrometer and device. -
Page 11: Modular Sampling Accessories
Modular Sampling Accessories Ocean Optics offers a complete line of spectroscopic accessories for use with the HR4000. Most of our spectroscopic accessories have SMA connectors for application flexibility. Accordingly, changing the sampling system components is as easy as unscrewing a connector and replacing an accessory. -
Page 12: Other Accessories Available
1: Introduction Note Please save the Wavelength Calibration Data Sheet for future reference. Other Accessories Available Visit us at www.OceanOptics.com for a complete list of products available for all of your spectroscopy needs. Fibers Light Sources Integrated Sampling Systems ... -
Page 13: Chapter 2: Installing The Hr4000
You must install the operating software application prior to connecting the HR4000 Spectrometer to the computer. The Ocean Optics spectrometer operating software installs the drivers required for the HR4000 spectrometer installation. If you do not install the software first, the system will not properly recognize the HR4000. -
Page 14: Serial Port Mode
4. Plug the 5 VDC external power supply into an outlet and connect it to the HR4000. Connect Spectroscopic Accessories To find operating instructions for HR2000+-compatible products (such as light sources, sampling chambers, and probes), consult the Ocean Optics website at http://oceanoptics.com/support/technical- documents/. -
Page 15: Chapter 3: Troubleshooting
Operating Software Installation Windows Operating Systems If you connected your Ocean Optics HR4000 device to the computer prior to installing your spectrometer operating software application, you may encounter installation issues that you must correct before your Ocean Optics device will operate properly. -
Page 16: Remove Improperly Installed Files
4. Navigate to the Windows | System32 | Drivers directory. 5. Delete the EZUSB.SYS file. 6. Reinstall your Ocean Optics application and reboot the system when prompted. 7. Plug in the USB device. The system is now able to locate and install the correct drivers for the USB device. -
Page 17: Linux Operating Systems
3: Troubleshooting Linux Operating Systems For Linux operating systems, all you need to do is install the spectrometer operating software, then unplug and replug in the spectrometer. Technically, the driver files for Linux simply give nonprivileged users permission to use newly connected hardware. There isn’t any long-term harm to plugging in the device before installing the software. - Page 18 3: Troubleshooting 210-00000-000-02-201604...
-
Page 19: Appendix A: Calibrating The Wavelength Of The Hr4000
This appendix describes how to calibrate the wavelength of your spectrometer. Though each spectrometer is calibrated before it leaves Ocean Optics, the wavelength for all spectrometers will drift slightly as a function of time and environmental conditions. Ocean Optics recommends periodically recalibrating the HR4000. -
Page 20: Calibrating The Spectrometer
A light source capable of producing spectral lines Note Ocean Optics’ HG-1 Mercury-Argon lamp is ideal for recalibration. If you do not have an HG-1, you need a light source that produces several (at least 4-6) spectral lines in the wavelength region of your spectrometer. - Page 21 A: Calibrating the Wavelength of the HR4000 Independent Values Computed Dependent from the Regression Variable Variables Output Predicted True Wavelength (nm) Pixel # Pixel # Pixel # Difference Wavelength 253.65 30625 5359375 253.56 0.09 296.73 87616 25934336 296.72 0.01 302.15 97344 30371328 302.40...
-
Page 22: Saving The New Calibration Coefficients: Usb Mode
Saving the New Calibration Coefficients: USB Mode Ocean Optics programs wavelength calibration coefficients unique to each HR4000 onto an EEPROM memory chip in the HR4000. You can overwrite old calibration coefficients on the EEPROM if you are using the HR4000 via the USB port. -
Page 23: Appendix B: Specifications
Appendix B Specifications Overview This appendix contains information on spectrometer operation, specifications, and system compatibility. It also includes accessory connector pinout diagrams and pin-specific information. How the HR4000 Works Below is a diagram of how light moves through the optical bench of an HR4000 Spectrometer. The optical bench has no moving parts that can wear or break;... -
Page 24: Hr4000 Components Table
B: HR4000 Specifications HR4000 Components Table Ocean Optics permanently secures all components in the HR4000 at the time of manufacture. Only Ocean Optics technicians can replace interchangeable components, where noted. Item Name Description Secures the input fiber to the spectrometer. Light from the input fiber enters the Connector optical bench through this connector. -
Page 25: Hr4000 Specifications
B: HR4000 Specifications HR4000 Specifications The following sections provide specification information for the CCD detector in the HR4000, as well as the HR4000 Spectrometer itself. HR4000CG-UV-NIR specifications are listed in Appendix C: HR4000CG-UV-NIR Spectrometer. CCD Detector Specifications Specification Value Detector Toshiba TCD1304AP linear CCD array No. -
Page 26: System Compatibility
B: HR4000 Specifications Specification Value Order-sorting filters Installed longpass and bandpass filters Focal length f/4, 101 mm Optical resolution Depends on grating and size of entrance aperture Dynamic range 2 x 10 (system); 2000:1 for a single acquisition Fiber optic connector SMA 905 to single-strand optical fiber (0.22 NA) Full scans into memory every 4 milliseconds with USB 2.0 port, Data transfer rate... -
Page 27: 30-Pin Accessory Connector Pinout
B: HR4000 Specifications 30-Pin Accessory Connector Pinout The HR4000 features a 30-pin Accessory Connector, located on the side of the unit as shown: 30-Pin Connector Location of HR4000 30-Pin Accessory Connector 30-Pin Accessory Connector Pinout Diagram When facing the 30-pin Accessory Connector on the front of the vertical wall of the HR4000, pin numbering is as follows: Port 30-Pin Accessory Connector Pinout Diagram... - Page 28 B: HR4000 Specifications Function Input/Output Description C SCL Input/Output C clock signal for communication to other I C peripherals General purpose software-programmable, digital input/output GPIO (0) Input/Output (channel number) C SDA Input/Output C data signal for communication to other I C peripherals General purpose software-programmable, digital input/output GPIO (1)
-
Page 29: 30-Pin J2 Accessory Connector - Part Numbers
B: HR4000 Specifications Function Input/Output Description Analog In Input 13-bit analog-to-digital input with a 0-5V range (0-5V) Analog Output 9-bit programmable output voltage with a 0-5V range Out (0-5V) Lamp TTL signal driven Active HIGH when the Lamp Enable command is Output Enable sent to the spectrometer... -
Page 30: Hr4000 15-Pin Accessory Cable Pinout
B: HR4000 Specifications HR4000 15-Pin Accessory Cable Pinout Pin # Description Pin # Description Single_strobe GPIO-9 ContStrobe GND_SIGNAL V5_SW ExtTrigIn ExtTrigIn LampEnable GPIO-8 A_IN A_OUT GPIO-7 ExtTrigIn 210-00000-000-02-201604... - Page 31 B: HR4000 Specifications 210-00000-000-02-201604...
-

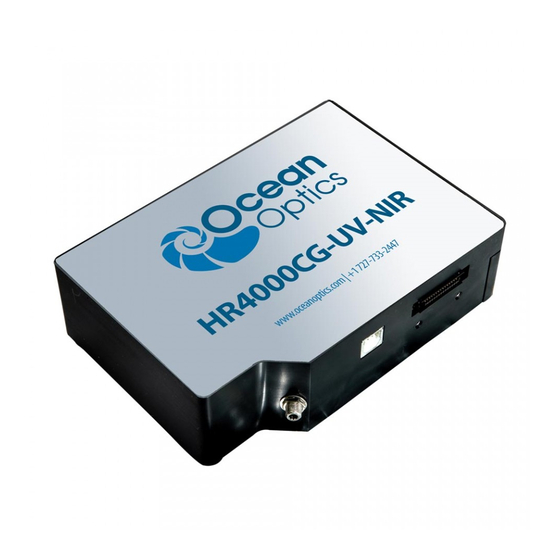

Page 32: Appendix C: Hr4000Cg-Uv-Nir Spectrometer
The HR4000CG-UV-NIR contains the following features that differ from the standard HR4000: New HC-1 Landis Composite Grating The HR4000CG-UV-NIR uses the new HC-1 Landis grating designed to provide a 200-1100 nm wavelength range. The HC-1 is fixed in place at the time of manufacture. - Page 33 B: HR4000 Specifications Specification Value Gratings HC-1, 300 lines per nm grating 5 m-wide slit Entrance aperture Order-sorting filters OFLV-200-1100 installed Focal length f/4, 101 mm Dynamic range 2 X 10 (system); 2000:1 for a single acquisition Fiber optic connector SMA 905 to single-strand optical fiber (0.22 NA) Full scans into memory every 4 milliseconds with the USB 2.0, Data transfer rate...
-
Page 34: Index
4, 6 Accessories, 3 accessory connector pinout, 20 grating, 17 breakout box, 3 HC-1 Landis Composite Grating, 25 HR4000 specifications, 18 HR4000CG-UV-NIR, 25 Calibrating, iii, 11 features, 25 calibration, 11 HR4000CG-UV-NIR Spectrometer preparing for, 12 specifications, 25 procedure, 12 calibration coefficients... - Page 35 Wavelength Calibration Data Sheet, 3 Sampling what's new, iii Accessories, 3 System, 2 Serial Port mode, 6 setup, 5 shipment components, 3 slit, 17 SMA Connector, 17 specifications, 16 detector, 18 HR4000, 18 HR4000CG-UV-NIR Spectrometer, 25 spectroscopic accessories, 6 System Requirements, 2 210-00000-000-02-201604...
