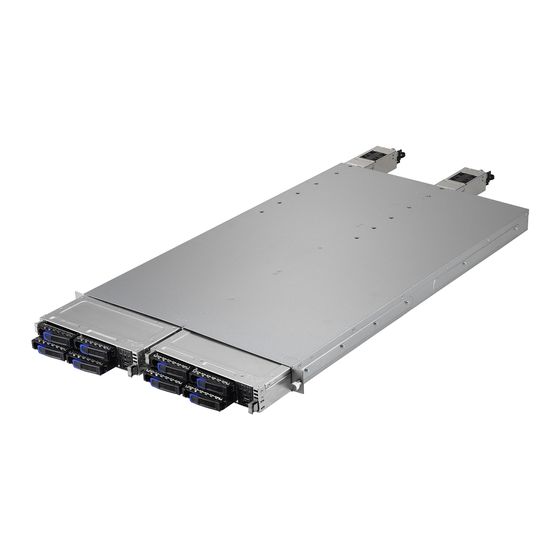

YR190-B8238
Service Engineer's Manual
1
http://www.tyan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YR190-B8238 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TYAN YR190-B8238

Summary of Contents for TYAN YR190-B8238

  • Page 1 YR190-B8238 Service Engineer’s Manual http://www.tyan.com...
  • Page 2 http://www.tyan.com...
  • Page 3 Corporation and has been reviewed for accuracy and reliability prior to printing. MiTAC assumes no liability whatsoever, and disclaims any ® express or implied warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or merchantability.
  • Page 4 There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations. http://www.tyan.com...

  • Page 5: About This Manual

    About this Manual This manual provides you with instructions on installing your TYAN YR190-B8238. This Manual is intended for experienced users and integrators with hardware knowledge of personal computers. This manual consists of the following parts: Chapter1: Provides an introduction to the TYAN YR190-B8238...

  • Page 6: Safety Information

    SAFETY INFORMATION Before installing and using TYAN YR190-B8238, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 7: Table Of Contents

    Table of Contents Chapter 1: Overview ................. 9 About the TYAN YR190-B8238 ..........9 Features.................. 10 Product Model................. 14 Standard Parts List ..............15 1.4.1 Box Contents Per Node ........... 15 1.4.2 Accessories ..............16 About the Product ..............18 1.5.1...
  • Page 8 3.7.1 SATA Backplane Board Features........58 3.7.2 SATA Backplane Board Connector Pin Definitions ..59 Replacing the Power Supply..........61 Appendix I: Cable Connection Tables .......... 63 Appendix II: FRU Parts Table ............65 Appendix III: Technical Support............ 67 http://www.tyan.com...

  • Page 9: Chapter 1: Overview

    ® and incredible performance. Leveraging advanced technology from Intel YR190-B8238 server system is capable of offering scalable 32 and 64-bit computing, high bandwidth memory design, and lightning-fast PCI-E bus implementation. The YR190-B8238 not only empowers your company in nowadays IT demand but also offers a smooth path for future application usage.

  • Page 10: Features

    Features TYAN YR190B8238 (B8238Y190X2-045V4HI) Form Factor 1U Rackmount Chassis Model YR190 Dimension (D x W 28.74" x 17.32" x 1.72" (730 x 440 x 43.6mm) x H) Blade Dimension System 28.74" x 8.46" x 1.61" (730 x 214.8 x 40.8mm)
  • Page 11 Memory channel 2 Channels per CPU Memory voltage 1.5V/ 1.35V PCI-E (1) PCI-E Low-Profile Gen.2 x16 slot Pre-install TYAN Expansion Slots M7018-R16-1L, 1U PCI-E x16 riser card (right) Riser Card (per blade) Max. HBA (1) 68.90mm x 167.65mm (HH/HL) Dimension (H x L)
  • Page 12 Complaint Barebone (1) YR190B8238 Barebone Manual (1) User's manual Installation CD (1) TYAN installation CD Package Heatsink / Cooler (4) G34 CPU heatsinks Contains Rail kit (1) sliding rail kit for YR190 (2) CCBL-0310, US type power cord / (2)
  • Page 13 Memory channel 2 Channels per CPU Memory voltage 1.5V/ 1.35V PCI-E (1) PCI-E Low-Profile Gen.2 x16 slot Pre-install TYAN Expansion Slots M7018-R16-1L, 1U PCI-E x16 riser card (right) Riser Card (per blade) Max. HBA (1) 68.90mm x 167.65mm (HH/HL)

  • Page 14: Product Model

    Complaint Barebone (1) YR190B8238 Barebone Manual (1) User's manual Installation CD (1) TYAN installation CD Package Heatsink / Cooler (4) G34 CPU heatsinks Contains Rail kit (1) sliding rail kit for YR190 (2) CCBL-0310, US type power cord / (2)

  • Page 15: Standard Parts List

    Standard Parts List This section describes the YR190-B8238 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive packaged as illustrated below. 1.4.1 Box Contents Per Node Component Description...

  • Page 16: Accessories

    If any items are missing or appear damaged, contact your retailer or ® browse to TYAN ’s website for service: http://www.tyan.com ® The web site also provides information of other TYAN products, as well as FAQs, compatibility lists, BIOS settings, etc. ® Heat sink x 4 TYAN...
  • Page 17 Rail Kit Rail x 2 Screw Pack http://www.tyan.com...

  • Page 18: About The Product

    Activity LED: blinking green HDD activity Fault LED: Off Activity LED: Off HDD Fail Fault LED: Red Activity LED: random Identify Fault LED: blinking red @ 4 Hz Activity LED: random Rebuild Fault LED: blinking red @ 1 Hz http://www.tyan.com...
  • Page 19 Press the ID (UID) button once and the dual-color Power LED on the front panel and the blue ID LED 7. ID (UID) on the rear panel will turn blue. Press the button again to stop. 8. Reset Press to reset the system http://www.tyan.com...

  • Page 20: System Rear View (Per Node)

    Left: slow blinking green 100 Mbps Link Right: green Left: blinking green 100 Mbps Activity Right: green Left: slow blinking green 1000 Mbps Link Right: amber Left: blinking green 1000 Mbps Activity Right: amber Left: Off No Link Right: Off http://www.tyan.com...

  • Page 21: Internal View (Per Node)

    1.5.3 Internal View (Per Node) Number Description HDD Cage SATA HDD Backplane Board System Fans Power Distribution Board Memory Slots CPU Sockets PCI-E Riser Card Assembly http://www.tyan.com...
  • Page 22 NOTE http://www.tyan.com...

  • Page 23: Chapter 2: Setting Up

     A grounding strap or an anti-static pad Most of the electrical and mechanical connections can be disconnected with your hands. It is recommended that you do not use pliers to remove connectors as it may damage the soft metal or plastic parts of the connectors. http://www.tyan.com...

  • Page 24: Precautions

    Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to YR190-B8238 or injury to yourself.  Ground yourself properly before removing the top cover of the system.

  • Page 25: Installing Motherboard Components

    CPUs, memory modules, HDD and add on cards. 2.1.1 Installing Hard Drives The YR190-B8238 supports four 2.5” hard drives per node. Follow these instructions to install a hard drive. Press the locking tabs at both sides to pull the node out.
  • Page 26 Slide the HDD tray out. Unscrew the HDD tray bracket. Place a hard drive into the drive tray. Use four screws to secure the HDD. http://www.tyan.com...
  • Page 27 5. Reinsert the HDD tray into the chassis. Press the locking lever to secure the tray. Repeat the same procedures to install other HDD trays. http://www.tyan.com...

  • Page 28: Installing The Cpu And Heatsink

    Follow the steps below to install the processor and heatsink. Locate the CPU socket. Push the CPU lever slightly away to unlock the CPU socket. Open the socket to a full open position. Take off the CPU protection cap. http://www.tyan.com...
  • Page 29 Place the CPU in the CPU socket. Close the socket and press the CPU socket lever down to secure the CPU. http://www.tyan.com...
  • Page 30 Place the heatsink on top of the CPU and secure it with 4 screws. http://www.tyan.com...

  • Page 31: Installing The Memory

    Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. http://www.tyan.com...
  • Page 32 Memory Population Option Table http://www.tyan.com...
  • Page 33 4. Dual-rank DIMMs are recommended over single-rank DIMMs 5. Un-buffered DIMM can offer slightly better performance than registerd DIMM if populating only a single DIMM per channel 6. We don't suggest other memory installation. 7. AMD 6100 & 6200 series CPU doesn't support Quad-ranks U-DIMM. http://www.tyan.com...
  • Page 34 SR and DR 1.25v Memory MAX speed of 1333MHz in a dual channel configuration  SR and DR 1.35v Memory MAX speed of 1333MHz in a dual channel configuration  SR and DR 1.5v Memory MAX speed of 1600MHz in a dual channel configuration  http://www.tyan.com...
  • Page 35 QR 1.25v Memory MAX speed of 1066MHz in a dual channel configuration  QR 1.35v Memory MAX speed of 1066MHz in a dual channel configuration  QR 1.5v Memory MAX speed of 1333MHz in a dual channel configuration  http://www.tyan.com...

  • Page 36: Rack Mounting

    Installing the Server in a Rack Follow these instructions to mount the TYAN YR190-B8238 into an industry standard 19” rack. NOTE: Before mounting the TYAN YR190-B8238 in a rack, ensure that all internal components have been installed and that the unit has been fully tested.

  • Page 37: Installing The Inner Rails To The Chassis

    2.2.2 Installing the inner Rails to the Chassis Draw out the inner rails from the rail assembly. Install inner rails to left and right side of chassis. Push the rails forwards to lock the rails in place. http://www.tyan.com...

  • Page 38: Installing The Outer Rails To The Rack

    (2 sets front / 2 sets rear) for each side. Secure the rails to the rack as shown. Repeat Step 2 if you want to install more chassis to the rack. To make the installation easier, we suggest that you remove all nodes before you insert the chassis to the rack. http://www.tyan.com...

  • Page 39: Rack Mounting The Server

    2.2.4 Rack mounting the Server To install the chassis to the rack Lift the chassis and then insert the inner slide rails into the outside rails. Push the chassis into the rack. http://www.tyan.com...
  • Page 40 Screw the chassis to the rack. Insert the node into the chassis. Repeat Step 4 for the second node. To remove the chassis from the rack Remove the nodes. Unscrew the chassis. http://www.tyan.com...
  • Page 41 Press the locking tabs on both sides of the chassis to pull the chassis out. Note: To avoid injury, it is strongly recommended that two people lift the TYAN YR190-B8238 into the place while a third person screws it to the rack. http://www.tyan.com...
  • Page 42 NOTE http://www.tyan.com...

  • Page 43: Chapter 3: Replacing Pre-Installed Components

    Motherboard, front panel board, SATA HDD board, M7018_R16-1L PCI-E Riser card, System fans, and Power supply unit etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. Rear Components Node DIMMs Power CPU/Heatsink Assembly PCI-E Card Mainboard Mainboard http://www.tyan.com...
  • Page 44 Front Components Node PCBs Front Panel SATA HDD Board Board http://www.tyan.com...

  • Page 45: Replacing Motherboard Components

    Follow Chapter 2.1.1 to pull the node out. 3.3.1 Replacing Expansion Card The YR190-B8238 has one preinstalled M7018_R16-1L riser card. Follow the instructions below to disassemble the M7018-R16-1L and install a new riser card. Unscrew the riser card assembly.
  • Page 46 Put the riser card assembly back in place and screw it to the chassis. (optional for M7018-R16-1L) Unscrew to replace a new M7018-R16-1L card. Follow the procedures mentioned earlier in reverse order to place the riser card assembly back into the chassis. http://www.tyan.com...

  • Page 47: Disconnecting All Motherboard Cables

    Before replacing the motherboard or certain components, remove cables connected to the motherboard. Follow these instructions to remove all motherboard cables. Disconnect the B4P PWR, 2x10-pin PWR, Front Panel Control and fan cables. 2. Disconnect the mini-SAS, USB and PSMI cables. http://www.tyan.com...

  • Page 48: Removing The Motherboard

    After removing all of the aforementioned cables, follow the instructions below to remove the motherboard from the chassis. Remove the heatsink and processor if installed. Remove the nine screws securing the motherboard to the chassis. Carefully lift the motherboard from the chassis. http://www.tyan.com...

  • Page 49: Replacing The Power Distribution Board

    Replacing the Power Distribution Board Follow these instructions to replace the Power Distribution Board. Disconnect the 2x10-pin PWR and PSMI cables from the power distribution board. Unscrew to take out the power distribution board. http://www.tyan.com...
  • Page 50 Repeat the procedures described earlier to replace a new power distribution board. http://www.tyan.com...

  • Page 51: Replacing The Front Panel Board

    Replacing the Front Panel Board Follow these instructions to replace the Front Panel board. Release cables from the cable clip. Unscrew the front panel tray. Pull the front panel tray from the chassis. Disconnect cables from the front panel board. http://www.tyan.com...
  • Page 52 Unscrew to take out the front panel board. 6. Replace a new front panel board and screw it to the front panel tray. 7. Repeat the procedures described earlier in reverse order to place the front panel tray back into place. http://www.tyan.com...

  • Page 53: Front Panel Board Features

    1 VCC_USB0 Power connect to 5V (for USB) 6 USB_P1_P USB_P1 + 2 VCC_USB1 Power connect to 5V (for USB) 7 GND Ground 3 USB_P0_N USB_P0 - 8 GND Ground 4 USB_P1_N USB_P1 - 9 NC 5 USB_P0_P USB_P0 + 10 NC http://www.tyan.com...

  • Page 54: Replacing The System Fan

    Replacing the System Fan Follow these instructions to replace the cooling fans in your system. Unplug the cables connected to the mainboard Remove the rubber screws from the fan unit. Lift the mylar to take out the fan unit from the chassis. http://www.tyan.com...
  • Page 55 4. Remove the rubber screws from the fan. After replacing the new fans, reinstall the rubber screws into the fan. Reinstall the fans into the chassis following the procedures described earlier in reverse order. Connect the fan cables. http://www.tyan.com...

  • Page 56: Replacing The Sata Backplane Board

    Replacing the SATA Backplane Board Disconnect one B4P PWR cable and five mini-SAS cables from the backplane board. Unscrew the backplane bracket. Lift the bracket up from the chassis. http://www.tyan.com...
  • Page 57 Unscrew the backplane board from the bracket. Replace a new SATA Backplane Board and reinstall it into the chassis following the above steps in reverse. http://www.tyan.com...

  • Page 58: Sata Backplane Board Features

    3.7.1 SATA Backplane Board Features Front View Rear View Connector Description SATA0~SATA3 SATA Connector J1~J4 HDD Connector Power Connector JTAG CPLD Connector SGPIO SGPIO Connector Platform Select Jumper (reserved) http://www.tyan.com...

  • Page 59: Sata Backplane Board Connector Pin Definitions

    HDD Connector: J1/J2/J3/J4 Pin NO Pin name Pin NO Pin name SAS_TX+ SAS_TX- SAS_RX- SAS_RX+ VDD_5_RUN SAS_Present_L P8 VDD_5_RUN VDD_5_RUN HD_PRS_L SAS_LED VDD_12_RUN VDD_12_RUN VDD_12_RUN Power Connector: PW1 Pin No. Net Name Description VDD_12_RUN 12V Power Ground Power Ground VDD_5_RUN 5V http://www.tyan.com...
  • Page 60 SGPIO DataIN 7 SGPIO SMBUS_3V3_DATA_CPLD SMBus Data SAS_GPIO3 SCLOCK SGPIO SAS_GPIO1 DataOUT Ground HD_ERR_LED Pin 1-2 closed: Intel platform Pin 2-3 closed: AMD and LSI platform (default) J12 (reserved) Pin 1-2 closed: beforehand jumper (default) Pin 2-3 closed: beforehand jumper http://www.tyan.com...

  • Page 61: Replacing The Power Supply

    Replacing the Power Supply 1. Press and hold the latch to pull the power supply out. 2. After replacing a new power supply, press and hold the latch to push the power supply back into the chassis. http://www.tyan.com...
  • Page 62 NOTE http://www.tyan.com...

  • Page 63: Appendix I: Cable Connection Tables

    Appendix I: Cable Connection Tables 1. System Fan Connector System Fan to S8238 MB System Fan Connect to S8238 MB → Fan1 (4056) FAN3 → Fan2 (4056) FAN2 → Fan3 (4056) FAN1 http://www.tyan.com...
  • Page 64 4. FP Ctrl and USB Cable Front Panel Board (FPB) to S8238 MB Connect to S8238 MB → Control Cable → USB Cable USB2 5. Power Supply Cables PDB to S8238 MB Connect to S8238 MB → 2X10P PWR → PSMI Cable PSMI1 http://www.tyan.com...

  • Page 65: Appendix Ii: Fru Parts Table

    Appendix II: FRU Parts Table YR190-B8238 FRU Parts Item Model Number Part Number Picture Quantity Description B8238Y190X2-04 Single 5V4H/ 340795700004 / Single node of YR190-B8238 System Node B8238Y190X2-04 340795700002 5V4HI PCBA M7018-R16-1L 411786900021 PCI-E X16 1U Riser Card Power CPSU-0430 471786900001...
  • Page 66 NOTE http://www.tyan.com...

  • Page 67: Appendix Iii: Technical Support

    MiTAC serves multiple market segments with the industry’s most competitive services to support them. TYAN's tech support is some of the most impressive we've seen, with great response time and exceptional organization in general.” — Anandtech.com Please feel free to contact us directly for this service at tech-support@tyan.com...
  • Page 68 (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. ® TYAN YR190-B8238 Service Engineer’s Manual V1.0 Document No.:...
