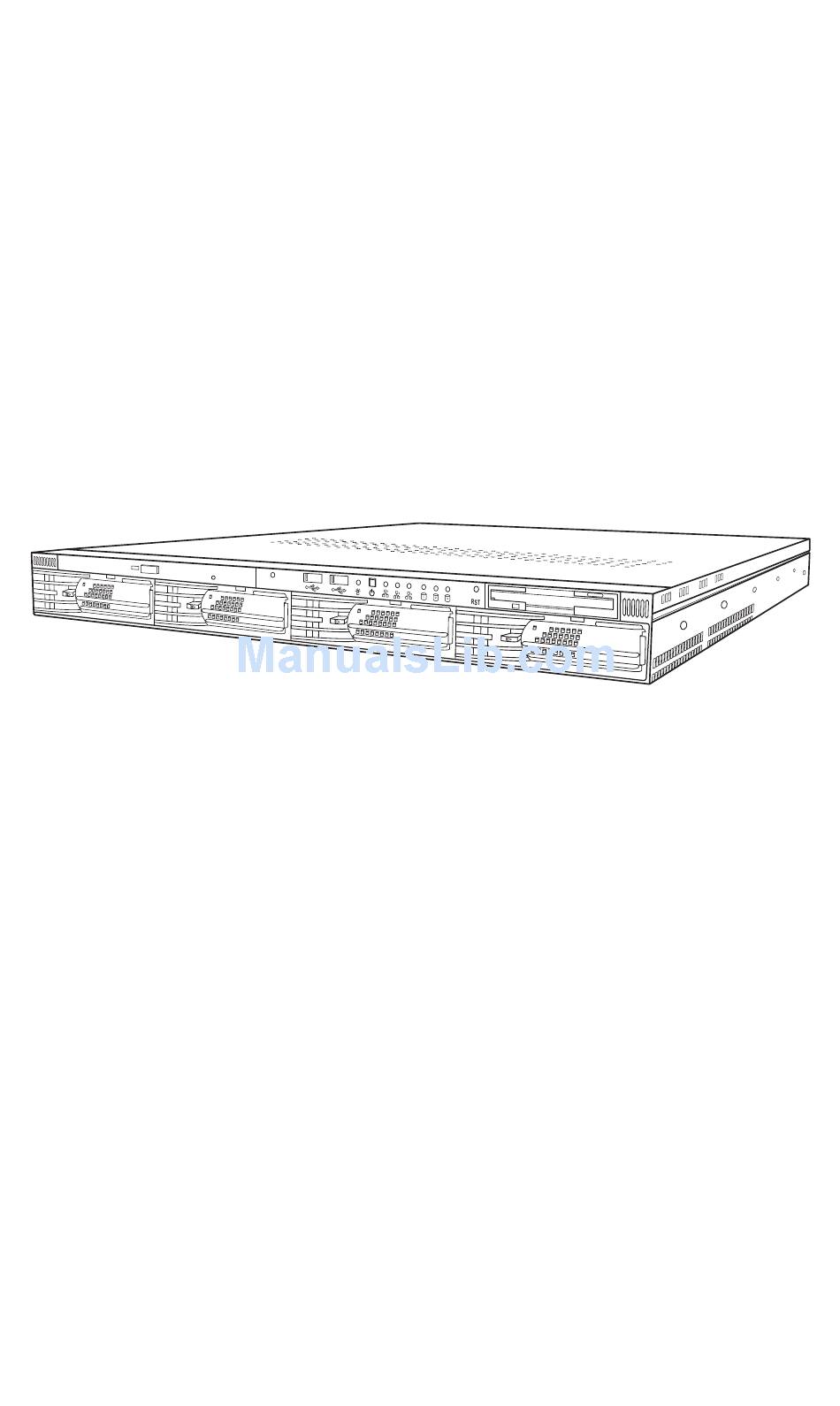

  • Page 1 Transport GX21 B2735 User’s Manual Document part number: D1577-100...

  • Page 2: Trademark Recognition

    TYAN, TYAN Tiger i7501R S2735-8M, and Transport GX21 are trademarks of TYAN Computer Corporation. Intel, Xeon, and combinations thereof are trademarks of Intel Corpo- ration.

  • Page 3: Federal Communications Commission

    Federal Communications Commission Operation is subject to the following conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received including inter- ference that may cause undesired operation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one or more of the following measures: •...

  • Page 4: About This Manual

    About this manual This manual provides you with instructions on installing your Trans- port GX21 (B2735), and consists of the following sections Chapter 1: Provides an introduction to the Transport GX21 (B2735) bare bones, packing list, describes the external components, gives tables of key components, and provides block diagrams of the system.

  • Page 5: Safety Information

    Safety information Before installing and using the Transport GX21 , take note of the fol- lowing precautions: • Read all instructions carefully. • Do not place the unit on an unstable surface, cart or stand. • Do not block the slots or openings on the unit which are provided for ventilation.

  • Page 6: Table Of Contents

    Overview About the Transport GX21 (B2735) ... 1 Product models... 1 Features ... 2 B2735G21S2 specifications... 2 B2735G21S4H specifications... 3 B2735G21U4H specifications ... 4 Unpacking ... 5 Box contents ... 5 Accessories ... 7 Opening the box... 8 About the product... 9 System front view and front panel...
  • Page 7 Replacing the floppy disk drive ... 47 Replacing the floppy disk drive (B2735G21S2)... 47 Replacing the floppy disk drive (B2735G21S4H/B2735G21U4H). 48 Replacing the LED control board ... 49 Replacing the storage backplane ... 50 S-ATA backplane (B2735G21S4H) ... 50 Replacing the S-ATA backplane (B2735G21S4H) ... 50 S-ATA backplane features...
  • Page 8 BIOS security menu... 96 BIOS chipset settings... 98 Northbridge chipset configuration submenu... 99 Southbridge chipset configuration submenu... 100 Intel PCI-64 Hub 2 configuration submenu... 101 BIOS exit menu ... 102 SCSI and S-ATA controller cards... 104 Controller card location ... 104 M7902 Ultra 320 SCSI controller card features ...

  • Page 9: Chapter 1: Overview

    About the Transport GX21 (B2735) Congratulations on your purchase of the Transport GX21 (B2735), rack mountable, barebone system for Intel® Xeon™ processor. The Transport GX21 (B2735) uses an advanced Intel chipset for optimum performance and reliability. Add-on S-ATA or SCSI storage controllers provide great flexibility and combine with Gigabit Ethernet ports to provide powerful computing capacity and optimal I/O bandwidth for the most demanding of enterprises.

  • Page 10: Features

    1.3 Features Features 1.3.1 B2735G21S2 specifications Enclosure • Industry standard, 19” rack mount- able, 1U chassis • 2 internal access 1” HDD bays, 1 slim CD-ROM bay, 1 bay for 3.5” FDD or internal access 1” HDD • 21.5 x 17 x 1.7 inch (547 x 432 x 43 mm) Processors •...

  • Page 11: B2735G21S4H Specifications

    1.3.2 B2735G21S4H specification Enclosure • Industry standard, 19” rack mount- able, 1U chassis • 4 external access HDD bays, 1 slim CD-ROM bay, 1 slim FDD bay • 21.5 x 17 x 1.7 inch (547 x 432 x 43 mm) Processors •...

  • Page 12: B2735G21U4H Specifications

    1.3 Features 1.3.3 B2735G21U4H specifications Enclosure • Industry standard, 19” rack mount- able, 1U chassis • 4 external access HDD bays, 1 slim CD-ROM bay, 1 slim FDD bay • 21.5 x 17 x 1.7 inch (547 x 432 x 43 mm) Processors •...

  • Page 13: Unpacking

    Unpacking 1.4.1 Box contents Component P/N 541273080001 P/N 541273080002 P/N 541172850002 P/N 541172850002 P/N 541190860001 94V-0 CORER1.PCB MADE TAIWAN P/N 340729700001 P/N 523430061006 94V-0 CORER1.PCB MADE TAIWAN P/N 344723200001 P/N 523410290033 Chapter 1: Overview B2735 Description G21S2 1 U chassis, 2 internal HDD bays 1U chassis, 4...
  • Page 14 1.4 Unpacking Box contents (cont.) Component P/N 412223700099 P/N 523410290033 P/N 412223700102 P/N 412223700109 P/N 471172400038 P/N 336252012099 P/N 336252012101 P/N 342730800002 B2735 Description G21S2 S-ATA back- plane and holding bracket (pre-installed) 4-port Ultra 320 SCSI backplane (pre-installed) LED control board (pre- installed) 64-bit riser...

  • Page 15: Accessories

    1.4.2 Accessories Power cord (US) 4 x S-ATA cables, motherboard to backplane (B2735G21S4H) 1 x front panel cable 2 x mounting ears 2 x CPU heatsinks P/N 343730800001 S-ATA power riser cable Tomcat i875P S5102 Board Parts and Jumpers Mouse(Top) KB-MO1 KB(Bottom) CPU FAN...

  • Page 16: Opening The Box

    1.4 Unpacking 1.4.3 Opening the box Open the box carefully and ensure that all components are present and undamaged. The product should arrive pack- aged as illustrated below. Box contents as packaged Accessory pack Accessories as packaged Chapter 1: Overview...

  • Page 17: About The Product

    About the product 1.5.1 System front view and front panel B2735G21S2 Power switch Power indicator USB ports disc B2735G21S4H Power switch Power indicator USB ports Chapter 1: Overview 1.5 About the product LAN activity indicator IDE channel status Reset switch LAN activity indicator HDD status...

  • Page 18: System Rear View

    1.5 About the product B2735G21U4H Power switch Power indicator USB ports 1.5.2 System rear view Ventilation fan EPS 12V 400W PSU Power switch USB ports VGA port Serial port (COM 1) Note: All models have identical rear panel features. Reset switch Stacked PS/2 mouse and keyboard ports RJ-45 LAN port RJ-45 LAN ports...

  • Page 19: System Internal Views

    1.5.3 System internal views B2735G21S2 LED control board Floppy disk drive (optional) Slim CD-ROM drive Fan bracket S-ATA connector IDE connector FDD connector Chapter 1: Overview Riser card Power connector Memory slots EPS 12V 400W power supply Processor sockets Front panel cable 1.5 About the product...
  • Page 20 1.5 About the product B2735G21S4H Floppy disk drive LED control board Slim CD-ROM drive Fan bracket S-ATA connector IDE connector FDD connector Riser card Power connector Memory slots EPS 12V 400W power supply Processor sockets Front panel cable 4-port S-ATA backplane Chapter 1: Overview...
  • Page 21 B2735G21U4H Floppy disk drive LED control board Slim CD-ROM drive Fan bracket S-ATA connector IDE connector FDD connector Chapter 1: Overview 1.5 About the product Riser card Power connector Memory slots EPS 12V 400W power supply Processor sockets Front panel cable 4-port ultra320 SCSI back- plane...

  • Page 22: Block Diagram

    1.5 About the product Block diagram Intel Xeon SLOT# 2 SLOT#1 BUS #03 133MHz OR 100MHz PCI-X BUS A BUS #04 P64H2 133MHz OR SO DIMM 100MHz PCI-X BUS B SLOT# 1 *Option GBIT 82546 PRIMARY IDE CONN RJ45 RJ45 SECONDARY IDE CONN SATA...

  • Page 23: Chapter 2: Setting Up

    Before you begin This chapter explains how to install motherboard components including CPUs, memory modules, and PCI card. There are also instructions in this section for installing S-ATA, SCSI and IDE hard drives. Careful attention should be given to the precautions men- tioned in this section when setting up your system.

  • Page 24: Precautions

    2.1 Before you begin 2.1.3 Precautions Components and electronic circuit boards can be damaged by static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Transport GX21 or injury to yourself.

  • Page 25: Installing Motherboard Components

    Installing motherboard components This section describes how to install CPUs, memory modules and PCI card. 2.2.1 Removing the chassis cover Follow these instructions to remove the Transport GX21 (B2735) chassis cover. This step is required before any other procedures in this chapter can be undertaken. 1.

  • Page 26: Installing Cpus

    2.2 Installing motherboard components 2.2.2 Installing CPUs This section describes how to install Intel® Xeon processors and heatsinks in your Transport GX21 (B2735) system. This section applies to all models. 1. Remove the chassis cover as described in section 2.2.1 Removing the chassis cover.
  • Page 27 4. Place the CPU in the CPU socket, ensuring that pin 1 is located as shown in the following illustration. pin 1 5. Press the CPU locking lever back down to secure the CPU in the socket. 6. Repeat steps three to five for the second CPU. 7.

  • Page 28: Installing Memory

    2.2 Installing motherboard components 2.2.3 Installing memory Follow the instructions in this section to install memory mod- ules in your Transport GX21 (B2735) system. 1. Remove the chassis cover as described n section 2.2.1 Removing the chassis cover. 2. Locate the memory slots on the motherboard. 3.

  • Page 29: Installing A Pci Card

    5. Insert the memory module into the slot as shown. 6. Ensure that the locking levers are firmly in place and that the memory module is properly seated in the slot. 2.2.4 Installing a PCI card Follow the instructions in this section to install a PCI card in your Transport GX21 (B2735) system.
  • Page 30 2.2 Installing motherboard components 3. Remove the screw securing the PCI faceplate to the chassis. 4. Slide the PCI card clamp out as shown. 5. Slide the dust cover out. Chapter 2: Setting up...
  • Page 31 6. Press the PCI card into place in the slot on the riser card. Ensure that the card is seated properly in the slot on the riser card and that the riser card is properly seated in its slot on the motherboard. 7.
  • Page 32 2.2 Installing motherboard components 8. Insert the screw to secure the PCI card to the chassis. Chapter 2: Setting up...

  • Page 33: Installing A Hard Drive

    Installing a hard drive Follow these instructions to install various different types of hard drives in your system. 2.3.1 Installing internal hard drives (B2735G21S2) This B2735G21S2 can support internal IDE or S-SATA hard drives. 2.3.1.1 Installing an IDE hard drive Follow these instructions to instal an internal IDE hard drive in your B2735G21S2 system.
  • Page 34 2.3 Installing a hard drive 4. Slide the HDD tray out of the chassis. 5. Place a new HDD in the tray and slide it to the front. Note: If an you are replacing an existing hard disk you will need to remove the 4 screws securing it to the tray and remove it.

  • Page 35: Installing An Internal S-Ata Hard Drive

    7. Reinsert the HDD tray and secure it to the chassis with a screw. 8. Connect the IDE data cable and power cable to the HDD. 2.3.1.2 Installing an internal S-ATA hard drive Follow these instructions to install an internal S-ATA hard drive in your B2735G21S2 system.
  • Page 36 2.3 Installing a hard drive 3. Remove the screw securing the HDD tray to the chassis. 4. Slide the HDD tray out of the chassis. 5. Place a new HDD in the tray and slide it to the front. Note: If an you are replacing an existing hard disk you will need to remove the 4 screws securing it to the tray and remove it.
  • Page 37 6. Secure the new disk drive in the tray with 4 screws. 7. Reinsert the HDD tray and secure it to the chassis with a screw. 8. Connect the S-ATA data cable and power cable to the HDD. Chapter 2: Setting up 2.3 Installing a hard drive...

  • Page 38: Installing An External S-Ata Hard Drive (B2735G21S4H)

    2.3 Installing a hard drive 2.3.2 Installing an external S-ATA hard drive (B2735G21S4H) Follow these instructions to install an external S-ATA hard drive in your B2735G21S4H system. 1. Remove the chassis cover as described in section 2.2.1 Removing the chassis cover. 2.

  • Page 39: Installing An External Scsi Hard Drive (B2735G21U4H)

    Note: If you are replacing an existing HDD, you will need to remove the four screws that secure it in the drive bay and remove it. 5. Insert four screws to secure the new unit in the drive bay. 6. Reinsert the drive bay into the chassis. Ensure that the rear connector of the new drive is firmly seated in the backplane.
  • Page 40 2.3 Installing a hard drive 2. Press the drive bay locking latch in the direction of the arrow (1) and pull the locking lever open (2). 3. Slide the drive bay out. 4. Insert a SCSI hard drive in the drive bay. Note: If you are replacing an existing HDD, you will need to remove the four screws that...
  • Page 41 5. Insert four screws to secure the new unit in the drive bay. 6. Reinsert the drive bay into the chassis. Ensure that the rear connector of the new drive is firmly seated in the backplane. Chapter 2: Setting up 2.3 Installing a hard drive...

  • Page 42: Rack Mounting

    2.4 Rack mounting Rack mounting Follow these instructions to mount the Transport GX21 (B2735) into an industry standard 19" rack. Note: Before mounting the Transport GX21 in a rack, ensure that all internal components have been installed and that the unit has been fully tested. Mainte- nance can be performed on the unit while in a rack but it is preferable to install the device in a fully operational condition.
  • Page 43 on the front of the unit) are fixed to the front end of the rail. 3. Fully extend the sliding rails until they lock. Note: Do not tighten the brackets to the rails as you will need to adjust their position later.
  • Page 44 2.4 Rack mounting release mechanism while pushing the sliding rails to shorten them. 6. With the rails in their shortest position, adjust both front mounting brackets so that they are flush with the front of the unit. 7. Accurately measure the depth of your rack and adjust the rear brackets accordingly.
  • Page 45 2.4 Rack mounting 9. Lift the unit into place in the rack and screw it into place as shown. Note: To avoid injury, it is strongly recom- mended that two people lift the Transport GX21 into place while a third per- son screw it to the rack.
  • Page 46 2.4 Rack mounting Chapter 2: Setting up...

  • Page 47: Replacing Pre-Installed Components

    Chapter 3: Replacing pre-installed Introduction This chapter describes how to replace all the pre-installed components of your Transport GX21 (B2735), including CPU, PCI card, riser card, memory modules, motherboard, CD- ROM drive, floppy disk drive and LED control board. There is also a section covering the replacement of the 4 port S-ATA backplane (B2735G21S4H only), and a section covering the replacement of the 4 port SCSI back plane (B2735G21U4H...
  • Page 48 3.2 Replacing motherboard components 1. Disconnect ATX power cables. EPS 12V power 2. Disconnect CD-ROM drive cable (A) (all models) and S-ATA hard drive cable (B) (B2735G21S2 only). Main power Chapter 3: Replacing pre-installed components...
  • Page 49 3.2 Replacing motherboard components Note: If there is FDD or IDE HDD installed in the bay beneath the CD-ROM drive, you will have to disconnect those cables too before you can remove the motherboard. 3. Disconnect front panel LED and USB connectors. Front panel LED connector USB connector Chapter 3: Replacing pre-installed components...

  • Page 50: Replacing The Motherboard

    3.2 Replacing motherboard components 3.2.2 Replacing the motherboard Follow these instructions to remove the motherboard from your Transport GX21 (B2735). Note: Before removing the motherboard you must remove all cable connections to the motherboard. See section 3.2.1 Disconnect- ing all motherboard cables for details on how to do this.

  • Page 51: Replacing The Cd-Rom Drive

    3. Remove the nine screws that secure the motherboard to the chassis. 4. Remove the motherboard from the chassis. Replacing the CD-ROM drive This section describes how to remove and replace the CD- ROM drive in your Transport GX21 (B2735) system. 3.3.1 Replacing the slim CD-ROM drive (B2735G21S2) Follow these instructions to replace the slim CD-ROM drive in your B2735G21S2 system.
  • Page 52 3.3 Replacing the CD-ROM drive 3. Remove the two screws that secure the CD-ROM back- plane to the CD-ROM drive. 4. Remove the four screws that secure the drive bay to the chassis and lift the drive bay free. 5. Slide the slim CD-ROM from the drive bay. Chapter 3: Replacing pre-installed components...

  • Page 53: Replacing The Cd-Rom Drive (B2735G21U4H/B2735G21S4H)

    3.3.2 Replacing the CD-ROM drive (B2735G21U4H/B2735G21S4H) Follow these instructions to replace the slim CD-ROM drive in your B2735G21U4H or B2735G21S4H system. 1. Remove the chassis cover as described in section 2.2.1 Removing the chassis cover. 2. Remove the power and data cables from the CD-ROM drive.
  • Page 54 3.3 Replacing the CD-ROM drive 5. Remove the two screws that secure the CD-ROM adapter to the CD-ROM drive and remove it. Chapter 3: Replacing pre-installed components...

  • Page 55: Replacing The Floppy Disk Drive

    Replacing the floppy disk drive This chapter describes how to replace the floppy disk drive. 3.4.1 Replacing the floppy disk drive (B2735G21S2) Follow these instructions to replace the FDD in your B2735G21S2 system. 1. Remove the chassis cover as described in section 2.2.1 Removing the chassis cover.

  • Page 56: Replacing The Floppy Disk Drive (B2735G21S4H/B2735G21U4H)

    3.4 Replacing the floppy disk drive 3.4.2 Replacing the floppy disk drive (B2735G21S4H/B2735G21U4H). Follow these instructions to replace the slim floppy disk drive in your B2735G21U4H or B2735G21S4H system. 1. Remove the chassis cover as described in section 2.2.1 Removing the chassis cover 2.

  • Page 57: Replacing The Led Control Board

    4. Remove the floppy disk drive from the chassis. Replacing the LED control board Follow these instructions to replace the LED control board. 1. Remove the two screws that secure the metal retaining plate to the chassis and lift it free. Chapter 3: Replacing pre-installed components 3.5 Replacing the LED control board...

  • Page 58: Replacing The Storage Backplane

    3.6 Replacing the storage backplane 2. Remove the front panel ribbon cable from the rear of the LED control panel. 3. Remove the two screws that secure the LED control panel to the chassis and lift the board free of the chassis. Replacing the storage backplane This section describes how to replace the S-ATA or SCSI backplane on your Transport GX21 (B2735).
  • Page 59 1. Remove the chassis cover as described in section 2.2.1 Removing the chassis cover. 2. Remove the two screws that secure the metal retaining plate to the chassis and lift it free as shown. 3. Remove all cables connected to the S-ATA backplane, including front panel cable, power cables, and S-ATA data cables.

  • Page 60: S-Ata Backplane Features

    3.6 Replacing the storage backplane 3.6.1.2 S-ATA backplane features J6 1 square C connector Fan 5 connector Fan 4 connector Fan 3 connector Fan 2 connector Fan 1 connector S1 Function set switch P1 LED pin out- put, 2 x 6 pin header J5 DC power in- put connector...

  • Page 61: Scsi Backplane (B2735G21U4H)

    3.6.2 SCSI backplane (B2735G21U4H) 3.6.2.1 Replacing the SCSI backplane (B2735G21U4H) Follow these instructions to replace the SCSI backplane on your B2735G21U4H system. 1. Remove the chassis cover as described in section 2.2.1 Removing the chassis cover. 2. Remove the two screws that secure the metal retaining plate to the chassis and lift it free as shown.
  • Page 62 3.6 Replacing the storage backplane 4. Remove the 10 screws that secure the SCSI backplane to the chassis and lift the backplane free. Chapter 3: Replacing pre-installed components...

  • Page 63: Scsi Backplane Features

    3.6.2.2 SCSI backplane features J8 big 4P 90 J7 big 4P 90 F3 fan 3P U14 MPU F1/2 fan 3P J6 front panel display board J11 floppy 34P JP2 to system JP1 to 12C J1 SCSI 68 pin Chapter 3: Replacing pre-installed components 3.6 Replacing the storage backplane J5 80 pin SCA2 J4 80 pin SCA2...

  • Page 64: Replacing The Power Supply

    3.7 Replacing the power supply Replacing the power supply Follow these instructions to replace the power supply in your Transport GX21 (B2735) system. 1. Remove the chassis cover as described in section 2.2.1 Removing the chassis cover. 2. Remove the four screws that secure the fan assembly to the chassis and lift it free.

  • Page 65: Replacing The Cooling Fans

    Replacing the cooling fans Follow these instructions to replace the cooling fans in your Transport GX21 (B2735) system. 1. Remove the chassis cover as described in section 2.2.1 Removing the chassis cover. 2. Remove the PCI retention bar Note: You may need to cut the cable ties that secure the fan power cables before attempting to unplug them.
  • Page 66 3.8 Replacing the cooling fans 6. Remove the four screws securing each fan to the fan bracket to remove them from the fan bracket. Note: The Transport GX21 (B2735) uses two different types of cooling fans which operate at different speeds. The two fans installed nearest the power supply have a peak speed of 15,000 rpm.

  • Page 67: Cooling Fan Connections

    3.8.1 Cooling fan connections CPU1_FAN pin header Chapter 3: Replacing pre-installed components 3.8 Replacing the cooling fans The 2 fans closest to the power supply should be connected to the CPU_1FAN and CPU_2FAN pin headers on the moth- erboard. CPU2_FAN pin header...
  • Page 68 3.8 Replacing the cooling fans Chapter 3: Replacing pre-installed components...

  • Page 69: Appendix

    BIOS Introduction Your Transport GX21 (B2735) system includes a powerful Tiger i7501R S2735 motherboard with AMI BIOS v8.0 on 4 MB flash ROM. The BIOS is the motherboard’s basic input/output system. The BIOS contains all the settings required to control the key- board, display, disk drives, serial communications, and a number of miscellaneous functions.
  • Page 70 Main Advanced System Overview AMIBIOS Version :08.00.09 Build Date :xx/xx/2003 :0ABBP006 Processor Type :Intel® Xeon™ CPU x.xx GHz Logical Count : x System Memory Size : xxxx MB System Time System Date To select an item: Use the <Arrow> keys to make a selection. To display a submenu (a pointer Use the arrow keys to move the cursor to the required sub- menu and press <Enter>.

  • Page 71: Bios Menu Bar

    BIOS menu bar The menu bar at the top of the window lists the following selections: Main Advanced PCI/PnP Boot Security Chipset Exit Note: Options written in bold type repre- sent the BIOS setup default. Menu bar selections To configure basic system setups Configure advanced chipset options Configure legacy PnP or PCI settings Configure system boot order...

  • Page 72: Bios Legend Bar

    BIOS legend bar The following chart describes the legend keys and their func- tions. <F1> or <Alt-H> <ESC> arrow keys arrow keys <Tab> or <Shift-Tab> <Home> or <End> <PgUp> or <PgDn> <F5> or <-> <F6>, <+> or <Space> <F8> <F9> <F10>...

  • Page 73: Bios Main Menu

    BIOS main menu The Main BIOS menu is the first screen that appears when you enter BIOS setup. The menu has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured, options in blue can be changed.

  • Page 74: Bios Advanced Menu

    BIOS advanced menu You can select any of the items in the left frame of the screen, such as Super I/O Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow> keys. All Advanced BIOS Setup options are described in this section.

  • Page 75: Cpu Configuration Submenu

    Features Advanced settings CPU Configuration IDE Configuration Floppy Configuration Super I/O Configura- tion ACPI Configuration DMI Event Logging Remote Access Con- figuration USB Configuration Onboard devices Con- figuration Hardware monitor CPU configuration submenu You can use this screen to change the CPU Settings. Use the up and down <Arrow>...
  • Page 76 CPU configuration submenu Main Advanced CPU Configuration submenu Manufacturer: Intel Brand String : Intel® Xeon™ CPU x.xx GHz Cache L2 : 512 KB Cache L3 Ratio Status : Unlocked Ratio Actual Value Ratio CMOS Setting Hyper Threading Feature Configure advanced CPU settings Ratio Status Unlocked Ratio Actual...

  • Page 77: Ide Configuration Submenu

    IDE configuration submenu You can use this screen to change IDE Configuration Set- tings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. IDE configuration submenu Main Advanced IDE Configuration...
  • Page 78 IDE configuration submenu Feature IDE Configuration IDE Legacy Con- Disabled figuration P-ATA only S-ATA only P-ATA & S-ATA S-ATA Running Enhanced Mode P-ATA Channel Primary Selection Secondary Both S-ATA Ports Def- P0-3rd/P1-4th inition P0-4th/P1-3rd Configure S-ATA as RAID S-ATA port 0/1 Both Master Primary...

  • Page 79: S-Ata Port/Primary Ide/Secondary Ide Configuration Submenu

    Feature ATA (PI) 80 pin Host and Device Cable Detection Host Device S-ATA Port/Primary IDE/Secondary IDE config- uration submenu You can use this screen to change SATA Port / Primary IDE / Secondary IDE Configuration Settings. Use the up and down <Arrow>...

  • Page 80: Floppy Configuration Submenu

    Floppy configuration submenu You can use this screen to change the Floppy Configuration Settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. Floppy configuration submenu Main Advanced Floppy Configuration...

  • Page 81: Super I/O Configuration Submenu

    Floppy configuration submenu Features Floppy Configuration Floppy A Disabled 360 KB 5 1/4” 1.2 MB 5 1/4” 720 KB 3 1/2” 1.44 MB 3 1/2” 2.88 MB 3 1/2” Floppy B Disabled 360 KB 5 1/4” 1.2 MB 5 1/4” 720 KB 3 1/2”...

  • Page 82: Acpi Settings Submenu

    Super I/O configuration submenu Feature Option Win627 Super I/O Chipset Onboard Enabled floppy con- Disabled troller Serial Port 1 3F8/IRQ4 Address 3E8/IRQ4 2E8/IRQ3 Disabled Serial Port 2 3F8/IRQ3 Address 3E8/IRQ4 2E8/IRQ3 Disabled Serial Port 2 Normal Mode IrDA ASK IR Parallel port address DIsabled...
  • Page 83 ACPI settings submenu Main Advanced ACPI Settings ACPI Aware O/S Advanced ACPI Configuration WOL S48S5 Support Power Button Instant Off After Power Failure Feature Option ACPI Settings ACPI Aware WOL S4855 Enabled Support Disabled The power Enabled Disabled After Power Always On Failure Always Off...

  • Page 84: Advanced Acpi Configuration Submenu

    Advanced ACPI configuration submenu Use this screen to select options for ACPI. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 85 Advanced ACPI configuration Feature Option Advanced ACPI Configuration ACPI 2.0 Support APIC Sup- Enabled port Disabled Ami OEMB Enabled Table Disabled Headless Enabled Mode Disabled Description Set this value to allow or prevent the system complying with the ACPI 2.0 specification This option allows you to delete whether or not to enable ACPI management features Set this value to allow the ACPI BIOS to add a...

  • Page 86: Dmi Event Logging Submenu

    DMI event logging submenu You can use this screen to view the Event Log Control Menu. This logs system events (such as CMOS clear, ECC memory errors, etc.) and writes the log into NVRAM. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus>...

  • Page 87: Remote Access Configuration Submenu

    Remote access configuration submenu You can use this screen to view the Remote Access Configu- ration Menu. This feature allows remote access to the Server via serial port. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.

  • Page 88: Usb Configuration Menu

    USB configuration menu You can use this screen to view the USB Configuration Menu. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. The settings are described on the following pages.
  • Page 89 USB configuration submenu Feature Option USB Configuration USB Function Disabled 2 USB ports 4 USB ports Legacy USB Auto Support Disabled Enabled USB 2.0 Con- Disabled troller Enabled USB 2.0 Con- FullSpeed troller Mode HiSpeed Description Enables USB host controllers Enables support for legacy USB devices such as keyboards, mice and bootable USB devices...

  • Page 90: Usb Mass Storage Device Configuration Submenu

    USB mass storage device configuration sub- menu You can use this screen to view the USB Mass Storage Device Configuration Menu. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. USB mass storage device configuration Main Advanced...

  • Page 91: Onboard Devices Configuration Submenu

    Onboard devices configuration submenu Use this screen to changer the Onboard Devices Configura- tion Settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. A description of t Onboard devices configuration submenu Main Advanced...

  • Page 92: Hardware Monitor Submenu

    Hardware monitor submenu You can use this screen to view the Hardware Monitor Con- figuration Settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. Hardware monitor submenu Main Advanced...
  • Page 93 Hardware monitor submenu Feature Monitor CPU Temperature, Fan Speed and Voltage CPU1 Temperature CPU2 Temperature CPU1 Fan CPU2 Fan Fan 2 Fan 3 Fan 4 Fan 5 Fan 7 +3.3V +12V Auto-Control Fan’s Disabled Speed Enabled Chassis intrusion Disabled Detect Enabled Option Displays CPU temperatures...

  • Page 94: Advanced Pci/Pnp Menu

    Advanced PCI/PnP menu You can use this screen to view PnP (Plug & Play) BIOS Configuration Menu. This menu allows the user to configure how the BIOS assigns resources & resolves conflicts. Use the up and down <Arrow> keys to select an item. Use the <Plus>...
  • Page 95 Advanced PCI/PnP Menu Feature Advanced PCI/PnP Menu Plug & Play OS PCI Latency Timer 32, 64, 96 ...248 Allocate IRQ to PCI Palette Snooping Disabled Enabled PCI IDE Bus Master Disabled Enabled IRQ3 - IRQ15 Available Reserved DMA0 ~ 7 Available Reserved Reserved Memory...

  • Page 96: Bios Boot Settings Menu

    BIOS boot settings menu You can display Boot Setup option by highlighting it using the <Arrow> keys and pressing <Enter>. Main Advanced Boot Settings Boot Settings Configuration Boot Device Priority Hard Disk Drives Removable Drives ATAPI CD-ROM Drives BIOS boot settings menu PCI/PnP Boot Security...

  • Page 97: Boot Settings Configuration Submenu

    Boot Settings configuration submenu Use this screen to select options for the Boot Settings Config- uration. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. Boot settings configuration submenu Main Advanced...
  • Page 98 Boot settings configuration submenu Feature Boot Settings Configuration Quick Boot Mode Quiet Boot Add On ROM Dis- play Mode Boot Up Number Lock PS/2 Mouse Sup- port Wait for ‘F1’ If Error Hit ‘Del’ Message Display Interrupt 19 Capture Primary Display Device Option Enabled...

  • Page 99: Boot Device Priority Submenu

    Boot device priority submenu Use this screen to select options for the Boot Device Priority. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. Boot device priority submenu Main Advanced...
  • Page 100 Boot device priority submenu Feature Boot Device Priority 1st Boot Device 2nd Boot Device 3rd Boot Device 4th Boot Device Option 1st FLOPPY DRIVE Disabled IBA FE Slot 0108 V4110 IBA GE Slot 0409 V1211 IBA GE Slot 0408 V1211 1st FLOPPY DRIVE Disabled IBA FE Slot 0108 V4110...

  • Page 101: Hard Disk Submenu

    Hard disk submenu Use this screen to select options for the Hard Disk Drives. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. Hard disk drives submenu Main Advanced Hard Disk Drives...

  • Page 102: Removable Drives Submenu

    Removable drives submenu Use this screen to select options for the Removable Drives. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. Removable drives submenu Main Advanced Removable Drives...

  • Page 103: Atapi Cd-Rom Drives Submenu

    ATAPI CD-ROM drives submenu Use this screen to select options for the ATAPI CD-ROM Drives. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. ATAPI CD-ROM drives submenu Main Advanced...

  • Page 104: Bios Security Menu

    BIOS security menu The system can be configured so that all users must enter a password every time the system boots or when BIOS Setup is entered, using either the Supervisor password or User password. The Supervisor and User passwords activate two different levels of password security.
  • Page 105 Feature Option Security Settings Supervisor Not Installed Password Installed User Not Installed Password Installed Change Supervisor Password Change User Password Clear User Password Boot Sec- Disabled tor Virus Enabled Protection BIOS security menu Description If the password has been set, Installed dis- plays.

  • Page 106: Bios Chipset Settings

    BIOS chipset settings This menu allows the user to customize functions of the Intel Chipset. Select a menu by highlighting it using the <Arrow> keys and pressing <Enter>. Main Advanced Monitor CPU Temperature, Fan Speed and Voltage WARNING: Setting wrong values in below sec- tions may cause system to malfunction.

  • Page 107: Northbridge Chipset Configuration Submenu

    Northbridge chipset configuration submenu This menu gives options for North Bridge Chipset Configura- tion settings. Select a menu by highlighting it using the <Arrow> keys and pressing <Enter>. Northbridge chipset configuration menu Main Advanced Configure Advanced Settings for Northbridge Chipset Memory Remap Feature CAS Latency Feature Configure Advanced Settings for Northbridge...

  • Page 108: Southbridge Chipset Configuration Submenu

    Southbridge chipset configuration submenu This menu gives options for South Bridge Chipset Configura- tion settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. Southbridge chipset configuration menu Main Advanced...

  • Page 109: Intel Pci-64 Hub 2 Configuration Submenu

    Intel PCI-64 Hub 2 configuration submenu This menu gives options for Intel PCI-64 Hub 2 Configuration settings. Select a menu by highlighting it using the <Arrow> keys and pressing <Enter>. Intel PCI-64 Hub 2 configuration submenu Main Advanced Intel PCI-64 Hub 2 Configuration PCI Bus Frequency Feature Configure advanced settings for Northbridge...

  • Page 110: Bios Exit Menu

    BIOS exit menu You can display an Exit BIOS Setup option by highlighting it with the <Arrow> keys and pressing <Enter>. Main Advanced Exit Options Save Changes and Exit Discard Changes and Exit Discard Changes Load Optimal Defaults Load Failsafe Defaults BIOS exit menu PCI/PnP Boot...
  • Page 111 Feature Save Changes and Exit Discard Changes and Exit Discard Changes Load Optimal defaults Load Failsafe Defaults BIOS exit menu Option Description Use this option to exit setup and Changes you have reboot. made are stored into CMOS. Use this option to exit setup and reboot.

  • Page 112: Scsi And S-Ata Controller Cards

    SCSI and S-ATA controller cards Controller card location Controller card slot for TYAN M7902 Ultra 320 SCSI controller card (B2735G21U4H) or TYAN M8110 S- ATA RAID controller card (B2735G21S4H)

  • Page 113: M7902 Ultra 320 Scsi Controller Card Features

    M7902 Ultra 320 SCSI controller card features Extendible SCSI channel connector for op- tional external SCSI devices. Ultra 320 SCSI connector to backplane. Key Features • Based on Adaptec AIC-7902 dual-channel Ultra320 SCSI Host Controller. • Up to 320Mbytes/sec on each Ultra320 SCSI chan- nel for a total bandwidth of 640Mbytes/sec.

  • Page 114: M8110 S-Ata Raid Controller Card Features

    M8110 S-ATA RAID controller card features 4 S-ATA ports connecting to backplane. Key Features • Based on Adaptec/Marvell 8110 SATA Host Control- ler providing 4 S-ATA ports and a flash controller. • Compliant with S-ATA rev. 1.0 specifications. • Supports 4-port 1.5Gbps S-ATA •...

  • Page 115: Technical Support

    Technical support If a problem arises with this system, you should consult your dealer first for help. The system is likely to have been config- ured by your dealer, making him the most appropriate choice when seeking technical advice. Your dealer may also be close enough to visit with the hardware for servicing or test- ing.

This manual is also suitable for:

Transport gx21B2735

Table of Contents
