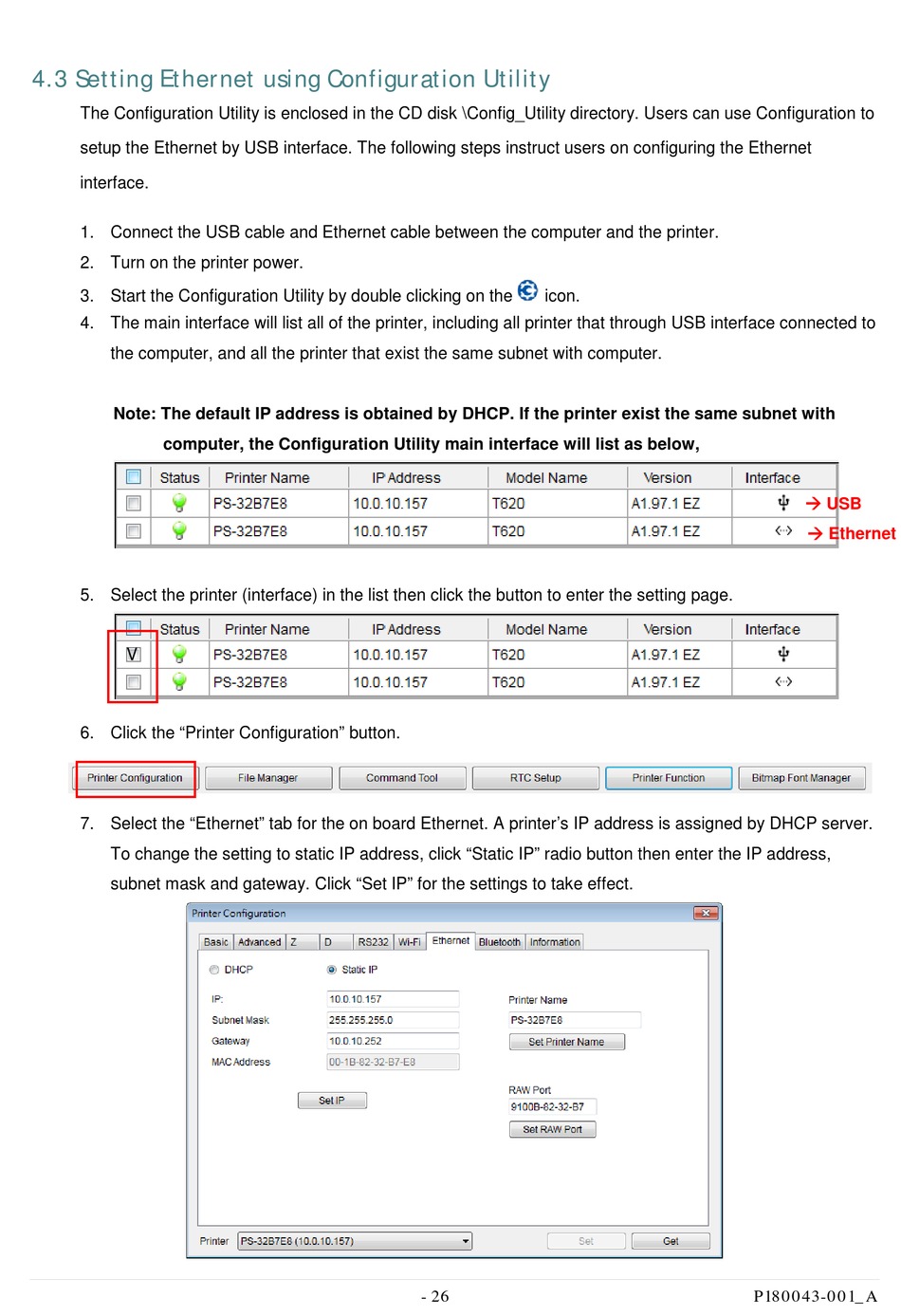

4.3 Setting Ethernet using Configuration Utility
The Configuration Utility is enclosed in the CD disk \Config_Utility directory. Users can use Configuration to
setup the Ethernet by USB interface. The following steps instruct users on configuring the Ethernet
interface.
1. Connect the USB cable and Ethernet cable between the computer and the printer.
2. Turn on the printer power.
3. Start the Configuration Utility by double clicking on the
4. The main interface will list all of the printer, including all printer that through USB interface connected to
the computer, and all the printer that exist the same subnet with computer.
Note: The default IP address is obtained by DHCP. If the printer exist the same subnet with
computer, the Configuration Utility main interface will list as below,
5. Select the printer (interface) in the list then click the button to enter the setting page.
V
6. Click the "Printer Configuration" button.
7. Select the "Ethernet" tab for the on board Ethernet. A printer's IP address is assigned by DHCP server.
To change the setting to static IP address, click "Static IP" radio button then enter the IP address,
subnet mask and gateway. Click "Set IP" for the settings to take effect.
icon.
- 26
 USB
 Ethernet
P180043-001_A
