For Configuration Utility:
Start the "Configuration Utility"  Select the "T6X0" in the list  Click the "Printer Function"
button  Click the "Calibrate" button  Select media sensor type and Click the "Calibrate" button
Printer function button:
1
Note:

Please calibrate the gap/black mark sensor when changing media.

Please refer to the section 6 for LCD menu function.

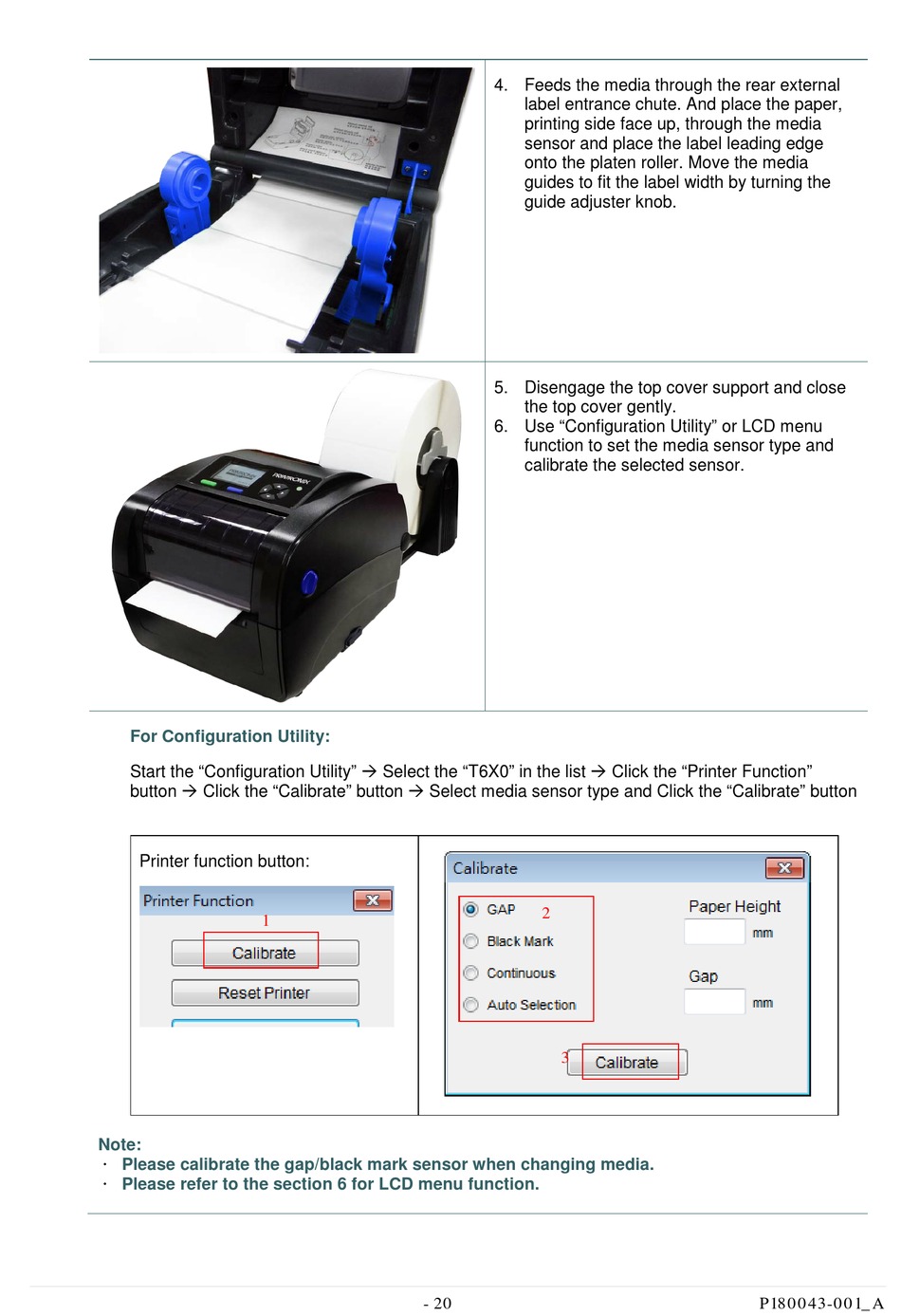

4. Feeds the media through the rear external
label entrance chute. And place the paper,
printing side face up, through the media
sensor and place the label leading edge
onto the platen roller. Move the media
guides to fit the label width by turning the
guide adjuster knob.
5. Disengage the top cover support and close
the top cover gently.
6. Use "Configuration Utility" or LCD menu
function to set the media sensor type and
calibrate the selected sensor.
2
3
- 20 P180043-001_A
