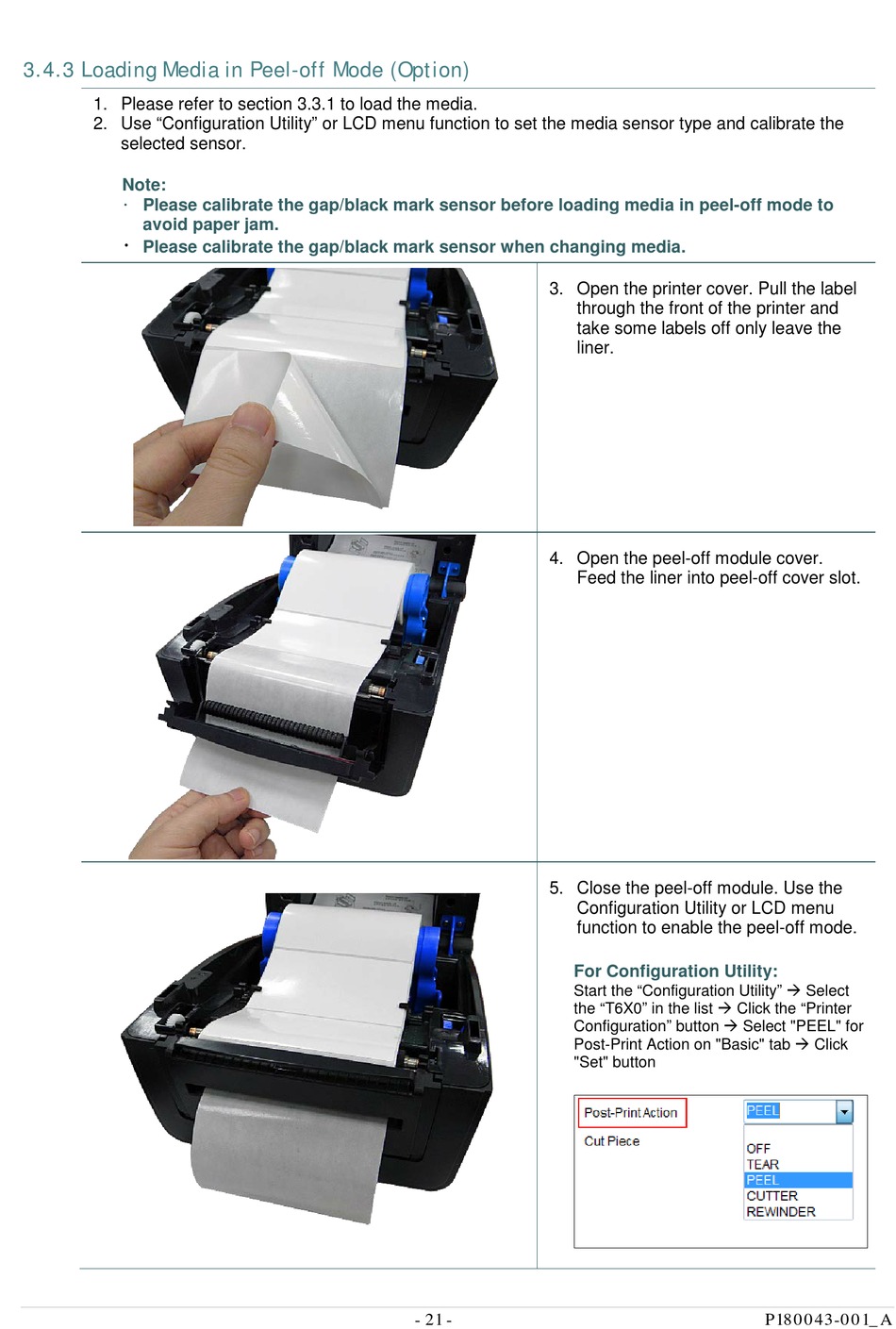

3.4.3 Loading Media in Peel-off Mode (Option)

1. Please refer to section 3.3.1 to load the media.
2. Use "Configuration Utility" or LCD menu function to set the media sensor type and calibrate the
selected sensor.
Note:
 Please calibrate the gap/black mark sensor before loading media in peel-off mode to
avoid paper jam.

Please calibrate the gap/black mark sensor when changing media.
3. Open the printer cover. Pull the label
through the front of the printer and
take some labels off only leave the
liner.
4. Open the peel-off module cover.
Feed the liner into peel-off cover slot.
5. Close the peel-off module. Use the
Configuration Utility or LCD menu
function to enable the peel-off mode.
For Configuration Utility:
Start the "Configuration Utility"  Select
the "T6X0" in the list  Click the "Printer
Configuration" button  Select "PEEL" for
Post-Print Action on "Basic" tab  Click
"Set" button
- 21 - P180043-001_A
