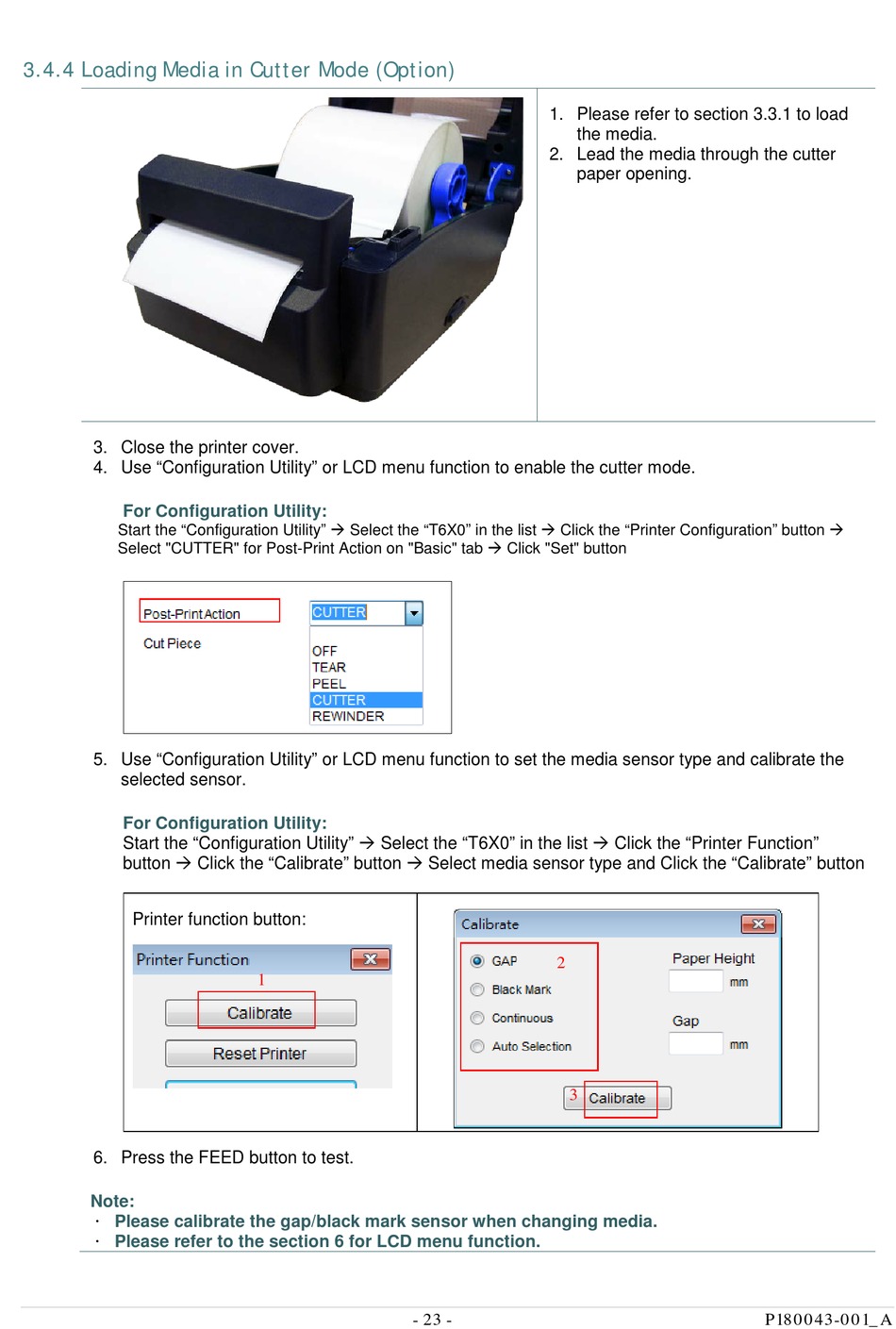

3.4.4 Loading Media in Cutter Mode (Option)

3. Close the printer cover.
4. Use "Configuration Utility" or LCD menu function to enable the cutter mode.
For Configuration Utility:
Start the "Configuration Utility"  Select the "T6X0" in the list  Click the "Printer Configuration" button 
Select "CUTTER" for Post-Print Action on "Basic" tab  Click "Set" button
5. Use "Configuration Utility" or LCD menu function to set the media sensor type and calibrate the
selected sensor.
For Configuration Utility:
Start the "Configuration Utility"  Select the "T6X0" in the list  Click the "Printer Function"
button  Click the "Calibrate" button  Select media sensor type and Click the "Calibrate" button
Printer function button:
6. Press the FEED button to test.
Note:

Please calibrate the gap/black mark sensor when changing media.

Please refer to the section 6 for LCD menu function.
1
- 23 -
1. Please refer to section 3.3.1 to load
the media.
2. Lead the media through the cutter
paper opening.
2
3
P180043-001_A
