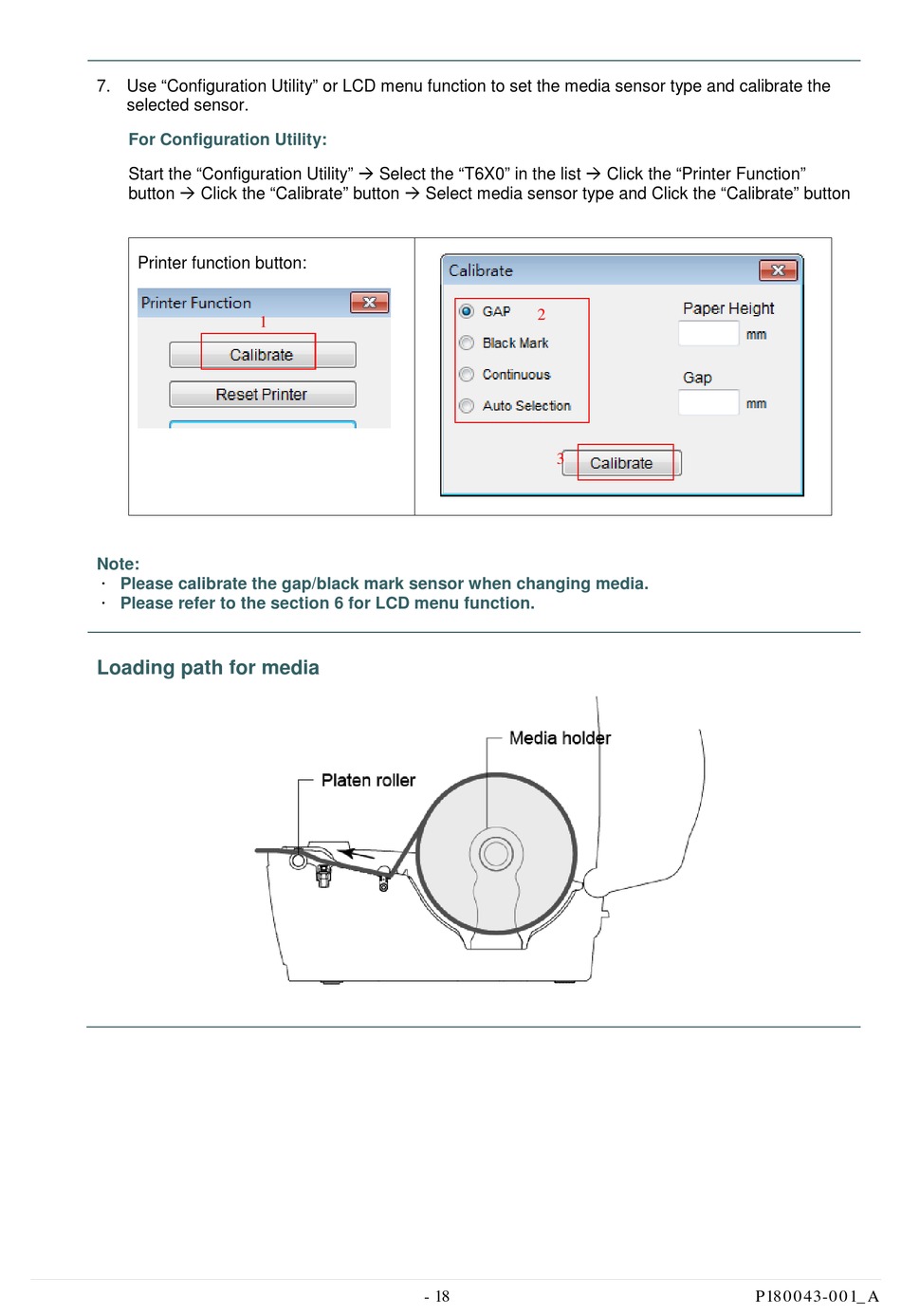

Printronix T600 Administrator's Manual page 26

7. Use "Configuration Utility" or LCD menu function to set the media sensor type and calibrate the
selected sensor.
For Configuration Utility:
Start the "Configuration Utility"  Select the "T6X0" in the list  Click the "Printer Function"
button  Click the "Calibrate" button  Select media sensor type and Click the "Calibrate" button
Printer function button:
1
Note:

Please calibrate the gap/black mark sensor when changing media.

Please refer to the section 6 for LCD menu function.
Loading path for media
2
3
- 18 P180043-001_A
