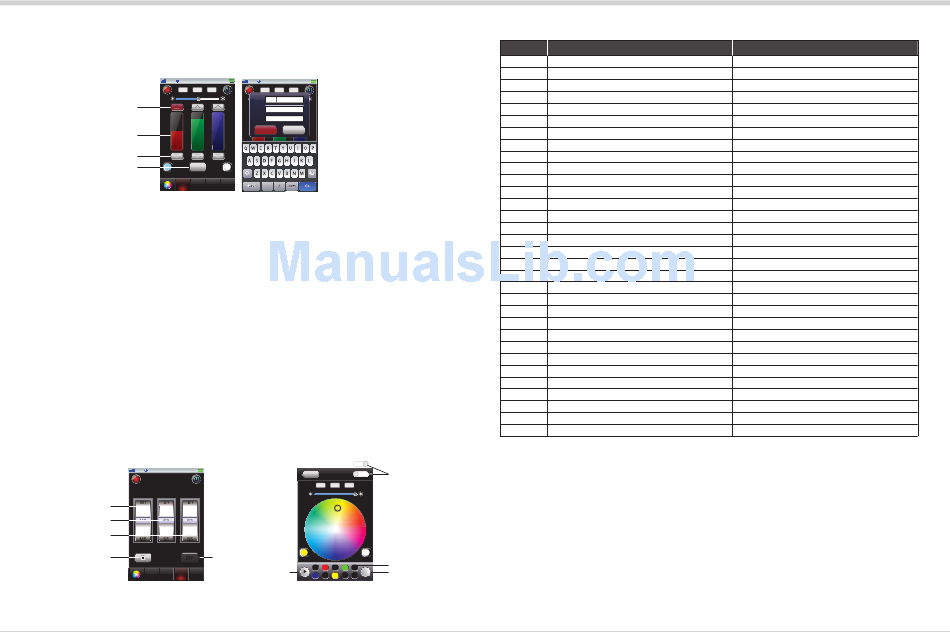

3. RGB driver editing interface
Click "Editor" to RGB driver editing interface in the RGB mode color wheel status, drag the RGB color slider or click the
adjustment key which is above the slider to change the RGB values directly.
drag brightness slider to change the overall brightness, click "Edit "to edit the RGB numerical values
12:34 PM
AT &T AT &T 12:34 PM
R G B
Save 128 210 255
50
Color Increase
RGB Slider
Color decrease
RGB value s editing key
Edit
Current
Current
Editor Scene Style
RGB editing interface
4. RGB Driver Style interface &DIY interface
Click "Style" to RGB driver Style interface in RGB mode status
(1) M1~M40 represents 40 different changing modes (M1~M3: the default fixed changing modes; M33~M40: DIY
changing modes). Each changing mode has 8 speed level and 8 brightness level. S8 - the fastest speed, B8 - the
brightest light. Click " play/pause" to suspend or keep playing. the current changing mode.
( ) 2
Click " in DIY changing modes (M33~M40 ) to edit the modes. Select color by touching the color wheel. then click any
of the 10 color boxes to fill the current color in the corresponding color box. Click " delete " to delete the selected color
box's color, and it will be black. Click" Jump/Gradual" on the upper right to jump or gradual the modes. Click " play " or
change the type of DIY changing mode, controller will play all the DIY changing modes immediately. Advised that
choosing speed level S6, brightness level S8 before entering into DIY interface to observe the chosen DIY changing
mode effect.
The DIY changing colors are at most 10 kinds. When less than 10 kinds, the rest color boxes will be the default black.
Take the below images as an example: the sequence of the 10 color boxes is black, red, black, green, black, blue, black,
yellow, black, black, which means choosing 8 colors. If the changing pattern is jump, implement the black, red, black,
green, black, blue, black, yellow jump changing mode. That is red, green, blue, yellow strobe changing mode. If the
changing pattern is gradual, implement the black, red, black, green, black, blue, black, yellow gradual changing mode.
That is red fade out and fade in, green fade out and fade in, blue fade out and fade in, yellow fade out and fade in.
AT &T AT &T 12:34 PM 12:34 PM
Save
Mode Speed Brt
M1 S1 B1
Mode rolling panel
M2 S2 B2
M3 S3 B3
speed rolling panel M3 S3 B3
M4 S4 B4
brightness rolling panel
M5 S5 B5
Mode play/pause
DIY
Editor Scene Style Settings
Style interface
AT &T AT &T 12:34 PM 12:34 PM
R G B
128 210 255
Save
R R 128
G G
210
B
B 255
Cancel Cancel OK OK
Deitor
White
White Current Current White White
Settings Driver Editor Scene Style Settings
RGB value editing
dialog box
Gradual
Jump/Gradual
Style Style DIY
Jump
(switch)
R G B
240 255 81
50
DIY interface
Current Current White White
color box
DIY style play/pause delete box's color
Delete Delete
DIY interface
5
Tables of RGB Driver Style interface Changing mode:
No. Mode
1 Static red
2 Static green
3 Static blue
4 Static yellow
5 Static purple
6 Static cyan
7 Static white
8 RGB skipping
9 7 colors skipping
10 White strobe
11 7 colors strobe
12 Red Fade out and fade in
13 Green Fade out and fade in
14 Blue Fade out and fade in
15 Yellow Fade out and fade in
16 Purple Fade out and fade in
17 Cyan Fade out and fade in
18 White Fade out and fade in
19 RGB Fade out and fade in
20 Red/green gradual alternately
21 Red/blue gradual alternately
22 Green/blue gradual alternately
23 Red/yellow gradual alternately
24 Green/cyan gradual alternately
25 Blue/purple gradual alternately
26 Green/yellow gradual alternately
27 Blue/cyan gradual alternately
28 Red/purple gradual alternately
29 Blue/white gradual alternately
30 Yellow/purple/can gradual alternately
31 RGB gradual alternately
32 Full color gradual alternately
.
5 RGB driver scene interface
） ：
1 save scene
Click " save "on the interface of RGB color wheel, RGB editor or style
, select any Scene 1 ~ 9, and click "OK", the Scene name prompt box will pop-up, scene name can be modified, click
"OK" again, the current changing mode will be saved as Scene changing mode; click "cancel" then Cancel the Save
operation.
）
2 Play scene:
click "Scene" on the RGB driver interface,select any Scene 1 ~ 9, the corresponding Scene changing mode will pop-
up immediately , the mode's parameters are above the screen.
, If it is a dynamic changing mode, click " play/pause" to suspend or keep playing.
the chosen changing mode.
Description
brightness adjustable
brightness adjustable
brightness adjustable
brightness adjustable
brightness adjustable
brightness adjustable
brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
speed/brightness adjustable
