Ltech WiFi-101-CT Manual

Product Features
Specialized smart home setting
Intelligent lighting timing set
Limitless long-range control
User-defined lighting mode
2 CT mode selection
CT

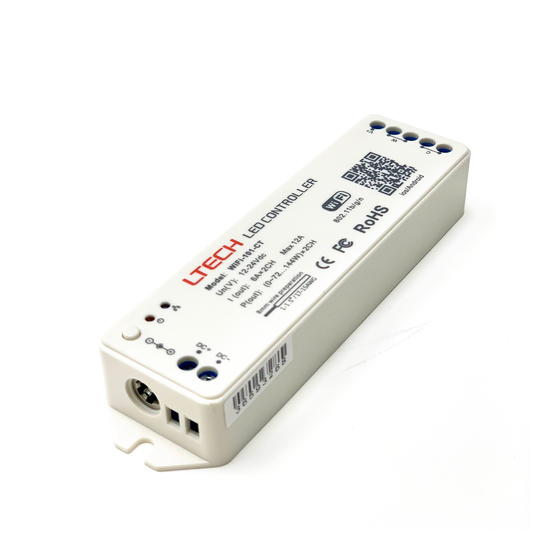

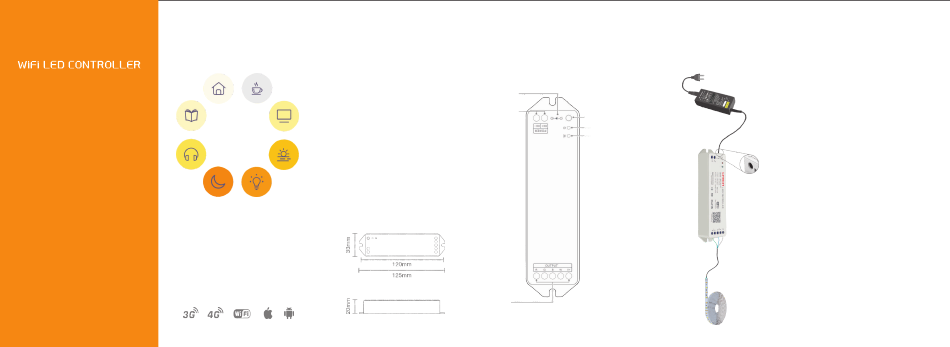

Product Parameters Product Structure
Product Name : WiFi LED Controller
Model :
WiFi-101-CT DC Power supply socket
(φ5.5mm x φ2.5mm)
Input Voltage :
12 ~ 24Vdc
Out Control： CT LED Lights
12~24Vdc
power input
Max Current Load : 6A x 2CH Max 12A
Max Output Power : （0~72...144W）x2CH
Working Temperature :
-30℃ ~ +55℃
Protocol :
2.4GHz Wi-Fi, 802.11b/g/n
Dimension :
L125 x W33 x H20(mm)
Packing：
L127 x W35 x H24(mm)
Net Weight :
52g
Gross Weight :
70g
LED lamp
connection socket
Product Installation
Power Adapter
220/110Vac
Setting key
Power indicator
The running light
Load power below 75W,
use this round adapter
WiFi-101-CT
socket for connection.
LED Strip
Attention
1. The product shall be installed and serviced
by the qualified person.
2.This product is non-waterproof. Please avoid
the sun and rain. When installed outdoors,
please ensure it is mounted in a water proof
enclosure.
3.Good heat dissipation will prolong the
working life of the controller. Please ensure
good ventilation.
4.Please check if the output voltage of the LED
power supply used comply with the working
voltage of the product.
5. Please ensure that adequate sized cable is
used from the controller to the LED lights to
carry the current. Please also ensure that the
cable is secured tightly in the connector.
6.Ensure all wire connections and polarities
are correct before applying power to avoid
any damages to the LED lights.
7.If a fault occurs please return the product to
your supplier. Do not attempt to fix this
product by yourself.
★ This manual only applies to this model. We
reserve the right to make changes without
prior notice.
