Zoomax MD HD PLUS User Manual

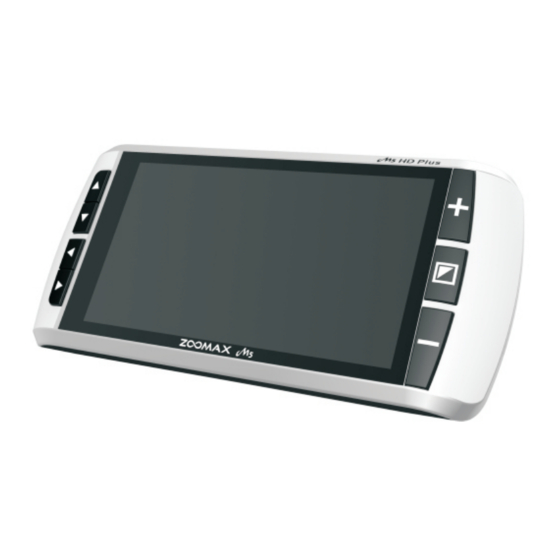

5'' handheld video magnifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

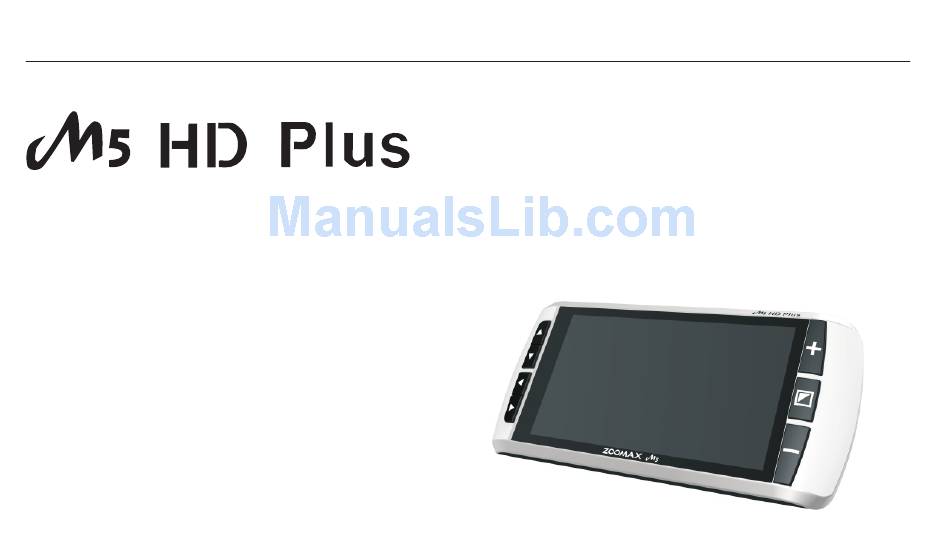

ZOOMAX
User's Guide
"
5 Handheld Video Magnifier
User's Guide
Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD HD PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for Zoomax MD HD PLUS

Summary of Contents for Zoomax MD HD PLUS

  • Page 1 ® ZOOMAX User’s Guide ″ 5 Handheld Video Magnifier User’s Guide Version 1.2...
  • Page 2 Copyright © 2017 ZOOMAX Technology Co., Limited. All Rights Reserved. ® ZOOMAX is a trademark of ZOOMAX Technology Co., Limited in the United States and other countries. Information in this document is subject to change without notice. No part of this publication may be reproduced or transmitted in any forms or by any means electronic or mechanical, for any purpose, without the express written permission of ZOOMAX.

  • Page 3: Table Of Contents

    ® ZOOMAX User’s Guide CONTENTS ..............1. INTRODUCTION ............ 2. SAFETY AND MAINTENANCE ................. 3. ACCESSORIES ..........4. SETTING UP YOUR M5 HD PLUS ..........4.1 Getting to Know Your M5 HD Plus ..............4.2 Reading Position ........... 4.3 Battery Display and Charging ..........
  • Page 4 ® ZOOMAX User’s Guide 6. HOW TO USE YOUR M5 HD PLUS ............15 ..............6.1 Basic Operation ..............6.1.1 Power On/Off ..........6.1.2 Near/Distance-View Function ..............6.1.3 Zoom Control ............6.1.4 Select Color Mode .............. 6.1.5 Freeze Function ...........
  • Page 5 ZOOMAX User’s Guide ..........6.2.3 Connect to TV or Monitor ............. 6.2.4 Power Saving Function ............6.2.5 Memory Function ..............6.2.6 Demo Mode ..............6.2.7 Factory Reset .............. 7. TROUBLESHOOTING ............. 8. TECHNICAL SPECIFICATION ........... 9. OTHER PRODUCTS FROM ZOOMAX...

  • Page 6: Introduction

    ® ZOOMAX User’s Guide 1. Introduction Congratulations on the purchase of your new M5 HD Plus. Please read this user’s guide carefully before using. This guide will help you to better understand the M5 HD Plus’ features and allow you to get the full benefit of your M5 HD Plus video magnifier.
  • Page 7 We constantly seek to improve our products and their performance. To get the latest version of user’s guide, please download it in the Support section at www.zoomax.co. If you have any questions after reading this guide, please contact your supplier for further assistance.

  • Page 8: Safety And Maintenance

    ® ZOOMAX User’s Guide 2. Safety and Maintenance To keep your M5 HD Plus video magnifier in optimal condition, please read the following safety guidelines carefully: ▶To avoid risk of electrical damage, keep your M5 HD Plus away from fluids and chemicals.
  • Page 9 ® ZOOMAX User’s Guide ▶Always unplug the M5 HD Plus before cleaning. Use the cleaning cloth or a soft damp cloth to clean the exterior. Do not use cleaning agents or abrasive materials, as they will damage your video magnifier.

  • Page 10: Accessories

    ® ZOOMAX User’s Guide 3. Accessories You will find the following accessories inside the M5 HD Plus package box: HDMI cable Ÿ Power adapter Ÿ User’s guide Ÿ Cleaning cloth Ÿ Wrist strap Ÿ Carrying case Ÿ Handle Ÿ If any items are missing from your package, please contact your...

  • Page 11: Setting Up Your M5 Hd Plus

    ® ZOOMAX User’s Guide 4. Setting Up Your M5 HD Plus 4.1 Getting to know your M5 HD Plus ″ 5 HD Touch Screen Power indicator Up button Zoom in button Down button Mode button Left button Right button Zoom out button...
  • Page 12 ® ZOOMAX User’s Guide Power input Power button HDMI port USB port Freeze button Figure 2: Side view...
  • Page 13 ® ZOOMAX User’s Guide Camera for near-view Groove to open the stand Camera for Recessed round distance-view hole for handle installation Figure 3: Back view...
  • Page 14 ® ZOOMAX User’s Guide 1) M5 HD Plus is equipped with dual cameras: camera for near- view and camera for distance-view. Each camera works separately and specifically for different viewing modes. 2) The two grooves are designed to help you open the reading stand easily.

  • Page 15: Reading Position

    ® ZOOMAX User’s Guide 4.2 Reading position The M5 HD Plus can be used in two ways: use with stand opened and with stand closed. Figure 4 Figure 5 1) The M5 HD Plus with stand closed (refer to Figure 4) is ideal for distant viewing.
  • Page 16 ® ZOOMAX User’s Guide Figure 6 Figure 7 2) The M5 HD Plus with stand opened (refer to Figure 6) is for near viewing. Pull the stand out to open the reading stand and the screen will be set in an ergonomic angle. Place your M5 HD Plus on reading...

  • Page 17: Battery Display And Charging

    ® ZOOMAX User’s Guide 4.3 Battery Display and Charging 1) Battery Display The battery icon will be displayed at the bottom left corner of the screen when the M5 HD Plus is powered on. After 5 seconds it will disappear automatically. When battery level drops to 5%, the M5 HD Plus will alert you with a warning beep and a low battery icon will appear on the screen.
  • Page 18 ® ZOOMAX User’s Guide Please note that the power indicator is RED while charging. The indicator will go OFF when battery gets fully charged.It takes approximately 4.5 hours to fully charge. Your M5 HD Plus can be continuously used up to about 4 hours after fully charged.

  • Page 19: General Guidelines For Use

    ® ZOOMAX User’s Guide 5. General Guidelines for User 1) Please charge the battery before your first use of M5 HD Plus. 2) Always use the power supply provided in your package. Do not use any other power supplies. Other charger may harm the unit and void the warranty.

  • Page 20: How To Use Your M5 Hd Plus

    ® ZOOMAX User’s Guide 6. How to Use Your M5 HD Plus 6.1 Basic Operation 6.1.1 Power On/Off 1) To turn on your M5 HD Plus, press and hold the Power button for 3 seconds while the power indicator turns GREEN.

  • Page 21: Near/Distance-View Function

    ® ZOOMAX User’s Guide 6.1.2 Near/Distance-View Function The M5 HD Plus will automatically switch between near and distance view when opening or closing the stand. 1) Open the stand to change to near-view mode. The camera will automatically switch to fixed focus, and the LED light will turn on.

  • Page 22: Zoom Control

    ® ZOOMAX User’s Guide 6.1.3 Zoom Control " " "-" Press the + button to zoom in and press the button to zoom out. The magnification range of the M5 HD Plus is from 2.3X to 16X. Lifting your M5 HD Plus from the reading material while in distance- view mode will decrease the magnification.

  • Page 23: Select Color Mode

    ® ZOOMAX User’s Guide 6.1.4 Select Color Mode Ø Normal Color Mode In normal color mode, short press the Mode button to cycle through the following 11 color modes and choose the color you prefer. - Full color - High contrast white text on black background mode...
  • Page 24 ® ZOOMAX User’s Guide - High contrast blue text on yellow background mode - High contrast yellow text on blue background mode - High contrast green text on black background mode - High contrast black text on green background mode Ø...
  • Page 25 ® ZOOMAX User’s Guide To exit Favorite color mode, press and hold the Mode button for 3 seconds until your hear a BEEP. NOTE: 1) Notice that the M5 HD Plus cannot enter into Favorite mode in full color. 2) When trying to enter into Favorite mode, the beep sound will always ON, no matter the system sound is on or off (refer to following Sound On/Off operation on page 29).

  • Page 26: Freeze Function

    ® ZOOMAX User’s Guide 6.1.5 Freeze Function Ø Freeze Photo In distance-view mode, after camera focused (focused by taping the screen), short press the Freeze button to freeze a real-time image; in near-view mode, the camera is fixed focus, short press the Freeze...
  • Page 27 ® ZOOMAX User’s Guide Ø View Frozen Photo After freezing a photo, press the “+” button to zoom in and press the “-” to zoom out. When the photo has been zoomed in, press the four arrow buttons “ ” on the left side or use one finger to press & hold on the touch screen and pan to view detailed parts of the photo.

  • Page 28: Reading Line And Masks

    ® ZOOMAX User’s Guide 6.1.6 Reading line and Masks Under real-time viewing mode, short press the “+” and “-” simultaneously to cycle through 4 electric curtain options: reading line (horizontal/vertical), reading mask (horizontal/vertical). Ø Horizontal Reading Line To move the horizontal reading line, press “...
  • Page 29 ® ZOOMAX User’s Guide Ø Horizontal Reading Mask To adjust the width of a the horizontal reading mask, press “ ” or “ ” to desired width. Ø Vertical Reading Mask To adjust the width of a the vertical reading mask, press “...

  • Page 30: Advanced Function

    ® ZOOMAX User’s Guide 6. 2 Advanced Operation 6. 2.1 Save/Delete Photo Ø Save Photos When a photo is frozen, press Freeze button and Zoom in button “+” simultaneously for 3 seconds, a tick icon will appear on the screen indicating the photo has been saved.
  • Page 31 ® ZOOMAX User’s Guide Ø Choose and View Saved Photos Long press the Freeze button for 3 seconds, photo index display (sets of 4 saved photos) will appear. The saved photos will be displayed in inverted order with correspondent numbers marked, e.g. total 24 photos saved, the photos will be displayed from No.24 to No.1.
  • Page 32 ® ZOOMAX User’s Guide Under the lowest magnification, press “ ” or “ ” to view the previous or next photo. Short-press the Freeze button to return to photo index display. Short press the Freeze button again to revert to real-time viewing mode.

  • Page 33: Menu Mode

    ® ZOOMAX User’s Guide 6. 2.2 Menu mode (LED On/Off, Sound On/Off, Frame Rate Setting, Brightness Adjustment) Long press “+” button and “-” button simultaneously for 3 seconds to enter into menu mode: LED light , sound , frame rate...
  • Page 34 ® ZOOMAX User’s Guide 1) LED On/Off Press “+” button or “-” button to cycle through the four icons and choose LED icon “ ”, press Mode button to turn the LED lights ON or OFF. By default, the LED lights are ON in near-view and OFF in distance-view mode.
  • Page 35 ® ZOOMAX User’s Guide After finishing the setting, press the Freeze button to revert to real- time viewing mode. 3) Frame Rate Setting Press “+” button or “-” button to cycle through the four icons and choose frame rate icon “...
  • Page 36 ® ZOOMAX User’s Guide 4) Brightness Adjustment Press “+” button or “-” button to cycle through the four icons and choose the brightness icon , press Mode button. Its background will turn to real-time viewing mode, which indicates that brightness adjust function has been selected.

  • Page 37: Connect To Tv Or Monitor

    NOTE: Your M5 HD Plus can also be connected to TV and monitor that are not equipped with an HDMI port. Contact your local Zoomax distributor for more information about available adapters for connecting your M5 HD Plus to TV and monitor without HDMI port.

  • Page 38: Power Saving Function

    ® ZOOMAX User’s Guide 6.2.4 Power Saving Function By default, your M5 HD Plus turns OFF automatically after 3 minutes of inactivity. 6.2.5 Memory Function The current settings will be saved automatically when the M5 HD Plus turned off to facilitate the next use.

  • Page 39: Demo Mode

    ® ZOOMAX User’s Guide 6.2.6 Demo Mode At the LOWEST magnification setting, press and hold the “-” button for 5 seconds. The M5 HD Plus will enter into demo mode when a white rectangle icon appears at the bottom left corner of the screen after a beep sound.

  • Page 40: Factory Reset

    ® ZOOMAX User’s Guide 6.2.7 Factory Reset Factory Settings: - Screen brightness level is 3. - Sound is on. - Real time mode after turned on. - Full color mode. - Frame rate is 60Hz. To reset to factory settings: at the HIGHEST magnification setting, press and hold the "+"...

  • Page 41: Troubleshooting

    ® ZOOMAX User’s Guide 7. Troubleshooting Problems Solutions - Ensure that the power is on. Black screen - Charge the battery. - Decrease the magnification level. - Charge the battery. The unit will not turn on. - Ensure the unit is that on the The image on the screen viewed material.
  • Page 42 ® ZOOMAX User’s Guide Problems Solutions - Adjust the magnification down to suitable level. Text is too large to read. - Lift/move the unit a little away from the viewed material. - Ensure the TV is on. The unit is connected to a...

  • Page 43: Technical Specification

    ® ZOOMAX User’s Guide 8. Technical Specification 1) Magnification: 2.3X ~ 16X 2) Color modes: Full color and 10 high contrast color modes; 3 favorite modes, including full color 3) Screen: 5-inch TFT touch screen; screen resolution: 1280x720p 4) Camera: dual camera, 5 megapixels; auto focus / tap-to-focus under distance-view mode;...
  • Page 44 ® ZOOMAX User’s Guide 8) Power adapter: Input: 100 ~ 240V Output: 5V/2.5A Continuous use: (Fully charged battery) approximately 4 hours battery life (depending on Mode and Brightness level settings) Charging time: approximately 4.5 hours Total weight: approximately 265 g (9.35oz) ( ) (5 ) ″...

  • Page 45: Other Products From Zoomax

    ® ZOOMAX User’s Guide 9. Other Products from ZOOMAX Snow is given the most advanced image technology and best camera. It offers sharp image even at the lowest magnification and Snow under the fast movement. No learning but easy 4.3"...
  • Page 46 It offers you comfortable image, less for eye strain. There are basic and advanced operation modes for your choice. Zoomax Panda HD with the high specification and compact design offers the most attractive Panda advantages of a full desktop electronic magnifier,crisp image in high definition, intuitive use, space-saving and movable screen design.
  • Page 47 ® ZOOMAX User’s Guide ZOOMAX TECHNOLOGY CO., LIMITED 9F, Building D, Paradise Software Park , No.3 Xidoumen Road, Xihu District, Hangzhou, Zhejiang Provice,310012, China. 87006308 87397220 Email sales zoomax Visit us at zoomax Zoom Your Vision, Max Your Life...
