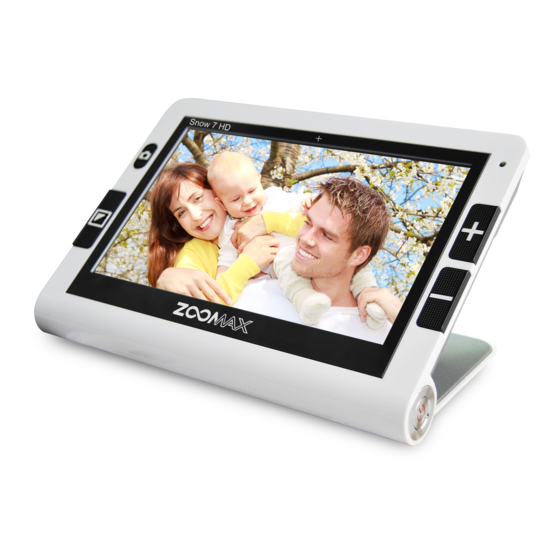

Zoomax Snow 7 HD Plus User Manual

7" handheld video magnifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
ZOOMAX
Snow 7 HD Plus
7" Handheld Video Magnifier
User's Guide
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Snow 7 HD Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Zoomax Snow 7 HD Plus

Summary of Contents for Zoomax Snow 7 HD Plus

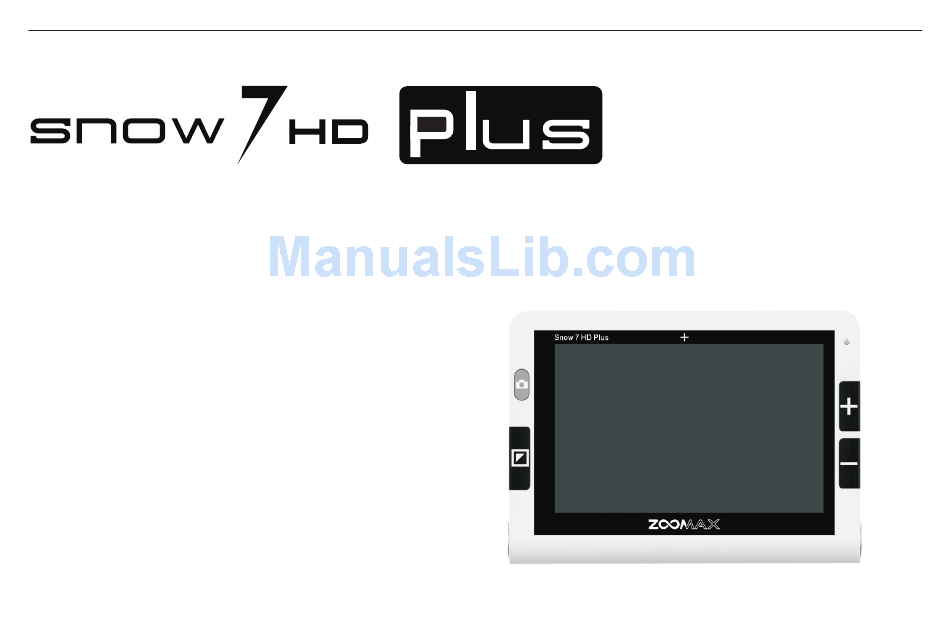

  • Page 1 ® ZOOMAX Snow 7 HD Plus 7" Handheld Video Magnifier User’s Guide Version 1.1...
  • Page 2 Copyright 2017 ZOOMAX Technology Co., Limited. All Rights Reserved. ® ZOOMAX is a trademark of ZOOMAX Technology Co., Limited in the United States and other countries. Information in this document is subject to change without notice. No part of this publication may be reproduced or transmitted in any forms or by any means electronic or mechanical, for any purpose, without the express written permission of ZOOMAX.

  • Page 3: Table Of Contents

    ..............3. GET TO KNOW THE SNOW 7 HD PLUS .
  • Page 4 ..............5. THE SNOW 7 HD PLUS SYSTEM SETTING .
  • Page 5 ® ZOOMAX Snow 7 HD Plus 6.2 Activate/Exit the text-to-speech setting menu ........

  • Page 6: Zoomax Snow 7 Hd Plus

    Please read this user’s guide carefully before using. This guide will help you understand the Snow 7 HD Plus’ features better and allow you to get the full benefit of your Snow 7 HD Plus video magnifier.
  • Page 7 We constantly seek to improve our products and their performance. Therefore, it is possible that this guide is not the latest version available. You can still download the latest user’s guide in the Support section at www.zoomax.co. If you have any questions after reading this guide, please contact your supplier for...

  • Page 8: Safety And Maintenance

    To keep your Snow 7 HD Plus video magnifier in optimal condition, please read the following safety guidelines carefully: Ø To avoid the risk of fire, do not expose your Snow 7 HD Plus to excessive heat or direct sunlight. Ø...

  • Page 9: Get To Know The Snow 7 Hd Plus

    ® ZOOMAX Snow 7 HD Plus 3. Get to know the Snow 7 HD Plus 3.1 Accessories You would find the following accessories inside the Snow 7 HD Plus package box: § User’s guide § Power adapter § USB cable §...

  • Page 10: General Description

    ® ZOOMAX Snow 7 HD Plus 3.2 General description Freeze button 7-inch Touch Screen Power indicator Zoom in button Zoom out button Mode button Stand Power button...
  • Page 11 ® ZOOMAX Snow 7 HD Plus Near/Distance-view Headphone switch button HMDI port port USB port HD Camera Power input LED light...

  • Page 12: Charge The Battery

    Power indicator Power input port § The battery MUST be fully charged prior to FIRST use of your Snow 7 HD Plus. § To charge the battery, simply plug the supplied power adapter into an available power outlet and connect to your device. Please note that the power indicator is...
  • Page 13 When the battery charge is low, the low battery icon will appear in the lower left corner of the screen. Your Snow 7 HD Plus can be used for approximately 10 minutes before the automatic shutdown. In order to guarantee and extend the life time of the battery, please charge the battery only when the low battery icon display on the screen.

  • Page 14: Power Indicator Status

    ® ZOOMAX Snow 7 HD Plus 3.4 Power indicator status § RED: Battery charging while not fully charged - Power adapter connected (no matter the unit is on or off or in the standby mode) § GREEN: Battery not charging - Power adapter unconnected (the unit is on or in standby mode).

  • Page 15: Basic Operation

    Press and hold the Power button for 2 seconds and the Power Indicator will turn GREEN. Release the Power Button, the name of Snow 7 HD Plus appears on the screen for seconds and then, ZOOMAX logo will be shown on the screen. Then, after a few seconds, it turn to the real-time image display.

  • Page 16: Standby Mode

    ® ZOOMAX Snow 7 HD Plus § To turn off your Snow 7 HD Plus, press and hold Power button for 2 seconds (Note: you would see the Power indicator goes off) 4.2 Standby mode Power indicator Power button §...

  • Page 17: Near/Distance-View Function

    Toggle the button to the Left direction to view distance. § Turn your Snow 7 HD Plus UPSIDE DOWN to view distance more comfortably. NOTE: When switch from near-view to distance-view, the color mode is full-color mode by default. You can change the color mode by pressing the mode button if needed.

  • Page 18: Zoom Control

    ® ZOOMAX Snow 7 HD Plus NOTE: When switch from distance-view to near-view, the color mode will return to the full color. 4.4 Zoom control Zoom in button Zoom out button § Press the “+” button to zoom in and press the “-” button to zoom out.

  • Page 19: Select Color Mode

    Normal mode Press the Mode button under normal mode, you can select from 10 high contrast color modes plus full color mode. The default color mode is full color mode. The Snow 7 HD Plus color options are listed below:...
  • Page 20 ® ZOOMAX Snow 7 HD Plus - Full color - High contrast white text on black background mode - High contrast black text on white background mode - High contrast white text on blue background mode - High contrast blue text on white background mode...
  • Page 21 ® ZOOMAX Snow 7 HD Plus Ø Favorite color mode § Under any contrast color mode, press and hold the Mode button for two seconds until you hear ONE BEEP to enter Favorite color mode. Only 3 color modes are for selection in this mode: the full color, the favorite color you choose and its reverse color mode (such as white on blue &...

  • Page 22: Reading Line

    ® ZOOMAX Snow 7 HD Plus 4.6 Reading line § There are two reading line options: Horizontal reading line and Vertical reading line. § Under real-time viewing mode, short press the “+” and “-” simultaneously to activate horizontal reading line.

  • Page 23: Freeze Function

    Short press the Freeze button to freeze a real-time image. 4.8 View frozen image Take your Snow 7 HD Plus closer to your eyes to see the image. The image can be zoomed in/out and color mode can be changed.

  • Page 24: Save Frozen Image

    § The Snow 7 HD Plus can store up to 1000 images. NOTE: If you try to save another image when the memory of the unit is full, the screen will display “Memory full”.
  • Page 25 ® ZOOMAX Snow 7 HD Plus Use one finger to flick on the screen to browse through the image index display. § Tap the image to select it. § To view the previous or next photo, you can use one finger flick left or right under §...

  • Page 26: Transfer Images

    2. Use the USB cable (included) to connect the magnifier to the computer. 3. Plug one end of the USB cable to the USB port of your Snow 7 HD Plus and plug another end of the USB cable to the USB port of your computer.
  • Page 27 Snow 7 HD Plus NOTE: The Snow 7 HD Plus can only be connected to Windows now and Mac support is in development. If you need to connect Mac, please contact your local Zoomax distributor or Zoomax headquarters for latest news.
  • Page 28 Snow 7 HD Plus 3. To transfer images: After opening the “Snow 7 HD Plus” disk, there are several folders (shown as figure below), such as “Alarms”, “Movies” and “Music”. These folders are reserved for later usage and you can skip them directly. Choose “DCIM” folder and you will see P1...
  • Page 29 ® ZOOMAX Snow 7 HD Plus NOTE: All images from basic operation are stored in P1 folder. All images from text-to- speech function are stored in P2 folder.
  • Page 30 ® ZOOMAX Snow 7 HD Plus Select the corresponding folder first, then select the images you want to transfer. You can either copy or cut the chosen images and transfer it from the magnifier to your computer or from computer to the magnifier.
  • Page 31 NOTE: § If the memory of the Snow 7 HD Plus is full, the image from the computer can’t be transferred to the magnifier. Please make sure there are enough storage space. § To safely disconnect the unit and protect your data, always follow your operating...

  • Page 32: Connect To Tv Or Monitor

    2. Use the HDMI cable (included) to connect the magnifier to the TV or monitor. 3. Just plug one end of HDMI cable into the HDMI port on your Snow 7 HD Plus and the other end of the HDMI cable into any available HDMI port on your TV or monitor.
  • Page 33 HDMI output mode. And the contents of material will display on the monitor or TV. NOTE: Your Snow 7 HD Plus can also be connected to TV or monitor that are not equipped with HDMI port. Contact your local Zoomax distributor for more information about available adapters for connecting your Snow 7 HD Plus to TV or monitor with no HDMI port.

  • Page 34: The Snow 7 Hd Plus System Setting

    ® ZOOMAX Snow 7 HD Plus 5. The Snow 7 HD Plus system setting NOTE: All the following system setting are applicable to basic operation and advanced operation (text-to-speech function). 5.1 Activate/Exit the system setting menu Ø Activate the setting menu 1.
  • Page 35 ® ZOOMAX Snow 7 HD Plus Button sound LED light Frame rate Brightness Ø Exit the setting menu Short press Freeze button to revert to real-time viewing mode. If no operation within 5 seconds, it will revert to real-time viewing mode automatically.

  • Page 36: Led Light On/Off

    ® ZOOMAX Snow 7 HD Plus 5.1.1 LED light On/Off 1. Press “+” button or “-” button to select LED light icon , press Mode button to enter LED light setting interface as below. 2. Press “+” button or “-” button to choose LED light status. By default, the LED lights are ON in near-view and OFF in distance-view mode.

  • Page 37: Button Sound On/Off

    ® ZOOMAX Snow 7 HD Plus TIPS: Under near-view function, we recommend using double lights ON. Under distance-view function, the double LED lights are OFF by default. You can turn them on if needed. Under text-to-speech function, we recommend using double lights ON on matte paper and double lights OFF on glossy paper.

  • Page 38: Frame Rate

    ® ZOOMAX Snow 7 HD Plus 2. Press Freeze button to revert to real-time viewing mode. If no operation within 5 seconds during setting, it will revert to real-time viewing mode automatically. 5.1.3 Frame rate 1. Press “+” button or “-” button to select Frame rate icon , press Mode button to choose 50 Hz/60 Hz.
  • Page 39 ® ZOOMAX Snow 7 HD Plus Figure1 Figure2 2. Press zoom in button or zoom out button to increase or decrease the brightness. 3. There are total 5 intensity settings: 5,4,3,2,1. By default, intensity level is set to 3. 4. After making the setting, press Freeze button to revert to real-time viewing mode.

  • Page 40: Demo Mode

    Freeze button first and then short press Mode button and the Snow 7 HD Plus will enter demo mode when a white rectangle icon appears at the bottom right corner of the screen after a beep sound. The magnifier will always be on, so you can enjoy extended periods of reading.

  • Page 41: Factory Reset

    Long press “+” and “-” simultaneously for 5 seconds you will find “Shutting down” appears on the screen. Then, release the press, the unit will be powered off a few seconds later. All setting will be reset to factory defaults when Snow 7 HD Plus is turned on next time.

  • Page 42: Advanced Operation (Text-To-Speech Function)

    There is a printed icon in the upper-right corner of the packing symbolizing the Snow 7 HD Plus inside the package has text-to-speech function. Once you purchase the device without text-to-speech function which you desire to have afterwards, you can contact your local supplier for the version update service.

  • Page 43: Enable/Disable Text-To-Speech Function

    ® ZOOMAX Snow 7 HD Plus 6.1 Enable/Disable text-to-speech function Ø Enable text-to-speech function Under the real-time viewing mode (not under the frozen image or saved image mode), press and hold the Freeze button for 3 seconds to enter text-to-speech function until...
  • Page 44 ® ZOOMAX Snow 7 HD Plus Ø Disable text-to-speech function To exit text-to-speech function under real-time viewing mode, long press the Freeze button for 3 seconds to exit. If your unit is proceeding with text reading task, to exit text-to-speech function, you have to short press Freeze button to exit the text page, and then long press the Freeze button for 3 seconds to exit.

  • Page 45: Activate/Exit The Text-To-Speech Setting Menu

    ® ZOOMAX Snow 7 HD Plus 6.2 Activate/Exit the text-to-speech setting menu Before using the text-to-speech function, please enter the setting menu to set up the language, voice speed, voice and volume first. Please choose the language same as the language on the document you want to read.
  • Page 46 ® ZOOMAX Snow 7 HD Plus Language Voice Speed Voice Volume Ø Exit the setting menu In the first class setting page, short press Freeze button to exit. In the second class setting page (introduced in the latter pages) , short press Freeze...

  • Page 47: Language

    ® ZOOMAX Snow 7 HD Plus 6.2.1 Language 1. In the first class setting menu, press “+” button or “-” button to select “Language”, press Mode button to enter language setting page ( the second class) as below. The default language is English(US).

  • Page 48: Voice Speed

    ® ZOOMAX Snow 7 HD Plus 2. Press “+” button or “-” button to select the language you need, and press Mode button to confirm. It will exit to the setting menu (the first class). Short press the Freeze button to exit setting menu.

  • Page 49: Voice

    ® ZOOMAX Snow 7 HD Plus 6.2.3 Voice In the first class setting menu, p ress “+” button or “-” button to select Voice item, press Mode button to enter voice (Female or Male) setting page ( the second class) as below.

  • Page 50: Volume

    ® ZOOMAX Snow 7 HD Plus 6.2.4 Volume In the first class setting menu, p ress “+” button or “-” button to select Volume item, press Mode button to enter volume setting page ( the second class) as below. The default volume is medium.
  • Page 51 NOTE: The Snow 7 HD Plus has equipped with a built-in speaker. You can connect to an external speaker to obtain louder voice. If you need to hear the voice in public or other quiet place, you could also use headphone.

  • Page 52: Zoom Control Under Text-To-Speech Function

    Press the “+” button to zoom in and press the “-” button to zoom out. § Lifting your Snow 7 HD Plus from the reading material will decrease the magnification. NOTE: Before scanning the document, the document can only be zoomed in or zoomed...

  • Page 53: Get Started

    2. Place the document flat under the Snow 7 HD Plus. 3. Tap the screen to focus. 4. Short press the Freeze button to capture the document, then the 3 seconds...
  • Page 54 ® ZOOMAX Snow 7 HD Plus Zoomax, established in 2011, is a Zoomax, established in 2011, is a Zoomax, established in 2011, is a developer and manufacture of technology developer and manufacture of technology developer and manufacture of technology dedicated to creating independence for...
  • Page 55 ® ZOOMAX Snow 7 HD Plus NOTE: § Don’t move the unit or reading material during 3 seconds countdown process. Otherwise the document scanned may be blurred or lead to the text-to-spech process failed. § Please note that charts and tables can’t be converted to text precisely. Please do not try to use this function to read charts and tables.
  • Page 56 ZOOMAX Snow 7 HD Plus Lift the height of the Snow 7 HD Plus, it can capture more contents on the reading material. The maximum height you can lift the unit is the height that can be taken an entire A4 sheet.

  • Page 57: Zoom Control Under Text Mode

    ® ZOOMAX Snow 7 HD Plus 6.5 Zoom control under text mode During reading, you can press the “+” button or “-” button to change the magnification § of the text. - Press the “+” button to increase the magnification of the text.

  • Page 58: Text Color

    ® ZOOMAX Snow 7 HD Plus 6.6 Text color During reading, you can press the Mode button to change contrast color mode. There § are following 4 color modes. - High contrast white text on black background mode - High contrast black text on white background mode...

  • Page 59: The Button Bar

    Rewind Fast forward The Snow 7 HD Plus’ speech button bar shows as above. Slightly tap on the icon to PAUSE or CONTINUE the reading, REWIND or Fast forward, or SAVE the document as JPG format. The saved document will be stored in P2 folder.
  • Page 60 ® ZOOMAX Snow 7 HD Plus Snow 7 HD Plus is a n product from ZOOMAX which has TEXT-TO- SPEECH function (optional) Ø Pause/Continue During reading, use the Pause/Continue icon to Pause or Continue reading. § Tap this icon to pause the speech and the icon will switch to continue icon §...
  • Page 61 ® ZOOMAX Snow 7 HD Plus Ø Rewind During reading, tap the Rewind icon once, it will read the previous sentence. § Tap the Rewind icon several times, and it will read from several sentences ahead. § Ø Fast forward During reading, tap the Fast forward icon once, it will read the next sentence.

  • Page 62: Find And Read Saved Documents

    ® ZOOMAX Snow 7 HD Plus Ø Save the document During reading, tap the Save icon , the document will be saved. A tick icon will § appear on the screen indicating the document has been saved successfully. NOTE: If the document has been saved already, there will be no tick icon shown on the screen when you tap the “Save icon”...
  • Page 63 ® ZOOMAX Snow 7 HD Plus NOTE: The document will be shown on the screen in picture format. Once it starts to read, the document will be processed to text and display on the screen. NOTE: There will be a beep sound when the document index appears on the screen. The beep sound will always be on whether the button sound is on or off.
  • Page 64 ® ZOOMAX Snow 7 HD Plus There is a play icon in the middle of the document. Tap this icon to start the § document reading. To exit the text page during reading, press the Freeze button to revert to §...

  • Page 65: Delete Saved Documents

    ® ZOOMAX Snow 7 HD Plus 6.9 Delete saved documents To delete a saved document, choose the document you want to delete first, and § then press and hold the Mode button and “-” button simultaneously for 2 seconds, and the screen will display a trash icon...

  • Page 66: Transfer Documents

    ® ZOOMAX Snow 7 HD Plus 6.10 Transfer documents Please refer to chapter 4.11 in page 21. 6.11 Memory function (text-to-speech function) The following setting of text-to-speech function will be saved automatically when the unit turned off to facilitate the next use:...

  • Page 67: Trouble Shooting

    ® ZOOMAX Snow 7 HD Plus 7. Trouble shooting Problems Solutions - Ensure that the power is on and not in standby mode. Black screen - Charge the battery. - Decrease the magnification level. The unit is off - Charge the battery.
  • Page 68 - Press Power button and Zoom in button together to turn off by force. Then restart the unit. Any other problem occurs that If the method above is invalid, please contact your is not mentioned in this guide. local Zoomax distributor or Zoomax headquarters for help.

  • Page 69: Technical Specification

    ® ZOOMAX Snow 7 HD Plus 8. Technical specification § Magnification: 2.5X ~ 19X (non-text-to-speech function) 1.7X ~ 8X (real-time viewing mode under text-to-speech function) 7 levels of magnification of the text from the lowest to the largest (the text page under text-to-speech function) §...
  • Page 70 ® ZOOMAX Snow 7 HD Plus § Weight: 532g (18.8 Oz) Images or documents storage quantity: total memory is approximately 1.5GB. For § instance, if store the images under non-text-to-speech only, it can store u p to 1000 images. If store documents under text-to-speech function only, it can store up to 200 images.

  • Page 71: Other Products From Zoomax

    ZOOMAX Snow 7 HD Plus 9. Other products from ZOOMAX Zoomax M5 HD Plus is the latest 5″ high definition handheld video magnifier, featuring compact design as well as easy access to abundant settings including image storage, distance view, and reading M5 HD Plus line &...
  • Page 72 It offers you comfortable image, less for eye strain. There are basic and advanced operation modes for your choice. Zoomax Panda HD with the high specification and compact design offers the most attractive advantages of Panda a full desktop electronic magnifier,crisp image in high definition, intuitive use, space-saving and movable screen design.
  • Page 73 ® ZOOMAX Snow 7 HD Plus ZOOMAX TECHNOLOGY CO., LIMITED Add.: 9F, Building D, Paradise Software Park, No.3 Xidoumen Road, Xihu District, Hangzhou, Zhejiang Province,310012, China. Tel: +86-571-87006308 Fax: +86-571-87397220 Email: sales@zoomax.co Visit us at: www.zoomax.co Zoom Your Vision, Max Your Life...
