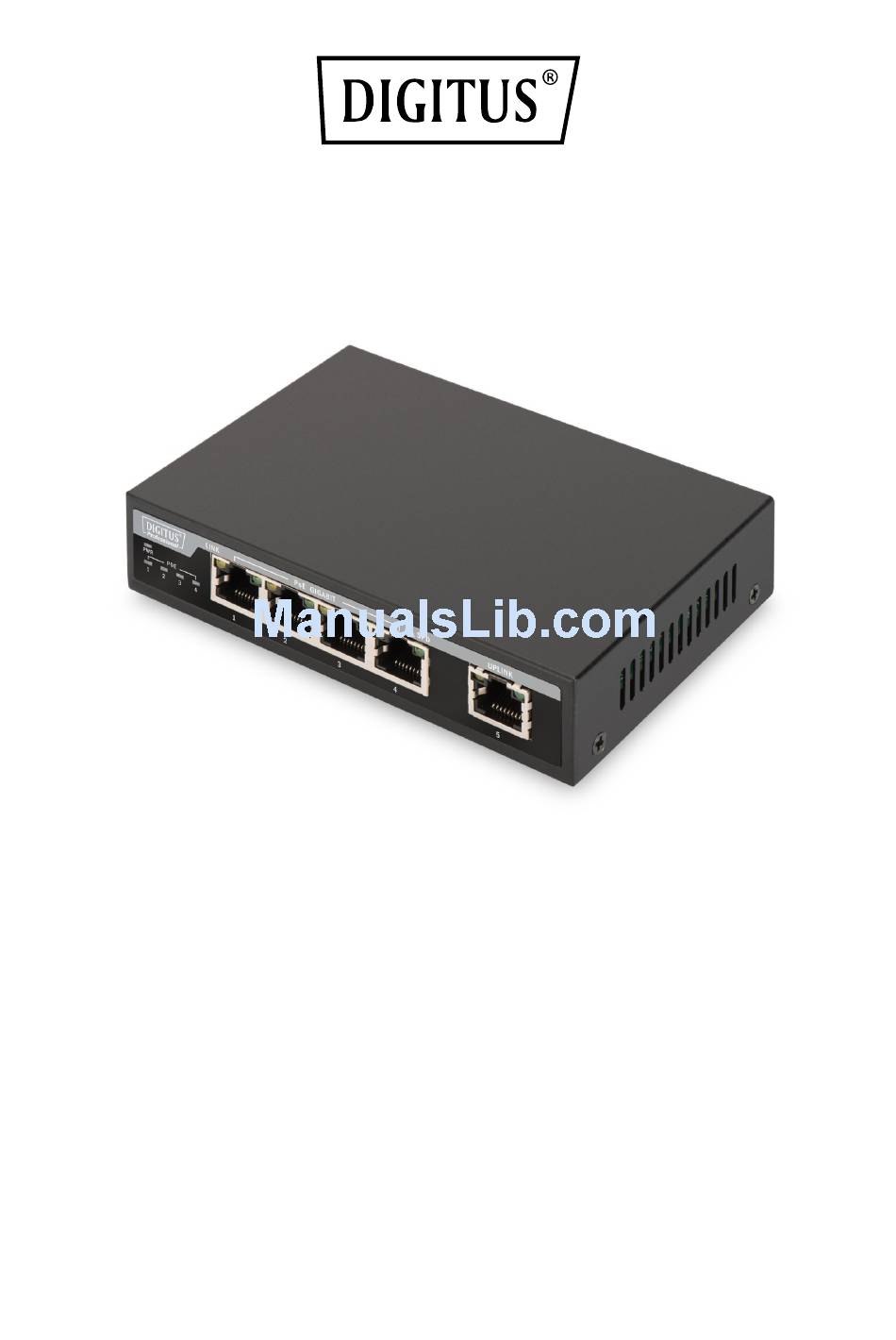

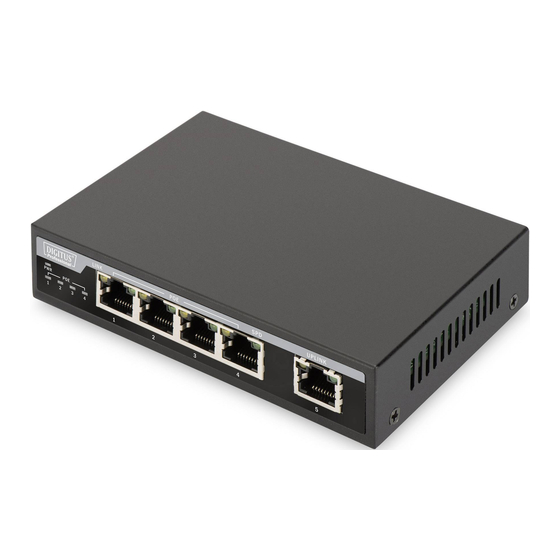

4-Port 10/100/1000 Mbps PoE Gigabit
Desktop Switch + 1xUplink
Manual
DN-95330
Product Description:
The DIGITUS Gigabit Desktop Switch with four Power over Ethernet ports and one
additional uplink Port, offers your network significant improvement in terms of per-
formance and efficiency. Thanks to PoE support, you only need a single (network)
cable for power and data transfer. This switch makes it much easier to connect de-
vices such as access points, network cameras, and IP telephones, and requires far
less cabling than alternatives. It also allows you to extend your network in places
where there are no power supply cables or sockets available: The switch does not
require any configuration and therefore guarantees quick and seamless integration
into the network. Moreover, the fanless design of the Switch en-sures soundless op-
eration, which makes this device the perfect solution for office environments and
meeting rooms.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus DN-95330
Summary of Contents for Digitus DN-95330
- Page 1 DN-95330 Product Description: The DIGITUS Gigabit Desktop Switch with four Power over Ethernet ports and one additional uplink Port, offers your network significant improvement in terms of per- formance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer.
- Page 2 Product Features: • 4-Port 10/100/1000 Mbps PoE Gigabit Desktop Switch + 1x Uplink Port • Ethernet IEEE802.3 / 802.3u / 802.3x/802.3ab/ IEEE802.3 af/at • Power over Ethernet (PoE) - You only need one cable for power and data transfer. • PoE power budget: 62 Watts (one to four ports) •...
- Page 3 Package Content: 4 Port PoE switch with uplink (DN-95330) DC Power adapter Power cord User’s manual Hardware Description: The Front Panel The front panel consists of LED Indications. LED Indicators Per Device: Power Per Port:...
- Page 4 The Real Panel The rear panel view of the PoE switch consists of a DC power connector. RJ-45 Ports ( Auto MDI/MDIX ) 5 auto-sensing ports of 10Base-T, 100Base-TX or 1000Base-TX connections. Port 1 to 4 can support Power over Ethernet to power devices. Remark: MDI means connecting to another Hub or Switch while MDIX means con- necting to a workstation or PC.
- Page 5 Thermal methods Fanless. Switching capacity 10G. MAC address table Traffic control IEEE 802.3x full-duplex flow control. Weight <1 Kg PoE port 4 10/100/1000Base-TX ports (Port 1-4) PoE Standard IEEE802.3af, IEEE802.3at, per port 15.4W, max 30W Pin assignment V+ (RJ45 Pin1, 2), V- (RJ45 Pin 3, 6). Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the re- quirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS compliance.
