Summary of Contents for Digitus DN-95312

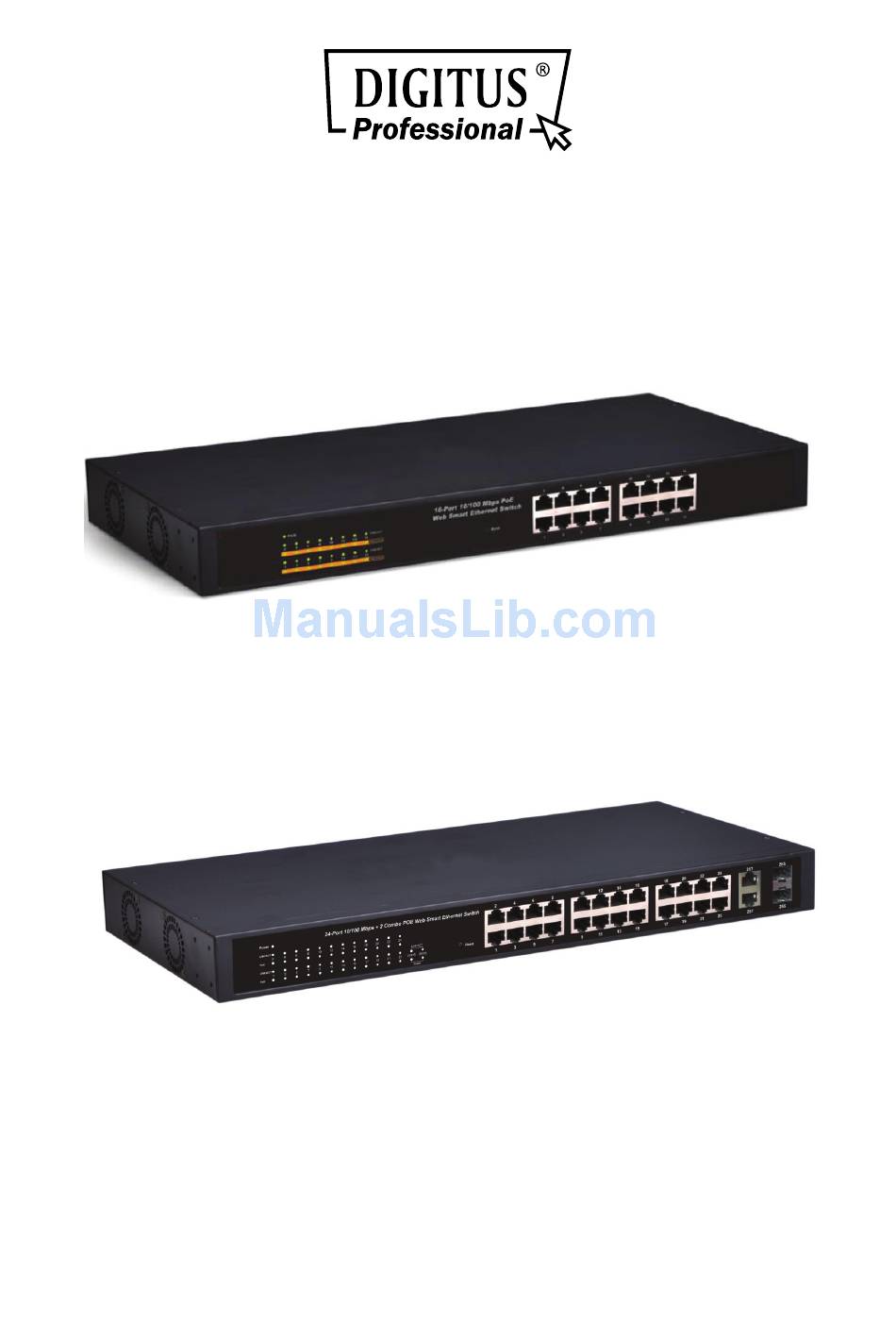

- Page 1 16-PORT 10/100MBPS PoE WEB SMART ETHERNET SWITCH 24-PORT 10/100MBPS + 2G COMBO PoE WEB SMART ETHERNET SWITCH Manual DN-95312 • DN-95313...
-
Page 2: Table Of Contents
DIGITUS POE Web Smart Ethernet Switch Table of Content Chapter 1 Product Introduction ..............3 1.1 Product Overview ....................3 1.2 Features ....................... 3 1.3 External Component Description ................3 1.3.1 Front Panel ....................3 1.3.2 Rear Panel ....................4 1.3.3 LED Indicator Specification ................. - Page 3 DIGITUS POE Web Smart Ethernet Switch 4.4.1 VLAN mode ....................20 4.4.2 VLAN Member Setting ................21 4.4.3 Multi-to-1 Setting ..................22 4.5 Per Port Counter ....................23 4.6 QoS Setting ......................23 4.6.1 Priority mode .................... 23 4.6.2 Port, 802.1p, IP/DS based ................ 24 4.6.3 TCP/UDP Port Based ................
-
Page 4: Chapter 1 Product Introduction
DIGITUS POE Web Smart Ethernet Switch Chapter 1 Product Introduction Congratulations on your purchasing of DIGITUS PoE Web Smart Ethernet Switch. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product 1.1 Product Overview... -
Page 5: Rear Panel
DIGITUS POE Web Smart Ethernet Switch Figure 1 - Front Panel 10/100Mbps RJ-45 ports (1~24): Designed to connect to the device with a bandwidth of 10Mbps or 100Mbps. Each has a corresponding 10/100Mbps LED. 10/100/1000Mbps RJ-45 ports (25T, 26T): Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. -
Page 6: Led Indicator Specification
DIGITUS POE Web Smart Ethernet Switch 1.3.3 LED Indicator Specification The LED indicators of the Switch contain one Power, 26 LINK/ACT, 24 PoE status and 2 Speed. The LED Indicators will allow you to monitor, diagnose and troubleshoot any potential problem with the Switch, connection or attached devices. - Page 7 DIGITUS POE Web Smart Ethernet Switch 1.3.4 Front Panel The front panel of the Switch consists of series of LED indicators and 16 10/100Mbps RJ-45 ports. Figure 1 - Front Panel 10/100Mbps RJ-45 ports (1~16): Designed to connect to the device with a bandwidth of 10Mbps or 100Mbps. Each has a corresponding 10/100Mbps LED.
-
Page 8: Environment
DIGITUS POE Web Smart Ethernet Switch 1.3.6 LED Indicator Specification The LED indicators of the Switch contain one Power, 26 LINK/ACT, 24 PoE status and 2 Speed. The LED Indicators will allow you to monitor, diagnose and troubleshoot any potential problem with the Switch, connection or attached devices. -
Page 9: Chapter 2 Installing And Connecting The Switch
DIGITUS POE Web Smart Ethernet Switch Chapter 2 Installing and Connecting the Switch This part describes how to install your Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. -
Page 10: Power On The Switch
DIGITUS POE Web Smart Ethernet Switch Figure 5 - Bracket Installation 2．Use the screws provided with the equipment rack to mount the Switch on the rack and tighten it. Figure 6 - Rack Installation 2.1.3 Power on the Switch The Switch is powered on by the AC 100 ~ 240V 50 / 60Hz internal high-performance power supply. -
Page 11: Connect Computer (Nic) To The Switch
DIGITUS POE Web Smart Ethernet Switch 2.2 Connect Computer (NIC) to the Switch Please insert the NIC into the computer, after installing network card driver, please connect one end of the twisted pair to RJ-45 jack of your computer, the other end will be connected to any RJ-45 port of the Switch, the distance between Switch and computer is around 100 meters. -
Page 12: Chapter 3 How To Login The Switch
DIGITUS POE Web Smart Ethernet Switch Chapter 3 How to Login the Switch 3.1 Switch to End Node Use standard Cat.5/5e Ethernet cable (UTP/STP) to connect the Switch to end nodes as described below. Switch ports will automatically adjust to the characteristics (MDI/MDI-X, speed, duplex) of the device to which is connected. - Page 13 DIGITUS POE Web Smart Ethernet Switch Enter the ID and Password (The factory default login ID is admin and Password is admin), and then click “OK” to log in to the Switch configuration window as below. (24-port version view) In the Web GUI, the left column shows the configuration menu and the rest of the screen...
-
Page 14: Chapter 4 Switch Configuration
DIGITUS POE Web Smart Ethernet Switch Chapter 4 Switch Configuration 4.1 Administrator 4.1.1 Authentication configuration Authentication Configuration diagram box allows user to modify Username and Password, and then enter new username and password. After completing, press “Update” button to take effect. -
Page 15: Load Default Setting
DIGITUS POE Web Smart Ethernet Switch The MAC address and version of the Switch will be shown at system status diagram box. Comment field can accept "a-z", "A-Z", "0-9", "_", "+", "-", "=", excluding special character. 4.1.4 Load default setting Clicking the "Load"... -
Page 16: Reboot Device
DIGITUS POE Web Smart Ethernet Switch ↓ ↓ ↓ ↓ 4.1.6 Reboot device This page is used to reboot device. Press “Confirm” button to take effect for rebooting device. -
Page 17: Poe
DIGITUS POE Web Smart Ethernet Switch 4.2 POE 4.2.1 POE Status This page is used to check POE Status, you can set Max Available Power here. 4.2.2 POE Setting This page is for PoE setting. Status: Enable or disable the specified function. -
Page 18: Poe Power Delay
DIGITUS POE Web Smart Ethernet Switch 4.2.3 PoE Power Delay This page is for setting PoE Power Delay. 4.2.4 PoE Scheduling This page is for setting PoE Scheduling, it starts POE function at a specified time. 4.2.5 NTP Setting This page is for NTP setting. -
Page 19: Port Management
DIGITUS POE Web Smart Ethernet Switch NTP Server: This is the IP address of the NTP information will be taken from. Time Zone: Select your local time zone from this pull down list. 4.3 Port Management 4.3.1 Port configuration This page allows the user to configure operating mode of the physical port. -
Page 20: Port Mirroring
DIGITUS POE Web Smart Ethernet Switch Backpressure: Flow Control for Half Duplex. A condition wherein a switch causes a transmitting device to hold off on sending data packets until the switch bottleneck has been eliminated. Addr.Learning: Address learning is a service that characterizes a learning bridge, in which... -
Page 21: Broadcast Storm Control
DIGITUS POE Web Smart Ethernet Switch 4.3.4 Broadcast Storm Control The broadcast storm control is used to block the excessive broadcast packets, the number ranging from 1 to 63. 4-port version view) For example: The broadcast storm of the port1~8 are enabled and threshold is set to 10. -
Page 22: Vlan Member Setting
DIGITUS POE Web Smart Ethernet Switch VLAN tag", " remove a VLAN tag" or "don’t care" about VLAN tag. When click the "Change VLAN mode" button, the mode will change to Tag Base VLAN. The egress packets of the output port will be added tag if add tag option is selected. The egress packets of the output will be stripped tag if remove tag option is selected. -
Page 23: Multi-To-1 Setting
DIGITUS POE Web Smart Ethernet Switch Tag based VLAN The following figure shows: 1, 2, 3, 4, 5, 6, 7 port in the same VLAN group. The 2 port tag VID number is 123. 4-port version view) 4.4.3 Multi-to-1 Setting This setting is exclusive to VLAN setting on "VLAN member setting". -
Page 24: Per Port Counter
DIGITUS POE Web Smart Ethernet Switch In tag base mode, adding or removing tag doesn’t affect the source port connected with the web. 4.5 Per Port Counter This page provides port counter for each port. There are 4 groups of statistics in total. -
Page 25: Port, 802.1P, Ip/Ds Based
DIGITUS POE Web Smart Ethernet Switch 4.6.2 Port, 802.1p, IP/DS based There are three COS types for this setting. The user can select more than one item for each port. As long as any of three CoS schemes(802.1p, IP TOS/DS or Port Base) is mapped to "high", the data packet will be treated as the high priority. -
Page 26: Tcp/Udp Filter
DIGITUS POE Web Smart Ethernet Switch the table. Each port can correspond to up to 3 MAC addresses. 4.7.2 TCP/UDP Filter By selecting the TCP/UDP port, the user can optionally block some specific applications. There are two kinds of protocol lists. The positive list makes the switch to forward the selected protocol and drop other protocols. -
Page 27: Spanning Tree
DIGITUS POE Web Smart Ethernet Switch 4.8 Spanning Tree 4.8.1 STP Bridge Settings STP (Spanning Tree Protocol) is the acronym for spanning tree protocol, the protocol can be applied to loop network, the algorithm by a certain path redundancy, while loop network loop-free tree pruning into the network in order to avoid reporting Man in the loop network hyperplasia and infinite loop. -
Page 28: Loopback Detection
DIGITUS POE Web Smart Ethernet Switch 4.8.3 Loopback Detection The features available to you under the loop test set, the "Loopback Detect Function", set to "Enable". When you produce the lower loop switch when the switch will automatically block out the port connecting to ensure other ports work. -
Page 29: Trunking
DIGITUS POE Web Smart Ethernet Switch 4-port version view) 4.9 Trunking Port aggregation is to bring together multiple ports together to form a group to achieve entry / exit load in the aggregation group, all members of the port-sharing, while also providing a higher connection reliability. -
Page 30: Dhcp Relay Agent
DIGITUS POE Web Smart Ethernet Switch 4.10 DHCP Relay Agent 4.10.1 DHCP Relay Agent DHCP provides a transparent transmission to DHCP broadcast packet. It can transmitted broadcast packet in one DHCP client(or server) to another segments of the DHCP server(or client) transparently. -
Page 31: Miscellaneous
DIGITUS POE Web Smart Ethernet Switch The contents of the EEPROM can be saved to specific path, and the default name is down.bin. 4.12 Miscellaneous Miscellaneous is used to configure output queue aging time, VLAN stride, IGMP snooping, and VLAN uplink function setting. -
Page 32: Snmp Settings
DIGITUS POE Web Smart Ethernet Switch VLAN Striding By selecting this function, switch will forward unicast packets to destination port, no matter whether destination port is in the same VLAN. IGMP Snooping V1 & V2 This function is enabled for supporting IGMPv1, IPMPv2 protocol to create IGMP group. -
Page 33: Appendix: Technical Specifications
DIGITUS POE Web Smart Ethernet Switch Appendix: Technical Specifications Model DN-95312 DN-95313 24 x 10/100Mbps Auto-Negotiation Number of Ports 16 x 10/100Mbps Auto-Negotiation ports ports,2 x 1000Mbps Combo 10/100M Link/Act LED Indicators Power Power Power-: pin 4 & pin 5 Power+: pin 4 &...
