- Page 1 User’s Guide DN-8007C1...
-
Page 2: Table Of Contents
ABLE OF ONTENTS ABOUT THIS GUIDE............2 ................2 ERMS ’ ........2 VERVIEW OF THIS UIDE INTRODUCTION ............3 ........3 IGABIT THERNET ECHNOLOGY ..........4 WITCHING ECHNOLOGY ..............5 EATURES UNPACKING AND SETUP..........6 ..............6 NPACKING ................6 ETUP IDENTIFYING EXTERNAL COMPONENTS .... -
Page 3: About This Guide
B O U T H I S U I D E This user’s guide tells you how to install your 5-Port 1000BASE-T Gigabit Ethernet Switch, how to connect it to your Gigabit Ethernet network. Terms For simplicity, this documentation uses the terms “Switch”... -
Page 4: Introduction
N T R O D U C T I O N This section describes the features of the 5-Port 1000BASE-T Gigabit Ethernet Switch, as well as providing some background information about Gigabit Ethernet and switching technology. Gigabit Ethernet Technology Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet structure, format, and support for CSMA/CD protocol, full duplex, flow control, and management objects, but with a tenfold increase in... -
Page 5: Switching Technology
Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to perform 10 times the number of operations in the same amount of time. Switching Technology Another key development pushing the limits of Ethernet technology is in the field of switching technology. A switch bridges Ethernet packets at the MAC address level of the Ethernet protocol transmitting among connected Ethernet or fast Ethernet LAN segments. -
Page 6: Features
an ideal solution to most kinds of local area network congestion problems. Features The 5-Port 1000BASE-T Gigabit Ethernet Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of users increase continuously. 5 1000BASE-T Gigabit Ethernet ports Supports Auto-Negotiation for 10/100/1000Mbps and duplex mode... -
Page 7: Unpacking And Setup
N P A C K I N G A N D E T U P This chapter provides unpacking and setup information for the Switch. Unpacking Open the shipping carton of the Switch and carefully unpack its contents. The carton should contain the following items: One 5-Port 1000BASE-T Gigabit Ethernet Switch Four rubber feet with adhesive backing One external power adapter... -
Page 8: Identifying External Components

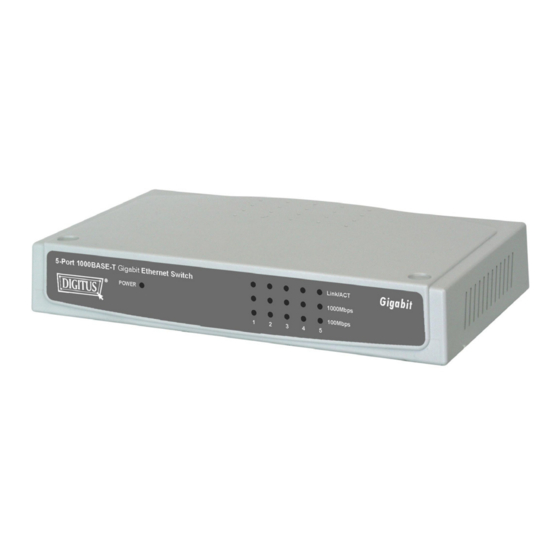

D E N T I F Y I N G X T E R N A L O M P O N E N T S This chapter describes the front panel, rear panel and LED indicators of the Switch Front Panel The figure below shows the front panels of the switch. -
Page 9: Led Indicators
Power is supplied through an external AC power adapter. Check the technical specification section for information about the AC power input voltage. 1000BASE-T Ports: Five Gigabit Ethernet ports of 10/100/1000Mbps Auto- Negotiation interface. LED Indicators The LED indicators of the Switch include Power, Link/Act, 1000Mbps and 100Mbps. -
Page 10: Technical Specifications
E C H N I C A L P E C I F I C A T I O N S General Standards: IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3 10BASE-T IEEE 802.3x Flow Control Protocol: CSMA/CD Data Ethernet: 10Mbps (Half-duplex) Transfer... -
Page 11: Physical And Environmental
Physical and Environmental DC inputs: 7.5V 1A Power Consumption: 5 watts maximum Operating 0 °C ~ 40°C Temperature: Storage -10°C ~ 70°C Temperature: Humidity: 5% ~ 95% RH, non-condensing Dimensions: 171 x 98 x 29 mm (W x H x D) FCC Class B, CE Marking Class B, VCCI Certification: Class B... - Page 12 Note: In the event of incorrect installation and improper use in a residential area, the device may cause disruptions in radio devices and other electronic devices. Proper use means that the device is operated with shielded connector cables as far as possible, for network products also with shielded cables of category 5e and higher.
