Outdoor 8-Port Fast Ethernet PoE
switch + 2 Gigabit SFP Uplink Ports
Quick Installation Guide
DN-95346
Introduction

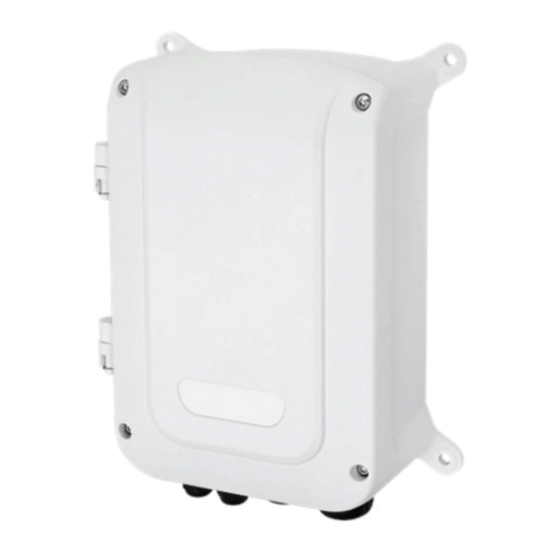

The DIGITUS® outdoor PoE switch is a high quality PoE switch in a
weatherproof housing with the IP67 protection class. The housing is very
sturdy and conforms to the IK10 vandalism protection class. The PoE
switch offers a maximum range of up to 250 meters for PoE 802.3af
devices and up to 200 meters for PoE 802.3at devices with a
transmission rate of 10Mbps. When using the standard 100m range, the
transmission rate is 100Mbps. This outdoor switch serves as an all-in-one
device that is ready for use immediately after connecting it to the mains
voltage. The device requires no settings to be made thanks to plug and
play. If you you're your PoE devices into a free PoE port, the switch will
automatically detect power supply and PoE mode. The all-in-one
solution for outdoor PoE applications requires no separate power supply
and no external overvoltage protection.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus DN-95346
Summary of Contents for Digitus DN-95346
-

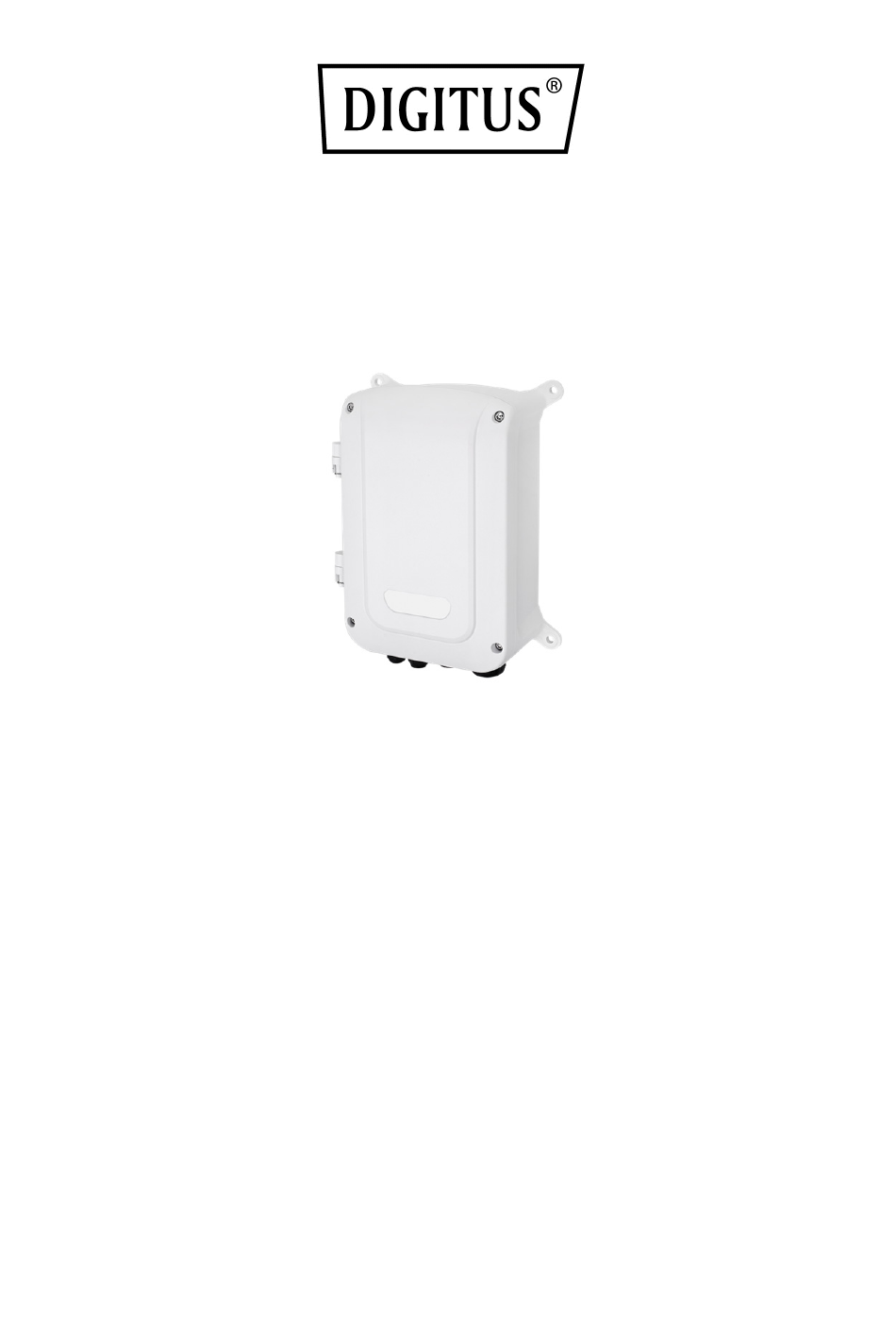

Page 1: Quick Installation Guide
Quick Installation Guide DN-95346 Introduction The DIGITUS® outdoor PoE switch is a high quality PoE switch in a weatherproof housing with the IP67 protection class. The housing is very sturdy and conforms to the IK10 vandalism protection class. The PoE switch offers a maximum range of up to 250 meters for PoE 802.3af... -
Page 2: Package Content
Package Content 1x PoE switch 1x Quick Installation Guide 1x T25 L-wrench Important 1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust. 2. Make sure the ventilation openings on the switch are not blocked. -
Page 3: Led Definitions
Port LED1 Port LED2 EX MODE DIP SWITCH EX ON Ports 1 & 2 up to 250m PoE distance. When enabled, each port is isolated, but is linked to the uplink ports. EX OFF Normal communication for ports 1 ~ 5 EX mode in 802.3af (15.4W): Camera connection up to 250m@10Mbps via EXPoE ports EX mode in 802.3at (30W):... - Page 4 Installation Use the included M10 hex socket screws to secure the power box to a pole-mount or corner mount bracket. a pole-mount or corner mount bracket. 3/4" conduit...
- Page 5 The mounting hole definition is illustrated below. The same mounting hole pattern apply to all pole-mount and corner- mount brackets. Outdoor PoE switch: DN-95346...
- Page 6 Important 1. If the need should arise for connecting two outdoor switches, use the uplink ports #4 or #5. If you use PoE ports for cross-switch connections, the 12KV surge protection will not apply. 2. The cabinet must be grounded using a ground wire between the ground screw and earth ground.
- Page 7 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
