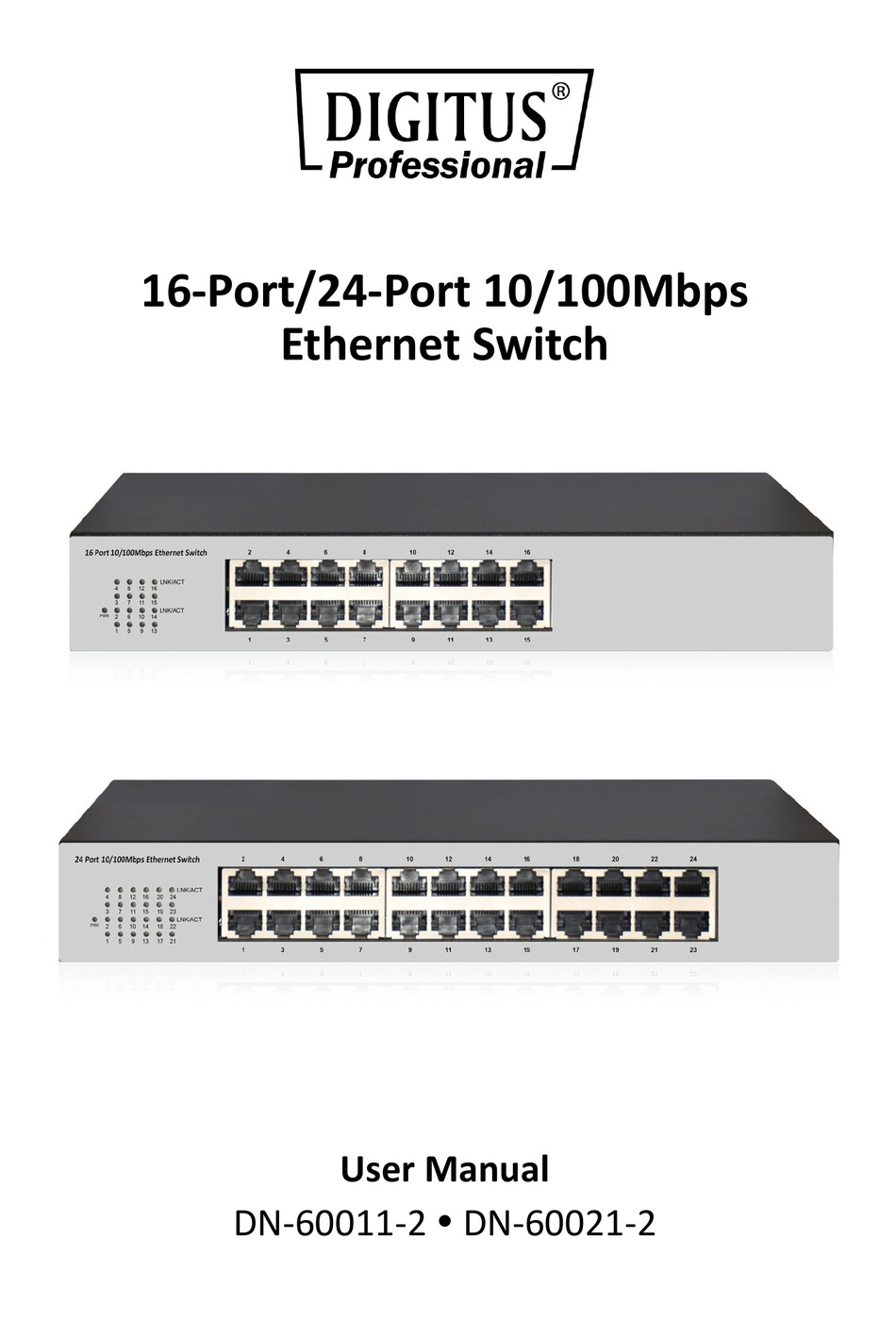

Page 1: Ethernet Switch
16-Port/24-Port 10/100Mbps Ethernet Switch User Manual DN-60011-2 DN-60021-2... -
Page 2: Package Contents
If any part is lost and damaged, please contact your local agent immediately. Introduction This DIGITUS Unmanaged Switch offer 16 port (DN-60011-2) and 24 port (DN-60021-2) 10/100Mbps RJ45 port. Using store and forward technology, combined with dynamic memory allocation, to ensure the effective allocation of bandwidth to each port. -
Page 3: Specifications
Specifications Model DN-60011-2 DN-60021-2 16 Port Fast Ethernet 24 Port Fast Ethernet Description Switch Switch Standard IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x 10BASE-T: UTP category 3,4,5 cable (≤100m) Network Media 100BASE-TX: UTP category 5 cable (≤100m) MAC Address Table 8K, Auto-learning, Auto-aging... -
Page 4: Hardware Description

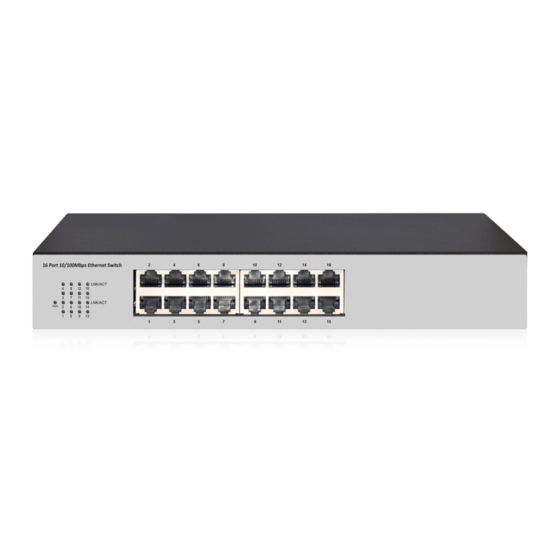

Hardware Description Front Panel The Front Panel Consists of Ethernet Ports. The LED indicators are also located on the panel. 16 Port Network Switch LED indicator 16*10/100Mbps Port 24 Port Network Switch LED indicator 24*10/100Mbps Port... -
Page 5: Led Indicator
LED indicator Color Function Off: No Power supply. Green Light: Indicates the switch has power. Off: No device is connected to the corresponding port. Light: Indicates the link through that port is LNK/ACT Green successfully established at 10/100Mbps. Blink: Indicates that the Switch is actively sending or receiving data over that port. -
Page 6: Power Socket
Power socket Connect the female connector of the power cord here, and the male connector to the AC (Alternating Current) power outlet. Please make sure the voltage of the power supply meets the requirement of the input voltage Grounding column The switch already comes with lightning protection mechanism. - Page 7 Desktop Installation Install the Switch on a desktop, please attach these cushioning rubber feet provided on the bottom at each corner of the Switch in case of the external vibration. Allow adequate space for ventilation between the device and the objects around it.
- Page 8 Rack-mountable Installation The switch is rack-mountable and can be installed on an EIA-19 inch equipment rack. To do this, first, please install the mounting brackets on the switch’s side panels (one on each side), secure them with the included screws, and then use the screws provided with the equipment rack to mount the switch on the 19 inch rack.
- Page 9 Turn on the switch Please connect the AC power cord into the rear of the switch and to an electrical outlet (preferably one that is grounded). When the switch is powered on, the LED indicators flash momentarily for one second, which represents a resetting of the system.
- Page 10 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
