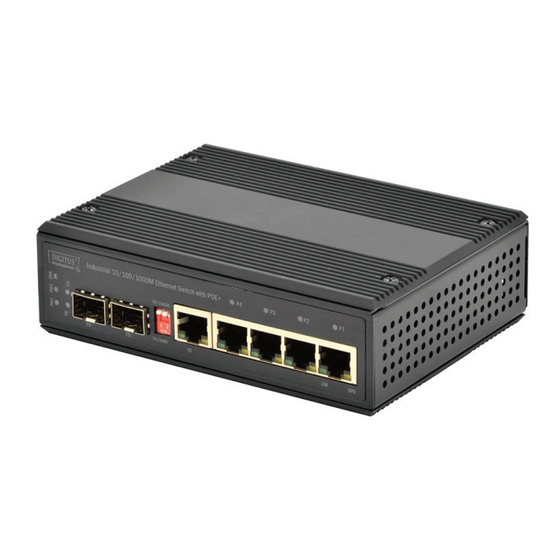

- Page 1 Industrial 10/100/1000M Ethernet Switch with PoE+ Manual DN-651103...
- Page 2 INTRODUCTION This rugged designed Industrial Gigabit 4 port POE Switch, which comply with IEEE802.3af and IEEE802.3at, has pass many rigorous environmental test. It delivers 30watts power per POE portand can generate total 120 watts power to PD devices. The 2 uplink SFP ports can extend your environment to a much larger area.
- Page 3 DIMENSIONS OF THE HOUSING Back view Front view Side view Top view Bottom view...
- Page 4 per Boos ster Indus strial Giga abit 4 por rt POE Sw witch, /24/48 VD C input s Super V Voltage Bo ooster – T The high p power 4 po ort industr rial POE+ itch is equ uipped wi th our hig gh efficien cy ColdD...
- Page 5 POWER CONNECTION This unit provides 6 pin terminal block, which can be operated using either 12 VDC, 24 VDC, or 48VDC power source. The VDC power range can be 48VDC only, or wide range from 12VDC to 55VDC. WARNING – any exceeded input voltage will not make this unit function and may damage this unit.
- Page 6 DIP SWITCH FUNCTION This unit is equipped with dip switches, located on the front panel. Adjusting the dip switches will change the default function of this unit. This unit has set to manufacturer default as: Port 5 SFP and the speed are set to 1000M for both port 5 and port 6 SFP ports.
- Page 7 SPECIFICATION IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE Standard IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE802.3x Flow Control and Back Pressure, IEEE802.3af for POE IEEE802.3at for POE+ Switch Architecture Back-plane (Switching Fabric): 12Gbps Data Processing Store and Forward Flow Control:...
- Page 8 Relay outputs with current carrying capacity of 1 A @24VDC, Alarm Relay Contact Relay in short circuit mode when 2 powers are connected. in open circuit mode when only one power supply is connected Ethernet Switch power input Ethernet switch power input 9VDC -57VDC POE power per port 30watts.
