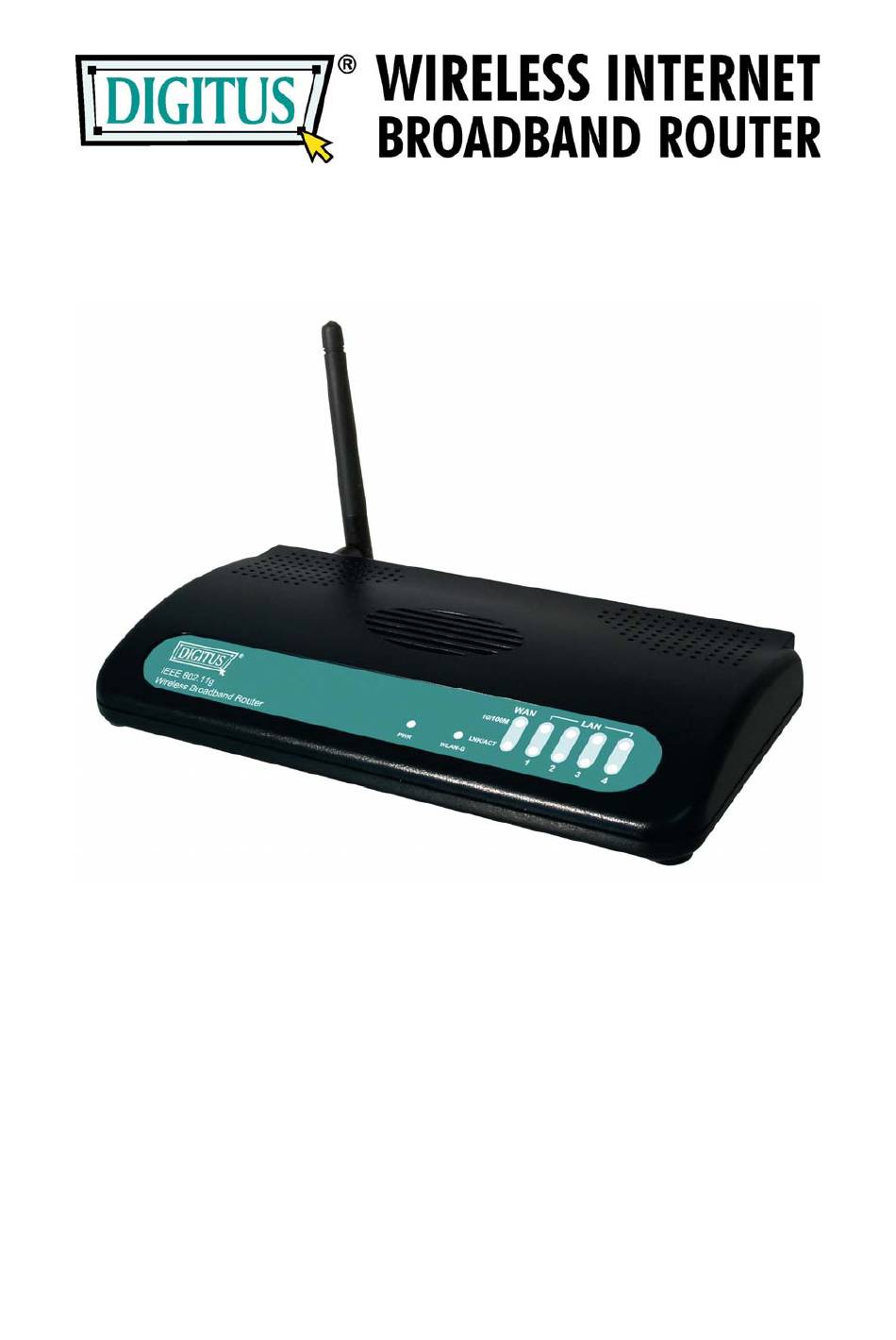

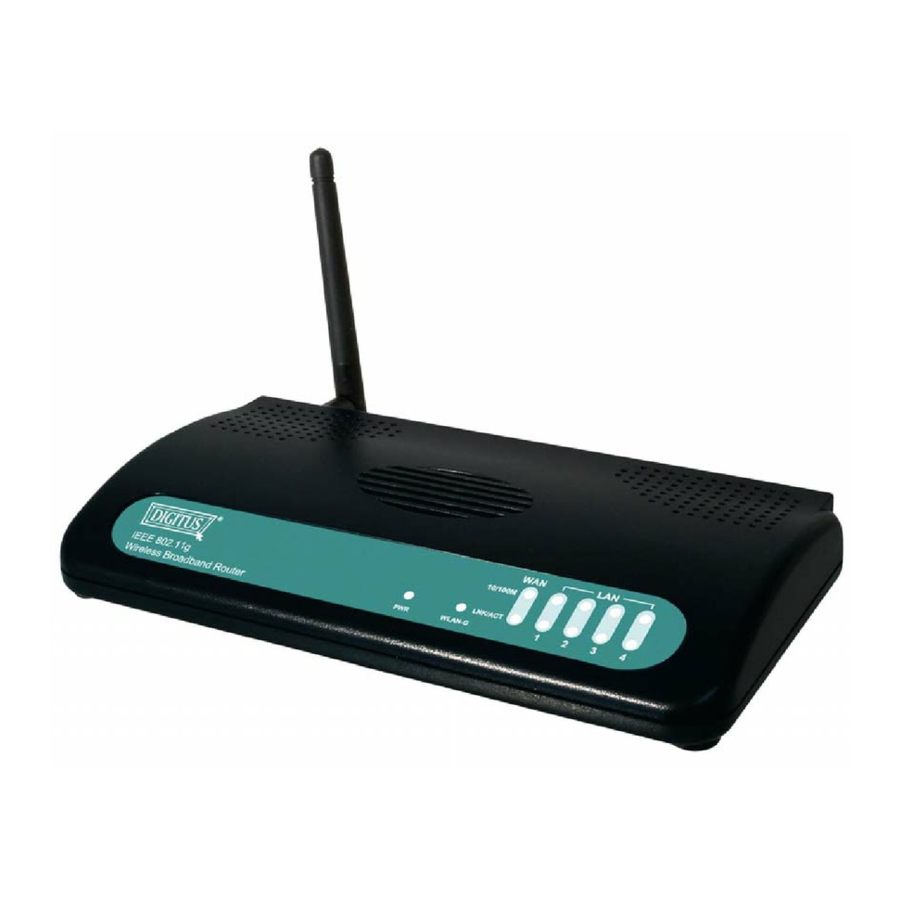

  • Page 1 Quick Installation Guide...

  • Page 2: Getting Started

    Getting started This is a step-by-step instruction on how to start using the router and get connected to the Internet. 1) Setup your network as shown in the setup diagram below. 2) You then need to set your LAN PC clients so that it can obtain an IP address automatically. By default the Broadband Router’s DHCP server is enabled so that you can obtain an IP address automatically.

  • Page 3: Quick Setup

    4) The login screen below will appear. Enter the “User Name” and “Password” and then click <OK> to login. Note: By default the user name is “admin” and the password is “1234”. For security reasons it is recommended that you change the password as soon as possible (in General setup/system/password, see chapter 2) Select the section (Quick Setup Wizard, General Setup, Status Information and Tools) you wish to configure and proceed to the corresponding chapter.

  • Page 4: Step 2) Lan Interface

    Parameter Description Enable NTP client update Check this box to enable the auto time synchronization function. The router will set its time based on your selection. Time Zone Select You can select your local time zone here. The router will sync time according to your time zone selection. NTP server Select the time server to synchronize with.

  • Page 5: Step 3) Wan Interface Setup

    Parameter Description IP Address This is the router’s LAN port IP address (Your LAN clients default gateway IP address) Subnet Mask Specify a Subnet Mask for your LAN segment. Click on NEXT to proceed to the next page (step 3) WAN Interface. Step 3) WAN Interface Setup In this section you have to select one of four types of connections that you will be using to connect your broadband router’s WAN port to your ISP (see screen below).

  • Page 6: Step 4) Wireless Basic Settings

    Menu Description Static IP Your ISP has given you an IP address already. DHCP Client Your ISP will automatically give you an IP address. PPPoE Your ISP requires you to use a Point-to-Point Protocol over Ethernet (PPPoE) connection. PPTP Your ISP requires you to use a Point-to-Point Tunneling Protocol (PPTP) connection.
  • Page 7 Menu Description Band It allows you to set the AP fix at 802.11b or 802.11g mode. You also can select B+G mode to allow the AP select 802.11b and 802.11g connection automatically. Mode It allows you to set the AP to AP, Client, WDS or AP + WDS mode.

  • Page 8: Step 5) Wireless Security Setup

    Click on NEXT to proceed to the next page (step 5) Wireless Security. Step 5) Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Menu Description None...
  • Page 9 WPA(TKIP) You can use a pre-shared key to authenticate wireless stations and encrypt data during communication. And use TKIP to change the encryption key frequently. WPA2(AES) You can use a pre-shared key to authenticate wireless stations and encrypt data during communication. And use CCMP(AES) to change the encryption key frequently.
