FEATURES:
• 1/2.9" Sony® Progressive Scan CMOS (IMX222)
• 2.1 MegaPixel With full 1080p/720p HD-SDI (SMPTE 292M) / EX-SDI
Output
• 25 IR LEDs with 70' Range
• Built in 3.7mm Megapixel lens
• Heavy Duty Vandal & IP67 Weather Resistance rating
• Mechanical IR Cut Filter (True Day/Night)
• 16:9 Video Format
• Advanced OSD Functions: Motion Detection, Sharpness, Gamma, Mirror,
Flip, Freeze, HLM, D-Zoom, ACE, WDR, Defog, Privacy
• 100% Pure Digital Transmission of video data
• Up to 1000' HD Transmission Range (depending on cable characteristics
and integrity)
• 12VDC Operation

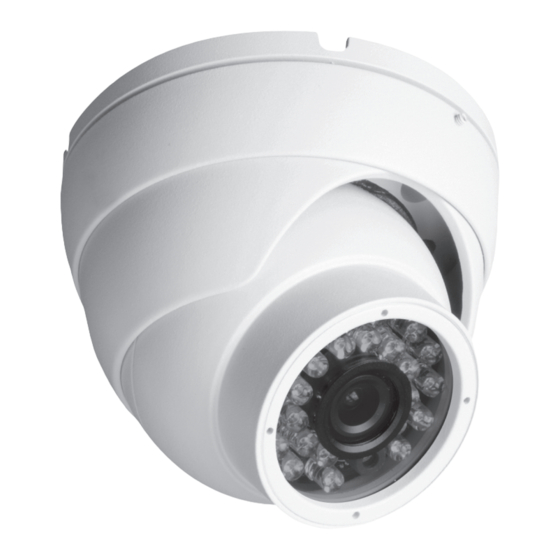

VTC-HOCRBDE4F
2.1MP HD-SDI / EX-SDI Vandal Resistant
WDR True Day/Night Ball Camera
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-HOCRBDE4F
Summary of Contents for Vitek VTC-HOCRBDE4F

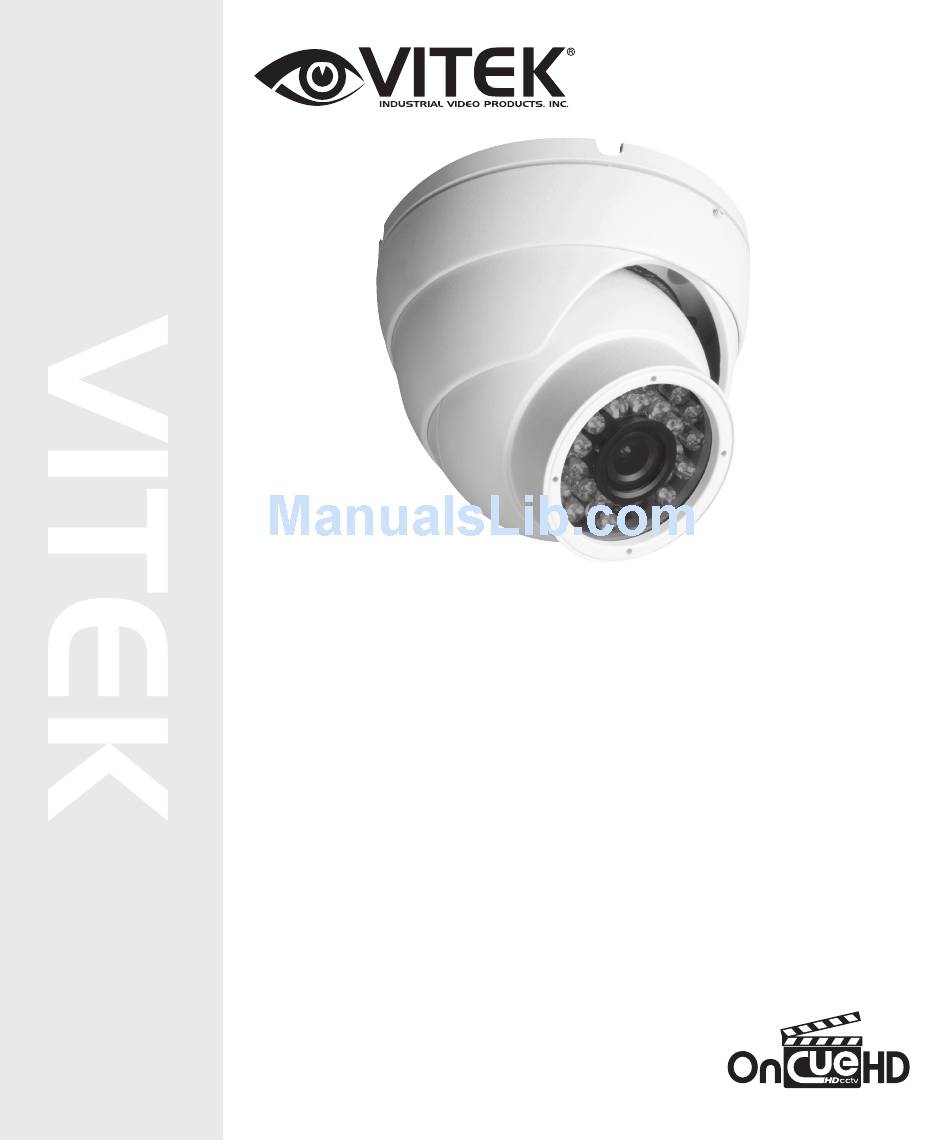

- Page 1 VTC-HOCRBDE4F 2.1MP HD-SDI / EX-SDI Vandal Resistant WDR True Day/Night Ball Camera FEATURES: • 1/2.9” Sony® Progressive Scan CMOS (IMX222) • 2.1 MegaPixel With full 1080p/720p HD-SDI (SMPTE 292M) / EX-SDI Output • 25 IR LEDs with 70’ Range • Built in 3.7mm Megapixel lens •...
- Page 3 How to connect using the EX-DSI / HD-SDI cable.
- Page 5 RS-485 communication enables OSD control via a system controller or DVR. Connect the RS-485 cables as outlined below. Default RS-485 communication settings...
- Page 6 Keep pressing the button until you reach the mode you are seeking.
- Page 18 Detailed Specifications Sensor 1/2.9” Sony® Progressive Scan CMOS (IMX222) Resolution 2.1 MegaPixel (1080p / 720p) More than 52 dB (AGC Off) Video Output Selectable: 1x HD-SDI (BNC) / EX-SDI (BNC) and 1x SD CVBS (BNC) IR Illuminators 25 IR LEDs IR Color Temp.
- Page 19 OTHER PRODuCTS FROm VITEK On Cue EX-SDI Video Recorders VT-HDOCE Series On Cue Series 4, 8, and 16 Channel Real Time 1080p EX-SDI Digital Video Recorders • 4, 8 OR 16 CH EX-SDI / Analog Inputs (hybrid) with Full 1080p Camera Support •...
- Page 20 LIMITED LIABILITY WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as oth- erwise stated above, from the date of purchase by the end user.
