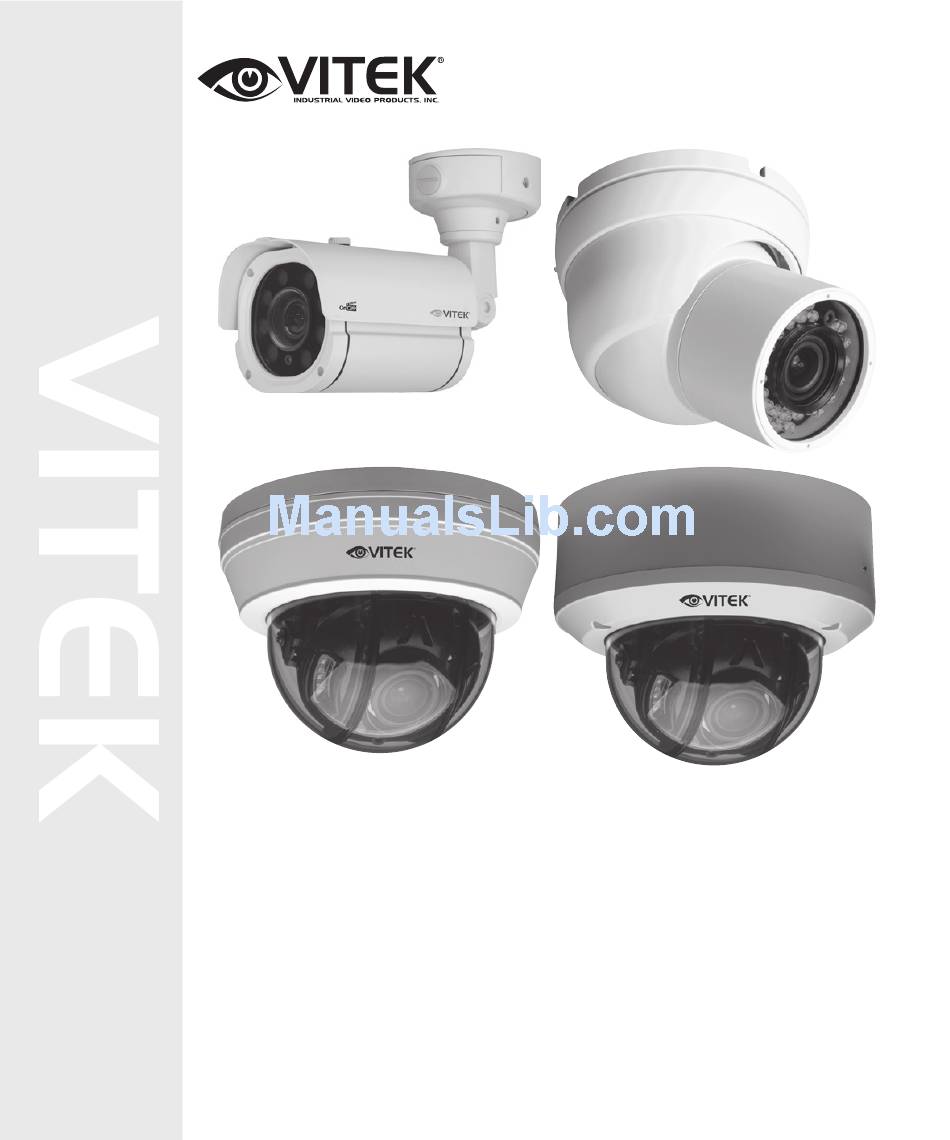

OnCue Complete Cameras
2.1MP HD-SDI/EX-SDI / TVI / CVI / AHD / CVBS
Camera Series w/2.8-12mm Motorized AF Lens &
IR Illumination
FEATURES
• 1/2.8" Sony® Progressive Scan "Starvis" CMOS (IMX291)
• 2.1 MegaPixel with Full 1080p/720p Video Output
• HD-SDI/EX-SDI / TVI / CVI / AHD / CVBS (Selectable) Output
• IR LED Illumination with up to 250' foot range (varies by model)
• MegaPixel IR Corrected 2.8-12mm Motorized AF Varifocal Lens Included
• Mechanical IR Cut Filter (True Day/Night)
• Dual Glass Compartments to Eliminate IR Reflection
• 16:9 Video Format
• Advanced OSD Functions: Motion Detection, Sharpness, Gamma, Mirror, Flip, DSS, Freeze,
D-Zoom, ACE, WDR, 3D-DNR, Defog, Privacy, HLM
• 100% Pure Digital Transmission of video data
• Up to 1000' HD Transmission Range (Depending on cable characteristics and integrity)
• Supports Control Over COAX (CoC)
• 12VDC/24VAC Dual Voltage Operation
• 3 Year Warranty
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-BHOCCR212M
Summary of Contents for Vitek VTC-BHOCCR212M
- Page 1 OnCue Complete Cameras 2.1MP HD-SDI/EX-SDI / TVI / CVI / AHD / CVBS Camera Series w/2.8-12mm Motorized AF Lens & IR Illumination FEATURES • 1/2.8” Sony® Progressive Scan “Starvis” CMOS (IMX291) • 2.1 MegaPixel with Full 1080p/720p Video Output • HD-SDI/EX-SDI / TVI / CVI / AHD / CVBS (Selectable) Output •...
- Page 2 EX-SD...
- Page 3 using inner switch or cable. (This only applies to HD-SDI/EX-SDI signal)
- Page 4 Hybrid product...
- Page 5 Press Select Yellow Push Press Select...
- Page 7 is set to manual or DC. to get a better image in...
- Page 8 Sens-up is used in low light and provides a picture with less noise in low light conditions.
- Page 9 For color adjustment...
- Page 10 conditions. For use with Halogen and other bright white lights.
- Page 11 selected...
- Page 12 you can level the color value regarding brightness. available. available.
- Page 13 HLC will Blackout extreme bright lights from image...
- Page 14 objects in a scene that are both light and dark. WDR function works after you exit OSD. when entering OSD WDR will turn off until you exit OSD. CVBS cannot be used if WDR is turned on.
- Page 15 The camera will show color during the Day and black & white at Night (use when camera does not have built-in IR's). CDS sensor activates the changing of the camera from Color to B/W and from B/W to color. (cameras with built-in IR's need to be set to Extern)
- Page 16 Function to reduce noise in low light conditions.
- Page 19 CONSIDER THESE OTHER GREAT PRODUCTS FROM OnCue Bridge 8 & 16 Channel Complete HD/EX-SDI, TVI, AHD, CVI, Analog & IP Recording Solution • 8 & 16 Channel Stand-alone Real-time Video Recorders • Supports IP, HD/EX-SDI, TVI, AHD, CVI, Analog (CVBS) Cameras with automatic format detection •...
- Page 20 VTC-BHOCCR212M Installation Tighten Screws with the L-Wrench to secure the camera. 7.17” (182mm) 4.02” (102mm) 9.88” (251mm) 4.06” 5.51” (103mm) (140mm)
- Page 21 OnCue Complete 2.1MP HD-SDI/EX-SDI / TVI / CVI VTC-BHOCCR212M Specifications VTC-BHOCCR212M / AHD / CVBS IP68 Long Range IR Bullet Camera w/2.8-12mm Motorized AF Lens & 250’ IR Range Detailed Specifications Sensor 1/2.8” Sony® Progressive Scan “Starvis” CMOS (IMX291) Resolution 2.1 MegaPixel (1080p / 720p)
- Page 22 VTC-HOCCRBD212M Installation Tighten Screws with the L-Wrench to secure the camera.
- Page 23 Sony® is the registered trademark of an independently owned and operated company. This product has not been licensed or endorsed by the manufacturer of Sony® products. BREAKDOWN OF MODEL NUMBER: VTC-HOCCRBD212M {VTC} {OCC} {BD} {212} VITEK Camera High Definition OnCue Ball/Dome IR LEDs 2.8~12mm Motorized Complete...
- Page 24 VTD-HOCCR212M/I Installation 1. Use a coin or screwdriver to remove the dome cover. 2. Place the camera in the desired location and install using the screws included in the box. There are 2 locations of the dome guide, these will line up with the guides on the bubble of the dome Surface mount plate, if you attach camera to surface mount base and want to remove...
-
Page 25: Optional Wall Mount
VTD-HOCCR212M/IB 2.1MP HD/EX-SDI, TVI, CVI, CVBS Dome Camera w/2.8-12mm Motorized AF Lens & 120’ IR Range - Black BREAKDOWN OF MODEL NUMBER: VTD-HOCCR212M/IW VT-AP/WMT {VTD} {OCC} {212} Indoor Wall Mount VITEK High OnCue Complete Infrared 2.8~12mm Motorized Indoor Ivory Dome... - Page 26 VTD-HOCCR212M/V Installation There are 2 locations of the dome guide, these will line up with the guides on the bubble of the dome If the bubble is incorrectly attached to the camera base you will receive IR glare 3.94” (100mm) 5.39”...
-
Page 27: Optional Mounts
2.1MP HD/EX-SDI, TVI, CVI, CVBS IP68 Dome Camera w/2.8-12mm Motorized AF Lens & 120’ IR Range - Black BREAKDOWN OF MODEL NUMBER: VTD-HOCCR212M/VW VT-AV/WMT VT-AV/CMT {VTD} {OCC} {212} Outdoor Heavy Duty Outdoor Heavy Duty VITEK High OnCue Complete Infrared 2.8~12mm Motorized Vandal Ivory Dome Definition... - Page 28 3 years. * Per a special agreement with Western Digital, as of August 2016, VITEK also warrants factory installed Hard Drives for the full 3 year span of the recorder warranty provided that the recorder was purchased through an authorized VITEK distributor.
