Vitek VTC-HOCRBD4F User Manual

Vitek VTC-HOCRBD4F User Manual

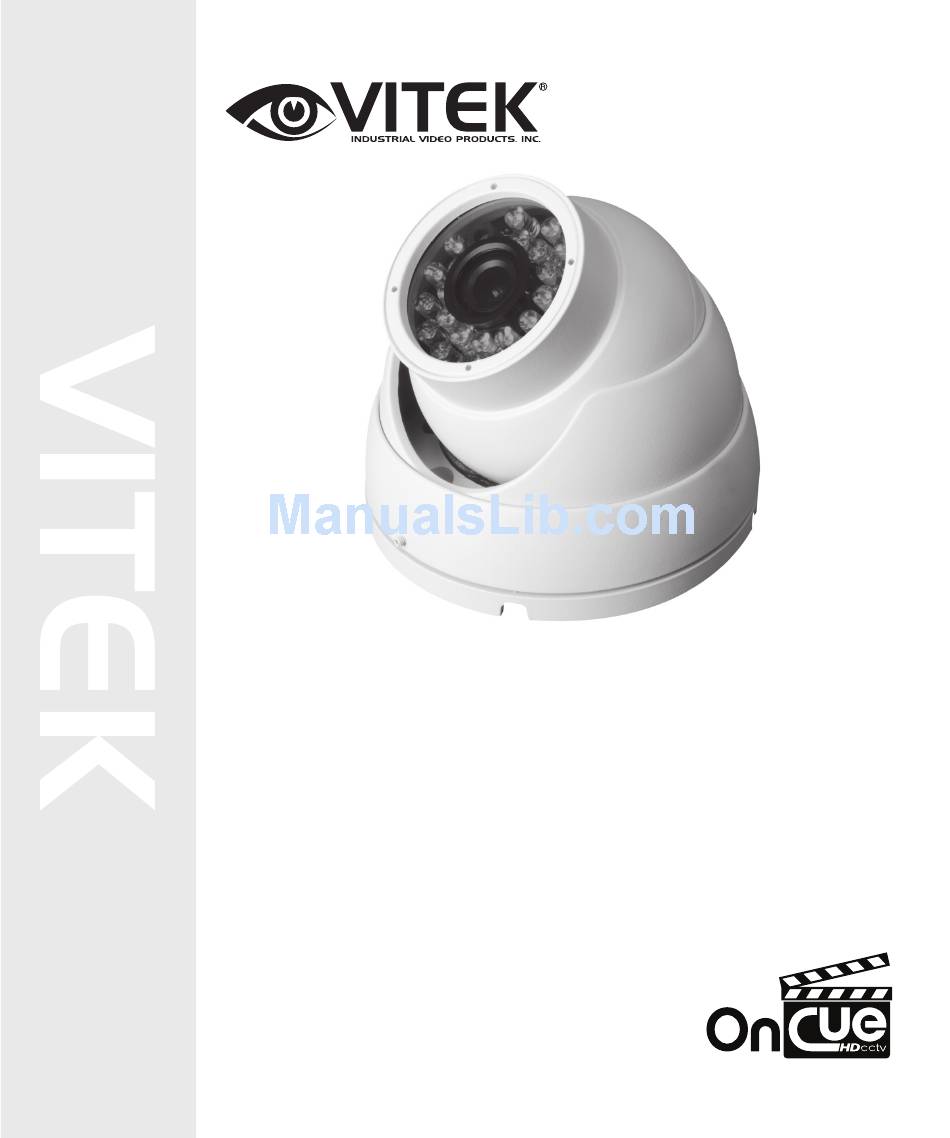

2.1mp hd-sdi compact indoor/outdoor wdr true day/night ball camera
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
FEATURES:
•
1/2.9" Sony Progressive Scan CMOS
•
2.1MegaPixel with Full 1080p/720p HD-SDI Output (SMPTE292M)
•
25 IR LEDs with 70' Range
•
Built in fixed 3.7mm Megapixel lens
•
Heavy Duty Vandal & IP67 Weather Resistance rating
•
16:9 Video Format
•
100% Pure Digital Transmission of video data
•
Up to 700' HD Transmission Range (depending on
cable characteristics and integrity)
•
12VDC Operation
VTC-HOCRBD4F
2.1MP HD-SDI Compact Indoor/Outdoor
WDR True Day/Night Ball Camera

Advertisement

loading
Need help?

Need help?

Do you have a question about the VTC-HOCRBD4F and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek VTC-HOCRBD4F

Summary of Contents for Vitek VTC-HOCRBD4F

  • Page 1 VTC-HOCRBD4F 2.1MP HD-SDI Compact Indoor/Outdoor WDR True Day/Night Ball Camera FEATURES: • 1/2.9” Sony Progressive Scan CMOS • 2.1MegaPixel with Full 1080p/720p HD-SDI Output (SMPTE292M) • 25 IR LEDs with 70’ Range • Built in fixed 3.7mm Megapixel lens •...
  • Page 2 Detailed Specifications Sensor 1/2.9” Sony CMOS Resolution 2.1 MegaPixel (1080p / 720p) More than 52 dB (AGC Off) Video Output 1x HD-SDI (BNC) IR Illuminators 25 IR LEDs IR Color Temp. 850nm IR Range 70’ Dynamic Intensity IR LEDs Lens 3.7mm Fixed Minimum Illumination 1 Lux at F1.2 / 0.1 Lux (B/W) / 0 Lux at IR On...
  • Page 3 2.04” 3.67” 3.06” 3.67” 3.67” HD-SDI DVR HDMI...
  • Page 4 OTHeR PRODuCTS FROM VITeK On Cue HD-SDI Video Recorders VT-HDOC Series On Cue Series 4, 8, & 16 Channel HD-SDI Video Recorders • 4, 8, or 16 Channel HD-SDI Inputs (Universal) with Full1080p, 720P, 960H & D1 Camera Support • Simple plug and play, point-to-point connection from camera to DVR •...
  • Page 6 VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
