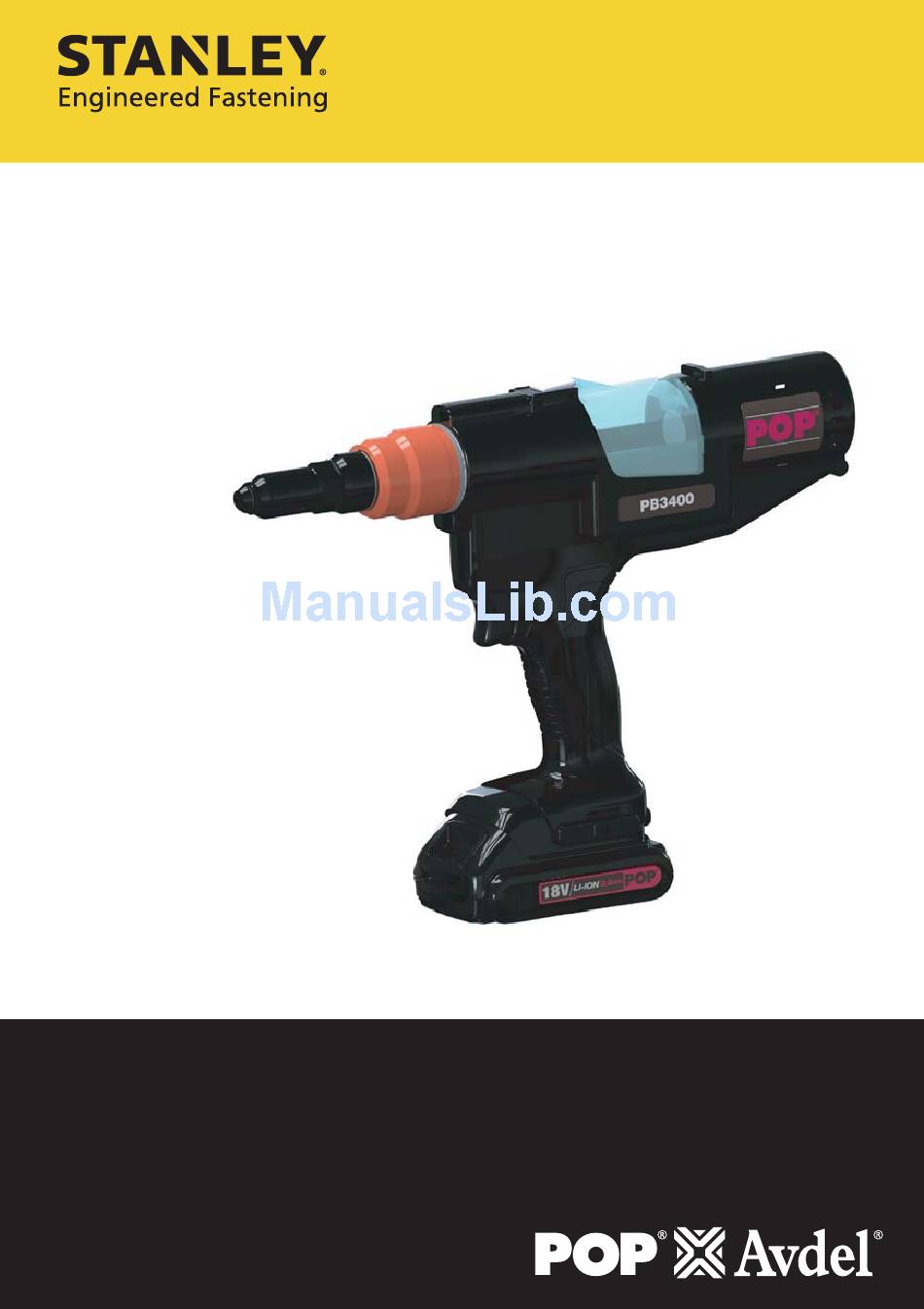

- Page 1 Prototype Instruction Manual For Field Trial Use Only Battery tool for Blind Rivets BATTERY 2.0 AH # DCB203-NA BATTERY 4.0 AH # DCB204-NA BATTERY CHARGER # DCB115-NA POP® PB3400 Battery Powered Blind Rivet Tool Battery Power Tool...
- Page 2 STANLEY Engineered Fastening will not accept any liability for damage resulting from activities carried out Fastening should not be considered as being free, pursuant to the legislation with respect to the protection of...
-
Page 3: Table Of Contents
E N G L I S H CONTENT Technical Data......................................7 Definitions: Safety Guidelines ................................7 General Power Tool Safety Warnings ..............................7 Additional Specific Safety Rules for Blind rivet tools ......................9 Residual Risks ......................................9 Markings on Tool ...................... - Page 4 Figure1 6.4[1/4”] Serial no. Figure2 Figure3...
- Page 5 Figure4 Figure5 AB, Z Figure6 Figure7 Figure8 Figure10 Figure9...
- Page 6 CLOSED END AVEX®/STAVEX® AVINOX®/AVIBULB® HR/HT INTERLOCK® KLAMP-TITE® BULBEX®/LS/TL MONOBOLT® Q RIVET T LOK® T-RIVET AVSEAL® II Non Standard Nose Piece required ** Non Standard Nose Piece, Jaw pusher and Tail guide required Contact STANLEY Engineered Fastening, Applications Engineering for assistance...
-
Page 7: Technical Data
E N G L I S H BATTERY TOOL FOR BLIND RIVETS PB3400 e t t Congratulations! v l l o i s Battery type Li-Ion thorough product development and innovation make Voltage POP® one of the most reliable partners for professional Capacity 1.5/2.0/3.0 blind rivet tool users. - Page 8 E N G L I S H SAVE ALL WARNINGS AND INSTRUCTIONS Do not force the power tool. Use the correct FOR FUTURE REFERENCE power tool for your application. The correct The term “power tool” in the warnings refers to your power tool will do the job better and safer at the mains-operated (corded) power tool or battery-operated rate for which it was designed.
-
Page 9: Additional Specific Safety Rules For Blind Rivet Tools
E N G L I S H contact accidentally occurs, flush with water. WARNING: Shock hazard. Do not allow any If liquid contacts eyes, additionally seek liquid to get inside charger. Electric shock medical help. Liquid ejected from the battery may result. -
Page 10: Chargers
The charger then SAVE THESE INSTRUCTIONS automatically switches to the pack charging mode. This feature ensures maximum battery life. STANLEY Engineered Fastening Li-Ion tools are designed with an Electronic Protection System that will protect the The EBCB105 charger accepts EBC180, EBC181 &... -
Page 11: Battery Packs
E N G L I S H DO NOT splash or immerse in water or other liquids. Do not store or use the tool and battery pack in 1. The best storage place is one that is cool and locations where the temperature may reach or dry away from direct sunlight and excess heat exceed 40 °C (105 °F) (such as outside sheds or or cold. -
Page 12: Package Contents
E N G L I S H Do not incinerate the battery pack. U. Jaw pusher spring V. Pulling head W. Jaw case lock Charges Li-Ion battery packs. X. Mandrel collector Y. Blind rivet See Technical Data for charging time. Z. -
Page 13: Assembly & Adjustments
E N G L I S H (see technical data). The minimum conductor size is 1.5 mm²; the maximum length is 30 m. When using Instructions for Use WARNING: Always observe the safety & instructions and applicable regulations. WARNING: Prior to assembly and WARNING: To reduce the risk of serious adjustment, always remove the battery personal injury, disconnect battery... -
Page 14: Use
E N G L I S H Place the rivet (fig. 8) WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt Place the blind rivet (Y) in the nose piece (A) is seen collecting in and around the air Position the tool (fig.10) vents. -
Page 15: Protecting The Environment
E N G L I S H accessories should be used with this Li-Ion cells are recyclable. Take them to your product. battery packs will be recycled or disposed of Consult your dealer for further information on the properly. appropriate accessories. WARNING: To reduce the risk of serious personal injury, disconnect battery pack before making any adjustments... -
Page 16: Parts List
E N G L I S H 36. Parts List Part Description Number TP144-593 SA Nosepiece, 6.4 mm [1/4”] size, Marking “811” DPN900-074 O-Ring (See item 1) Nosepiece TP144-645 DPN276-001 Jaw Guide PRG540-44 Jaws - One Set (3) TP144-595 SA Jaw Pusher, 6.4 mm [1/4"] size, Marking “8” (See item 11) Jaw Pusher TP144-597... - Page 17 E N G L I S H Part Description Number 2.0 Ah Battery, NA, QW, XE (Use QW with model no. 3400-GB) EBC183-( ) EBC101-NA Battery Charger, NA EBC105-( ) Battery Charger, GB,QW,XE (Ref. PB3400-( ) model no.) TP133-570 SA Nose Housing SA Nose Housing TP143-643 (see charts)
-
Page 18: Exploded View Diagram
E N G L I S H 37. Exploded View Diagram... -
Page 19: Nose Piece, Jaw And Jawpusher Chart
TP144-593* TP144-593* T-Rivet † * Included with the standard tool kit ** Special SA Nose Housing TP143-643 required to use these Nosepiece † Contact Stanley Engineered Fastening, Applications Engineering Nosepiece Marking details TP124-542 "614" TP124-543 "6K" TP124-546 "624" TP143-646 "8F"... - Page 20 6.4mm HR/HT Rivet PRN811 PRN8S PRN8S [1/4"] PRN811 PRN811 PRN811 Interlock 07612-02001 07612-02001 Hemlok Open End PRN811 PRN811 PRN811 07612-02001 Stavex 71220-16021 71220-16021 71220-16021 Monobolt Q Rivet PRN811 PRN811 PRN811 PRN811 T-Rivet † † Contact Stanley Engineered Fastening, Applications Engineering...
- Page 21 E N G L I S H Jaw, Jaw pusher and Tail Guide selection chart Sise Rivet Type Jaw pusher Tail Guide Avex Avibulb Avinox Bulbex /TL TP144-637 TP144-647 (Marking"6") (Marking"6,8K") Klamp-Tite BAPK seies Klamp-Tite BAPKTR seies Closed End HR/HT Rivet (Al/Steel) 4.8mm TP144-595 TP144-659...
-
Page 22: Troubleshooting Guide
E N G L I S H 39. Troubleshooting guide Tool stops before rivet is fully set Setting load of rivet is beyond tool Reset tool to home, remove rivet & capacity. use appropriate tool to set rivet. Improper nosepiece selection. Reset tool to home, remove rivet &... - Page 23 E N G L I S H Close the lid (E) of the mandrel collector (X). Mount the nose piece (A). Place the blind rivet (Y) in the nose Position the tool. piece (A). Press and hold the switch (J) until blind rivet is fully set.
- Page 24 The names and logos of other companies mentioned herein may be trademarks of their respective owners. Data shown is subject to change without prior notice as a result of continuous product development and improvement policy. Your local STANLEY Engineered Fastening representative is at your disposal should you rm latest information.
