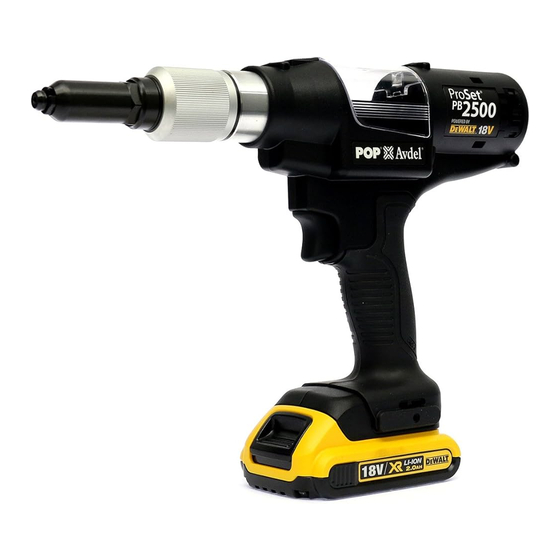

ProSet® PB2500 blind rivet tool
ProSet® PB3400 structural rivet tool
Battery Power Tool
INSTRUCTION
MANUAL
ProSet®
ProSet®
ProSet®
PB2500
PB2500
PB2500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProSet PB2500 and is the answer not in the manual?

Questions and answers

Related Manuals for Stanley ProSet PB2500

Summary of Contents for Stanley ProSet PB2500

  • Page 1 INSTRUCTION MANUAL ProSet® ProSet® PB3400 PB3400 Battery Power Tool Batteridrevet værktøj Akkuwerkzeug ProSet® ProSet® ProSet® Herramienta de batería Akkutyökalu PB2500 PB2500 PB2500 Outil électrique alimenté par batterie Utensile a batteria Accugereedschap Batteridrevet verktøy Elektronarzędzie akumulatorowe Ferramenta eléctrica com bateria Batteridrivet verktyg ProSet®...
  • Page 2 PB2500 (Ref. Section 2.4) PB2500 (Ref. Section 2.4) Figure 1 3.2 [1/8] 4,0 [5/32] 4,8 [3/16] Model no. / Serial no. Figure 2 Figure 3...
  • Page 3 PB2500 (Ref. Section 2.4) Figure 5 Figure 4 Figure 6a Figure 6 Figure 7 Figure 8 Figure 9 Figure 10...

  • Page 4: Table Of Contents

    The information provided may not be reproduced and/or made public in any way and through any means (electronically or mechanically) without prior explicit and written permission from STANLEY Engineered Fastening. The information provided is based on the data known at the moment of the introduction of this product.

  • Page 5: Safety Definitions

    The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.  Do not use outside the design intent of Placing STANLEY Engineered Fastening Blind Fasteners.  Use only parts, fasteners, and accessories recommended by the manufacturer.

  • Page 6: Important Safety Instructions For All Battery Chargers

    E N G L I S H  Keep work area clean and well lit.  Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. ...

  • Page 7: Important Safety Instructions For All Battery Packs

    E N G L I S H  Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.  Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

  • Page 8: Specific Safety Instructions For Lithium-Ion (Li-Ion)

    E N G L I S H 1.5 SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM-ION (LI-ION) 1. Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fi re. Toxic fumes and materials are created when lithium-ion battery packs are burned. 2.

  • Page 9: Specification

    POP®Avdel® batteries with a DEWALT®/ POP®Avdel® charger may make them burst or lead to other dangerous situations. STANLEY Engineered Fastening policy is one of continuous product development and improvement and we reserve the right to change the specifi cation of any product without prior notice.
  • Page 10 E N G L I S H 2.1.3. Battery Pack* Battery type Li-ion Voltage 18 nom /20 max Capacity 2.0/4.0 Weight 0.40/0.61 Charging duration** 30/60 Charger* QW/GB/XE/XD Battery type Li-ion Li-ion Li-ion Battery type Mains voltage Input frequency 50/60 Weight 0.50 0.50 0.50...

  • Page 11: Placing Specifi Cation

    E N G L I S H 2.2 PLACING SPECIFICATIONS PLACING CAPACITY PB3400 Rivet Type 5.0/ 2.4 mm 3.2 mm 4.0 mm 4.8 mm 4.8 mm 6.4 mm 8.0/ 3.0 mm 4.3 mm 6.0/ 6.0 mm [3/32´´] [1/8´´] [5/32´´] [3/16´´] [3/16´´] [1/4´´] 9.0 mm...

  • Page 12: Main Components List

    E N G L I S H 2.4 MAIN COMPONENTS LIST (for complete tool explosion and Bill of Material please see service manual) ProSet® PB2500 drawing can be found inside the front cover ProSet® PB3400 drawing can be found inside the back cover Nose pieces Charger Nose housing...

  • Page 13: Tool Use & Set Up

    E N G L I S H 3. Tool Use & Set up The PB Series of tools are designed for installation of STANLEY Engineered Fastening Blind Fasteners. DO NOT use under wet conditions or in presence of fl ammable liquids or gases.

  • Page 14: Chargers

    E N G L I S H PB3400 (fi g. 4 & 5)  Select the correct jaw pusher assembly (R) and Mandrel guide (AA) that matches the Nose Piece selected. Reference the Accessories Manual for appropriate nose equipment.  Insert mandrel guide (AA) into pulling head (T) ...

  • Page 15: Battery Packs

    Lithium-Ion Battery Packs STANLEY Engineered Fastening PB Series Li-Ion tools are designed with an Electronic Protection System that will protect the battery against overloading, overheating or deep discharge. The tool will automatically turn off if the Electronic Protection System engages.

  • Page 16: Proper Hand Position

    E N G L I S H 5.1 PROPER HAND POSITION Proper hand position requires one hand on the main handle (I) fi g. 1. 5.2. TOOL OPERATION Installing a blind rivet (fi g. 8) To install a blind rivet ...

  • Page 17: Servicing The Tool

    E N G L I S H 6. SERVICING THE TOOL 6.1. MAINTENANCE FREQUENCY Item Frequency General Tool Inspection Daily Clean & lubricate Nose Equipment 5,000 rivets Clean & grease Ball Screw and Thrust Bearing 50,000 rivets* *Recommend contacting authorized service centre 6.2.

  • Page 18: Spare Parts - Tools

    E N G L I S H 6.3 SPARE PARTS – TOOLS For spare parts we refer you to the specifi c service manuals which you can fi nd on our website at http://www.stanleyengineeredfastening.com/resource-center/document-library 6.4. RECHARGEABLE BATTERY PACK This long life battery pack must be recharged when it fails to produce suffi cient power on jobs which were easily done before.

  • Page 19: Ec-Declaration Of Conformity

    Date of issue 30. 10. 2016 Authorised Representative: A. K. Seewraj Technology Manager – EU Blind Fastening Avdel UK Limited; Stanley House, Works Road, Letchworth Garden City, Hertfordshire, SG6 1JY UNITED KINGDOM This machinery is in conformity with Machinery Directive 2006/42/EC.

  • Page 20: Protect Your Investment

    STANLEY Engineered Fastening location. STANLEY Engineered Fastening will then replace, free of charge, any part or parts found by us to be defective due to faulty material or workmanship, and return the tool prepaid. This represents our sole obligation under this warranty.
  • Page 21 The names and logos of other companies mentioned herein may be trademarks of their respective owners. Data shown is subject to change without prior notice as a result of continuous product development and improvement policy. Your local STANLEY Engineered Fastening representative is at your disposal should you need to confirm latest information.

This manual is also suitable for:

Proset pb3400

Table of Contents
