Summary of Contents for Stanley ProSet XT1 Blind Rivet Tool

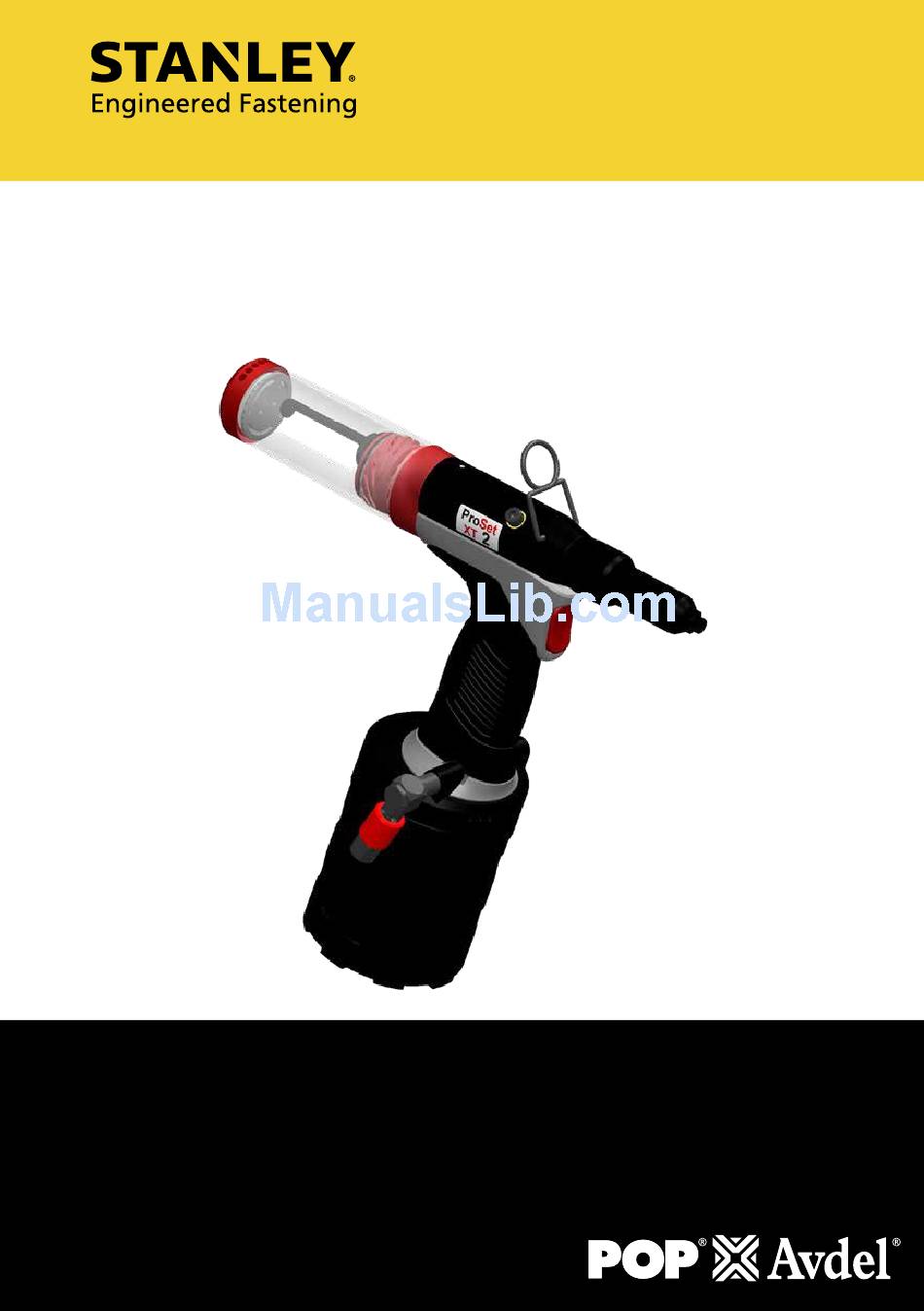

- Page 1 Nose Equipment Manual Original Instruction ProSet® XT1 Blind Rivet Tool – 76001 ProSet® XT2 Blind Rivet Tool – 76002 Hydro-Pneumatic Power Tool...
-
Page 2: Table Of Contents
STANLEY Engineered Fastening will not accept any liability for damage resulting from activities carried out by third parties. The working names, trade names, registered trademarks, etc. used by STANLEY Engineered Fastening should not be considered as being free, pursuant to the legislation with respect to the protection of trade marks. -
Page 3: Safety Definitions
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE WARNING: • DO NOT use outside the design intent of Placing STANLEY Engineered Fastening Blind Rivets. • Use only parts, fasteners, and accessories recommended by the manufacturer. •... -
Page 4: Safety Rules
The nose equipment in combination with the ProSet XT1 and ProSet XT2 tools are designed for placing Stanley Engeered Fastening blind rivets only. The correct placing tool and nose assembly must be selected for each for each rivet type and size as shown in the tables on pages 5 and 7. -
Page 5: Nose Equipment For Proset® Xt1
E N G L I S H 4. NOSE EQUIPMENT FOR ProSet® XT1 Nose equipment varies according to the rivet type being installed. Each nose assembly represents a unique set of components which can be ordered individually. For assembly dimensions ‘A’ , ‘B’ , ‘C’ and ‘D’ refer to Nose Equipment tables on page 5. -
Page 6: Tp144
E N G L I S H DIMENSION (mm) RIVET RIVET RIVET NOSE NOSE MANDREL NOTES TYPE DIAMETER MATERIAL ASSEMBLY PUSHER GUIDE 3/32 TRM00360 PRN314 TP144-117 TP144-178 49,9 67,9 TRM00360 PRN414 TP144-117 TP144-120 49,9 67,9 AL. ALLOY OPEN END 5/32 STEEL TRM00360 PRN514... -
Page 7: Nose Equipment For Proset® Xt2
E N G L I S H 5. NOSE EQUIPMENT FOR ProSet® XT2 Nose equipment varies according to the rivet type being installed. Each nose assembly represents a unique set of components which can be ordered individually. For assembly dimensions ‘A’ , ‘B’ , ‘C’ and ‘D’ refer to Nose Equipment table on page 7. -
Page 8: Tp144
E N G L I S H DIMENSION NOTES RIVET RIVET RIVET NOSE NOSE MANDREL TYPE DIAMETER MATERIAL ASSEMBLY PUSHER GUIDE 3/32 TRM00361 PRN414 TRM00355 TRM00261 53,9 71,9 AL. ALLOY OPEN END 5/32 STEEL TRM00361 PRN514 TRM00355 TRM00261 53,9 71,9 BODY 3/16 TRM00361... -
Page 9: Blind Rivet Nose Assemblies For Proset® Xt1
E N G L I S H 6. BLIND RIVET NOSE ASSEMBLIES FOR ProSet® XT1 TRM00360 Fig. 3 1a, 1b, 1c 1) For rivet diameters of 2.4mm, use TP144-178 (Mandrel Guide Assembly). Part Number: TRM00360 Item Part Number Description PRN414 Nose Piece PRN314 Nose Piece... -
Page 10: Blind Rivet Nose Assemblies For Proset® Xt2
E N G L I S H 7. BLIND RIVET NOSE ASSEMBLIES FOR ProSet® XT2 TRM00361 Fig. 4 1a, 1b, 1c 1) For rivet diameters of 3.2 or 4.0, use TRM00355 (Jaw Pusher) and TRM00261 (Mandrel Guide Assembly). Part Number: TRM00361 Item Part Number Description... -
Page 11: Nose Piece
E N G L I S H FITTING INSTRUCTIONS IMPORTANT - READ THE SAFETY WARNINGS LISTED IN THE PROSET XT1 AND PROSET XT2 INSTRUCTION MANUAL CAREFULLY BEFORE PUTTING INTO SERVICE. IMPORTANT - THE AIR SUPPLY MUST BE TURNED OFF OR DISCONNECTED BEFORE FITTING OR REMOVING THE NOSE EQUIPMENT. -
Page 12: Avseal Nose Assemblies For Proset® Xt2
E N G L I S H 8. AVSEAL NOSE ASSEMBLIES FOR ProSet® XT2 76002-16100 Fig. 5 Part Number: 76002-16100 Item Part Number Description 76002-16001 Nose Casing 76002-16003 Jaw Guide 71210-16101 Jaws 1set 07498-04502 Jaw Spreader 71210-05001 Buffer 76002-16002 Pulling Head TP144-051 Jaw Guide Lock 07500-00418... - Page 13 E N G L I S H • The air supply must be disconnected. • Remove the complete nose assembly TRM00361 as described in the Proset XT2 instruction manual. • Screw Pulling Head (6) together with Jaw Guide Lock (7), Jaw Guide Lock Spring (9) to the tool piston and then tighten Lock Nut (10) to Pulling Head (6).
- Page 14 Avdel®, Avex®, Avibulb®, Avinox®, Avseal®, Bulbex®, Hemlok®, Interlock®, Klamp-Tite®, Monobolt®, POP®, ProSet®, Stavex® and T-Lok® are registered trademarks of Stanley Black & Decker, Inc. and its affiliates. The names and logos of other companies mentioned herein may be trademarks of their respective owners.
