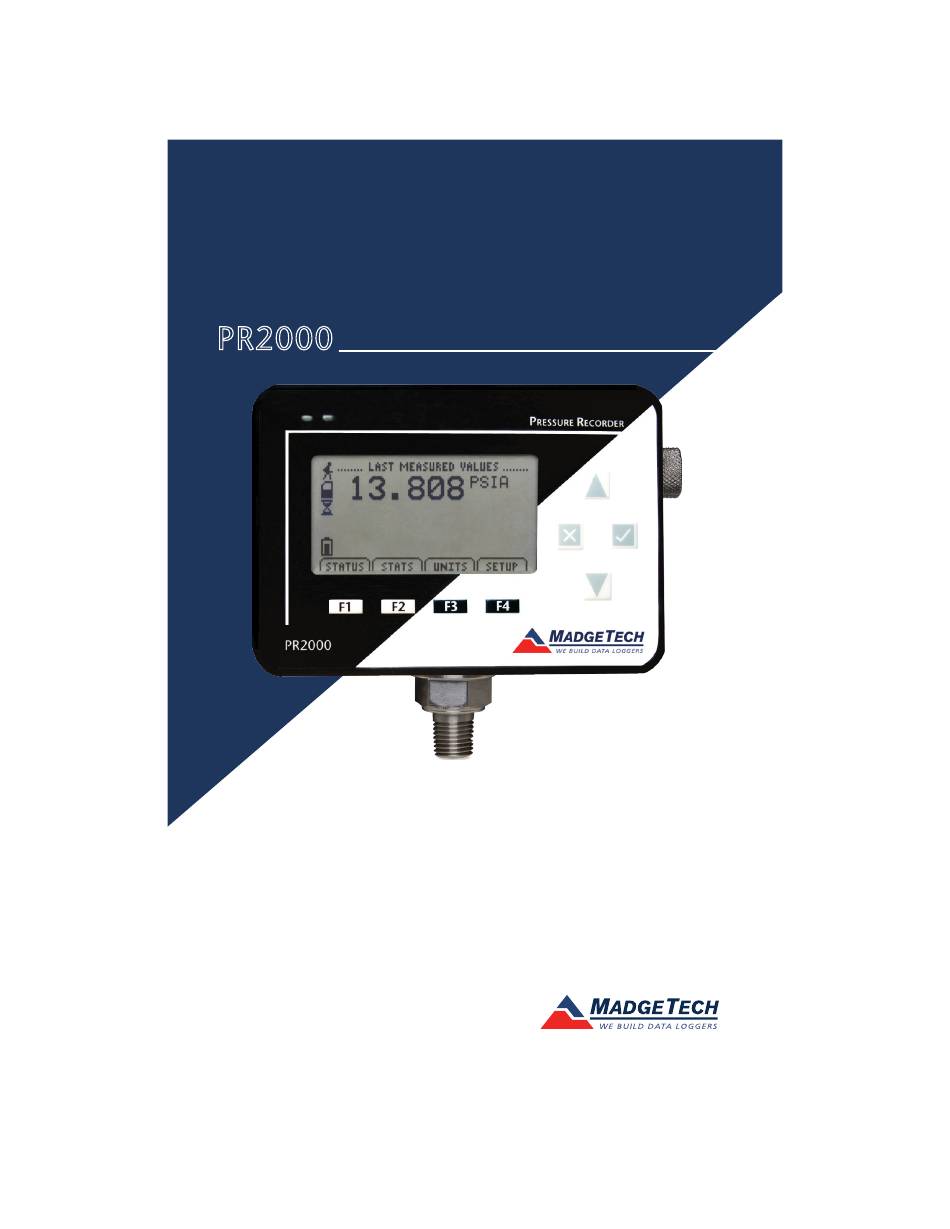

  • Page 1 PR2000 Data Logger Manual Red 485 Dark Blue Pantone 289 Light Blue 58% of Pantone 289 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 2: Table Of Contents

    4.2 Changing the number, type, and size of channels viewed ..9 4.3 Checking the memory status ..........10 4.4 Checking power status ............10 4.5 Changing the Contrast ............10 Section 5: PR2000 Function Reference ...........11 5.1 Main Screen ................11 5.2 Status Menu ................11 5.3 Statistics Menu ...............12 5.4 Units..................13...
  • Page 3 MadgeTech PR2000 6.7 Channel Statistics: ..............21 6.8 Type Statistics: ................21 6.9 Statistics Information Screen: ..........22 6.10 Unit Selection Menu: ............22 6.11 Device Configuration Menu: ..........23 6.12 Adjust Visibility: ..............23 6.13 Display Configuration: ............24 6.14 Power Modes Screen: ............25 6.15 Display Update Mode Screen: ..........25 6.16 Power Status Screen: ............26...

  • Page 4: Section 1: Device Safety

    CAUTION: DEVICE MUST BE USED ONLY IN A MANNER CONSISTENT WITH THIS MANUAL. NOTICE: WHEN 230VAC SUPPLY USED, MADGETECH SPECIFIES USE OF AC SUPPLY PART # T35-9-100R-3 MANUFACTURED BY ENG ELECTRIC. THIS SUPPLY IS AVAILABLE FROM MADGETECH. 1.1 Model information • Model: PR2000 •...
  • Page 5 MadgeTech PR2000 Calibration Date: Automatically recorded within device Battery Type: 6 alkaline AA batteries, user replaceable; optional AC adapter, 7-24 VDC, 100mA. For 230 VAC operation use AC supply T35-9-100 R-3 made by ENG Electric. Battery Life: 60 days typical with continuous screen use; 360 days with display off.

  • Page 6: Warranty

    Products manufactured by MadgeTech, Inc., are warranted against defective material and workmanship for a period of one year, starting from the date of shipment. In the event that a MadgeTech product is found to be defective, MadgeTech will repair or replace the product at its sole discretion. Such repair or replacement shall be the sole remedy of this warranty.

  • Page 7: Section 2: Device Overview

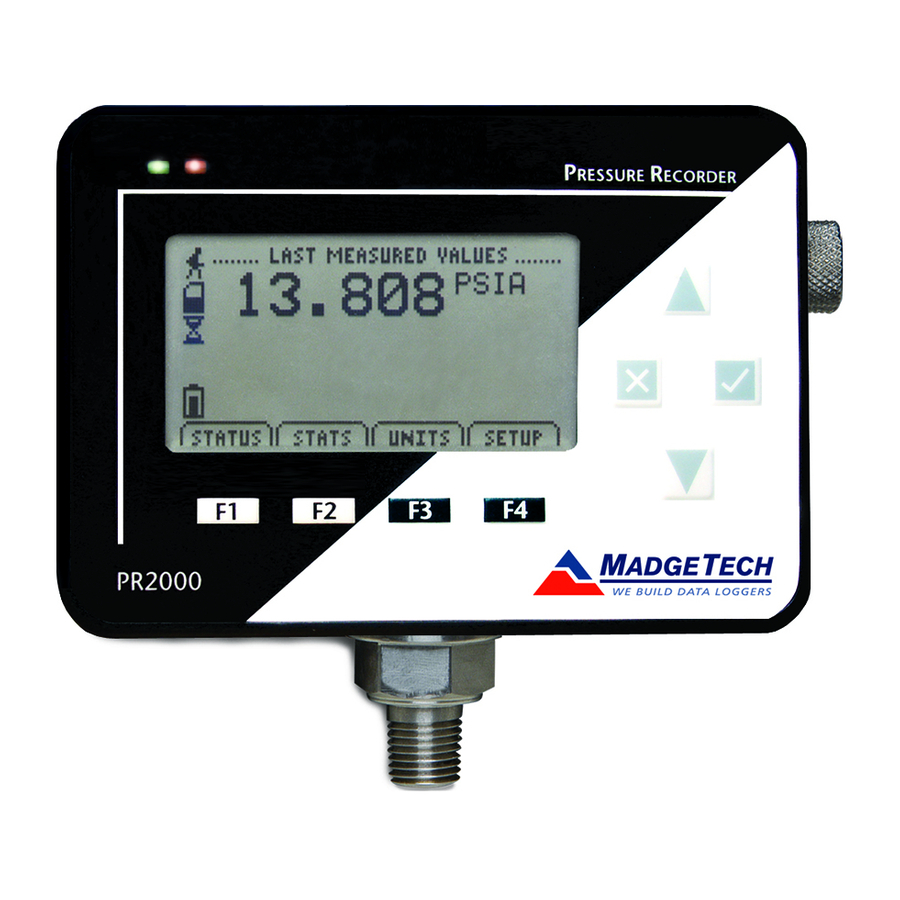

    MadgeTech PR2000 Section 2: Device Overview Power Jack Pressure Sensor Indicators Communication Jack LCD Screen Up Key Okay Key Black anodized Down Key aluminum enclosure Function Keys Cancel Key Page 6 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 8: Section 3: Status Indicator Icons

    Empty Full The memory status icons indicate the amount of memory left for data storage. If the PR2000 is in wraparound mode, the memory status icon will always indicate empty. 3.3 Running Indicator Indicates that the PR2000 is taking readings. The icons cycle periodically.

  • Page 9: Delay Start Indicator

    The wait icon indicates that the device is busy. 3.6 Stop Icon Indicates that the PR2000 is not currently taking readings. 3.7 External Power Icon Indicates that the PR2000 is powered by an external source. 3.8 Reset Icon Indicates that the device has been reset. Page 8 GlobalTestSupply www.

  • Page 10: Section 4: Front Panel Overview

    Section 4: Front Panel Overview 4.1 Changing the display units The PR2000 comes with factory default display units of PSI for pressure and the real-time pressure graphing feature. These units can be easily changed by pressing the F3 button in the main screen and then selecting F1 for pressure or F2 for the pressure graph.

  • Page 11: Checking The Memory Status

    Main Screen -> F4 -> F2 -> F4 -> F4 4.5 Changing the contrast The PR2000’s LCD screen contrast values can be changed in two ways. One method is outlined in the Function Reference Guide. A faster, simpler way involves simultaneously pressing the CANCEL and UP or DOWN button repeatedly in any screen.

  • Page 12: Section 5: Pr2000 Function Reference

    Section 5: PR2000 Function Reference 5.1 Main Screen The main screen of the PR2000 features a real-time display of most recently measured pressure data and a real-time graph of the 100 most recently recorded data points. At the bottom of the main screen are tabs corresponding to each of the four function keys.

  • Page 13: Statistics Menu

    5.3.ii Viewing statistics by type The PR2000’s Statistics Menu also provides the option to view statistics by type. This can be done by pressing F2 while in the Statistics Menu. Here the function keys F1, F2, and F3 correspond to the three different types of statistics: average, minimum, and maximum respectively.

  • Page 14: Units

    Pressing the F4 key while in the Main Screen will display the Device Configuration screen. From this menu changes can be made to most of the PR2000’s display configuration including the screen contrast, size of the channel view in the main screen, as well as display of the channels. Power...
  • Page 15 MadgeTech PR2000 Note: Use of the Pr2000’s graphing function will reduce the battery life of the device, particularly when not logging. To increase battery life either deactivate the graphing function by turning it to “Hide” in the Adjust Visibility screen, increase “auto time”...
  • Page 16 “On”, “Off” or “Auto”. LED Modes The function of the two LEDs on the upper left corner of the PR2000 can be regulated by first pressing the F3 key to highlight the LED parameter configuration tab. Once the tab is highlighted the option can be changed by pressing the F3 key repeatedly or using the UP and DOWN keys to select either “Enabled”...
  • Page 17 On this screen the battery type is displayed and should be changed by the user based on whether a Lithium or Alkaline battery is used in the PR2000. This can be changed by first pressing the F1 button to highlight the type parameter configuration tab. Once the...
  • Page 18 MadgeTech PR2000 5.5.iii.d Device Version Pressing the F4 key while viewing the Maximum or Minimum Device Range screens will display the Device Version screen, containing information such as firmware revision number and communications baud rate. Values on this screen cannot be modified.

  • Page 19: Section 6: Pr2000 Screen Descriptions

    MadgeTech PR2000 Section 6: PR2000 Screen Descriptions 6.1 Main Screen: Displays last measured values. F1 = STATUS: enters status screens F2 = STATS: shows statistics menu F3 = UNITS: enters unit selection screen F4 = SETUP: enters device configuration menu...

  • Page 20: Status Screens (Memory Status)

    MadgeTech PR2000 OK = returns to main screen UP = no function DOWN = no function 6.3 Status Screens (Memory Status): Displays information about the device’s memory capabilities including percent of memory available (memory left), number of readings taken so far (readings), max number of readings (max readings), and wrap status.

  • Page 21: Id Parameters

    MadgeTech PR2000 F3 = TIME: displays date and time screen F4 = MORE: displays ID parameters status screen CANCEL = returns to main screen OK = returns to main screen UP = no function DOWN = no function 6.5 ID Parameters Displays information relating to device identity.

  • Page 22: Channel Statistics

    MadgeTech PR2000 CANCEL = returns to main screen OK = returns to main screen UP = no function DOWN = no function 6.7 Channel Statistics: Displays statistics (maximum recorded value, minimum recorded value, and average recorded value) for the pressure channel.

  • Page 23: Statistics Information Screen

    MadgeTech PR2000 F4 = EXIT: returns to Statistics Menu CANCEL = returns to Statistics Menu OK = returns to Statistics Menu UP = no function DOWN = no function 6.9 Statistics Information Screen: Displays current statistics information including the number of recorded readings, start date, and start time.

  • Page 24: Device Configuration Menu

    MadgeTech PR2000 F3 = no function F4 = OK: returns to Main Screen Note: Unit selection can be changed by pressing the corresponding function key repeatedly or using the UP and DOWN arrows to select appropriate units. CANCEL = returns to main menu without accepting changes OK = accepts changes and returns to main menu 6.11 Device Configuration Menu:...

  • Page 25: Display Configuration

    MadgeTech PR2000 F3 = SOURCE: first highlights and then changes the option for how often the graphing feature will update F4 = MORE: moves on to Display Configuration screen CANCEL= return to Display Configuration Menu OK = moves on to Display Configuration screen...

  • Page 26: Power Modes Screen

    MadgeTech PR2000 6.14 Power Modes Screen: Displays information regarding the devices different power modes including the display visibility, backlight options, and LED modes. F1 = DISPLAY: first highlights and then changes display visibility (On: full visibility or Auto: shuts off after 5 minutes of inactivity)

  • Page 27: Power Status Screen

    UP = if type parameter configuration tab is highlighted, scrolls through available options DOWN = if type parameter configuration tab is highlighted, scrolls through available options 6.17 Device Information Screens (Minimum Device Range): Displays values indicating minimum pressure detectable by the PR2000. Page 26 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 28: Device Information Screens (Maximum Device Range)

    OK = returns to Device Configuration Menu UP = no function DOWN = no function 6.18 Device Information Screens (Maximum Device Range): Displays values indicating maximum pressure detectable by the PR2000. 6.19 Device Information Screens (Device Version): Displays device version information. F1 = VERS: no function...

  • Page 29: Device Information Screens (Firmware Version)

    MadgeTech PR2000 6.20 Device Information Screens (Firmware Version): Displays device firmware version information. F1 = VERS: shows Device Version screen F2 = FIRM: no function F3 = MORE: shows Device Range (Minimum) screen F4 = EXIT: returns to Device Configuration Menu...

  • Page 30: Calibration Information Screens (Pressure Calibration)

    MadgeTech PR2000 6.22 Calibration Information Screens (Pressure Calibration): Displays calibration information for pressure channel. For all Device Information Screens: F1 = DATE: returns to Calibration Date screen F2 = PRESS: no fucntion F4 = EXIT: returns to Device Information screens...

  • Page 31: Device Reset Screen (Power Interruption)

    MadgeTech PR2000 6.24 Device Reset Screen (Power Interruption): Displayed as notification when power is interrupted during device operation. F1 = OK: accepts notification and displays main screen F2 = no function F3 = no function F4 = no function CANCEL = no function...

  • Page 32: Section 7: Computer Interface

    MadgeTech PR2000 Section 7: Computer Interface: Insert the USB connector of the IFC200 into an available USB port. Fully insert male connector of the IFC200 interface cable into the female receptacle of the data logger*. *WARNING: Install driver before connecting a device using a USB for the first time.

  • Page 33: Section 9: Maintenance

    The battery life is affected by battery type, ambient temperature, sample rate, sensor selection, offloads and LCD display usage. The PR2000 has a battery status indicator on the LCD display. If the battery indication is low, or if the device seems to be inoperable, it is recommended that the battery be changed.

  • Page 34: Section 10: Terms And Conditions

    MadgeTech PR2000 Section 10: Terms and Conditions All products furnished by MadgeTech, Inc. (“Seller”) shall be in accordance with the following terms and conditions unless otherwise stated in writing: These Terms and Conditions (“Terms and Conditions”) govern (a) all sales quota- tions and sales of components, equipment, parts, and other products (“Product”)
  • Page 35 MadgeTech PR2000 correct any defects that are found by Seller, or repair or replace F.O.B. point of manu- facture that portion of the Seller manufactured Products, consumables or Software found by Seller to be defective, or refund the price of the defective portion of the Seller manufactured Products, consumables or Software, or of the defective portion of the Seller provided services.

  • Page 36: Limitations

    MadgeTech PR2000 OR ACCURACY, ADEQUACY OR COMPLETENESS OF DATA MEASUREMENT, WITH RESPECT TO ANY EQUIPMENT, COMPONENTS, PARTS, CONSUMABLES, SOFT- WARE OR SERVICES SOLD TO BUYER BY SELLER THAT ARE NOT MANUFACTURED OR PROVIDED BY SELLER. Seller shall assign the manufacturer’s or service provider’s warranty applicable to such equipment, components, parts, consumables, Software and services to the extent permitted, to Buyer.
  • Page 37 MadgeTech PR2000 the Software or merge it with another program; (iii) reverse engineer, disassemble, decompile, or make any attempt to discover the source code of the Software; (iv) translate or create derivative works based on the Software; (v) remove, obscure, or alter any notice of the patent, copyright, or other proprietary rights related to the Software;...
