Summary of Contents for Nordson PRODIGY
Page 1

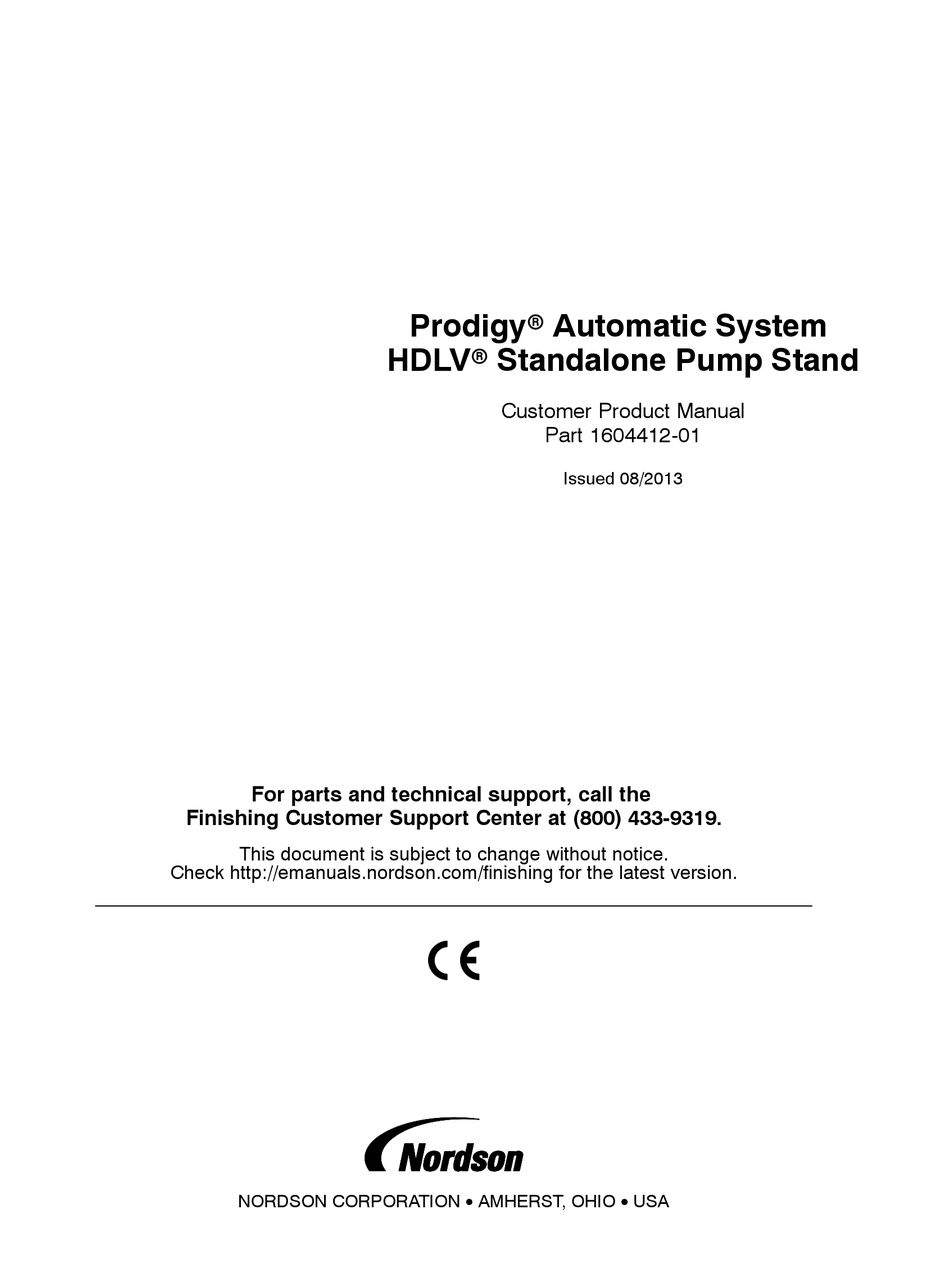

Customer Product Manual Part 1604412-01 Issued 08/2013 For parts and technical support, call the Finishing Customer Support Center at (800) 433-9319. This document is subject to change without notice. Check http://emanuals.nordson.com/finishing for the latest version. NORDSON CORPORATION • AMHERST, OHIO • USA...
Notice Nordson Corporation welcomes requests for information, comments, and This is a Nordson Corporation publication which is protected by copyright. inquiries about its products. General information about Nordson can be Original copyright date 2007. No part of this document may be...
Make sure all equipment is rated and approved for operating or servicing equipment. the environment in which it is used. Any approvals obtained for Nordson equipment will be voided if instructions for installation, operation, and service Qualified Personnel are not followed.
Use only replacement parts that are designed cables, and wires after servicing equipment. for use with original equipment. Contact your Nordson representative for parts information and advice. Action in the Event of a Malfunction If a system or any equipment in a system...
Standalone Pump Stand Description The pump stand is the electrical and pneumatic control center for Prodigy HDLV pumps used with Prodigy Automatic Spray Guns and Encore HD Spray Guns. The stands can be used alone or with the Encore HD Powder Feed Center and can hold up to two pump panels each.
View Depicts a Fully Populated Stand, Configured for Use Without a Feed Center, With the Air Header Installed on the Latch Side of the Pump Cabinet 1. Pump panel 3. Pump stand frame 5. Gun air, manifold wash 2. Accumulator tank assembly 4. Air header assembly Part 1604412-01 2013 Nordson Corporation...
Standalone Pump Stand Panel Components External Components Figure 3 External Pump Panel Components (Eight-Pump Panel Shown) 1. Prodigy HDLV Pumps 5. INPUT power 9. Purge pilot−top bank of pumps 2. IN Filtered air supply 6. NET/PWR to feed center network...
Left Side of Feed Center Right Side of Feed Center Legend Pump Manifold (A=Automatic, M=Manual) Network Termination: Jumper across pins 1 and 2 CAN BUS TERM on last board in feed center Figure 6 Typical Pump Panel Layout Part 1604412-01 2013 Nordson Corporation...
PATT A PUMP B PATT B PUMP B PUMP B PUMP A PUMP A PATT B PATT A POWER TERM PUMP CONTROL BOARD Figure 9 Pump Panel Pneumatic Diagram − Pump Manifolds to Circuit Board Part 1604412-01 2013 Nordson Corporation...
PUMP A BLACK BLACK PATT A BLACK PUMP B SOL PUMP PUMP PRODIGY DUAL PUMP CONTROLLER CAN BUS 4 3 2 1 CAN IN TERM POWER Figure 10 Circuit Board to Pump Manifolds Wiring Diagram Part 1604412-01 2013 Nordson Corporation...
Prodigyr Automatic System HDLVr Standalone Pump Stand Network and Power Wiring Diagram BLACK PINCH 1 PINCH 2 BLACK BLACK PURGE 1 PURGE 2 BLACK TERMINAL BLOCK Figure 11 Network and Power Wiring Diagram Part 1604412-01 2013 Nordson Corporation...
Prodigyr Automatic System HDLVr Standalone Pump Stand Parts To order parts, call the Nordson Finishing Customer Support Center at (800) 433-9319 or contact your local Nordson representative. Internal Pump Panel Replacement Parts See Figure 12. Item Part Description Quantity Note...
Page 17
Prodigyr Automatic System HDLVr Standalone Pump Stand 4, 5 Figure 12 Internal Pump Panel Replacement Parts (Eight-Pump Panel Shown) Part 1604412-01 2013 Nordson Corporation...
303132 VALVE, 3/4 I/O, air operated 1035732 ELBOW, double branch, (4)12mm T x ½ RPT, seal 183418 PLUG, 12mm, tube NOTE A: Discard tube plugs in 8, 12, and 16 pump systems. AR: As Required Part 1604412-01 2013 Nordson Corporation...
