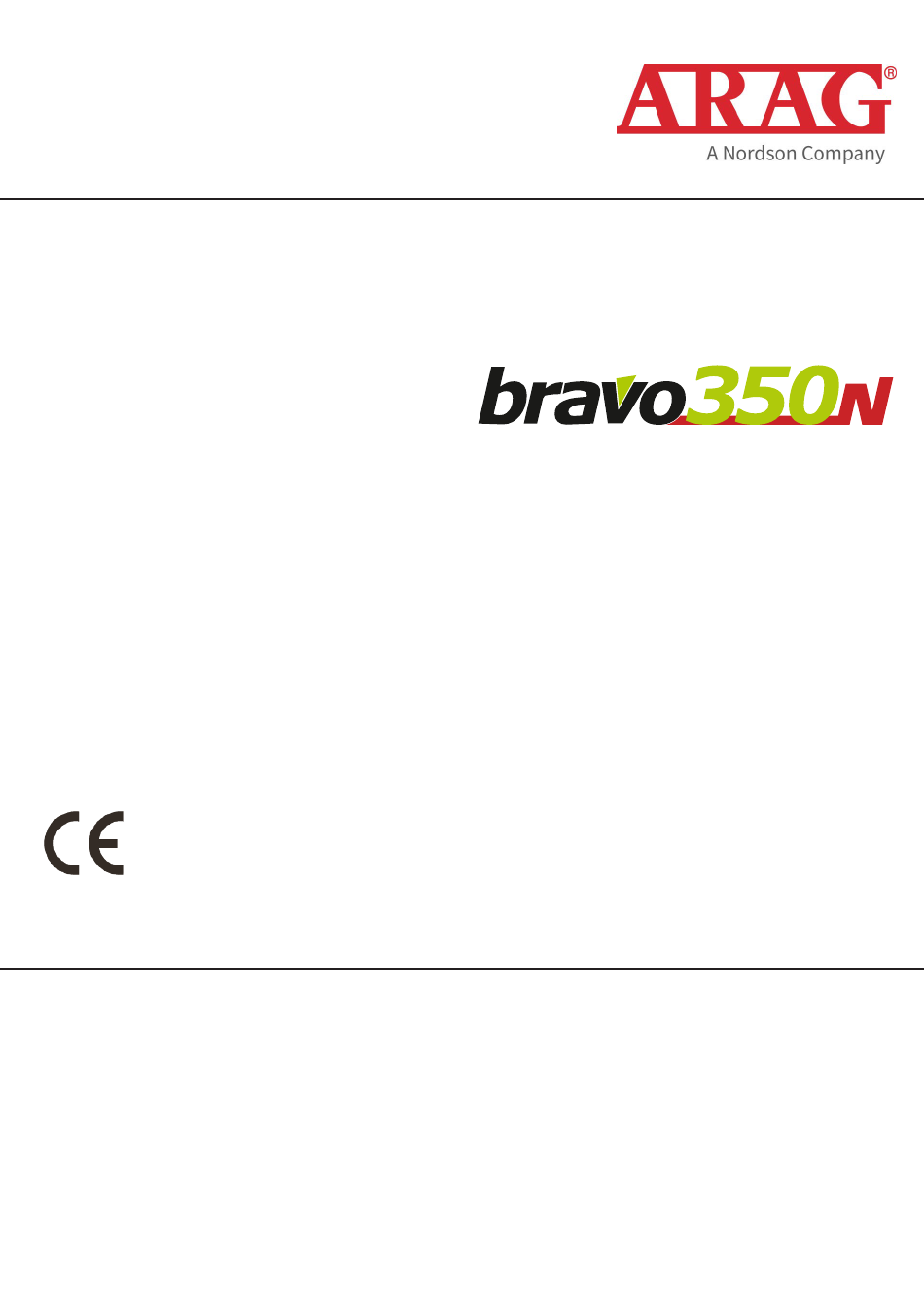

  • Page 1 350N BRAVO SERIES COMPUTER CROP SPRAYER AND ORCHARD SPRAYER 46735N05A (CROP SPRAYER) 46735N421 46735N42A (ORCHARD SPRAYER) INSTALLATION...
  • Page 2: Legend Of Symbols

    LEGEND OF SYMBOLS • LEGEND OF SYMBOLS Generic danger Warning This manual contains instructions for installing the following computers: BRAVO 350N Crop sprayer Bravo 350N Solenoid valve orchard sprayer Bravo 350N Motorized valve orchard sprayer Please refer to your computer manuals: BRAVO 350 Crop sprayer Bravo 350 Orchard sprayer with direct connection with regard to all recommendations for use and maintenance operations.
  • Page 3: Table Of Contents

    CONTENTS • Manual use modes ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 • Limitations ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 • Responsibility ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 1 Risks and protections before assembly ����������������������������������������������������������������������������������������������������������������������������������������������� 4 2 Intended use �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 3 Precautions ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 4 Package content ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 5 5 System recommended composition ����������������������������������������������������������������������������������������������������������������������������������������������������� 6 5.1 Monitor position....................................
  • Page 4: Manual Use Modes

    FOREWORD • MANUAL USE MODES This manual contains information for installers. For this reason we have used technical terms without providing any explanations. THE INSTALLATION MUST BE CARRIED OUT BY AUTHORIZED AND SKILLED PERSONNEL ONLY� ARAG IS NOT RESPONSIBLE FOR ANY INSTALLATION CARRIED OUT BY UNAUTHORIZED OR UNSKILLED PERSONNEL� •...
  • Page 5: Installation

    INSTALLATION PACKAGE CONTENT CROP SPRAYER VERSION BRAVO 350N crop sprayer Visor kit Fixing kit Power supply cable Power supply connector Connection cable for: BRAVO 350N - Sensors - Control unit (main valve + control valve + section valves + flowmeter) Sensors, control units and accessories must be ordered separately (Ref�...
  • Page 6: System Recommended Composition

    INSTALLATION SYSTEM RECOMMENDED COMPOSITION CROP SPRAYER VERSION Fig. 3 Legend: Bravo 350N crop sprayer Power cable for Bravo 350N Connection cable for: BRAVO 350N - Sensors - Control unit (main valve + control valve + section valves + flowmeter) Control unit ( main valve + control valve + flowmeter)
  • Page 7 INSTALLATION ORCHARD VERSION Fig. 4 Legend: Bravo 350N orchard sprayer Power cable for Bravo 350N Connection cable for: BRAVO 350N - Sensors - Ultrasonic sensors - Control unit (main valve + control valve + flowmeter) - Control unit with solenoid or motorized section valves Control unit ( solenoid section valves) / (...
  • Page 8: Monitor Position

    INSTALLATION 5�1 Monitor position • The Bravo 350N computer can be positioned outside the farming machine. Observe the following precautions: - Do NOT install the monitor in areas where it would be subjected to excessive vibrations or shocks, to prevent any damage� - Install the device in a well visible and handy position�...
  • Page 9: Computer External Fixing

    INSTALLATION 5�3 Computer external fixing - Bravo 350N can be fitted outside the machine by observing the hole sizes indicated in Fig. 8. - It must be fixed by fitting the supplied nuts and screws in the seats indicated in the figure and tightening the supplied screws. Fig.
  • Page 10: Ultrasonic Sensor Installation (For Orchard Sprayer Version Only)

    INSTALLATION 5�5 Ultrasonic Sensor Installation (FOR ORCHARD SPRAYER VERSION ONLY) The computer does not include the ultrasonic sensors; if you wish to install them, purchase two sensor kits code 46738000�500� Each kit includes an ultrasonic sensor and an adapter cable� Computer correct operation is ensured only if ARAG-distributed sensors are used: use of unsuitable sensors not provided by ARAG automatically voids the warranty�...
  • Page 11 INSTALLATION 6.4.1 Fixing of sensors on the machine After having located sensor position, based on the height of the plants you wish to spray, select the fixing point on the machine and fix sensors by following the instructions provided by the manufacturer. WARNING: sensors must be always fixed parallel with the ground and at a right angle to the plant to be sprayed (Fig�...
  • Page 12: Wiring Connections

    INSTALLATION WIRING CONNECTIONS • Use only the cables provided with the ARAG computers� • Take care not to break, pull, tear or cut the cables� • Use of unsuitable cables not provided by ARAG automatically voids the warranty� • ARAG is not liable for any damage to the equipment, persons or animals caused by failure to observe the above instructions� Use ONLY the cables and accessories indicated in the catalog, having technical features suitable for the use to be made of them�...
  • Page 13: Connection To The Control Unit Valves And To The Motorized Section Valves

    INSTALLATION 6�3 Connection to the control unit valves and to the motorized section valves Fix the connectors to the relevant valves according to the indicated initials. Insert Tyco Superseal connector fully home, until hearing a click of the retaining tab. ®...
  • Page 14: Ultrasonic Sensor Connection (For Orchard Sprayer Version Only)

    INSTALLATION 6�5 Ultrasonic sensor connection (FOR ORCHARD SPRAYER VERSION ONLY) Connect the ultrasonic sensor connectors: after having made sure that they are duly inserted, turn ring nut until it locks in place. WARNING: always check the correspondence between sensors (cable marking) and sections, in order to spray exactly in the point detected by the sensor�...
  • Page 15: Power Supply Connection

    TECHNICAL DATA 6�7 Power supply connection The package includes the power connector (component , Fig. 1 and Fig. 2) to be connected to the farming machine battery; Fig. 28 shows the drilling template of the power connector. Connect the power connector to the battery wires using two 6-mm faston connectors, as indicated in Fig. 26 and Fig. 27. Use the cable provided with the package (component , Fig.
  • Page 16: Accessories

    TECHNICAL DATA ACCESSORIES 7�1 Pendrive The pendrive may be used to exchange data with the BRAVO 350N monitor. Before using the pendrive, format it in FAT 32 mode; make sure that it is not protected and can be read by the system� Most pendrives with up to 8 Gb memory are compatible�...
  • Page 17: Pin-Out Of Bravo 350N

    TECHNICAL DATA 9�2 Pin-out of Bravo 350N 2 3 4 5 6 7 8 10 11 12 13 14 15 17 18 19 20 21 22 23 10 11 12 13 14 Signal Signal GND valve power supply GND power supply GND valve power supply GND power supply Foam marker LEFT control...
  • Page 18: Guarantee Terms

    GUARANTEE TERMS 1. ARAG s.r.l. guarantees this apparatus for a period of 360 days (1 year) from the date of sale to the client user (date of the goods delivery note). The components of the apparatus, that in the unappealable opinion of ARAG are faulty due to an original defect in the material or production process, will be repaired or replaced free of charge at the nearest Assistance Center operating at the moment the request for intervention is made.
  • Page 19 Only use genuine ARAG accessories or spare parts to make sure manufacturer guaranteed safety conditions are maintained in time. Always refer to the Internet address www.aragnet.com. 42048 RUBIERA (Reggio Emilia) - ITALY Via Palladio, 5/A Tel. +39 0522 622011 Fax +39 0522 628944 www.aragnet.com info@aragnet.com...
