Advantech ASMB-784 Startup Manual

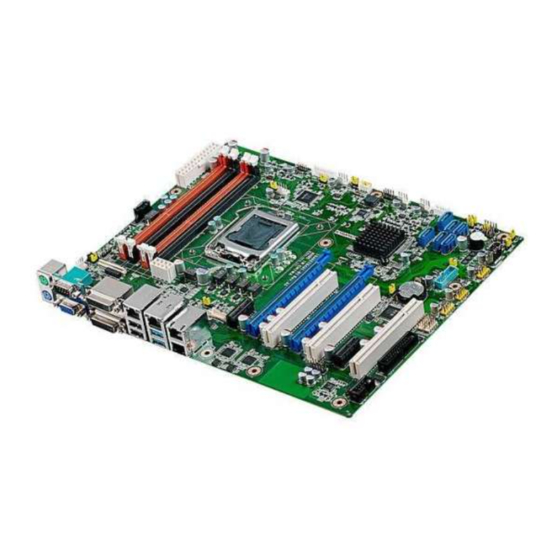

ASMB-784 LGA 1150 Intel® Xeon® E3 V3 ATX Server
Board with 2 PCIe x16 slots (x8 link) or 1 PCIe x16 slot
(x16 link), 3 PCI, USB 3.0, PCIe Gen III, Quad/Dual LANs
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 ASMB-784 Startup Manual
• 1 Driver CD (user's manual is included)
• 2 Serial ATA HDD data cables
• 2 Serial ATA HDD power cables
• 1 I/O port bracket
• 1 Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note:
Acrobat Reader is required to view any PDF
file.Acrobat Reader can be downloaded at:
http://www.adobe.com/downloads/ (Acrobat is a
trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/applied-computing-
systems/
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/new_de-
fault.aspx
This manual is for the ASMB-784 series Rev. A1
Part No. 2006S78410
Print in China
Specifications

Standard SBC Functions

• CPU: LGA 1150 Intel® Xeon® E3 v3 processors
• BIOS: AMI 128 Mb SPI BIOS
• Chipset: Intel® C226
• System memory: Dual Channel DDR3 ECC/Non-ECC
1066/1333/1600 MHz unbuffered DIMM, Max. 32 GB
Note:
• SATA3 Interface: 6 SATA3 6Gb/s ports to support Intel
Matrix Storage with software RAID 0, 1, 10 & 5. (for
Windows only)
• Serial ports: Two serial ports, only supports RS-232
• Parallel port: One parallel port, supports SPP/EPP/ECP
modes.
• Keyboard/Mouse connector: Supports standard PS/2
keyboard and mouse
• Watchdog timer: 255 level timer intervals (sec)
• USB 3.0: Supports up to four USB 3.0 ports. Two ports
are in rear I/O, and two ports are on-board pin header.
• USB 2.0: Supports up to 9 USB 2.0 ports (1* Type-A)
• PCIe Slot: Two PCIe x1 slots and one PCIe x16 link with
x16 slot which is able to switch to two x16 slots with x8
link.

Display Interface

• Chipset: CPU integrated Intel HD graphics controller
• Display Memory: 1 GB maximum shared memory with 2
GB and above system memory installed
• Resolution:
- One VGA port supports RGB up to 1920 x 1200
resolution @ 60 Hz refresh rate
- Two DVI ports support DVI up to 1920 x 1200
resolution@ 60 Hz refresh rate

Ethernet Interface

• Interface: 10/100/1000 Mbps
• Controller: LAN1: Intel

Mechanical and Environmental

• Dimensions (L x W): 304.8 x 244 mm (12" x 9.6")
• Power supply voltage: +3.3 V, +5 V, ±12 V, 5 Vsb
• Power consumption: Max. load: +3.3 V @ 1.17 A, +5 V
@ 2.30 A, +12 V @ 0.06 A, +12 V (8P) @ 4.33 A, +5 Vsb
@ 0.16 A, -12 V @ 0.01 A
• Operating temperature: 0 ~ 60° C (Depends on CPU
speed and cooler solution)
1st Edition,
July 2013
• Weight: 0.8 kg (weight of board)
Due to the inherent limitations of PC architecture,
the system may not fully detect 32 GB RAM
when 32 GB RAM is installed.
I217LM;
®
LAN2/3/4: Intel® I210-AT
ASMB-784 Startup Manual 1
