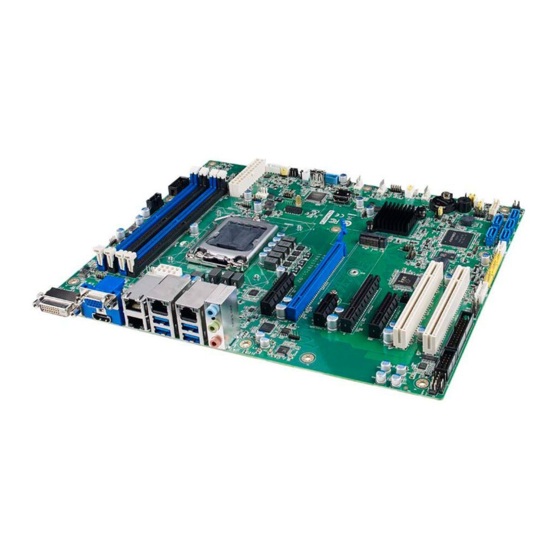

Industrial atx server motherboard for 10th gen. core & xeon processors with intel w480e chipset

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASMB-787 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advantech ASMB-787

  • Page 2 Manual ADVANTECH ASMB-787 Industrial ATX Server Motherboard for 10th Gen. Core™ & Xeon® Processors with Intel® W480E Chipset The information contained in this document has been carefully researched and is, to the best of our knowledge, accurate. However, we assume no liability for any product failures or damages, immediate or consequential, resulting from the use of the information provided herein.
  • Page 3 • Power supply voltage: +3.3 V, +5 V, ±12 V, 5 Vsb • Power consumption: Max. load: +3.3 V @ 1.69 A, +5 V @ 1.68 A, +12 V @ 0.31 A, +12 V (8P) @ 9.25 A, +5 Vsb @ 0.01 A This manual is for the ASMB-787 series Rev. A1. • Operating temperature: 0 ~ 60 °C (depends on CPU speed and cooler solution) Part No. 2041B78700 1st Edition • Weight: 0.5 kg (weight of board)
  • Page 4: Jumpers And Connectors

    Low pin count connector Default (1-2)/reserve for RD LPC1, LPC2 for Advantech TPM and JPEG3 debug (2-3) RS232/422/485 module PCIe card present pin support LPT1 Parallel port for PCIEX8_SLOT4 JPRSNT1 M2_2280_1 M.2 2280/2242 (PCIe/SATA) Auto detect (1-2)/Manual detect (2-3) 2 ASMB-787 Startup Manual...
  • Page 5: Installation Note

    Result Closed Pins SATA1 SATA1 Internal empty port 4 System reset* SATA2 SATA2 Internal empty port 5 SATA3 SATA3 Internal empty port 6 SATA4 SATA4 Internal empty port 7 *: Default System Reset 1-2 Closed NC 2-3 Closed ASMB-787 Startup Manual 3...
  • Page 6: Declaration Of Conformity

    SMBUS1 ATXPWR1 ASPEED 2600 BMC COM1_ JME1 CPUFAN0 JCMOS1 BMC_VGA1 BIOS_SKT1 USB13 SATA0~5 JWDT1 SPI_CN1 JPEG1~3 JFP1 JCASE1 SYSFAN1~2 JTHR_SEL1 BAT1 GPIO1 SYS_LED1 EX_THR1 SYSFAN0 PSON1 USB5_6 JUSB_1~2 BMC_DEBUG1 BAT2 Board Layout: Jumper and Connector Locations 4 ASMB-787 Startup Manual...
  • Page 7 Our company network supports you worldwide with offices in Germany, Austria, Switzerland, the UK and the USA. For more information please contact: Headquarters FORTEC Elektronik AG Germany Augsburger Str. 2b 82110 Germering Phone: +49 89 894450-0 E-Mail: info@fortecag.de Internet: www.fortecag.de Fortec Group Members Austria Distec GmbH Office Vienna...
