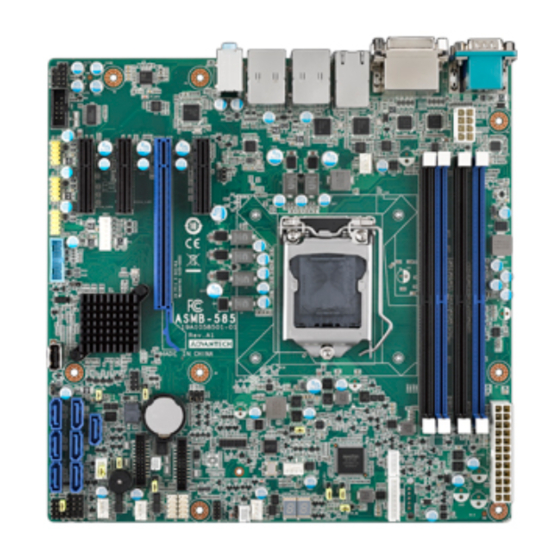

User Manual
ASMB-585
LGA 1151 Intel® Xeon® E3-1200 v5
th
and 6
Gen Core i3/i5/i7 series
Micro ATX Server Board with 4 PCIe
slots, USB 3.0, Quad LANs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASMB-585 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech ASMB-585

Summary of Contents for Advantech ASMB-585

  • Page 1 User Manual ASMB-585 LGA 1151 Intel® Xeon® E3-1200 v5 and 6 Gen Core i3/i5/i7 series Micro ATX Server Board with 4 PCIe slots, USB 3.0, Quad LANs...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 Whether your new Advantech equipment is destined for the labo- ratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name Advantech has come to be known.

  • Page 4: Declaration Of Conformity

    Caution! There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the man- ufacturer. Discard used batteries according to the manufacturer's instructions. ASMB-585 User Manual...
  • Page 5 Peripheral Compatibility Category Advantech PN Vendor Part Description Remarks ASMB-585G2-00A1E Advantech Two lan ports sku ASMB-585G4-00A1E Advantech Four lan ports sku Xeon E3-1220 v5 / Intel (No processor 3.0GHz / 4 Cores graphics equipped) Xeon E3-1225 v5 / Intel 3.3GHz / 4 Cores...
  • Page 6 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 7 It should be free of marks and scratches and in perfect working order upon receipt. As you unpack the ASMB-585, check it for signs of ship- ping damage. (For example, damaged box, scratches, dents, etc.) If it is damaged or it fails to meet the specifications, notify our service department or your local sales representative immediately.
  • Page 8 ASMB-585 User Manual viii...

  • Page 9: Table Of Contents

    1.5.1 Onboard LAN LED Color Definition ..........6 Table 1.3: Onboard LAN LED Color Definition ......6 ASMB-585 Block Diagram ................ 7 Figure 1.2 ASMB-585 Block Diagram.......... 7 Safety Precautions ..................7 Jumper Settings ..................8 1.8.1 How to set jumpers ............... 8 Table 1.4: JCMOS1 ..............
  • Page 10 Auxiliary 8-pin power connector (ATX12V1) ........... 29 2.17 SPI Flash Connector(SPI_CN1) ............. 30 2.18 Low Pin Count Connector (LPC1)............31 Table 2.3: Advantech LPC Module List ........31 Chapter BIOS Operation ......... 33 Introduction ..................... 34 Figure 3.1 Main setup screen ........... 34 Entering BIOS Setup................
  • Page 11 SATA RAID Setup ......87 Introduction ..................... 88 SATA RAID Driver and Utility Setup ............88 Chapter 10 HD Audio ..........89 10.1 Introduction ..................... 90 10.2 Installation ....................90 Appendix A Programming the Watchdog Timer..91 Watchdog timer overview................ 92 ASMB-585 User Manual...
  • Page 12 GPIO Connector ................... 107 Table B.19:GPIO Connector............. 107 B.19 System I/O Ports................... 107 Table B.20:System I/O ports............. 107 B.20 Interrupt Assignments ................108 Table B.21:Interrupt assignments..........108 B.21 1st MB Memory Map................108 Table B.22:1st MB memory map ..........108 ASMB-585 User Manual...

  • Page 13: Chapter 1 Hardware Configuration

    Chapter Hardware Configuration...

  • Page 14: Introduction

    MB/s eliminating network bottlenecks. High reliability and outstanding performance make ASMB-585 the ideal platform for industrial applications. By using the Intel® C236 chipset, the ASMB-585 offers a variety of features such as seven onboard SATA III interfaces (bandwidth = 600 MB/s) with software RAID; 6 x USB 3.0 and 7 x USB 2.0 connectors.

  • Page 15: Specifications

    USB 2.0 ports with transmission rates up to 480 Mbps.  LPC: One LPC connector to support Advantech TPM LPC modules and COM 232/485 modules.  GPIO: ASMB-585 supports 8-bit GPIO from super I/O for general purpose con- trol application. 1.3.4 Graphics ...

  • Page 16: Mechanical And Environmental Specifications

    Board weight: 0.5 kg (1.68 lb) Jumpers and Connectors Connectors on the ASMB-585 motherboard link it to external devices such as hard disk drives and a keyboard. In addition, the board has a number of jumpers that are used to configure your system for your application.

  • Page 17: Table 1.2: Connector List

    SMBUS1 SM Bus From PCH GPIO1 8-bit GPIO header FPAUD1 Audio front panel header COM2, COM3_4, COM5_6 Serial port: RS-232 Low pin count connector for Advantech TPM LPC and LPC1 RS232/422/485 modules. VOLT1 Voltage Display AUDIO1 Audio Connector EX_THR1 For thermometer kit...

  • Page 18: Board Layout: Jumper And Connector Locations

    10/100/1000 Mbps LAN Link/Activity LED Scheme LAN1 ~ LAN4 Left LED Right LED Link Green 10 Mbps Active Blinking green Link Amber Green 100 Mbps Active Amber Blinking green Link Green Green 1000 Mbps Active Green Blinking green No Link ASMB-585 User Manual...

  • Page 19: Asmb-585 Block Diagram

    Nuvoton 2 x RS-232 BIOS Flash NCT6776D Figure 1.2 ASMB-585 Block Diagram Safety Precautions Warning! Always completely disconnect the power cord from your chassis when- ever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sud- den power surges.

  • Page 20: Jumper Settings

    1.8.1.1 CMOS and ME clear (JCMOS1) The ASMB-585 motherboard contains a jumper that can erase CMOS data and reset the system BIOS information. Normally this jumper should be set with pins 1-2 closed. If you want to reset the CMOS data, set JCMOS1 to 2-3 closed for just a few seconds, and then move the jumper back to 1-2 closed.

  • Page 21: Table 1.6: Watchdog Timer Output (Jwdt1)

    The ASMB-585 contains a watchdog timer that will reset the CPU. This feature means the ASMB-585 will recover from a software failure or an EMI problem. The JWDT1 jumper settings control the outcome of what the computer will do in the event the watchdog timer is tripped.

  • Page 22: System Memory

    1.8.1.5 CPU,SYSTEM fan PWM/DC mode selection(CPUFAN_SEL1, SYSFAN_SEL1) The ASMB-585 contains a jumper that can support PWM or DC mode, Normally this jumper should be set with pin 1-2 closed. If you want to change to DC mode, set CPUFAN_SEL1, SYSFAN_SEL1 to 2-3 closed for disable.

  • Page 23: Memory Installation Procedures

    Quantity of memory module installed Socket / Color DIMM A0 (Black) DIMM A1 (Blue) DIMM B0 (Black) DIMM B1 (Blue) ASMB-585 User Manual...
  • Page 24 ASMB-585 User Manual...

  • Page 25: Chapter 2 Connecting Peripherals

    Chapter Connecting Peripherals...

  • Page 26: Introduction

    USB Ports (LAN1_USB12,LAN2_USB56, LAN34, USB7~13) ASMB-585 provides up 13 USB ports. USB7~13 are USB 2.0 ports supporting trans- mission rates up to 480 Mbps, and USB1~6 are USB 3.0 ports supporting transmis- sion rate up to 5Gbps.These ports support Plug & Play and hot swapping for up to 127 external devices and are able to be disabled in BIOS menu.

  • Page 27: Usb Power Switch

    USB Power Switch JUSB2 JUSB1 ASMB-585 allows user to set USB power between +5VSB and +5V. When the jumper is set as +5V, the board doesn't support S3/S4. Jumper Function JUSB1 Rear window USB2.0/3.0 port power source switch between +5...

  • Page 28: Vga And Dvi1, Dvi2 Connector

    VGA and DVI1, DVI2 Connector VGA_ DVI1_ DVI2 COM1 The ASMB-585 includes one VGA and two DVI-D connectors, users could display all ports at the same time (The result may different because of OS support limitation). ASMB-585 User Manual...

  • Page 29: Serial Ports (Com1 ~ Com6)

    COM2 COM5_6 COM3_4 The ASMB-585 offers six serial ports. All ports can connect to a serial mouse, printer or communications network. The IRQ and address ranges for those ports are fixed. However, if you want to dis- able the port or change these parameters later, you can do this in the system BIOS setup.

  • Page 30: External Keyboard & Mouse (Kbms1)

    External Keyboard & Mouse (KBMS1) KBMS1 There is also an extra onboard external keyboard and mouse connector on the moth- erboard. This gives system integrators greater flexibility in designing their systems. ASMB-585 User Manual...

  • Page 31: Cpu Fan Connector (Cpufan0)

    CPU Fan Connector (CPUFAN0) CPUFAN_SEL1 CPU FAN0 If a fan is used, this connector supports cooling fans that draw up to 500 mA (6 W). ASMB-585 User Manual...

  • Page 32: System Fan Connector (Sysfan0, Sysfan1, Sysfan2 And Sysfan3)

    System FAN Connector (SYSFAN0, SYSFAN1, SYSFAN2 and SYSFAN3) SYSFAN3 SYSFAN_ SEL1 FAN1 & 2 FAN0 If a fan is used, this connector supports cooling fans that draw up to 1A (12W). ASMB-585 User Manual...

  • Page 33: Front Panel Connectors (Jfp1/2/3)

    Front Panel Connectors (JFP1/2/3) There are several external switches and LEDs to monitor and control the ASMB-585. JFP3 JFP1 + JFP2 ASMB-585 User Manual...

  • Page 34: Power Led (Jfp3)

    System Off in deep sleep 2.9.2 External Speaker (JFP2 pins 1, 4, 7, 10) JFP2 pins 1, 4, 7, 10 connector for an external speaker. The ASMB-585 provides an onboard buzzer as an alternative. To enable the buzzer, set pins 7-10 as closed. 2.9.3 HDD LED Connector (JFP1 pins 2 &...

  • Page 35: 8-Pin Alarm Board Connector (Volt1)

    2.10 8-pin Alarm Board Connector (VOLT1) VOLT1 VOLT1 connects to the alarm board of Advantech chassis. These alarm boards give warnings if a power supply or fan fails, if the chassis overheats. ASMB-585 User Manual...

  • Page 36: Case Open Connector (Jcase1)

    2.11 Case Open Connector (JCASE1) JCASE1 JCASE1 is for chassis with a case open sensor. The buzzer on the motherboard sounds if the case is opened. ASMB-585 User Manual...

  • Page 37: Front Panel Lan Indicator Connector (Lanled1)

    2.12 Front Panel LAN Indicator Connector (LANLED1) Table 2.2: Front Panel LAN Indicator Connector Signal Signal LAN1_LED0_ACT LAN2_LED1_ACT VCC3_LAN1LED VCC3_LAN2LED LAN1_LED1_1000M LAN2_LED2_1000M LAN1_LED2_100M LAN2_LED0_100M VCC3 LAN LED 1 & 2 ASMB-585 User Manual...

  • Page 38: Serial Ata Interface (Sata0~6)

    2.13 Serial ATA Interface (SATA0~6) SATA0 ~ SATA6 ASMB-585 features seven high performance serial ATA III interfaces (up to 600 MB/s, blue connector). ASMB-585 User Manual...

  • Page 39: Pcie X16 Slots (X16 Link) Expansion Slot (Pciex16_Slot6)

    PCIe x16 slots (x16 link) Expansion Slot (PCIEX16_SLOT6) PCIEX16_SLOT6 The ASMB-585 provides one PCIe x16 slots (x16 link) for users to install add-on VGA cards when their applications require higher graphics performance than the CPU embedded graphics controller can provide, or high bandwidth demanded I/O card, such as frame grabber card, raid card and 10G LAN card.

  • Page 40: Pcie X4 Expansion Slot (Pciex4_Slot4/5/7)

    2.15 PCIe x4 Expansion Slot (PCIEX4_SLOT4/5/7) PCIEX4_SLOT7 PCIEX4_SLOT5 PCIEX4_SLOT4 PCIEX4_SLOT4 is Gen3 x4 link. PCIEX4_SLOT5 is Gen3 x1 link. PCIEX4_SLOT7 is Gen3 x4 link. ASMB-585 User Manual...

  • Page 41: Auxiliary 8-Pin Power Connector (Atx12V1)

    For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12V Specification 2.0 (or later version). Do not forget to con- nect the 8-pin EATX12V power plug; otherwise, the system will not boot. ATX12V1 ASMB-585 User Manual...

  • Page 42: Spi Flash Connector(Spi_Cn1)

    2.17 SPI Flash Connector(SPI_CN1) SPI flash card pin header which can flash BIOS while ASMB-585 can not be power on and ensures platform integrity. SPI_CN1 ASMB-585 User Manual...

  • Page 43: Low Pin Count Connector (Lpc1)

    2.18 Low Pin Count Connector (LPC1) LPC1 LPC connector on AIMB-584 is reserved for Advantech LPC and COM 232/485 modules. Table 2.3: Advantech LPC Module List Advantech P/N Description PCA-TPM-00A1E TPM Module PCA-COM232-00A1E 4 ports RS-232 module connect to LPC connector...
  • Page 44 ASMB-585 User Manual...

  • Page 45: Bios Operation

    Chapter BIOS Operation...

  • Page 46: Introduction

    The Setup program uses a number of menus for making changes and turning the special features on or off. This chapter describes the basic navigation of the ASMB-585 setup screens. Figure 3.1 Main setup screen AMI’s BIOS ROM has a built-in Setup program that allows users to modify the basic...

  • Page 47: System Time / System Date

    MM/DD/YY format. The time must be entered in HH:MM:SS format. Advanced BIOS Features Setup Select the Advanced tab from the ASMB-585 setup screen to enter the Advanced BIOS setup screen. You can select any of the items in the left frame of the screen, such as CPU configuration, to go to the sub menu for that item.

  • Page 48: Trusted Computing

    Figure 3.3 Advanced BIOS features setup screen 3.3.1 Trusted Computing Figure 3.4 TPM Settings ASMB-585 User Manual...

  • Page 49: Acpi Settings

     Security Device Support “Enable” or “disable” TPM Support. You can purchase Advantech LPC TPM module to enable TPM function. P/N: PCA-TPM-00A1E 3.3.2 ACPI Settings Figure 3.5 ACPI Settings  Enable ACPI Auto Configuration "Enable" or "Disable" BIOS ACPI Auto Configuration.

  • Page 50: Amt Configuration

    Enable or disable Alert Specification format.  Activate Remote Assistance Process To trigger CIRA boot.  USB Configure To enable or disable USB configure function.  PET Progress Enable or disable PET event progress to receive PET events. ASMB-585 User Manual...

  • Page 51: Pch-Fw Configuration

    3.3.4 PCH-FW Configuration Figure 3.7 Intel ME FW Configuration Information This page shows the Intel ME configuration.  ME FW Image Re-flash "Enable" or "Disable" ME FW Image Re-Flash function. ASMB-585 User Manual...

  • Page 52: Smart Settings

    3.3.5 SMART Settings Figure 3.8 SMART Setting  SMART Self Test This item is to enable or disable SMART self test on all HDDs during post. ASMB-585 User Manual...

  • Page 53: Nct6776 Hw Monitor

    OS to protect the system from overheat damage.  Smart Fan Function ASMB-585 offers three different fan curves: 1.Normal Mode - Enable smart fan for normal system configuration. 2.Quiet Mode - Enable smart fan for quiet system with no expansion cards.

  • Page 54: Com1/2 Configuration

    3.3.7 COM1/2 Configuration Figure 3.10 COM1/2 Configuration Figure 3.11 COM1 Configuration ASMB-585 User Manual...

  • Page 55: Figure 3.12Com2 Configuration

    Figure 3.12 COM2 Configuration COM1 Configuration Serial Port  “Enable” or “disable” COM1.  Change Settings Select optimal settings for COM1. COM2 Configuration  Serial Port “Enable” or “disable” COM2.  Change Settings Select optimal settings for COM2. ASMB-585 User Manual...

  • Page 56: Com3/4/5/6 Configuration

    3.3.8 COM3/4/5/6 Configuration ASMB-585 User Manual...
  • Page 57 ASMB-585 User Manual...
  • Page 58 Select optimal settings for COM4. COM5 Configuration  Serial Port "Enable" or "Disable" COM5.  Change Settings Select optimal settings for COM5. COM6 Configuration  Serial Port "Enable" or "Disable" COM6. Change Settings  Select optimal settings for COM6. ASMB-585 User Manual...

  • Page 59: Pca-Com232/Com485 Configuration

    PCA-COM232/COM485 Configuration Note! (This item only shows when a PCA COM module is installed) ASMB-585 offers extra four COM ports through LPC connector. You need to purchase "PCA-COM232-00A1E" or "PCA-COM485-00A1E" then install it in the LPC connector. ASMB-585 User Manual...
  • Page 60 "Enable" or "Disable" Serial Port 3.  Change Settings Select optimal settings for Serial Port 3. Serial Port 4 Configuration  Serial Port "Enable" or "Disable" Serial Port 4. Change Settings  Select optimal settings for Serial Port 4. ASMB-585 User Manual...

  • Page 61: Serial Port Console Redirection

    3.3.10 Serial Port Console Redirection Figure 3.13 Serial Port Console Redirection Console Redirection  Enable or disable the console redirection feature. ASMB-585 User Manual...

  • Page 62: Figure 3.14Console Redirection Setting

    'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow. Hard- ware flow control uses two wires to send start/stop signals. Options available: None/Hardware RTS/CTS. ASMB-585 User Manual...
  • Page 63 OS. Default value is always enable which means legacy console redirection is enabled for legacy OS.  Legacy Console Redirection Settings Select a COM port to display redirection of legacy OS and legacy OpROM mes- sages. ASMB-585 User Manual...
  • Page 64 'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow. Hard- ware flow control uses two wires to send start/stop signals. Options available: None/Hardware RTS/CTS. ASMB-585 User Manual...

  • Page 65: Cpu Configuration

    3.3.11 CPU Configuration Figure 3.15 CPU Configuration ASMB-585 User Manual...
  • Page 66 Intel SpeedStep (tm) Allows more than two frequency ranges to be supported.  Turbo Mode This item is to enable or disable turbo mode.  CPU C States This item is to enable or disable CPU C states. ASMB-585 User Manual...

  • Page 67: Sata Configuration

    3.3.12 SATA Configuration Figure 3.16 SATA Configuration ASMB-585 User Manual...

  • Page 68: Pci Subsystem Settings

    Figure 3.17 PCI subsystem settings screen  PCI Latency Timer Value in units of PCI clocks for PCI device latency timer register.  VGA Palette Snoop This item is designed to solve problems caused by some non-standard VGA cards. ASMB-585 User Manual...

  • Page 69: Usb Configuration

    Allows you to select the USB transfer time-out value. [1,5,10,20sec]  Device reset time-out Allows you to select the USB device reset time-out value. [10,20,30,40 sec]  Device power-up delay This item appears only when you set the Device power-up delay item to [manual]. ASMB-585 User Manual...

  • Page 70: Csm Configuration

    Controls the execution of UEFI and Legacy Storage OpROM  Video Controls the execution of UEFI and Legacy Video OpROM  Other PCI devices Determines execution of OpROM policy for devices other than Nework, Stroage or Video. ASMB-585 User Manual...

  • Page 71: Chipset

    Chipset Figure 3.20 Chipset 3.4.1 System Agent (SA) Configuration Figure 3.21 System Agent (SA) Configuration ASMB-585 User Manual...

  • Page 72: Figure 3.22Graphics Configuration

    Select the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display. ASMB-585 User Manual...

  • Page 73: Figure 3.23Nb Pcie Configuration

    3.4.1.2 DMI Configuration  DMI Max Link Speed Set DMI speed Gen1/Gen2/Gen3. 3.4.1.3 PCIe SLOT6 Configuration Figure 3.23 NB PCIe Configuration ASMB-585 User Manual...

  • Page 74: Figure 3.24Memory Configuration

    Detect Non-Compliance PCI Express Device in PEG. 3.4.1.4 Memory Configuration Figure 3.24 Memory Configuration  Memory Scrambler Enable/Disable Memory Scrambler support.  Memory Remap Enable/Disable Memory Remap above 4G.  Fast Boot Enable/Disable fast path thru the MRC. ASMB-585 User Manual...

  • Page 75: Pch-Io Configuration

    30 seconds to power on after a power failure. On the other hand, the system will auto power on if power is restored within 30 seconds, before 5VSB actually drops, even if "Restore AC Power Loss" is set to "power off". ASMB-585 User Manual...

  • Page 76: Figure 3.26Pci Express Configuration

    Figure 3.26 PCI Express Configuration Figure 3.27 PCI Express Slot 5 Configuration ASMB-585 User Manual...
  • Page 77 Control the PCI Express Root Port. PCIe Speed  To set PCIe speed for PCI Express Slot 5.  Detect Non-Compliance Device Detect Non-compliance PCIE device. When this item is set to enable, it will take more time during post. ASMB-585 User Manual...
  • Page 78 Control the PCI Express Root Port.  PCIe Speed To set PCIe speed for PCI Express Slot 7.  Detect Non-Compliance Device Detect Non-compliance PCIE device. When this item is set to enable, it will take more time during post. ASMB-585 User Manual...

  • Page 79: Figure 3.28Usb Configuration

    Pre-condition work on USB host controller and root ports for faster enumeration. XHCI Disable Comliance Mode  Options to disable Compliance Mode Default is FALSE to not disable Compli- ance Mode. Set TRUE to disable Compliance Mode. ASMB-585 User Manual...

  • Page 80: Figure 3.29Pch Azalia

    Figure 3.29 PCH Azalia  Azalia Control detection of Azalia device. Figure 3.30 LAN Configuration ASMB-585 User Manual...
  • Page 81 Enable or disable onboard LAN3. LAN3 PXE OpROM  Enable or disable boot options for legacy network devices.  LAN4 Controller Enable or disable onboard LAN4.  LAN4 OpROM Enable or disable boot options for legacy network devices. ASMB-585 User Manual...

  • Page 82: Boot

    If this option is set to Disabled, the BIOS displays normal POST messages. If Enabled, an OEM Logo is shown instead of POST messages.  Boot Option Priorities Choose boot priority from boot device.  New Boot Option Policy Controls the placement of newly detected UEFI boot options. ASMB-585 User Manual...

  • Page 83: Security

    Security Figure 3.32 Security Select Security Setup from the ASMB-585 Setup main BIOS setup menu. All Security Setup options, such as password protection, are described in this section. To access the sub menu for the following items, select the item and press <Enter>.

  • Page 84: Save & Exit

     Restore Defaults Select this option to restore BIOS configuration as origin.  Save as User Defaults Select this option to save user's configuration.  Restore User Defaults Select this option to restore BIOS to user's configuration. ASMB-585 User Manual...
  • Page 85 This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of the available file system devices. *When you do some critical changes, the system will still reboot even you choose "Save changes and exit". ASMB-585 User Manual...
  • Page 86 ASMB-585 User Manual...

  • Page 87: Chapter 4 Chipset Software Installation Utility

    Chapter Chipset Software Installation Utility...

  • Page 88: Before You Begin

    Before You Begin To facilitate the installation of the enhanced display drivers and utility software, read the instructions in this chapter carefully. The drivers for the ASMB-585 are located on the software installation DVD. Note! The files on the software installation DVD are compressed. Do not attempt to install the drivers by copying the files manually.

  • Page 89: Windows Os Driver Setup

    Insert the driver DVD into your system's DVD-ROM drive. You can see the driver fold- ers items. Move the mouse cursor over the folder "01-Chipset". In CSI folder, you can click find an executable file to complete implementation of the driver. ASMB-585 User Manual...
  • Page 90 ASMB-585 User Manual...

  • Page 91: Chapter 5 Vga Setup

    Chapter VGA Setup...

  • Page 92: Introduction

    Insert the driver DVD into your system's DVD-ROM drive. You can see the driver fold- ers items. Navigate to the "02 Graphics" folder and click the executable file to com- plete the installation of the drivers for Windows® OS. ASMB-585 User Manual...

  • Page 93: Chapter 6 Lan Configuration

    Chapter LAN Configuration...

  • Page 94: Introduction

    Introduction The ASMB-585 is equipped up to four Gigabit Ethernet LANs via dedicated PCI Express x1 lanes (GbE LAN1: Intel I219LM; GbE LAN2~4: Intel I210-AT that offer bandwidth of up to 500 MB/sec, eliminating the bottleneck of network data flow and incorporating Gigabit Ethernet at 1000 Mbps.

  • Page 95: Chapter 7 Intel Me

    Chapter Intel ME...

  • Page 96: Introduction

    The integrated Intel® gigabit Ethernet controller supports all major network operating systems. However, the installation procedure varies with different operating systems. In the following sections, refer to the one that provides the driver setup procedure for the operating system you are using. ASMB-585 User Manual...

  • Page 97: Intel Usb 3.0

    Chapter Intel USB 3.0...

  • Page 98: Introduction

    Introduction ASMB-585 provides Intel® USB 3.0 and the data transfer rate of USB3.0(5Gbps) is 10 times to USB2.0(480Mbps). Installation Insert the driver DVD into your system's DVD-ROM drive. Navigate to the "07_USB3.0" folder to install the driver. ASMB-585 User Manual...

  • Page 99: Chapter 9 Sata Raid Setup

    Chapter SATA RAID Setup...

  • Page 100: Introduction

    User Guide in the driver CD. Path: folder "Intel Rapid Storage Technology" in "06_Intel RAID_AHCI". Note! Before you install the Intel Rapid Storage Technology, please read the "readme.txt" which is in the folder "Intel Rapid Storage Technology" in "06_Intel RAID_AHCI". ASMB-585 User Manual...

  • Page 101: Hd Audio

    Chapter HD Audio...

  • Page 102: Introduction

    10.1 Introduction ASMB-585 equipped with Realtek ALC892 Audio chip. It provides "Line-out" & "Microphone" two ports for any related applications. 10.2 Installation The driver is in the DVD's "05_Realtek HD Audio" folder. You may go to the directory of the DVD and follow the installation guide to install the driver and utility.
  • Page 103 Appendix Programming the Watchdog Timer...

  • Page 104: Appendix A Programming The Watchdog Timer

    The ASMB-585’s watchdog timer can be used to monitor system software operation and take corrective action if the software fails to function within the programmed period. This section describes the operation of the watchdog timer and how to pro- gram it.
  • Page 105 Unlock NCT6776F Select register of watchdog timer Enable the function of the watchdog timer Use the function of the watchdog timer Lock NCT6776F ASMB-585 User Manual...

  • Page 106: Example Programs

    Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx in al,dx Or al,08h Out dx,al ;----------------------------------------------------------- Dec dx; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------- ASMB-585 User Manual...
  • Page 107 Dec dx ; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------- Dec dx ; Set minute as counting unit Mov al,0f5h Out dx, al Inc dx In al,dx Or al, 08h ASMB-585 User Manual...
  • Page 108 Dec dx ; Enable watchdog timer to be reset by mouse Mov al,0f7h Out dx,al Inc dx In al,dx Or al,80h Out dx,al ;----------------------------------------------------------- Dec dx ; lock NCT6776F Mov al,0aah Out dx,al Enable watchdog timer to be reset by keyboard ASMB-585 User Manual...
  • Page 109 Mov dx,2eh ; unlock NCT6776F Mov al,87h Out dx,al Out dx,al ;----------------------------------------------------------- Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;----------------------------------------------------------- Dec dx ; Enable the function of watchdog timer Mov al,30h ASMB-585 User Manual...
  • Page 110 Dec dx ; Generate a time-out signal Mov al,0f7h Out dx,al ;Write 1 to bit 5 of F7 register Inc dx In al,dx Or al,20h Out dx,al ;----------------------------------------------------------- Dec dx ; lock NCT6776F Mov al,0aah Out dx,al ASMB-585 User Manual...

  • Page 111: Appendix B I/O Pin Assignments

    Appendix I/O Pin Assignments...

  • Page 112: Usb2.0 Header (Usb7~12)

    Table B.1: USB Header (USB6~11) Signal Signal USB_VCC5 USB_VCC5 USB_D- USB_D- USB_D+ USB_D+ USB3.0 Header (USB3_4) Table B.2: USB 3.0 Header (USB3_4) Signal Signal +5V_USB2_3 USB3_RX_DN5 +5V_USB2_3 USB3_RX_DP5 USB3_RX_DN6 USB3_RX_DP6 USB3_TX_DN5 USB3_TX_DP5 USB3_TX_DN6 USB3_TX_DP6 USB2_N2 USB2_P2 USB2_N3 USB_OC USB2_P3 ASMB-585 User Manual...

  • Page 113: Vga Connector (Vga)

    VGA Connector (VGA) Table B.3: VGA Connector (VGA) Signal Signal GREEN BLUE H-SYNC V-SYNC RS-232 Interface (COM12) Table B.4: RS-232 Interface (COM12) COM1/COM2 Signal SOUT ASMB-585 User Manual...

  • Page 114: External Keyboard And Mouse Connector (Kbms1)

    System Fan Power Connector (SYSFAN0~3) Table B.6: Fan Power Connector Signal +12 V DETECT Power LED and Keyboard Lock (JFP3) Table B.7: Power LED and Keyboard Lock (JFP3) Function LED power + (3.3 V) LED power - #keylock Ground ASMB-585 User Manual...

  • Page 115: External Speaker Connector (Jfp2)

    External Speaker Connector (JFP2) Table B.8: External Speaker Connector (JFP2) Function SPK_VCC SPK_OBS SPK_BUZ SPK_OUT Reset Connector (JFP1) Table B.9: Reset Connector (JFP1) Signal RESET B.10 HDD LED Connector (JFP2) Table B.10: HDD LED Connector (JFP2) Signal HDD_LED+ HDD_LED- ASMB-585 User Manual...

  • Page 116: Atx Soft Power Switch (Jfp1)

    Table B.11: ATX Soft Power Switch (JFP1) Signal PWR-BTN B.12 USB/LAN ports (LAN1_USB1_2 and LAN2_USB3_4) Table B.12: USB Port Signal Signal VCC_DUAL Data0+ Data0- Table B.13: Giga LAN 10/100/1000 Mbps RJ-45 port Signal Signal MID0+ MID2+ MID0- MID2+ MID1+ MID3+ MID1- MID3+ ASMB-585 User Manual...

  • Page 117: Front Panel Audio Connector (Fpaud1)

    Front Panel Audio Connector (FPAUD1) Table B.14: Front Panel Audio Connector (FPAUD1) Signal MIC2_L AGND MIC2_R PRESENSE LIN2_R MIC_DEC FIO_JD LIN2_L LINEOUT2_DEC B.14 8-pin Alarm Board Connector (VOLT1) Table B.15: 8-pin Alarm Board Connector (VOLT1) Signal Signal 5VSB VCC3 -12V +12V ASMB-585 User Manual...

  • Page 118: Case Open Connector (Jcase1)

    Table B.17: LAN LED Connector (LAN_LED1/2) Signal Signal LAN1_LED0_ACT LAN2_LED1_ACT VCC3_LAN1LED VCC3_LAN2LED LAN1_LED1_1000M LAN2_LED2_1000 LAN1_LED2_100M LAN2_LED0_100 VCC3 B.17 SPI_CN1: SPI flash card pin connector Table B.18: SPI_CN1:SPI fresh card pin connector Signal Signal +3VSB SPI_CS# SPI_CLK SPI_MISO SPI_MOSI ASMB-585 User Manual...

  • Page 119: Gpio Connector

    Interrupt controller 2, programmable interrupt controller 0C0-0DF DMA controller 0F0-0F0 Numeric data processor A35-A36 On-board hardware monitor 2F8-2FF Serial port 2 778-77F Printer port (LPT1) 3B0-3BB Intel HD Graphics 3C0-3DF Intel HD Graphics 3F8-3FF Serial port 1 ASMB-585 User Manual...

  • Page 120: Interrupt Assignments

    1st MB Memory Map Table B.22: 1st MB memory map Addr. range (Hex) Device E0000h - FFFFFh BIOS D0000h - DFFFFh Unused C0000h - CFFFFh VGA BIOS A0000h - BFFFFh Video Memory 00000h - 9FFFFh Base memory ASMB-585 User Manual...
  • Page 121 ASMB-585 User Manual...
