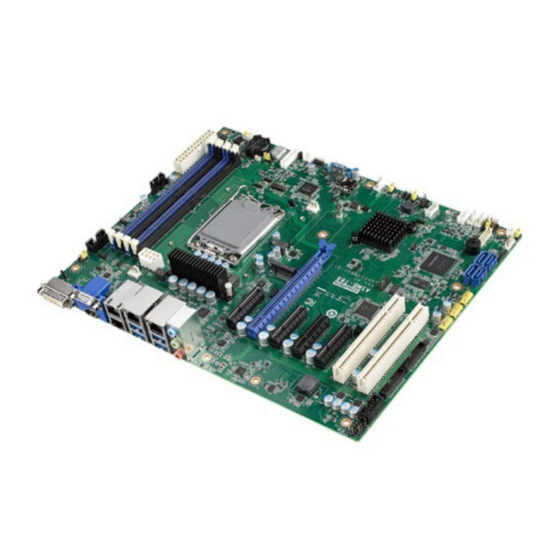

- Page 2 Manual ADVANTECH ASMB-788 Industrial ATX Motherboard for Intel® 12th Gen. Core™ i9/i7/i5/i3 processors with W680 Chipset The information contained in this document has been carefully researched and is, to the best of our knowledge, accurate. However, we assume no liability for any product failures or damages, immediate or consequential, resulting from the use of the information provided herein.
- Page 3 • Operating temperature: 0 ~ 60 °C; 32 ~ 140 °F (depends on CPU speed and cooler solution) • Weight: 0.5 kg;1.1 lb (weight of board) This manual is for the ASMB-788 series Rev. A1. Part No. 2042078800 1st Edition...
- Page 4 BMC image ROM SPDIF_OUT1 SPDIF audio output pin header COM1, COM2, Serial port: RS-232 SPI_CN1 SPI flash card pin header COM3_4, COM5_6 SPI connector for Advantech TPM CPUFAN0 CPU FAN connector SPI_TPM1 2.0 module (P/N: PCA-TPMSPI- 00A1) DIMMA0, DIMMA1, DDR5 288-pin slot DIMMB0, DIMMB1...
- Page 5 RST GND (Black) System reset* (Blue) LAN1_LED+ LAN2_LED+ (Brown) Disabled (Red) LAN1_LED - LAN2_LED - (Black) *: Default (Orang) HDD_LED+ PWR LED+ (Red) (Black) HDD_LED - System Reset 1-2 Closed Disabled 2-3 Closed PWR LED - (Black) ASMB-788 Startup Manual 3...
- Page 6 Intel W680 PCH ESPI1 SATA0~3 JCMOS1 JFP1 BAT2 LANLED1 BAT1 JCASE1 PSON1 SYS_LED1 SPI_TPM1 JWDT1 BMC_VGA1 JME1 BIOS_SKT1 USB3H1 VOLT1 JFP1+JFP2 SMBUS1 JFP3 SPI_CN1 JUSB_2 USB3A1 JTHR_SEL1 SYSFAN0~1 SYSFAN2 GPIO1 EX_THR1 Board Layout: Jumper and Connector Locations 4 ASMB-788 Startup Manual...
