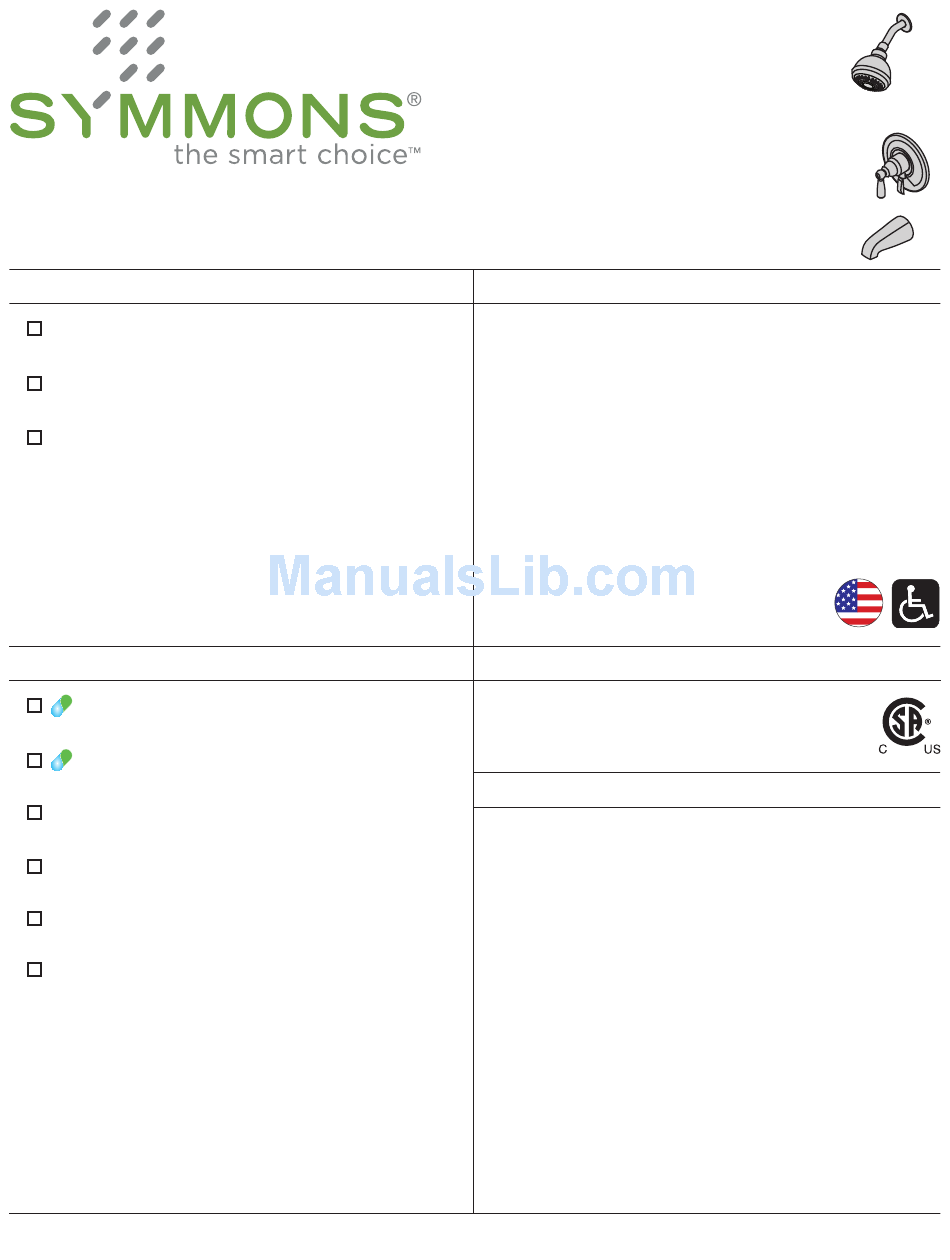

S-4700-TRM, S-4701-TRM, S-4702-TRM
Allura
Trim Series
®
Operation & Maintenance Manual
Model Numbers
S-4700-TRM
Valve Trim
S-4701-TRM
Shower Trim
S-4702-TRM
Tub/Shower Trim
Options/Modifications
-1.5
1.5 gpm (5.7 L/min) flow restrictor
-2.0
2.0 gpm (7.6 L/min) flow restrictor
-LAM
Metal finish insert handle
-LR
Lever handle
-SS
Slip spout on any tub and shower unit
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.
Specification

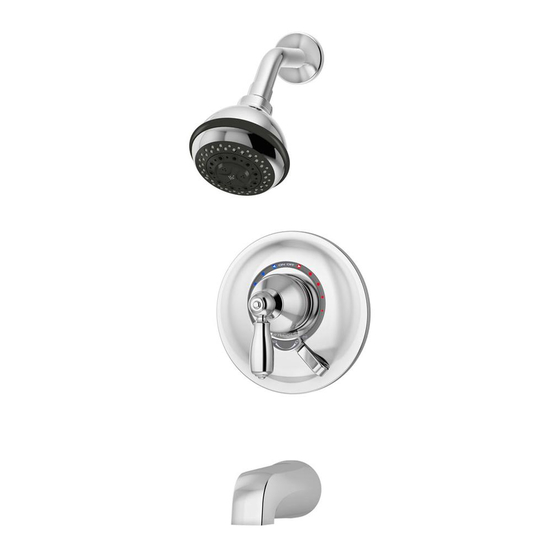

Tub/shower trim with lever handle and secondary
diverter lever handle includes non-diverter tub spout
and 3 mode showerhead with standard 2.5 gpm
(9.5 L/min) flow restrictor. Shower trim with lever handle
and secondary volume control lever handle includes
all of the above less non-diverter tub spout. Valve trim
with lever handle and secondary lever handle includes
valve trim only. Components made from metal and
nonmetallic materials plated in standard polished
chrome finish.
Compliance
-ASME A112.18.1; CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Symmons S-4700-TRM
Summary of Contents for Symmons S-4700-TRM
- Page 1 Limited Lifetime - to the original end purchaser in Metal finish insert handle consumer/residential installations. 5 Years - for industrial/commercial installations. Lever handle Refer to www.symmons.com/warranty for complete warranty information. Slip spout on any tub and shower unit -STN Satin Nickel finish...
- Page 2 Ø 7”, 178 mm Ref. 77”, 1956 mm 2 1/2", 64 mm Ref. 32”, 813 mm (S-4702-TRM) Ref. 42”, 1067 mm (S-4700-TRM, S-4701-TRM) 12”, 305 mm 3 1/8”, 79 mm 3 1/2”, 89 mm 4”, 102 mm Rough-in 2 3/8” ± 1/2”, 60 mm ± 13 mm 1/2”...
-
Page 3: Parts Breakdown
Plug Button Handle Screw RTS-026 Star Washer Handle Dome Cover T-19 T-131A Dial (S-4702-TRM Mounting Screws S-4700-TRM) Shower Escutcheon T-131B (S-4701-TRM) Secondary Lever T-139 Handle Tub Spout Notes: 1) Append -STN to part number for Satin Nickel finish. 2) Append -1.5 or -2.0 to showerhead for low flow. -
Page 4: Installation
Installation Note: For valve body installation, please 3) Install dome cover (H) to valve by 5) Install tub spout (M) to pipe fitting. see valve body manual. turning clockwise. Turn clockwise to secure. 1) Install secondary integral diverter (L) into shower escutcheon (K). -
Page 5: Operation And Maintenance
■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ ©2015 Symmons Industries, Inc. www.symmons.com gethelp@symmons.com ZV-3076 REV B 020315...
