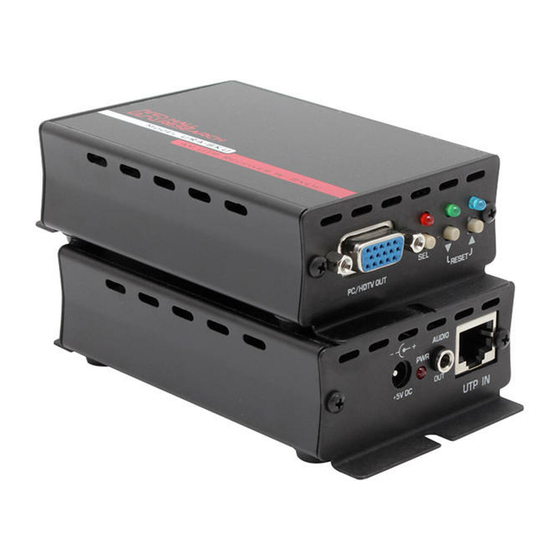

URA-232 & URA-232-XT
with Cable Length Compensation
Skew Correction and Daisy-Chain Output
CUSTOMER
SUPPORT
INFORMATION
PC Video, Audio & RS232
on Twisted-Pair Receivers
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
User's Manual
URA-232
URA-232-XT
UMA1179 Rev. A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hall Research Technologies URA-232
Summary of Contents for Hall Research Technologies URA-232

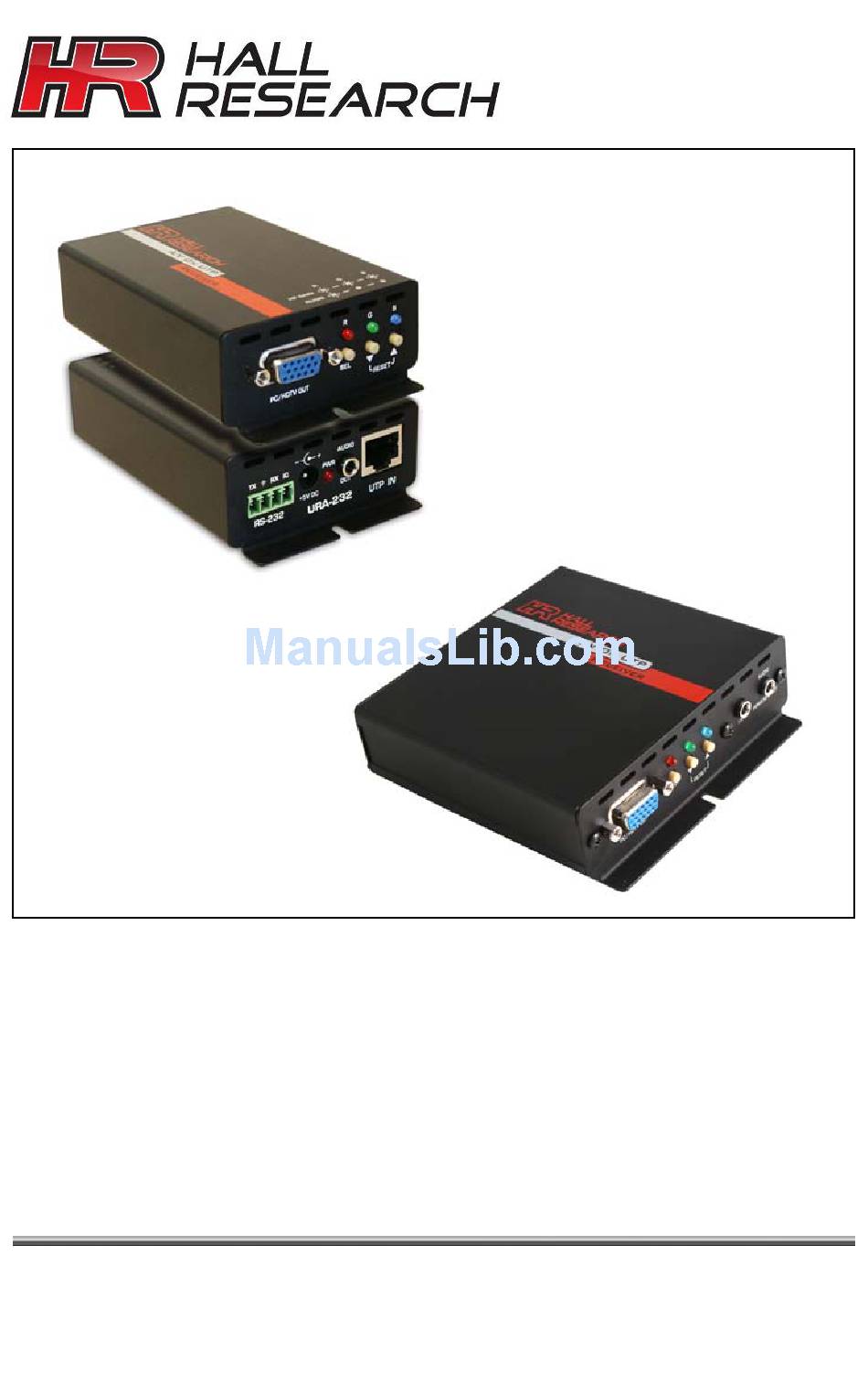

- Page 1 User’s Manual URA-232 URA-232-XT URA-232 & URA-232-XT PC Video, Audio & RS232 on Twisted-Pair Receivers with Cable Length Compensation Skew Correction and Daisy-Chain Output UMA1179 Rev. A Order toll-free in the U.S. 800-959-6439 CUSTOMER FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Address: Hall Research, 1163 Warner Ave.
- Page 3 PC (VGA) & HD (YPbPr) AV with RS232 over Twisted-Pair Receivers TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged as the property of the trademark owners. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses, and can radiate radio frequency...
-
Page 4: Table Of Contents
2.2 Connection to Compatible Senders ..................5 2.3 Cable Requirements ......................6 2.4 Daisy-Chain Limitations ....................... 6 2.5 Block Diagram for URA-232 & URA-232-XT................ 6 3. Configuration & Operation ....................7 3.1 Why Cable Compensation? ....................7 3.2 Compensation Adjustment Procedure ................. 8 3.3 Advanced Adjustment ...................... -
Page 5: Introduction
URA-232-XT Any UTP or STP Cable Table 1 – Model Number Differences The Models URA-232 and URA-232-XT do not have any special cable requirements since they are capable of correcting the RGB color skew induced in typical CATx cable installations. -
Page 6: Features
Configurable Discrete Input Contact Closure Voltage (5-30 vDC) • Software GUI 2. Installation 2.1 Package Contents Your package should contain the URA-232/URA-232-XT receiver unit, a Universal power supply (5 VDC @ 2A), an IEC320 Power Cord, and a User Manual. -
Page 7: Connection To Compatible Senders
PC (VGA) & HD (YPbPr) AV with RS232 over Twisted-Pair Receivers 2.2 Connection to Compatible Senders The URA-232 and URA-232-XT units accept a single UTP cable connection from any of Hall Research’s compatible UVA-232 Sender product line. Some compatible senders are listed below:... -
Page 8: Cable Requirements
All units provide high-frequency compensation (to account for the losses in the CATx cable) and RGB skew correction. 2.4 Daisy-Chain Limitations The Model URA-232-XT allows downstream receiver units to be daisy chained using UTP cables. This eliminates the need for running separate cables from every receiver back to the sender. -
Page 9: Configuration & Operation
PC (VGA) & HD (YPbPr) AV with RS232 over Twisted-Pair Receivers 3. Configuration & Operation 3.1 Why Cable Compensation? All cables attenuate (reduce) the high-frequency components of the video signal that is being transmitted. The longer the cable, the more signal loss. If not compensated for, this signal loss will result in blurry and smeared images being displayed. -
Page 10: Compensation Adjustment Procedure
Model URA-232 & URA-232-XT 3.2 Compensation Adjustment Procedure • Apply power to the receiver. Wait until all LED’s are turned off • Press the SEL button once to enter Adjustment-mode. • In Adjustment-mode, all three (3) LEDs will be turned ON. -
Page 11: Advanced Adjustment
PC (VGA) & HD (YPbPr) AV with RS232 over Twisted-Pair Receivers 3.3 Advanced Adjustment The URA series of devices can equalize the brightness of the video by reducing smearing. • Apply power to the receiver. Wait until all LED’s are turned off •... -
Page 12: Why Skew Adjustment
Model URA-232 & URA-232-XT 3.4 Why Skew Adjustment? UTP cables have 4 twisted pairs inside. The Hall Research UVA/URA video transmission on UTP uses 3 individual pairs for each color (Red, Green, & Blue). Figure 6 - skew mechanism, example As shown in the figure above, a characteristic of CAT5/5e/6 cable is that the pairs of wires twist at different rates. -
Page 13: Skew Adjustment Procedure
PC (VGA) & HD (YPbPr) AV with RS232 over Twisted-Pair Receivers 300 ft of CAT6 (1280x1024 source) * actual zoomed photo of screen * After skew adjustment Figure 7 – Example of Skew manifested 3.5 Skew Adjustment Procedure • Apply power to the receiver. Wait until all LED’s are turned off •... -
Page 14: Signal Adjustment For The Daisy Chain
CATx cable used as well (see section 3.3 above). Remember, if the calibration is off on a URA-232-XT in the middle of a daisy chain and you adjust the device settings you must then check the rest of the downstream devices and if necessary;... -
Page 15: Software Gui
UVA232 Sender. 4.2 Getting Started The URA-232 Programmer is recommended to run on PC with Windows XP or later. The operating system should have all the latest updates and service packs installed. The .NET Framework 2.0 or later is required prior to installing the URA-232 Programmer. -
Page 16: Ura-232 Modes Of Operation
The URA-232 can operate in two different modes, “RUN-MODE” and “ADJUSTMENT-MODE”. The unit is in “RUN-MODE” when it is first powered up. In order to establish a communication between the URA-232 and the URA-232 Programmer GUI, the unit must be in the “ADJUSTMENT-MODE”... -
Page 17: Button Selection
PC (VGA) & HD (YPbPr) AV with RS232 over Twisted-Pair Receivers 4.4 Button Selection The URA-232 Programmer has four buttons as shown on the left and two buttons near the bottom right corner of the Main screen in Figure 4-2 or Figure 4-3, which allows the user to quickly access frequently used functions. -
Page 18: Connect & Disconnect Buttons
Click the Communications tab and from the screen displayed, ensure that the correct COM port has been selected. This COM Port will be connected to the URA-232 via a NULL-MODEM RS232 cable. The port information will be saved and used the next time the program is started. -
Page 19: Show Config Button
Click the Show Config button to display the current user configuration strings and the unit’s current settings • You can upload these user configuration strings and settings into the URA-232 unit by clicking the UPLOAD button displayed on the left of the main screen. FIGURE 4-4 4.7 Download Button... -
Page 20: Configuration Tab
A user configuration string can be up to 250 bytes long, and it can be a combination of many serial commands and time delays • Condition Drop-Down Menu – consists of the 4 different states the URA-232 can detect. Discrete Input High Discrete Input Low... - Page 21 PC (VGA) & HD (YPbPr) AV with RS232 over Twisted-Pair Receivers • Serial Configuration A user string can be in text or hex mode. The Serial Baud Rate and Parity can be set at any supported baud rate and with or without a parity bit A character delay can be programmed 0 to 5 mS between characters to meet a slower serial devices requirement.
-
Page 22: Settings Tab
Discrete Input High Discrete Input Low NOTE: If a discrete input is not used in the Pass-thru mode, the URA-232 unit will go into a power-conserving mode when there is no front panel activity or no communication with URA-232 Programmer... -
Page 23: Communications Tab
Press the CONNECT button in this tab page or the icon displayed on the bottom left of the Main screen to connect to the URA-232 unit. • The URA-232’s serial port communicates at a baud rate of 19200, no parity, 1- stop bit, and 8 data bits. •... -
Page 24: Menu Bar
• Reset Unit – Sends a reset command to the URA-232 unit. • Factory Defaults – Clears all user configuration strings stored in URA-232 unit, and set the unit back to its default settings. (Pass-thru, Discrete Input NOT USED) Help The Help menu consists of the following menu items •... -
Page 25: Rs-232 Command Summary
PC (VGA) & HD (YPbPr) AV with RS232 over Twisted-Pair Receivers 4.13 RS-232 Command Summary The URA-232 consists of the following serial commands. The unit communicates at 19200, No Parity, 8 Data Bits, 1 Stop Bit To use the commands listed below, the unit must be in Adjustment-mode. -
Page 26: Troubleshooting
Section 5.3 below to obtain a picture first. 5.1 Contacting Hall Research If you determine that the URA-232 or URA-232-XT is malfunctioning, do not attempt to repair the unit yourself. Contact the Hall Research Technical Support department at 714-641-6607. -
Page 27: Problem Solving Faq
PC (VGA) & HD (YPbPr) AV with RS232 over Twisted-Pair Receivers 5.3 Problem Solving FAQ Fuzzy, blurry, or ghosting image at remote location If you have a stable image but it looks somewhat blurry (edges are not sharp), make sure that you have adjusted the receiver unit’s HF compensation correctly. -
Page 28: Specifications
Model URA-232 & URA-232-XT 6. Specifications Video Gain Unity Number/signal type 1 proprietary analog signal input. Standard VGA output RGBHV, RGBS, RGsB, RsGsBs, component video (bi-/tri-level sync) Connectors 1 female RJ-45 input, 1 HD15 output URA-232-XT 1 female RJ-45 Daisy-Chain Output... - Page 29 PC (VGA) & HD (YPbPr) AV with RS232 over Twisted-Pair Receivers...
- Page 30 Model URA-232 & URA-232-XT...
- Page 32 © Copyright 2010. Hall Research, Inc. All rights reserved. CUSTOMER Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
