8505A/8506A-05

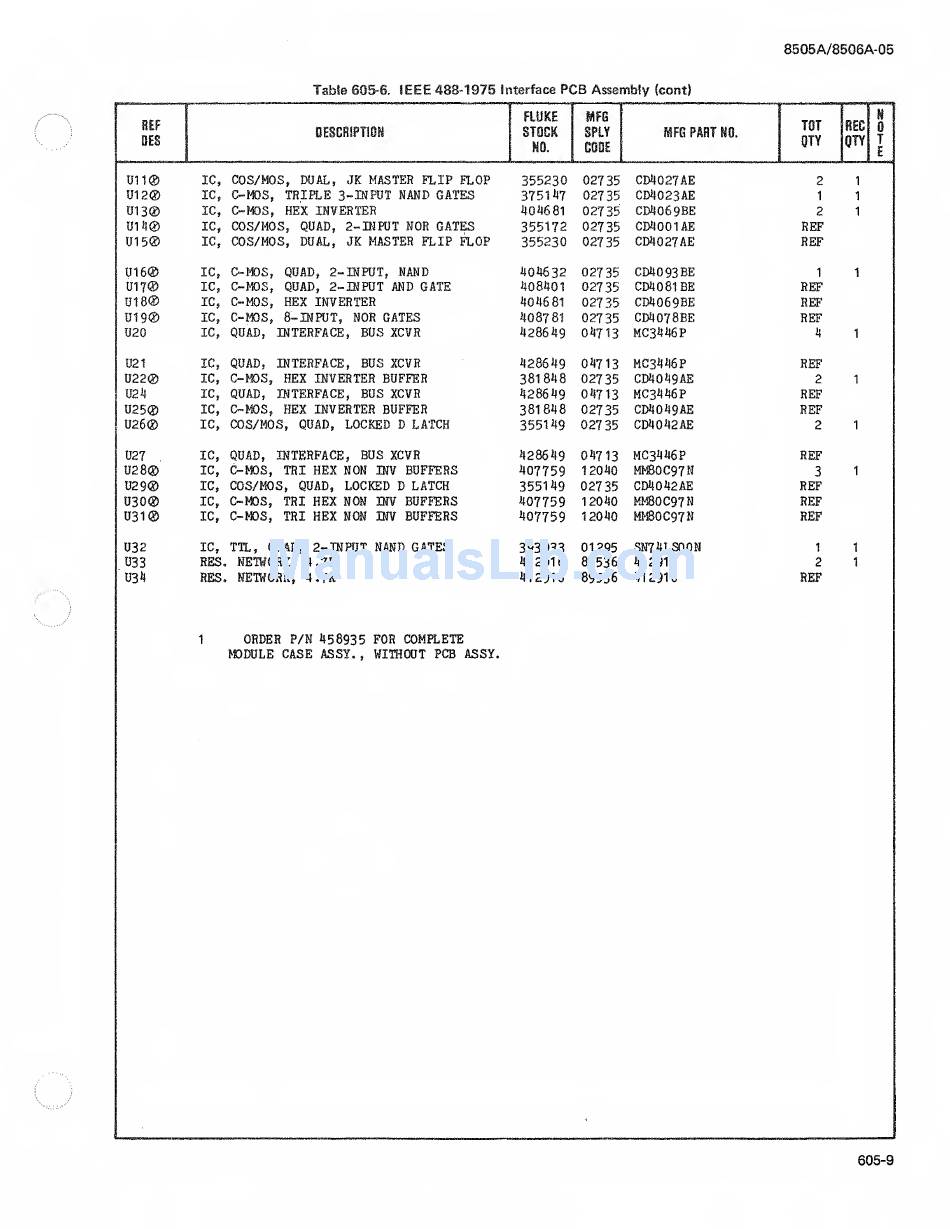

Table 605-6.
IEEE 488-1975
Interface
PCB
Assembly
(cont)
REF
DEE
DESCRIPTION
FLUKE
STOCK
NO.
SPLY
CODE
BQfl
hjI
1
Ult®
IC,
COS/MOS, DUAL, JK MASTER FLIP FLOP 355230
02735
CD4027AE
2
1
U12®
IC,
C-MOS,
TRIPLE 3-INPUT NAND GATES
37514? 02735
CD4023AE
1 1
U13®
IC,
C-MOS,
HEX INVERTER
404681 02735
CD4069BE
2
1
urn®
IC,
COS/MOS, QUAD, 2-
IN
PUT NOR GATES
355172 02735
CD4001AE
REF
U15®
IC,
COS/MOS, DUAL, JK MASTER FLIP FLOP
355230 02735
CD4027AE REF
U16®
IC,
C-MOS, QUAD, 2-INPUT, NAND 404632 02735 CD4093BE
1
1
U17®
IC,
C-MOS, QUAD, 2- INPUT AND GATE
408401 02735 CD4081 BE REF
U18®
IC,
C-MOS,
HEX INVERTER
4046
81
02735 CD4069BE REF
U19®
IC,
C-MOS,
8- IN PUT,
NOR GATES
408781
027 35
CD4078BE
REF
U20
IC,
QUAD,
INTERFACE, BUS XCVR 428649
04713 MC34 46P
4
1
U21 IC,
QUAD, INTERFACE, BUS XCVR 428649 04713 MC3446P REF
U22®
IC,
C-MOS, HEX INVERTER BUFFER
381
848
02735
CD4049AE
2
1
U24 IC, QUAD,
INTERFACE, BUS XCVR
428649 047
13
MC34 46P REF
U25®
IC,
C-MOS,
HEX INVERTER BUFFER
381848 02735 CD4049AE REF
U26®
IC,
COS/MOS, QUAD, LOCKED D LATCH
355149 027
35
CD4042AE
2
1
U27 IC,
QUAD, INTERFACE, BUS XCVR 42
86 49
04713 MC3446P REF
U28®
IC,
C-MOS, TRI
HEX NON
INV
BUFFERS 407759
1
2040
MM80C97N
3 1
U29®
IC,
COS/MOS, QUAD, LOCKED
D
LATCH
355149 02735
CD4042AE REF
U30®
IC,
C-MOS, TRI
HEX NON
INV
BUFFERS
407759 12040 MM80C97N REF
U31®
IC,
C-MOS, TRI
HEX NON
INV
BUFFERS
407759 12040
MM80C97N
REF
U32 IC, TTL, QUAD,
2-
IN
PUT NAND GATES
393033 01295
SN74LS00N
1 1
U33 RES.
NETWORK, 4.7K 412916
89536
412916
2
1
U34
RES.
NETWORK, 4.7K
412916
89536
412916 REF
1
ORDER P/N 458935 FOR COMPLETE
MODULE CASE ASSY.
,
WITHOUT PCB ASSY.
605-9
