Service Manual
PVG 32 Proportional Valve Group
Operation

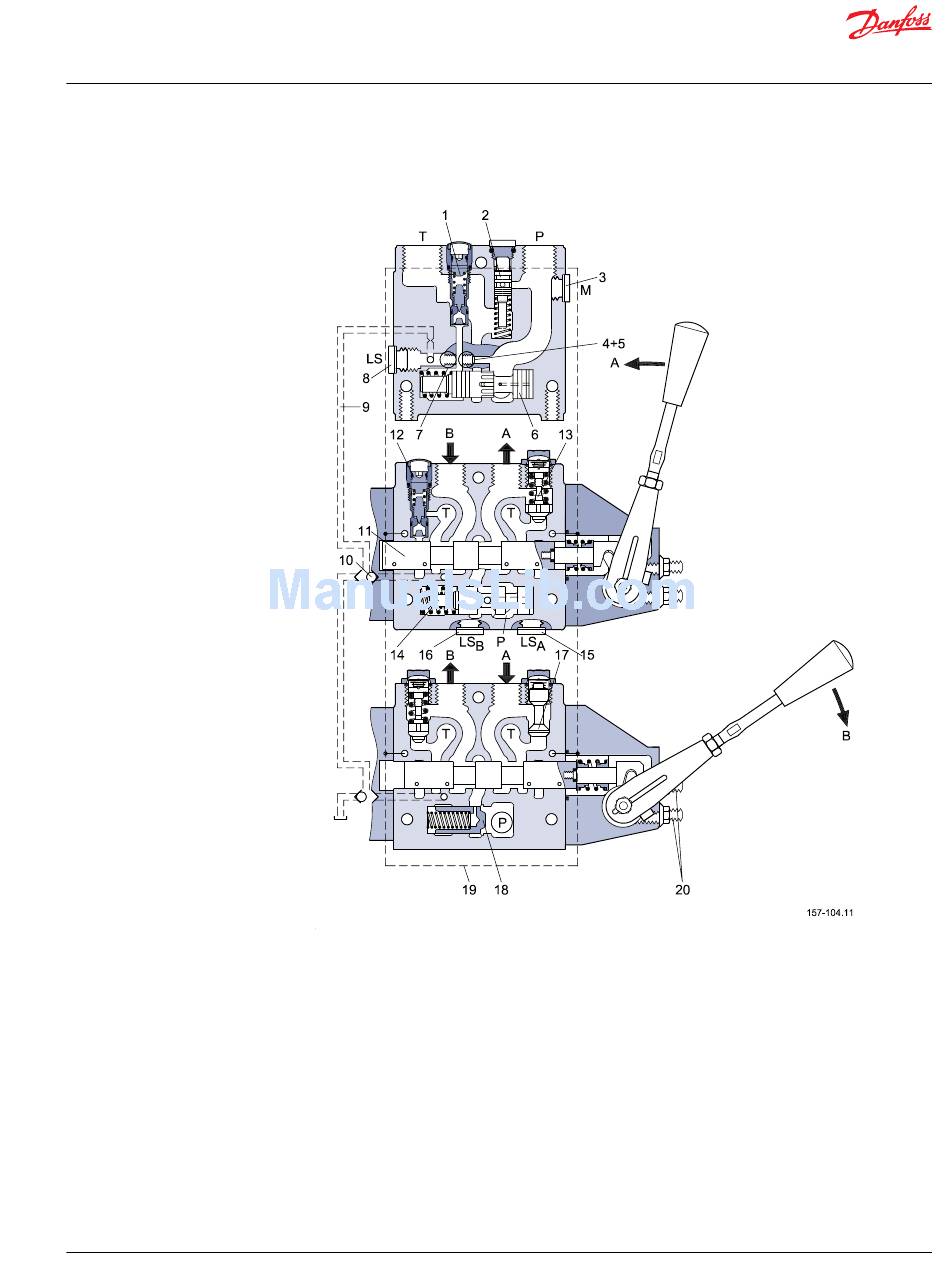

PVG 32 sectional drawing
PVPC plug for external pilot oil supply
©
Danfoss | February 2017
PVP
PVB
PVB
1. Pressure relief valve
2. Pressure reduction valve for pilot oil supply
3. Pressure gauge connection
4. Plug, open centre
5. Orifice, closed centre
6. Pressure adjustment spool
7. Plug, closed centre
8. LS connection
9. LS signal
10. Shuttle valve
PVPC with check valve for open center PVP
PVPC, with check valve, is used in systems where it is necessary to operate the PVG 32 valve by means of
the electrical remote control without pump flow. When the external solenoid valve is opened, oil from
11. Main spool
12. LS pressure limiting valve
13. Shock and suction valve, PVLP
14. Pressure compensator
15. LS connection, port A
16. LS connection, port B
17. Suction valve, PVLA
18. Load drop check valve
19. Pilot oil supply for PVE
20. Max. oil flow adjustment screws for
ports A and B
11039167 | AX00000031en-US0301 | 9
