PVG 32 Proportional Valve Group

System Troubleshooting

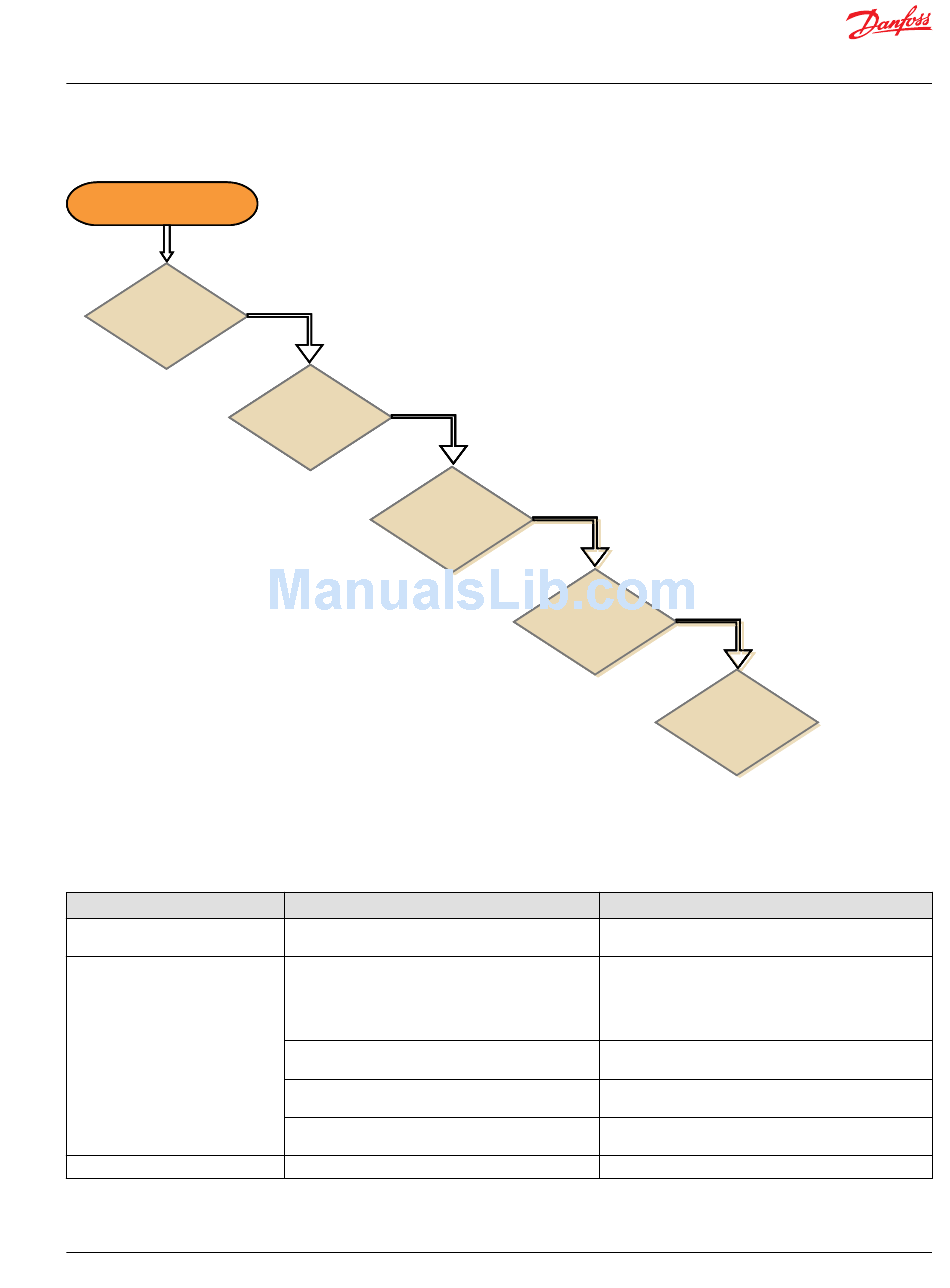

Troubleshooting flow chart

Problem?

Mechanical

No cylinder/motor response in either direction when remote controller is actuated

Cause

Verify if fault is mechanical, electrical

or hydraulic

Sticking main spool

Internal filters blocked

Danfoss | February 2017

Hydraulic

Electrical

Check

Operate manual lever to confirm mechanical or

electrical or hydraulic

Remove manual, electrical, and hydraulic actuators

from the valve section. Remove main spool from valve

section and inspected for damage. If no damage

reinstall the main valve spool and it should move

freely in the valve section bore.

Check movement of manual lever when electrical

controller is operated

Check movement of manual lever when hydraulic

controller is operated

If none of the above check pump per manufacturers

recommended procedure

Check for blockage in internal filters

Electronic

Software

Corrective action

If moving the manual lever operates the cylinder/motor

check electrical or hydraulic

Replace the valve module and main spool. If any damage

is found on the main spool

If manual lever does not move check electrical voltage

signal from controller, wiring at the PVE module

If manual lever does not move check hydraulic controller

pressure at the PVG valve module - 25 Bar [360 PSI]

Repair or replace pump per manufacturers

recommended procedure

Remove blockage

11039167 | AX00000031en-US0301 | 15
