Summary of Contents for DAPAudio Concert D3470

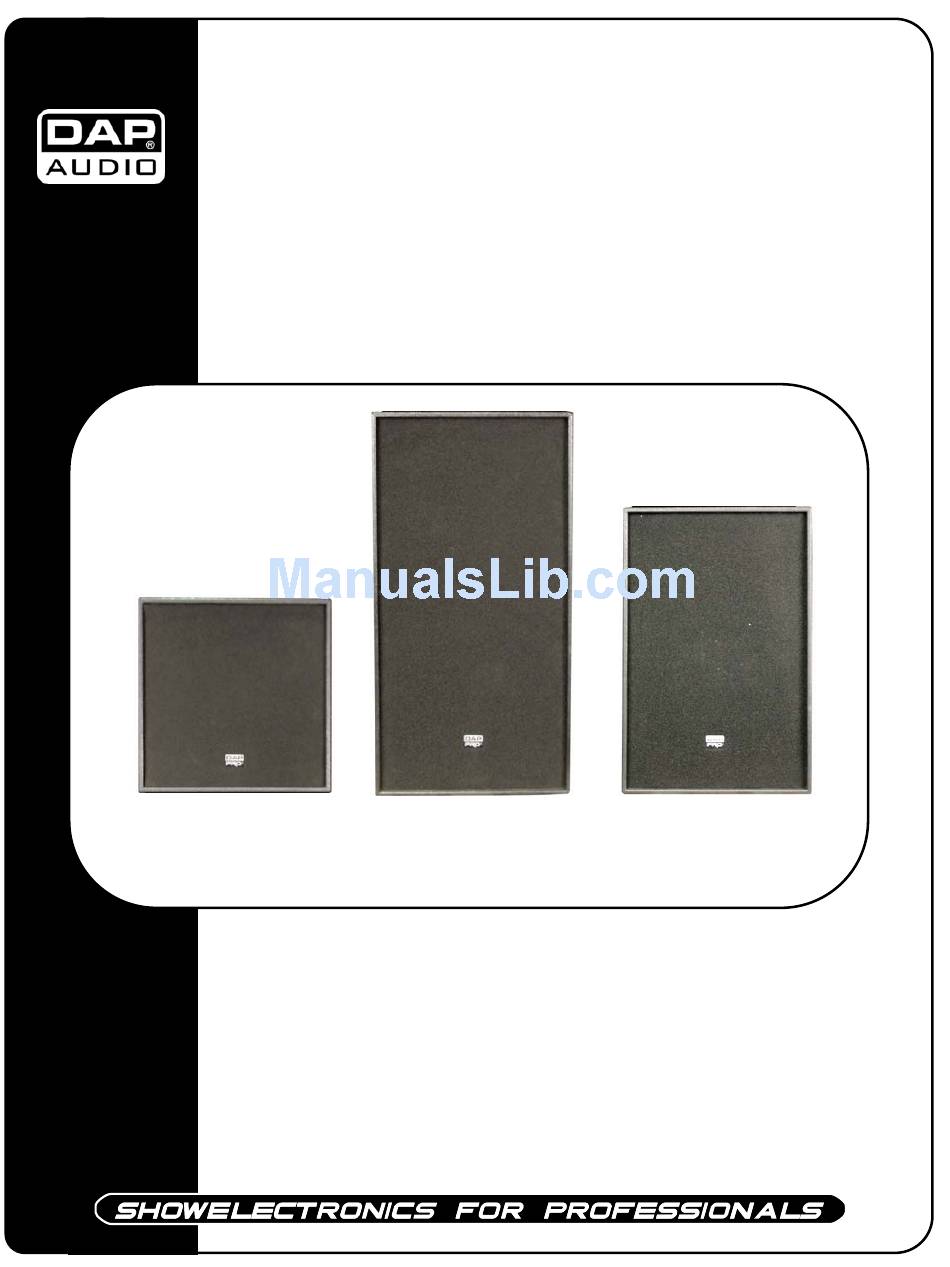

- Page 1 Concert Series ORDERCODE D3470 ORDERCODE D3471 ORDERCODE D3472 D3470 D3471 D3472...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio Concert Series brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
- Page 3 DAP Audio DAP Audio Concert Series Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview…………………………………………………………………………………………………..…… Backside CSA-12/3T (D3470) …………………………………………………………………………..…... Backside CSA-18LH (D3471) …………………………………………………………………………..…… Backside CSA-18H (D3472) …………………………………………………………………………..…..… Set Up and Operation..............……..………………………………… Connection Cables......…........………..………….…….………….…. Product Specifications..............……………….…….……………….…. Set Up Possibilities......…........………..………….…….……………..
-
Page 4: Safety Instructions
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
Make sure you don’t use the wrong kind of cables or defective cables. • Make sure that the signals into the mixer are balanced, otherwise hum could be created. • Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear. •... -
Page 6: Description Of The Device
Description of the device Features The Dap Audio Concert Series is a complete sound reinforcement solution: • D3470 - 1 active coaxial top unit with 12” woofer and 3” tweeter 1000 Watt / 8 Ohm, equipped with amplifier and all the electronics required to run the system. •... - Page 7 Backside CSA-18LH (D3471) Fig. 2 10) Fan: Cooling the built-in amplifier inside the subwoofer. Ensure these fans are clear of external obstructions. 11) Gain Control (Volume): Controls the levels of incoming signal to the speaker. 12) Phase Switch: Sets the polarity of the system. 13) Ground/Lift: Remove ground from circuit to eliminate hum caused by ground loops.
- Page 8 Backside CSA-18H (D3472) Fig. 3 20) Fan: Cooling the built-in amplifier inside the subwoofer. Ensure these fans are clear of external obstructions. 21) Gain Control (Volume): Controls the levels of incoming signal to the speaker. 22) Phase Switch: Sets the polarity of the system. 23) Ground/Lift: Remove ground from circuit to eliminate hum caused by ground loops.
-
Page 9: Set Up And Operation
Set Up and Operation The Concert Series is a 3-way active system. You can make several combinations, by using the different components. • D3470 - 1 active coaxial top unit with 12” woofer and 3” tweeter 1000 Watt / 8 Ohm, equipped with amplifier and all the electronics required to run the system. - Page 10 Compensation of interference with balanced connections...
- Page 11 Below are a few examples how to set up your Concert Series: 2x Speaker CSA-12/3T (D3470) 2x Subwoofer CSA-18LH (D3471) Total 4400W 2x Speaker CSA-12/3T (D3470) 2x Subwoofer CSA-18H (D3472) Total 6000W...
-
Page 12: Product Specifications
Product Specifications Inputs Connector XLR plug female Input design electronically balanced Inp. impedance 47 k Outputs Connector: XLR socket male Speakers Active Speaker CSA-12/3T (D3470) Dispersion 40°x40° 1x 12” Woofer + 1x 3” Dome Tweeter Nominal impedance 8 Amplifier Power: 1000 W RMS Frequency response 200Hz - 18 kHz, ±3dB Active crossover Frequency: 200 Hz 24dB/octave Input connector: Speakon NL4 Style Connector (pin 1+ &... - Page 13 2005 Dap Audio.
