- Page 1 MANUAL ENGLISH Pure Club 15 with DSP Order code: D3761 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Pure Club 15 with DSP Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Connection with the mains............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................6 Subwoofer .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● DAP Audio Pure Club 15 with DSP ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this system has to: ●... - Page 4 Pure Club 15 with DSP IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. ● Always disconnect power from the mains, when system is not used. Only handle the power cord by the plug.
-
Page 5: Operating Determinations
Pure Club 15 with DSP Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Description Of The Device

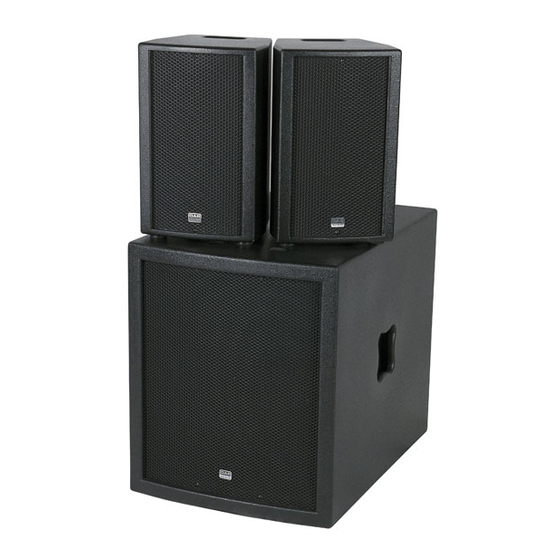

Features The Pure Club 15 with DSP consists of a 15" subwoofer and two 8"/1" satellites. The satellites are equipped with neodymium high drivers and a special wave guide for frequencies up to 20 kHz. Due to the 8" mid speakers, this set has a more detailed natural sound quality. -
Page 7: Overview
Pure Club 15 with DSP Overview Fig. 01 Order code: D3761... -
Page 8: Subwoofer
Pure Club 15 with DSP Subwoofer Fig. 02 01) Combo 3-pin XLR/6,3 mm jack connector, RIGHT INPUT Connect a line level device or a microphone. 02) RCA connector IN Connect a stereo line level source. 03) Combo 3-pin XLR/6,3 mm jack connector, LEFT INPUT Connect a line level device or a microphone. -
Page 9: Satellite
Connect the included subwoofer cabinet. (Pin connection: 1+, 1-) Installation Remove all packing materials from the Pure Club 15 with DSP. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Setup And Operation
Pure Club 15 with DSP Setup and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 110 V specification product on 230 V power, or vice versa. -
Page 11: Control Panel
Pure Club 15 with DSP Control Panel Press and turn the control to navigate through the menu options. Fig. 06 Display Off after 60 seconds When the control (05) is neither pressed or turned for 60 seconds, the display will turn off. -
Page 12: Mode
Pure Club 15 with DSP 1. Mode In this menu you can set the desired mode. 01) Turn the control (05) to select one of the 4 presets: 02) Press the control (05) to confirm. 2. Preset In this menu you can set the desired preset. -
Page 13: High Eq
Pure Club 15 with DSP 5. High EQ In this menu you can set the high equalizer. 01) Turn the control (05) to set the high equalizer. The adjustment range is between -12 dB and 12 dB. 02) Press the control (05) to confirm. -
Page 14: Limit
Pure Club 15 with DSP 9. Limit In this menu you can set the signal threshold. 01) Turn the control (05) to set the limit. The adjustment range is between -20 dB and 0 dB. 02) Press the control (05) to confirm. -
Page 15: Password Set
Pure Club 15 with DSP 13. Password Set In this menu you can change the password. 01) Turn and press the control (05) to insert the current password (default password: 1234). 02) Press the control (05) to confirm. 03) Turn and press the control (05) to insert the new password. -
Page 16: Store
Pure Club 15 with DSP 16. Store In this menu you can store the device’s current settings. 01) Turn the control (05) to select a desired slot. There are 6 slots. 02) Press the control (05) to confirm. 03) Turn the control (05) to select the character that needs to be edited. The NAME indicator will show its number (01–19). -
Page 17: Reset
Pure Club 15 with DSP 18. Reset In this menu you can restore the factory default settings. 01) Turn the control (05) to select one of the 2 options: ● NO: Return to the main menu. ● YES: Restore the factory default settings. -
Page 18: Connection Cables
Pure Club 15 with DSP Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 19: Maintenance
Pin 1- = Ground (-) Maintenance The Pure Club 15 with DSP requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 20: Troubleshooting
Pure Club 15 with DSP Troubleshooting No Sound Always check if all the cables and cords are connected. Always turn off power to the area before checking the wires, to prevent electric shock. If everything works properly and there is still no sound, revisit the manufacturer’s instructions to make sure they were followed during installation. -
Page 21: Product Specifications
Pure Club 15 with DSP Product Specifications Model: Pure Club 15 with DSP Power supply: 120/230 V AC, 50/60 Hz Power RMS: 2 x 150 W RMS (top amp), 400 W RMS (sub amp) Speaker low: 15", 2" Voice coil Speaker high: 8/1"... -
Page 22: Notes
Pure Club 15 with DSP Notes Order code: D3761... - Page 23 Pure Club 15 with DSP Order code: D3761...
- Page 24 ©2020 DAP Audio...
