Summary of Contents for DAPAudio Odin T-8 Line Array Satellite V1
- Page 1 USER MANUAL ENGLISH Odin T-8 Line Array Satellite Product code: D3970 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Odin T-8 Line Array Satellite Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety ..................................5 Warnings and Safety Instructions ........................ - Page 3 Odin T-8 Line Array Satellite Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 4: Introduction
Odin T-8 Line Array Satellite Introduction Before Using the Product Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. -
Page 5: Symbols And Signal Words
Odin T-8 Line Array Satellite Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
Odin T-8 Line Array Satellite Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions DANGER Danger for children... - Page 7 Odin T-8 Line Array Satellite Attention Speaker load ● Make sure that the total wattage of all connected speakers does not exceed the rated wattage of the amplifier. ● Make sure that the speaker cable run is appropriate for the total speaker load. Attention Power supply ●...
-
Page 8: Requirements For The User
Odin T-8 Line Array Satellite Attention Before each use, examine the device visually for any defects. Make sure that: ● There are no deformations on the housing. ● The power cables are not damaged and do not show any material fatigue. Attention Do not expose the device to conditions that exceed the rated IP class conditions. -
Page 9: Description Of The Device

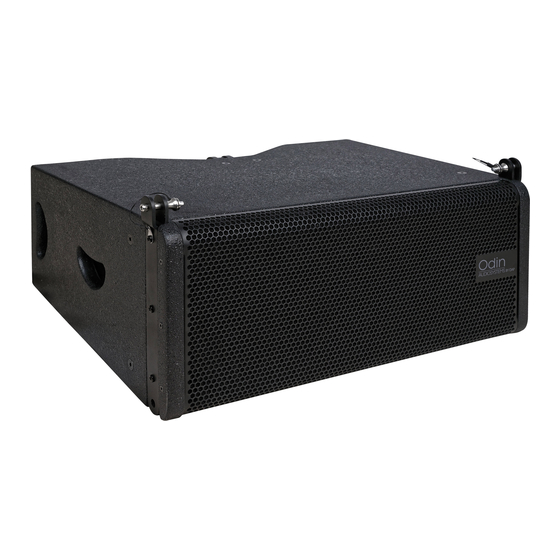

Odin T-8 Line Array Satellite Description of the Device The DAP Odin T-8 is an 800 W passive line-array satellite speaker. You can combine multiple devices in a stacked setup (up to 4 devices) or in a flown setup (up to 12 devices). The device has a 3 dB high- frequency boost switch. -
Page 10: Product Specifications
Odin T-8 Line Array Satellite Product Specifications Model: DAP Odin T-8 Line Array Satellite Physical: Dimensions: 465 x 649 x 300 mm (L x W x H) Weight: 20,7 kg Inputs: RMS input power: 800 W Peak input power: 1200 W Audio Specifications: Speaker system: 2-way line array... -
Page 11: Optional Accessories
Odin T-8 Line Array Satellite Optional Accessories You can additionally purchase the following accessories: D3910 (Odin FB-01 Flybar) D3911 (Odin FB-02 Flybar) D3912 (Odin PM-01 Polemount Adapter) D3913 (Odin CA-01 Connection Adapter) D8610 (DAP Distance Tube 35 mm) D8611 (DAP Distance Tube M20) Dimensions Fig. -
Page 12: Installation
Odin T-8 Line Array Satellite Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. Installation must be carried out only by instructed persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. ●... -
Page 13: Stacking Multiple Devices
Odin T-8 Line Array Satellite Stacking Multiple Devices You can stack multiple Odin T-8 Line Array Satellite devices in one setup. To stack multiple devices, follow the steps below: Put one device on another device. Push and hold down the buttons of the spring-loaded pins (02). Remove the spring-loaded pins (02). -
Page 14: Mounting Options
Odin T-8 Line Array Satellite Mounting Options CAUTION Restrict the access under the work area during installation and/or deinstallation. You can mount an array of devices in the following ways: ● on a distance pole ● on a fly bar (Odin FB-01 or Odin FB-02) Fig. -
Page 15: Installation On A Distance Pole
Odin T-8 Line Array Satellite Installation on a Distance Pole You can create a setup of 2 satellites on top of the Odin subwoofer, with an M20 distance pole (D8611). You need the Odin PM-01 Polemount Adapter (D3912) if you want to mount the device on a distance pole. -
Page 16: Installation With The Odin Fb-01 Flybar
Odin T-8 Line Array Satellite Installation with the Odin FB-01 Flybar WARNING Do not hang more devices on one fly bar than the maximum allowed number. You can fly a maximum of 12 x Odin T-8 Line Array Satellites on the Odin FB-01 Flybar. To connect the device to the Odin FB-01 Flybar, follow the steps below: Push and hold down the buttons of the spring-loaded pins (02/04). -
Page 17: Installation With The Odin Fb-02 Flybar
Odin T-8 Line Array Satellite Installation with the Odin FB-02 Flybar WARNING Do not hang more devices on one fly bar than the maximum allowed number. With the Odin T-8 Line Array Satellites with the Odin FB-02 Flybar, you can: ●... -
Page 18: Stacked Installation
Odin T-8 Line Array Satellite Stacked Installation In a stacked installation, the device is mounted to the top of the fly bar. To be able to install the device, you need to install the Odin CA-01 Connection Adapter (D3913) on the Odin FB-02 Flybar. -
Page 19: Setup And Operation
Odin T-8 Line Array Satellite Setup and Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is designed to be used as a passive satellite loudspeaker. It is suitable only for indoor use. Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use. -
Page 20: Setting The Crossover Filter
Odin T-8 Line Array Satellite To connect the device to a conventional amplifier and connect multiple speakers to each other: 01) Connect the speaker connector IN (10) of the first device to the output of the amplifier. Connect the speaker connector THRU (09) of the first device to the speaker connector IN (10) of the second device. -
Page 21: Troubleshooting
Odin T-8 Line Array Satellite Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 22: Deinstallation, Transportation And Storage
Odin T-8 Line Array Satellite Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation of the device. ●... - Page 23 Odin T-8 Line Array Satellite Product code: D3970...
- Page 24 ©2023 DAP...
