8#0#9HULILFDWLRQ#3URFHGXUHV •

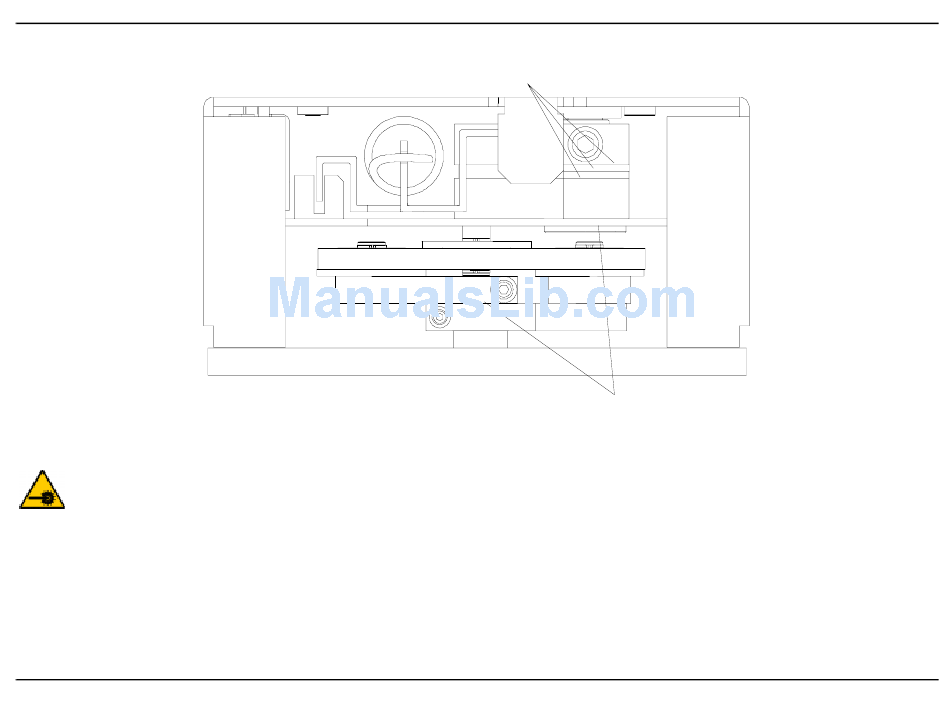

Figure 5-9 Shear Valve Driver Lubrication Points
VP-43 Optics Bench Cleaning Procedure
'$1*(5=#/$6(5#/,*+7 Avoid direct
exposure to laser beam. Refer to Introduction
Section 1.7 for detailed safety information.
Required Tools & Materials:
• Cotton Swabs
• High Grade Lens Paper (Kodak recommended - DO NOT
USE Baxter S/P, as it may scratch the lens.)
• Canned Air - Optics Grade
®
CELL-DYN 3200 SYSTEM SERVICE MANUAL
VP-43 Optics Bench Cleaning Procedure
3 2 0 82
2-3 D rop s O f O il 3 P lace s
F ront
2-3 D rop s O f O il 2 P lace s
Verification Procedure:
1. Clean the left side and rear fan filters.
2. Remove Analyzer top cover and plastic optics covers.
3. Close Laser Shutter.
4. Using pressurized air, remove dust and dirt from optics
bench and surrounding area.
−
Part Number 9140300 August 1998
5 - 40
