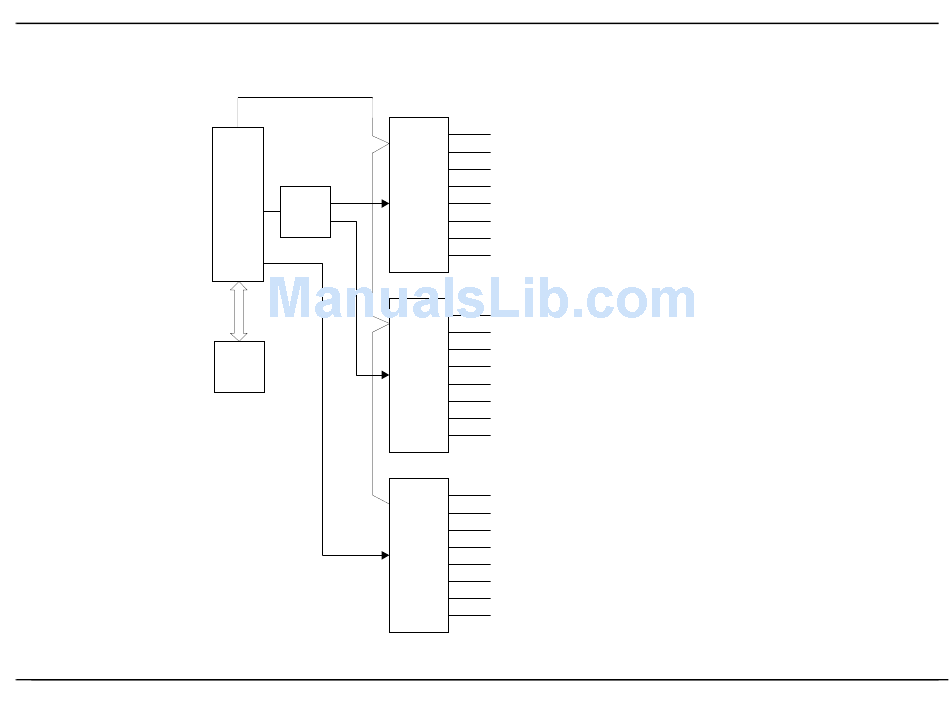

Figure 2B-6 Solenoid Driver Modules 5, 6, 9
CELL-DYN® 3200 SYSTEM SERVICE MANUAL
Figure 2B-6 Solenoid Dr Modules 5, 6, 9
Solenoid Data Bus
CLK
SDM 5
FCM
CDM 2
Peripheral
Bus
CPU/
SDM 6
DCM
CLK
CLK
SDM 9
32048
5-1 HGB Flow Cell Vent
5-2 Staging Pump Input
5-3 WBC Cup Vent
5-4 RBC/PLT Sample Staging
5-5 WBC Sample Staging
5-6 Optical Flow Cell Output
5-7 Optical Flow Cell Drain
5-8 Spare
6-1 Sheath Reservoir Vacuum (12" Hg)
6-2 Diluent Reservoir Vacuum (12" Hg)
6-3 Diluent Reservoir Pressure (5 psi)
6-4 Sheath Reservoir Pressure (9 psi)
6-5 Sheath Reservoir Output (NC)
6-6 Diluent Reservoir Output (NC)
6-7 WC1 Pressure (12 psi)
6-8 WC1 Vent
9-1 Optical Flow Cell Sheath Flow
9-2 WBC Cup Drain (WC3)
9-3 HGB Flow Cell Drain (WC3)
9-4 HGB Flow Cell Diluent Flush
9-5 RBC Mixing Chamber Diluent Flush
9-6 WBC Mixing Chamber Diluent Flush
9-7 WC4 Vacuum (12" Hg)
9-8 WC4 Pressure (12 psi)
−
Part Number 9140300
August 1998
2B - 7
