Summary of Contents for Vega VEGABAR 52

  • Page 1 Pressure measurement Process pressure/Hydrostatic VEGABAR 51 VEGABAR 52 VEGABAR 53 VEGABAR 54 Product Information...

  • Page 2: Table Of Contents

    Take note of safety instructions for Ex applications Please note the Ex specific safety information which you can find on our homepage www.vega.com\services\downloads and which comes with every instrument. In hazardous areas you should take note of the appropriate regulations, conformity and type approval certificates of the sensors and power supply units.

  • Page 3: Application, Function, Configuration

    100 bar. enables configuration of economical single measurements as well as connection to DCS and PLC systems. VEGABAR 52, 54 The sensor element of VEGABAR 52 is the dry ceramic-capaci- Special features of are the isolating diaphragm sys- VEGABAR 51 ®...

  • Page 4: Application Examples

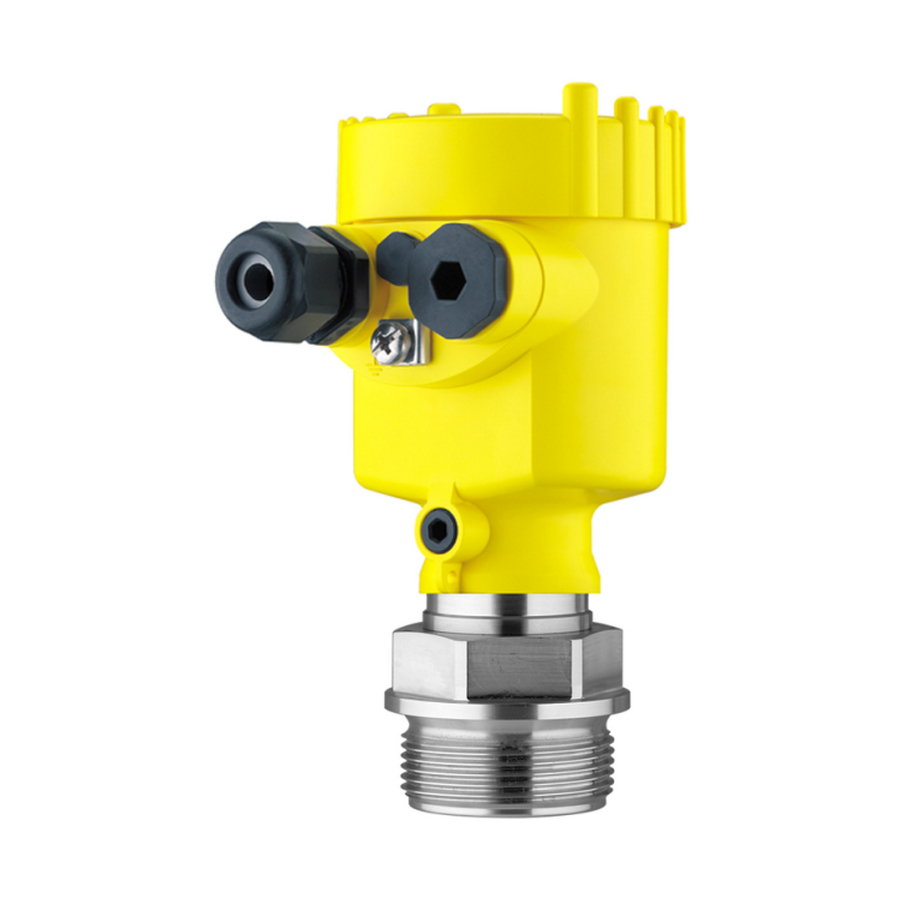

    IP 66/IP 67 and IP 66/IP 68, 1 bar, VEGA- BAR 54 also in IP 68: Fig. 3: Example of a VEGABAR 52 with manometer connection G½ A according to EN 837 and plastic housing in protection IP 66/IP 67 Housing cover with integrated PLICSCOM (optional) Fig.
  • Page 5 Information: Continuative documentation such as operating instruc- tions manuals and Safety Manual (SIL): 32455 - VEGABAR 51 27507 - VEGABAR 52 27513 - VEGABAR 53 32640 - VEGABAR 54 31637- SafetyManualVEGABAR 50/60 - 4 … 20 mA/ HART...

  • Page 6: Type Overview

    Type overview Type overview VEGABAR 51 VEGABAR 52 VEGABAR 52 - climate compensated ® ® ® Measuring cell: CERTEC /DMS CERTEC CERTEC Diaphragm: Metal Ceramic Ceramic Media: gases, vapours and liquids, also Gases, vapours and liquids Gases, vapours and liquids...
  • Page 7 Type overview VEGABAR 53 VEGABAR 54 VEGABAR 54 - climate compensated ® ® Measuring cell: Piezoresistive/DMS CERTEC CERTEC Diaphragm: Metal Ceramic Ceramic Media: Gas, vapours and liquids, also gases, vapours and liquids, also with gases, vapours and liquids, also with viscous abrasive substances abrasive substances...
  • Page 8 Type overview Indicating and adjustment module PLICSCOM Housing Plastic Stainless steel Aluminium Aluminium (double chamber) Electronics 4 … 20 mA/HART Profibus PA Foundation Field- Process fitting Thread Flange Sanitary Sensors ® CERTEC measur- Piezoresistive ing cell measuring cell Approvals Overfill protection Gas explosion pro- Dust-explosion pro- tection...

  • Page 9: Mounting Instructions

    330° without the use of any tools. You can also install the indicating and adjustment module in four different positions (each displaced by 90°). Information: We recommend using lock fittings, measuring instru- ment holders and siphons from the line of VEGA acces- sories. Process pressure/Hydrostatic – Pressure measurement...

  • Page 10: Electrical Connection

    4 … 20 mA/HART two-wire lations must be noted for the connection cable. The VEGA power supply units VEGATRENN 149AEx, VEGAS- TAB 690, VEGADIS 371 as well as VEGAMET signal condition- ing instruments are suitable for power supply. When one of these...

  • Page 11: Wiring Plan

    Electrical connection Wiring plan Single chamber housing Display I 2 C Fig. 12: Connection HART two-wire, Profibus PA, Foundation Fieldbus Voltage supply and signal output Double chamber housing - two-wire I 2 C Fig. 13: Connection HART two-wire, Profibus PA, Foundation Fieldbus Voltage supply and signal output Wire assignment, connection cable with version IP 66/IP 68, 1 bar...

  • Page 12: Operation

    A VEGACONNECT interface adapter as well as an instrument driver for the respective sensor is necessary for adjustment with PACTware. All currently available VEGA DTMs are included as a DTM Collection with the current PACTware version on a CD. They can be purchased for a token fee from the responsible VEGA agency.

  • Page 13: Adjustment With Other Adjustment Programs

    Operation ment family. This licence can be bought from the VEGA agency tions are already implemented in the current version of AMS™. serving you. For older versions of AMS™, a free-of-charge download is avail- able via Internet. Connection of the PC via VEGACONNECT Fig.

  • Page 14: Technical Data

    316L, Hastelloy C276, Hastelloy C2, Tantalum, Titanium, PTFE on 316Ti, - Process diaphragm gold-coating on 316L 0.8 … 8 kg (1.8 … 17.6 lbs), depending on the housing material and Weight approx. process fitting VEGABAR 52 Materials, wetted parts 316L, Hastelloy C276, PVDF - Process fitting ® - Diaphragm (99.9 % oxide ceramic Al...
  • Page 15 -20 °C 0 … 999 s, adjustable Damping (63 % of the input variable) Additional output variable, temperature (VEGABAR 52, 54) Processing is made via HART multidrop, Profibus PA and Foundation Fieldbus Range -50 … +150 °C (-58 … +302 °F) Only with sensors with integrated temperature measurement.
  • Page 16 - Turn down 1 : 1 up to 5 : 1 < 0.1 % - Turn down up to 10 : 1 < 0.02 % x TD VEGABAR 52, 54 - climate compensated < (0.05 + 0.025 x TD) % Deviation VEGABAR 53...
  • Page 17 Technical data Average temperature coefficient of the zero signal - Turn down 1 : 1 < 0.05 %/10 K - Turn down 1 : 1 up to 5 : 1 < 0.1 %/10 K - Turn down up to 10 : 1 <...
  • Page 18 -15 … +200 °C/-15 … +150 °C (+5 … +392 °F/+10 … +302 °F) - Med. white oil KN62 (FDA) and temperature adapter 300 mm -15 … +250 °C/-15 … +170 °C (+5 … +482 °F/+10 … +338 °F) VEGABAR 52 Product temperature depending on the measuring cell seal - FKM (A+P 70.16-06) -40 …...
  • Page 19 Permissible residual ripple - < 100 Hz < 1 V - 100 Hz … 10 kHz < 10 mV VEGABAR 52, 54 Supply voltage 12 … 36 V DC - Non-Ex instrument 12 … 30 V DC - EEx-ia instrument Permissible residual ripple - <...
  • Page 20 VEGABAR 51 Supply voltage 9 … 32 V DC - Non-Ex instrument 9 … 24 V DC - EEx-ia instrument VEGABAR 52, 54 Supply voltage 9 … 32 V DC - Non-Ex instrument 9 … 24 V DC - EEx-ia instrument...
  • Page 21 DIN EN ISO 14001 VEGA environment management system You can find detailed information under www.vega.com. Instruments with gauge pressure measuring ranges cannot detect the ambient pressure when submerged, e.g. in water. This can lead to falsification of the measured value.

  • Page 22: Dimensions

    Dimensions Dimensions Housing in protection IP 66/IP 67 IP 68 version with external housing ~ 59 mm 65 mm ~ 69 mm ~ 87 mm (3 ") ~ 69 mm ") ") ") ø 84 mm ø 80 mm ø 77 mm ") ø...
  • Page 23 Dimensions VEGABAR 51 - threaded version VEGABAR 51 - tube isolating diaphragm SW 41 mm SW32 SW41 G¾B ø 30 mm (1.18") ø 22 mm (0.87") ø 25 mm ø 32 mm (0.98") (1.26") ø 39 mm (1.54") 6…400 28,5 2“...
  • Page 24 ") ") Fig. 27: VEGABAR 52 GV/GT/GC = G½ A manometer connection EN 837, GP/GL/ GU/GK = G½ A inner G¼ A, GS = G½ A inner G¼ A PVDF, GI = G½ A manometer connection volume-reduced, GN/GM = ½ NPT, GB = M20 x 1.5 manometer con- nection EN 837 Fig.
  • Page 25 Dimensions VEGABAR 54 - flange fitting 1 VEGABAR 54 - hygienic fitting SW46 ø 78 mm (3.07") ø 84 mm (3.31") ø 92 mm (3.62") ø 78 mm (3.07") RA/RB EA, FB, FM, FH, FI 4xø18 4xø18 8xø18 2“ 150 lbs 6"...
  • Page 26 Dimensions VEGABAR 54 - fitting for paper industry 2 SW36 SW36 G1" G1" ø 24,7 mm ø 24,7 mm ") ") ø 29,3 mm ø 29,3 mm ") ") Fig. 39: VEGABAR - connection for paper industry: VP = G1" PASVE, VR = G1" PASVE with O-ring seal Process pressure/Hydrostatic –...

  • Page 27: Product Code

    Product code Product code VEGABAR 51 VEGABAR 52 Approval Approval XX without XX without XM Ship approval XM Ship approval CX ATEX II 1G, 1/2G, 2G EEx ia IIC T6 CX ATEX II 1G, 1/2G, 2G EEx ia IIC T6...
  • Page 28 VEGABAR 53 VEGABAR 54 Approval Approval XX without XX without XM Ship approval XM Ship approval CX ATEX II 1G, 1/2G, 2G EEx ia IIC T6 CX ATEX II 1G, 1/2G, 2G EEx ia IIC T6 CM ATEX II 1G, 1/2G, 2G EEx ia IIC T6 + Ship approval CM ATEX II 1G, 1/2G, 2G EEx ia IIC T6 + Ship approval GX ATEX II 1/2D,2D IP6X T GX ATEX II 1/2D,2D IP6X T...
  • Page 29 Process pressure/Hydrostatic – Pressure measurement...
  • Page 30 Process pressure/Hydrostatic – Pressure measurement...
  • Page 31 Process pressure/Hydrostatic – Pressure measurement...
  • Page 32 VEGA Grieshaber KG Am Hohenstein 113 77761 Schiltach Germany You can find at www.vega.com Phone +49 7836 50-0 downloads of the following Fax +49 7836 50-201 operating instructions manuals E-Mail: info@de.vega.com menu schematics www.vega.com software certificates approvals and much, much more...
