AMAX panel
AMAX panel 2100 | AMAX panel 3000 |
AMAX panel 3000 BE | AMAX panel 4000
en
User Manual

Advertisement

   Also See for Bosch AMAX panel 2100

   Summary of Contents for Bosch AMAX panel 2100

  • Page 1

    AMAX panel AMAX panel 2100 | AMAX panel 3000 | AMAX panel 3000 BE | AMAX panel 4000 User Manual...

  • Page 3: Table Of Contents

    Bypassing Bypassing/Unbypassing Zones 6.1.1 How to Bypass/Unbypass a Zone via Text Keypad 6.1.2 How to Bypass/Unbypass a Zone via LED/LCD Keypad Bypassing Faults or Tamper Conditions Schedules Macros Recording Macros Playing Macros Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 4

    How to Select Dialer Event Log Recall Mode Faults and Tamper Conditions 13.1 System Fault or Tamper Analysis Mode via Text Keypad 13.2 System Fault or Tamper Analysis Mode via LED/LCD Keypad Resetting the Control Panel Troubleshooting 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 5: Safety

    – Always handle the system carefully. – Never open or modify the system. – Please contact your installer if you want to get your system modified. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 6: Short Information

    This manual contains information on how to operate the system easily and quickly. It describes the main steps required for operation of the AMAX panel 2100/3000/4000 together with a text and/or a LED/LCD keypad described in Keypads, page 6. It is possible to add an optional text keypad as a master keypad.

  • Page 7

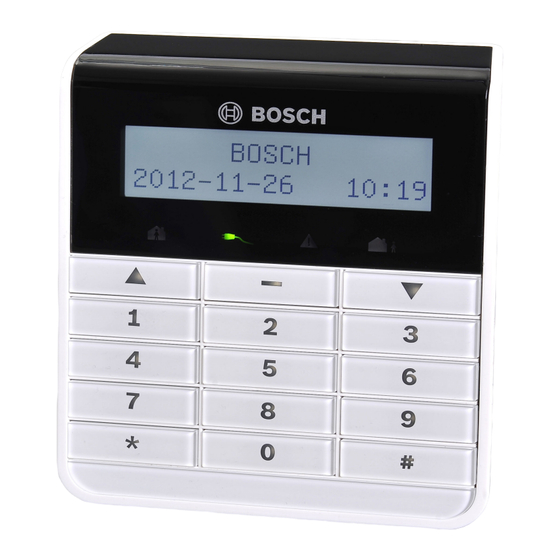

    AMAX panel Short information | en IUI-AMAX3-LED8 IUI-AMAX3-LED16 IUI-AMAX-LED8 IUI-AMAX-LCD8 Notice! Only a text keypad can be used as a master keypad. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 8: Keypad Indicators

    Exit time. lights on/1 second lights off) Fast flash (0.25 Programming mode or seconds lights on/0.25 code function mode. seconds lights off) STAY indicator flashes simultaneously. System is armed in STAY mode. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 9

    System fault or Tamper condition is present. System is in normal FAULTS status. Flashes System fault or tamper condition must be acknowledged. System is disarmed. All icons Flashing No communication to the keypad. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 10: Quick Keypad Operations Instructions

    The following table shows an overview of the quick keypad operations and the corresponding user permissions. For information on changing codes and defining user permission levels, please refer to Codes, page 32. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 11

    [code] + [2-digit area no.] + √ √ √ √ √ √ (only on a master keypad) Disarm All Areas [code] + [#] √ √ √ √ √ √ (only on master keypad) Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 12

    √ √ √ √ sequence to be recorded + [#] for 3 sec. Play Macro 1 [code] + long press [1] / * * * * * * √ [1] for 3 sec. (quick macro) 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 13

    Siren Test [code] + [4] [1] + [#] √ √ √ Communication [code] + [4] [2] + [#] √ √ √ Test Walk Test [code] + [4] [3] + [#] √ √ √ Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 14

    M1 = Master User 1 M2 = Master User 2 IN = Installer * This function can be enabled/disabled individually for every user. For further information, please refer to Add/Change User Codes, page 32. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 15: User Menu

    DAYL.SAV.TIME -1h ADD/CHG USER CODE CHANGE INDIV CODE INITIATE CALL BACK CHANGE LANGUAGE MACRO START INPUT MACRO No 1-3 RECORD :END # 3s START PLAY SCHEDULE ENABLE INSTALLER ACCESS ENABLE INSTALLER DISABLE INSTALLER Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 16: Arming And Disarming The System

    After the exit time, the AWAY indicator is lit. Please contact your installer to enable/disable this function. Master Keypad Arming With a master keypad, either all areas or a single area can be armed in AWAY mode. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 17

    Key Switch Arming Users can use a key switch to arm the system. Activate the key switch. The AWAY indicator flashes slowly and exit time starts. After exit time, the AWAY indicator is lit. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 18: Arming In Stay Mode

    STAY indicator is lit. Please contact your installer to enable/disable this function. Master Keypad Arming With a master keypad, either all areas or a single area can be armed in AWAY mode. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 19: Forced Arming

    STAY indicator is lit. Please contact your installer to enable/disable this function. 3.1.3 Forced Arming Arming the system when a zone is not sealed is known as forced arming. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 20

    AWAY mode, then forced arming is not permitted. In this case, you have to seal all zones or manually isolate them before you can arm the system. Please contact your installer to enable/disable this function. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 21: Disarming The System

    The system is disarmed and the AWAY or STAY indicator is extinguished. Please contact your installer to enable/disable this function. 3.2.4 Disarming with RADION RF Keyfob Press the disarming button of the RADION RF keyfob. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 22

    | Arming and Disarming the System AMAX panel The system is disarmed and the AWAY or STAY indicator is extinguished. Please contact your installer to enable/disable this function. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 23: Changing The Menu Language

    Enter your code + [5] [8] and press [#]. The available menu languages are displayed. Enter the two-digit number for the desired language. Press [#]. The system beeps twice and the menu language is changed. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 24: System Test

    The system beeps twice and the STAY and AWAY indicators flash. Unseal and seal the zones to be tested. The system beeps. The siren beeps once each time a zone status is changed. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 25

    AMAX panel System Test | en How to Exit Walk Test Mode: Enter your code + [4] [3] and press [#]. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 26: Bypassing

    Enter the zone number you want to bypass/unbypass. Press [*]. The system beeps twice. The corresponding number indicator is lit/extinguished. Repeat step 2 if you want to bypass/unbypass multiple zones. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 27: Bypassing Faults Or Tamper Conditions

    Only zone tampers can not be bypassed. How to bypass a Fault or Tamper Condition Enter your code + [3] [4] and press [#]. The system beeps twice and fault or tamper conditions are bypassed. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 28: Schedules

    Enter the two-digit schedule number you wish to activate/ deactivate. The selected schedule is checked/unchecked. Repeat step 6 if you want to activate/deactivate multiple schedules. Press [#]. Press [-] twice to exit. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 29: Macros

    This can be useful if you want to bypass zone 3 on a regular basis. In this example there are no bypassed zones yet. Enter your code + [8] [1]. Press [#]. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 30

    Press [#] for three seconds to end the recording of the macro and to save it. The system beeps twice. The macro 1 for bypassing zone 3 is recorded. Zone 3 is bypassed. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 31: Playing Macros

    The system beeps and the macro 1 is executed automatically. If zone 3 was unbypassed before playing macro 1, it is bypassed now. If zone 3 was bypassed before playing macro 1, it is unbypassed now. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 32: Codes

    5-Duress code 6-Not used Please refer to Quick Keypad Operations Instructions, page 10 for a description of the user permission levels. Press [#]. The available areas are shown. Already selected areas are checked. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 33

    The keyfob ID will be entered automatically. 15. Press [#]. 16. Optionally select the keyfob button 3 function. 17. Press [#]. The system beeps twice. The new user code is added/ changed. Press [-] twice to exit. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 34: Change Individual Code

    Press [#]. The system beeps twice and the STAY and AWAY indicators stop flashing. The user code is changed. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 35: Keypad Alarm Operation Commands

    Please contact your installer to enable/disable this function. 10.3 Keypad Medical Alarm Press and hold [7] + [9] for three seconds. A silent keypad medical alarm is transmitted. Please contact your installer to enable/disable this function. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 36: Domestic Dialing

    45 seconds if it can not detect the acknowledgement tone and redial later. Press [#] between two acknowledgement tones to confirm the alarm. The system beeps for two seconds and closes the line. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 37: Event Log Recall Mode

    Enter your code + [2] [4] and press [#]. The system beeps twice and dialer events are displayed. Use [▲] and [▼] to display all dialer event logs. Press [#] to exit. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 38: Faults And Tamper Conditions

    Example: 2. Enter the number that is lit in the system. Example: 2. One of the number indicators is lit. Example: 1. Repeat step 2 until there is no number lit anymore. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 39

    Example: 2 – 1, which indicates a panel AC failure. If necessary press [0] to return to step 2. Press [#] to exit. The STAY and AWAY indicators are extinguished and the FAULT indicator is lit. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 40

    RF receiver 1 missing RF receiver 1 jammed RF sensor failure RF sensor missing* RF sensor fault* RF repeater failure 1 – 8 RF repeater 1 – 8 missing RF config failure 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 41

    1 - 2 Panel Aux power 1 – 2 fault Bosch option bus power failure 1 - 2 Bosch option bus 1 – 2 power fault RF repeater AC power failure 1 - 8 RF repeater 1 – 8 AC power fault RF repeater battery failure 1 –...

  • Page 42

    RF receiver tamper RF receiver tamper RF repeater tamper 1 – 8 RF repeater tamper External failure 1 - 16 External fault zone 1 - 16 Table 13.1: Types of fault or tamper conditions 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 43

    AMAX panel Faults and Tamper Conditions | en * In case one or more faults occur in this category Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 44: Resetting The Control Panel

    Notice! You can only reset alarms, faults or tamper conditions when they are not active anymore. Enter your code + [6] [#]. The system beeps twice and the signal is eliminated. 2015.05 | 04 | F.01U.295.569 Bosch Sicherheitsysteme GmbH...

  • Page 45: Troubleshooting

    AMAX panel Troubleshooting | en Troubleshooting Please contact your installer in case of problems or any unexpected behavior of the system. Bosch Sicherheitsysteme GmbH 2015.05 | 04 | F.01U.295.569...

  • Page 48

    Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2015...
