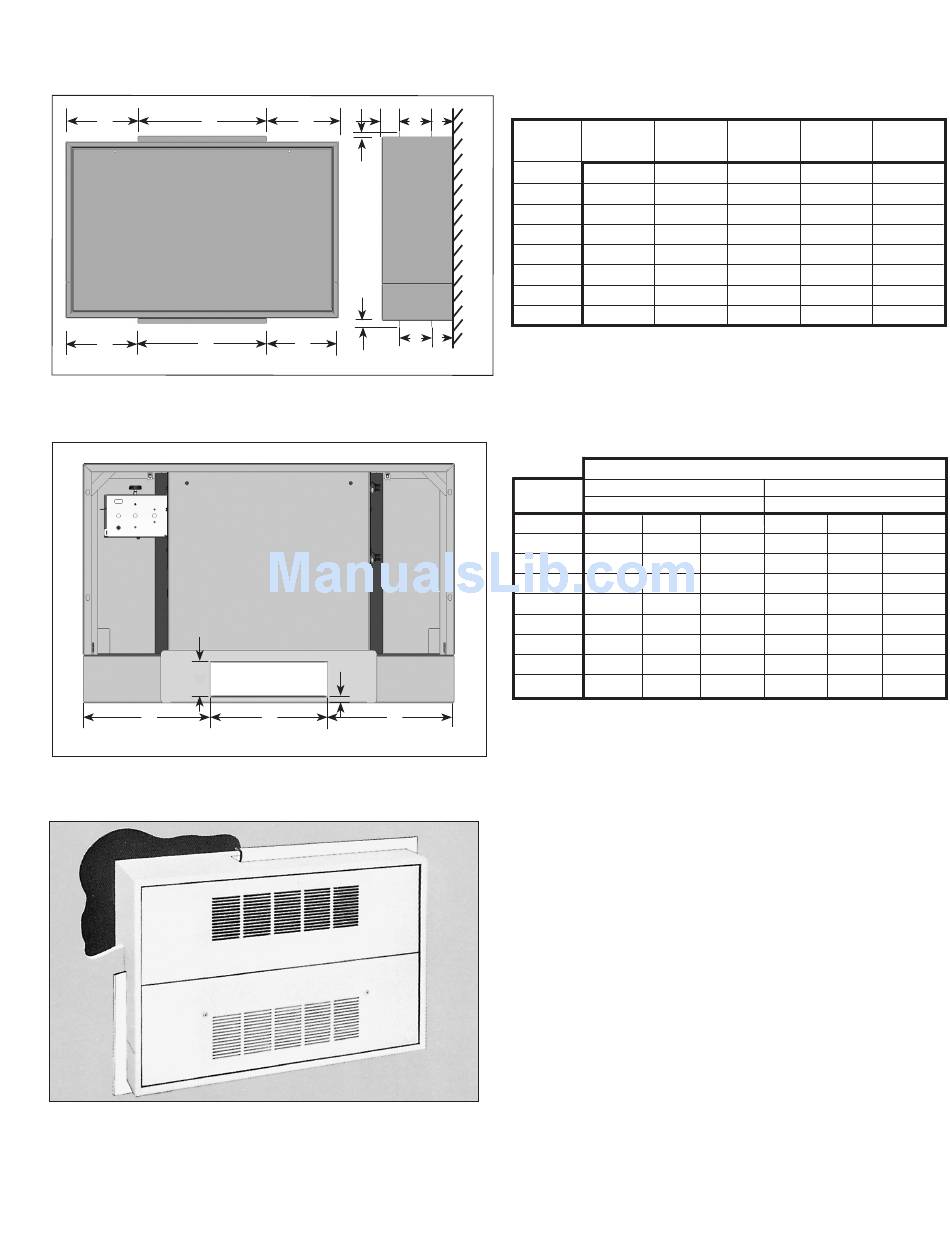

DIMENSIONAL DATA - ACCESSORIES / OPTIONS
Figure 11.1
Model WCC - Duct Collars
C A
A
C
Figure 11.2
Model FC - Outside Air Duct Collar
B
C
Figure 11.3
Model WCC - Permalap Frame
E
C D B
3/4"
3/4"
E
B
C
3/4"
A
C
AIR11-500.6
Table 11.1 ➀ ➁
Model WCC
100% Air Inlet or Outlet Duct Collars
Unit
Size A B
002
18-1/4 4-1/4
003 23-1/4 4-1/4
004 28-1/4 4-1/4
006 41-1/4 4-1/4
008
44-1/4 4-1/4
010 44-1/4 5-1/4
012 58-1/4 4-1/4
014 58-1/4 5-1/4
Table 11.2 ➀ ➁
Model FC
25% and 100% Fresh Air Duct Collar
Outside Air Percentage
Nomen 25%
Digit 18
1, 3, or 6
Unit Size A B
002
12 1/4 3 1/2
003 12 1/4 3 1/2
004 12 1/4 3 1/2
006 12 1/4 3 1/2
008
24 1/4 3 1/2
010 24 1/4 3 1/2
012 24 1/4 3 1/2
014 24 1/4 3 1/2
➀ All dimensions are in inches.
➁ Includes 3/4" top and bottom duct flanges for duct connection.
C D
10-3/8 2-1/2
10-3/8 2-1/2
10-3/8 2-1/2
10-3/8 2-1/2
10-7/8 2-1/2 5-1/4
10-7/8 2-1/2 4-1/4
12-7/8 2-1/2 5-1/4
12-7/8 2-1/2 4-1/4
100%
2, 4, or 5
C A B
13 1/4 18 1/2 4 1/4
15 3/4 23 1/2 4 1/4
18 1/4 28 1/2 4 1/4
24 3/4 41 1/2 4 1/4
23 3/4 44 1/2 4 1/4
23 3/4 44 1/2 5 1/4
29 3/4 58 1/2 4 1/4
29 3/4 58 1/2 5 1/4
E
3
3
3
3
C
10 1/8
10 1/8
10 1/8
10 1/8
13 5/8
13 5/8
12 5/8
12 5/8
11
