TANDBERG Quick Set C20/C20 Plus and Profiles using C20
Contents
Contents
Introduction
Introduction

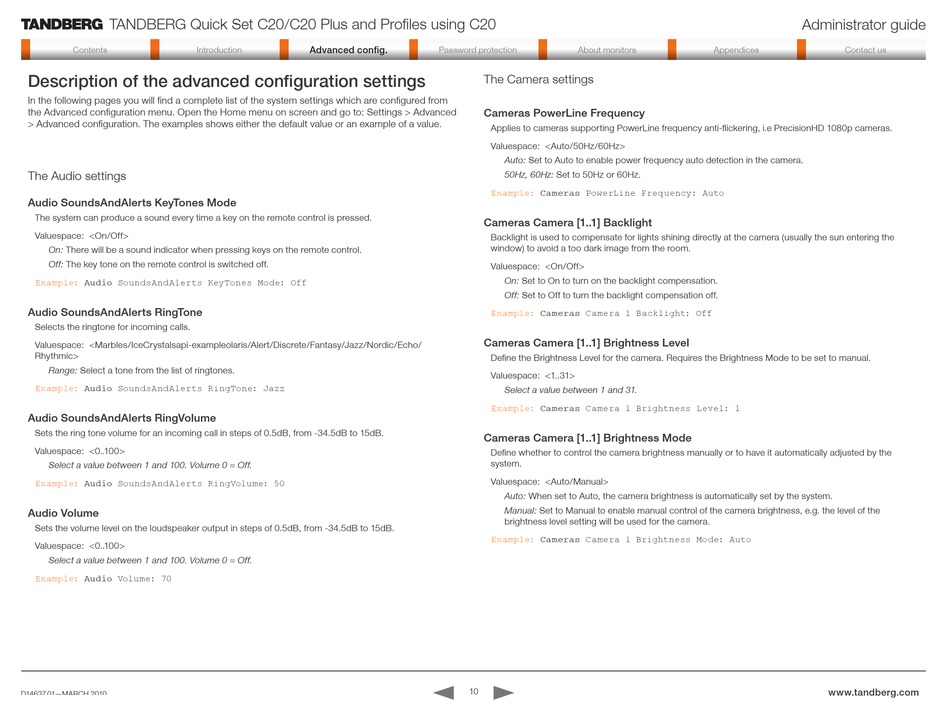

Description of the advanced configuration settings
In the following pages you will find a complete list of the system settings which are configured from
the Advanced configuration menu. Open the Home menu on screen and go to: Settings > Advanced
> Advanced configuration. The examples shows either the default value or an example of a value.
The Audio settings
Audio SoundsAndAlerts KeyTones Mode
The system can produce a sound every time a key on the remote control is pressed.
Valuespace: <On/Off>
On: There will be a sound indicator when pressing keys on the remote control.
Off: The key tone on the remote control is switched off.
Example:
Audio SoundsAndAlerts KeyTones Mode: Off
Audio SoundsAndAlerts RingTone
Selects the ringtone for incoming calls.
Valuespace: <Marbles/IceCrystalsapi-exampleolaris/Alert/Discrete/Fantasy/Jazz/Nordic/Echo/
Rhythmic>
Range: Select a tone from the list of ringtones.
Example:
Audio SoundsAndAlerts RingTone: Jazz
Audio SoundsAndAlerts RingVolume
Sets the ring tone volume for an incoming call in steps of 0.5dB, from -34.5dB to 15dB.
Valuespace: <0..100>
Select a value between 1 and 100. Volume 0 = Off.
Example:
Audio SoundsAndAlerts RingVolume: 50
Audio Volume
Sets the volume level on the loudspeaker output in steps of 0.5dB, from -34.5dB to 15dB.
Valuespace: <0..100>
Select a value between 1 and 100. Volume 0 = Off.
Example:
Audio Volume: 70
D14637.01—MARCH 2010
Advanced config.
Advanced configuration
Advanced configuration
Password protection
Password protection
10
About monitors
About monitors
The Camera settings
Cameras PowerLine Frequency
Applies to cameras supporting PowerLine frequency anti-flickering, i.e PrecisionHD 1080p cameras.
Valuespace: <Auto/50Hz/60Hz>
Auto: Set to Auto to enable power frequency auto detection in the camera.
50Hz, 60Hz: Set to 50Hz or 60Hz.
Example:
Cameras PowerLine Frequency: Auto
Cameras Camera [1..1] Backlight
Backlight is used to compensate for lights shining directly at the camera (usually the sun entering the
window) to avoid a too dark image from the room.
Valuespace: <On/Off>
On: Set to On to turn on the backlight compensation.
Off: Set to Off to turn the backlight compensation off.
Example:
Cameras Camera 1 Backlight: Off
Cameras Camera [1..1] Brightness Level
Define the Brightness Level for the camera. Requires the Brightness Mode to be set to manual.
Valuespace: <1..31>
Select a value between 1 and 31.
Example:
Cameras Camera 1 Brightness Level: 1
Cameras Camera [1..1] Brightness Mode
Define whether to control the camera brightness manually or to have it automatically adjusted by the
system.
Valuespace: <Auto/Manual>
Auto: When set to Auto, the camera brightness is automatically set by the system.
Manual: Set to Manual to enable manual control of the camera brightness, e.g. the level of the
brightness level setting will be used for the camera.
Example:
Cameras Camera 1 Brightness Mode: Auto
Administrator guide
Appendices
Appendices
Contact us
Contact us
www.tandberg.com
